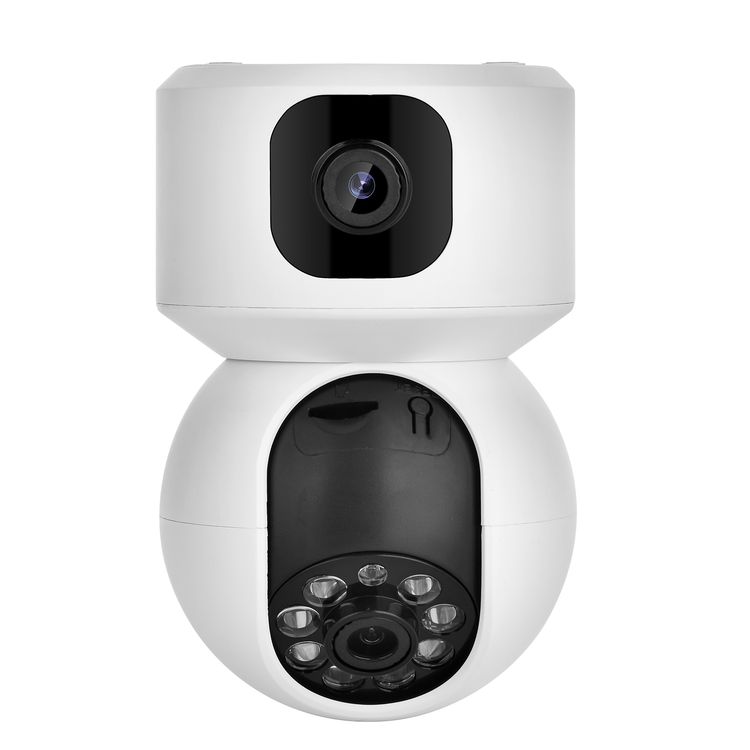

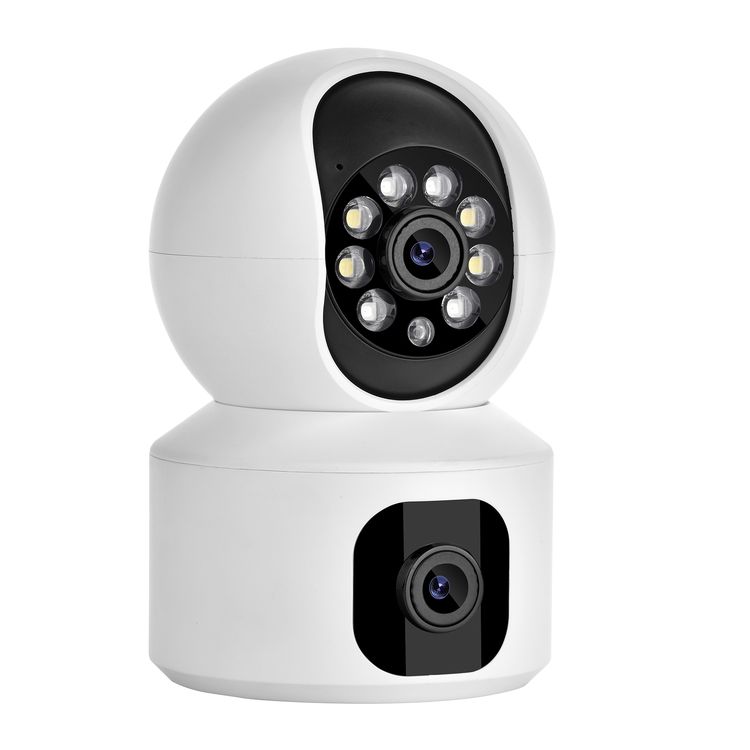

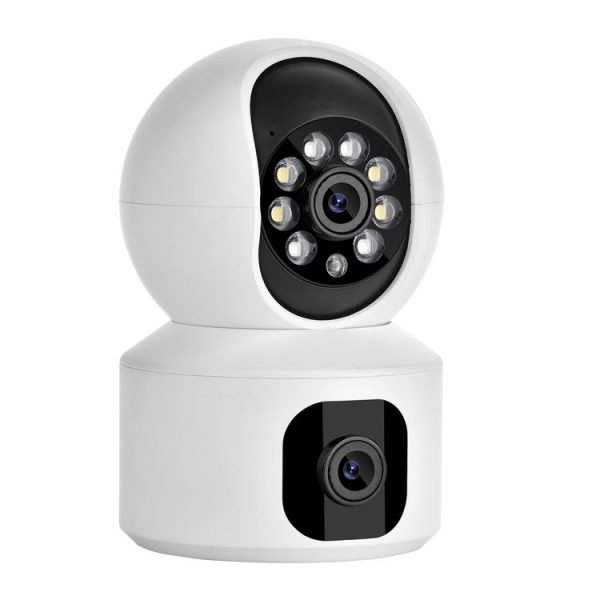

Overview
1. Main Processor: Dual-core 32-bit DSP (XM650V200), pure hard compression, watchdog
2. Image sensor: 2pcs 2MP 1/2.8″ SC233A High performance CMOS sensors
3. Operation System: Embedded LINUX operating system
4. Video Compression: Smart H.265X
5. APP: Super Look (Android and IOS support)
6. High Definition: 2*2MP
7. Image resolution: Main code stream: 1920*2160@12fps; Substream: 800*896@12fps
8. Minimum illumination: 0.01 LUX/pro series
9. Lens: 3.6mm(standard)
10. Perspective: 92 degree
11. Turn video: Flip up and down/flip side to side
12. Light control mode: Starlight full color/intelligent warning/infrared night vision
13. Number of lights: 8 red lights +4 white lights
14. PTZ control: (rotation angle) horizontal 355 degree, Vertical 90 degree
15. Turn PTZ: Flip up and down/flip side to side
16. Coding standard: G.711
17. Microphone: support
18. Speaker: support
19. Video file size: about 6G / day
20. Record Mode: Manual video recording, dynamic detection video recording, timing video recording, alarm video
21. Video storage: TF card/cloud
22. Storage: Cloud Storage + TF Local Video recording (128GB Max)
23. Remote playback: support
24. Image capture: support
25. WIFI: 2.4G WIFI 802.11b/g/n
26. Pairing WiFi: Smartlink distribution network addition, AP hotspot addition, QR code scanning
27. Network Protocol: TCP/IP, ONVIF, RTSP
28. Reset key: support
29. Human tracking: support
30. 360degree coordinate positioning: support
31. Power: DC 5V 1.6A
32. power interfac: Micro Type-A

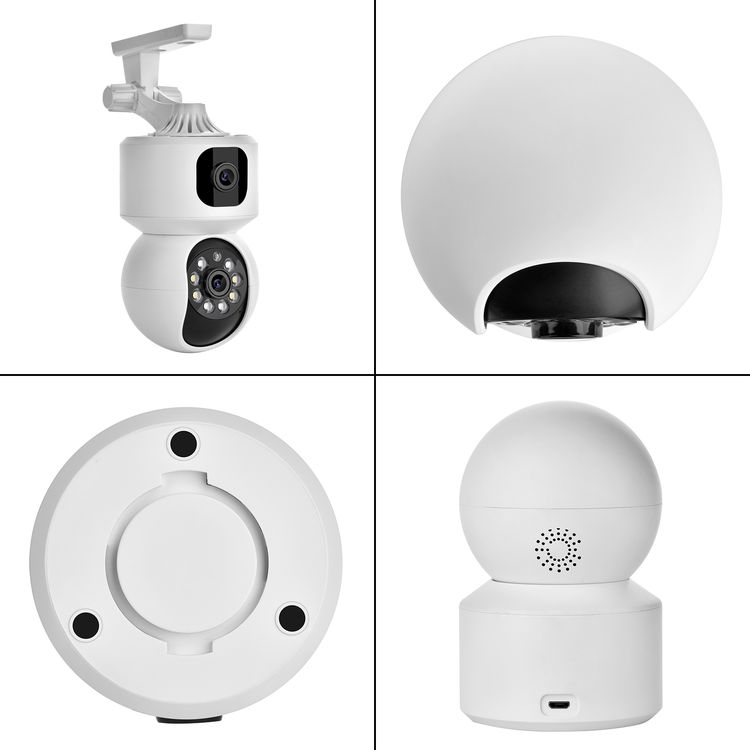

33. Product size: 78x78x120mm
34. Net weight: 205g
Packaging list:
– 2MP smart cloud camera (excluding TF Card) x 1
– User manual x 1
– Screw pack x 1
– Stents x 1
– Power adapter x 1
– Power cord x 1
Additional Information
Model: YT66
Power Supply: DC 5V 1.6A
Memory: TF Card, up to 128GB (not included)
View Angle: 92 degree
Wireless: WiFi 802.11 b/g/n
Protocol: RTSP, TCP/IP, ONVIF
Online Visitor (Max.): 6
Sensor: SC233A
Image Sensor: CMOS
Sensor Size: 1/2.8 inch Progressive Scan
Pixels: 2.0MP
Lens: 3.6mm
Pan/Tilt-Horizontal Angle: 355 degrees
Pan/Tilt-Vertical Angle: 90 degree
Minimum Illumination: 0.01Lux
Configuration: 8 infrared LEDs
Size: 78x78x120mm
Weight: 205g
Package Contents: 1 x Camera, 1 x Power Adapter (US, UK, EU, AU Optional), 1 x Bracket, 1 x User Manual, 1 x Power Cable, 1 x Screws Set
Weight: 0.403kg
Size: 9cm x 9cm x 15cm
