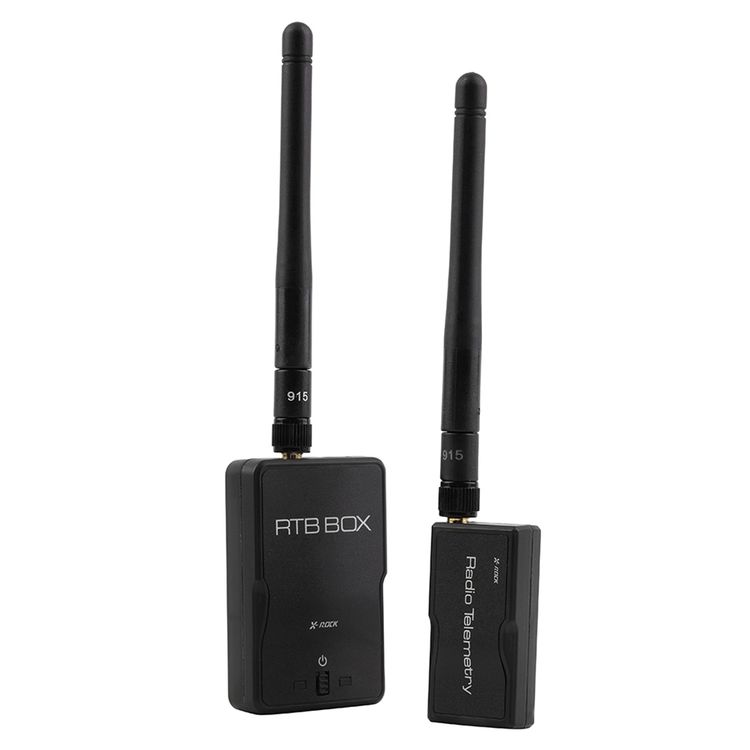

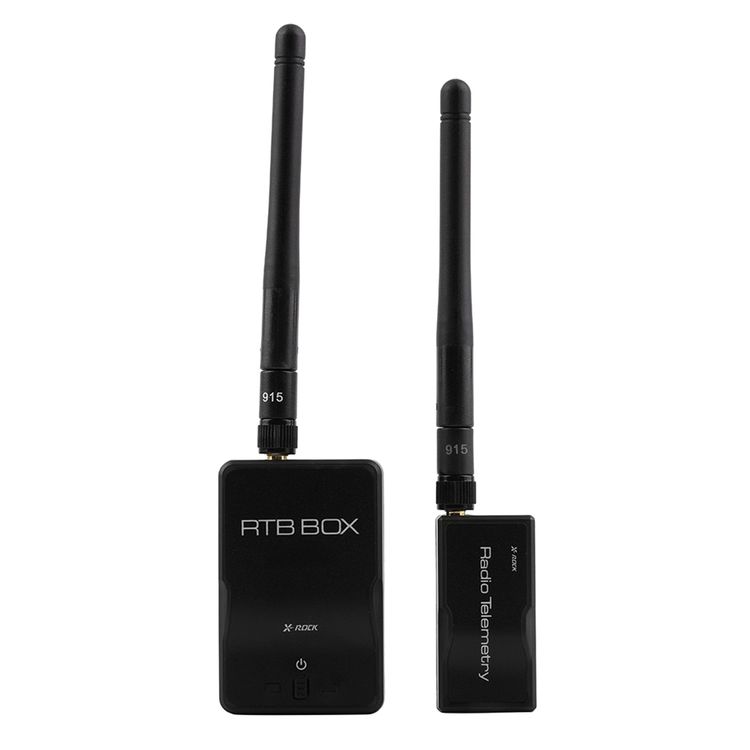

X-ROCK V1-11 915MHz 100mw RTB Bluetooth Box and V3.0 Radio Telemetry Module for 3DR / APM / PIX


R1114

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

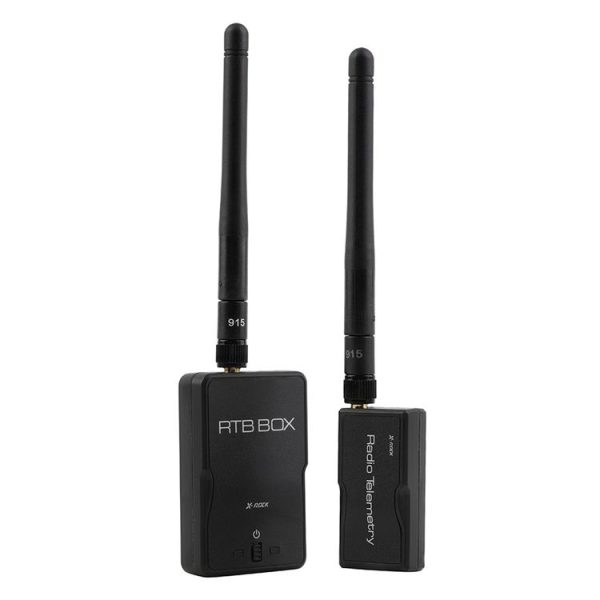

1. An air module and a ground module
2. Wireless communication module designed for real time data exchange between open source autopilot (such as APM, PX4, PIXHAWK) and ground station
3. Small volume, low power consumption, high data rate, stable performance, strong anti-interference ability and far communication distance

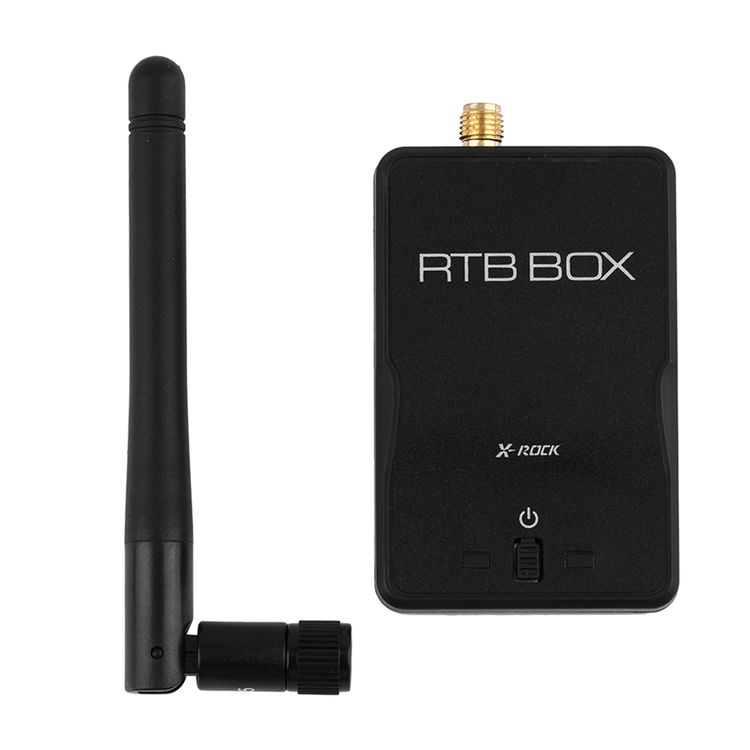

Power Requirement of Ground Module
-VBAT: 3.7V(LiPo)
-Battery Capacity: 800mAh
-USB Charging Voltage: 4.5~5.5V
-Charging Current: 500mA
-Operating Current: 100mA
-Standby Current: 12mA
-Working Hours: 7h(Full Power)

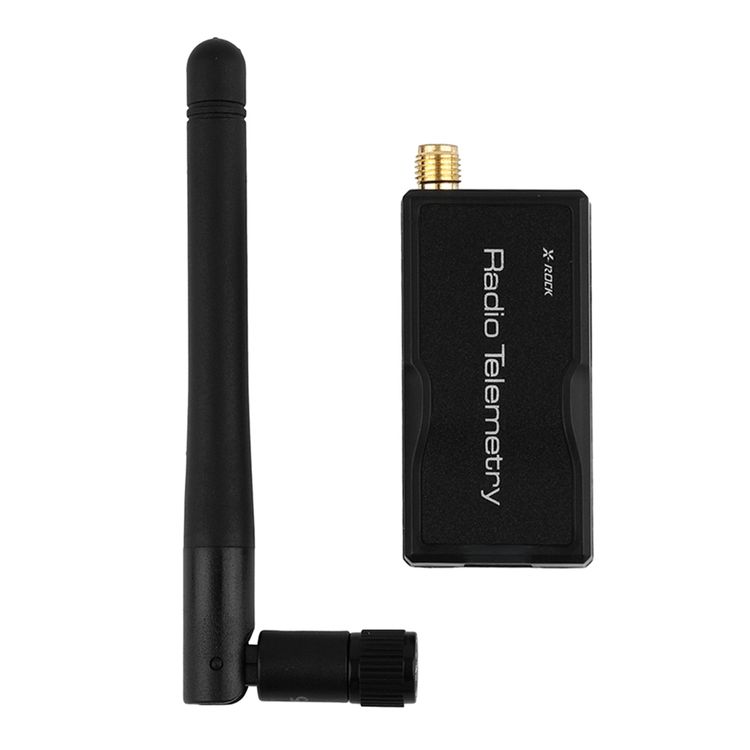

Power Requirements of Air Module
-Working Voltage: 3.7V~6V DC
-Emission Current: 100mA@30 dBm
-Receiving Current: 25mA

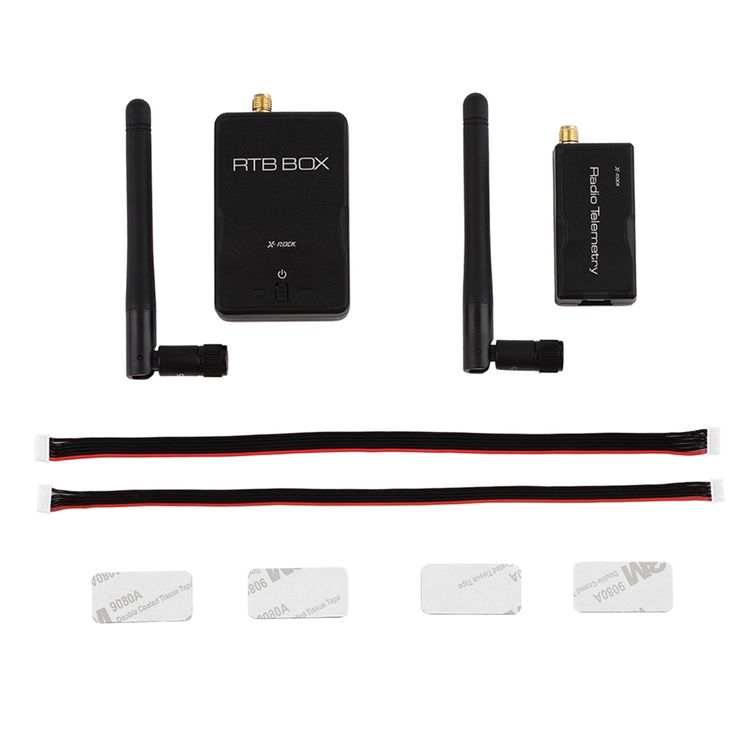

Package includes

1 x Ground Module
1 x Air Module
2 x Antenna
1 x 6-to-5-Pin Connector Cable
1 x 6-Pin Connector Cable
4 x Double-sided Tape

Additional Information

General

Model: V1-11
Material: Plastic
Bluetooth Distance: 8-15m
Operating Temperature: -10 ~ 60 Celsius degree

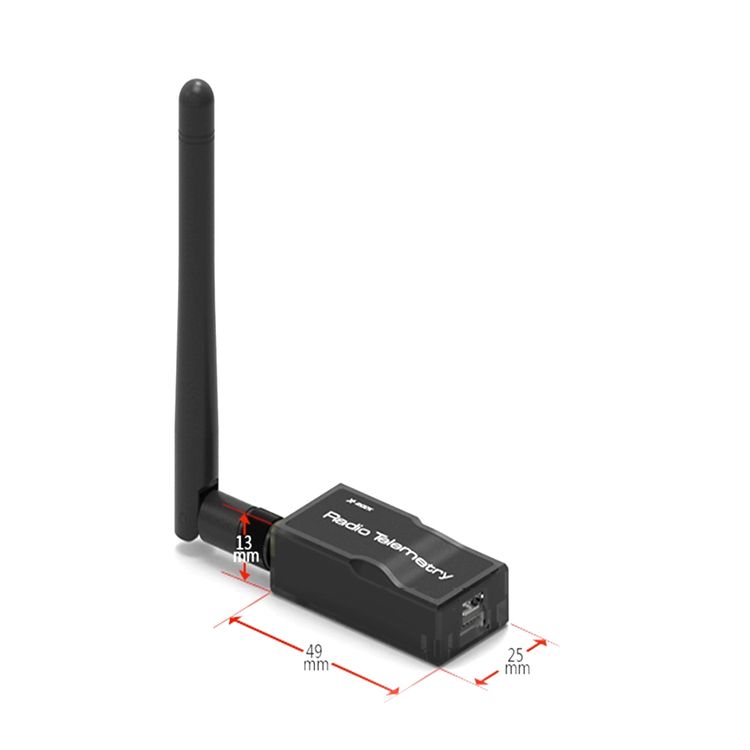

Product Size: 63*41*15mm(Ground Module)/49*25*13mm(Air Module)
Weight: 44g(Ground Module)/22.5g(Air Module)

Weight & Size

Weight: 0.169kg
Size: 24cm x 9cm x 3cm

SKU: A0100067851 Category: Tag: Condition: New
