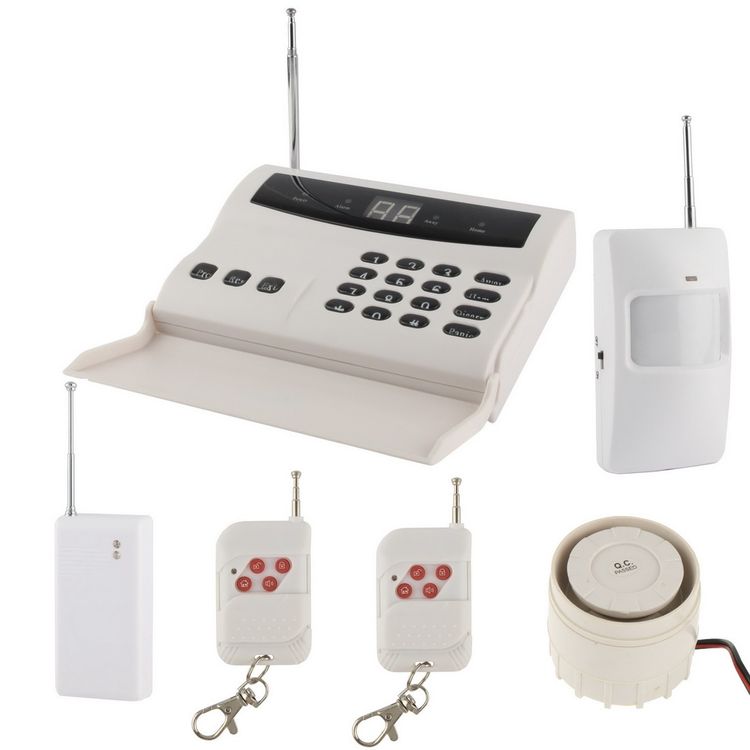

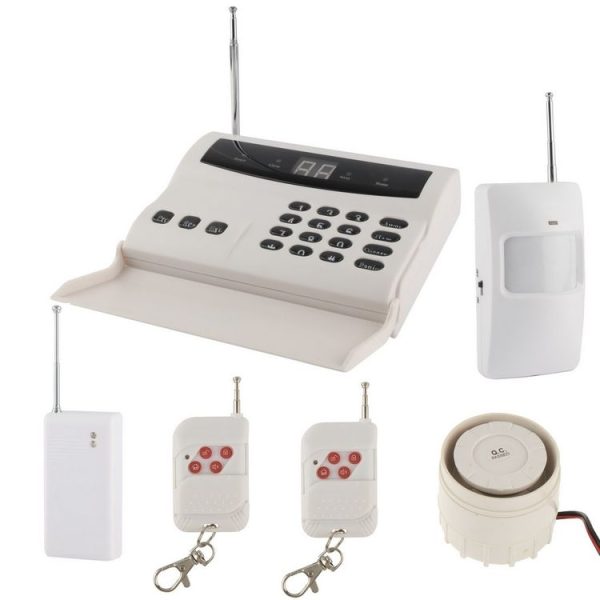

Wireless Intelligent Alarm System, Frequency: 433MHZ


R1620

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

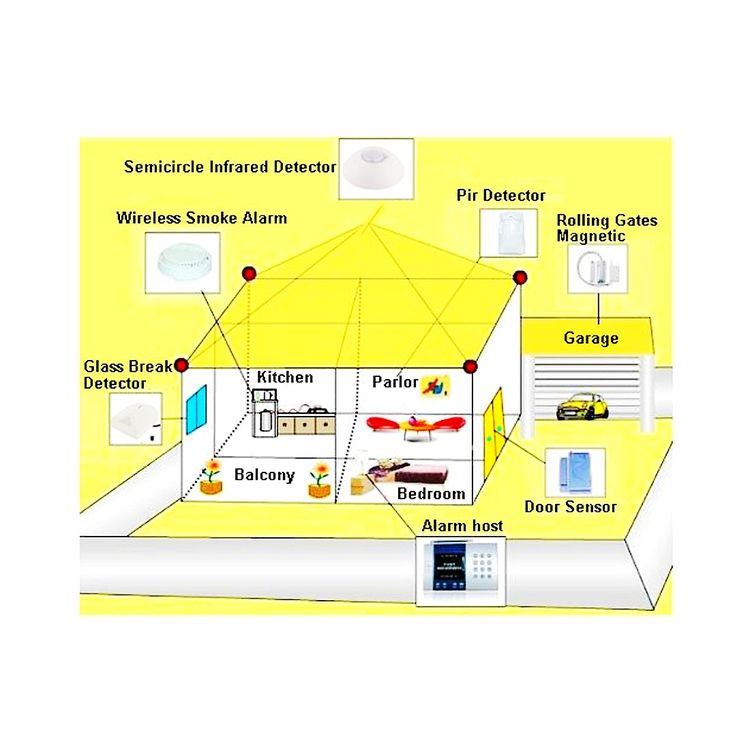

1) The main panel supports most of wireless detectors, PIR, magnetic gap detector, infrared balusters, smoking and gas detectors, panic buttons etc
2) The main panel supports up to 32 wireless alarm zones, wireless detectors are easy to register and operate
3) The main panel could preset 2 center alarm phone numbers and 5 alarm phone numbers

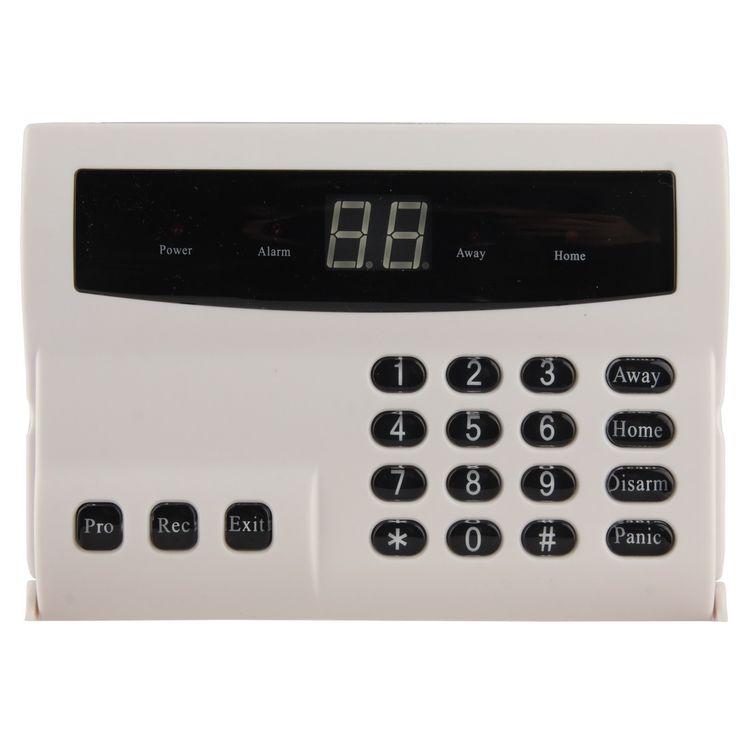

4) Full keyboard operation
5) Main panel supports wireless siren, keep sounding when alarming, the wireless siren would also send the confirmation sound when the system is armed or disarmed state
6) Users could set the system status (arm, disarm etc) through the remote telephone by dialing the main panels number
7) The main panel has high priority to make the alarm phone call, if the phone is used (not alarming) when the alarm is activated
8) The main panel could record voice information, this voice would be played to alarm phone automatically when the alarm phone call is connected
9) Onsite voice monitor through telephone form long distance
10) Main panel supports wired siren, user could connect the wired siren to the main panel
11) For security reason one password is used for remote access
12) The main panel could make alarm when it keeps detecting the specified frequency interference for more than 8 seconds
13) The main panel has anti-decode function, user could set the wireless remote controller, then all controllers(include those possibly decoded) could not set the panel
* The main technical parameters of main panel:
1) Power supply: DC 9-12V
2) Back-up battery: 8.4V (1.2V*7) Ni-MH rechargeable battery; static current: is<5mA; alarm current: ia<280mA
3) Wireless receive frequency: 315MHz; transmission (for wireless siren): 433.92MHz
4) Wireless encoding: ASK
5) Wireless receiving sensitivity: -98dBm @ 12dB SINAD
6) The number of wireless zone: 32
7) The number of alarm phone number: 5 groups
8) Wired alarm siren volume: ≥110dBspl
9) Operating temperature: -15℃~+55℃ RH≤90%

Additional Information

Weight & Size

Weight: 1.300kg
Size: 33cm x 24cm x 7cm

SKU: C0100016889 Category: Condition: New
