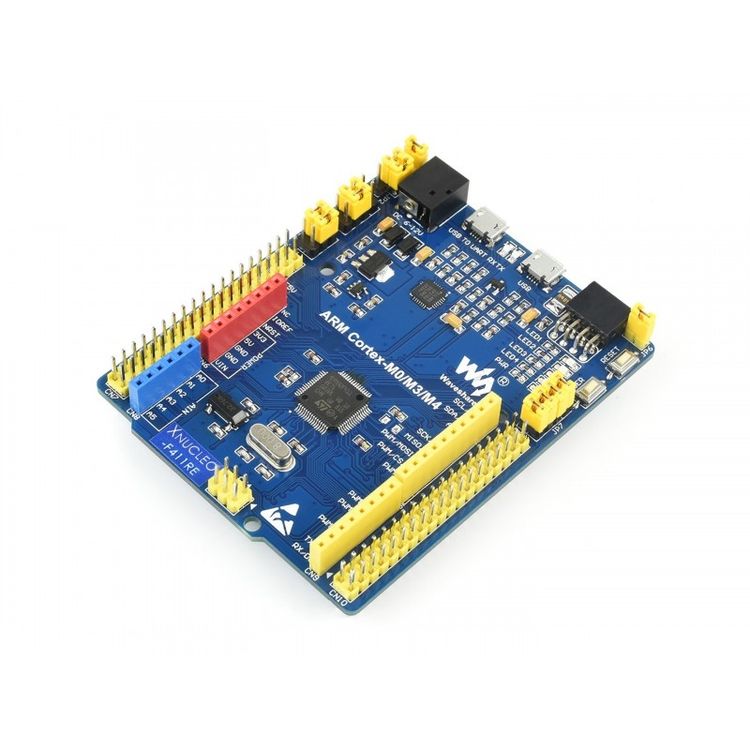

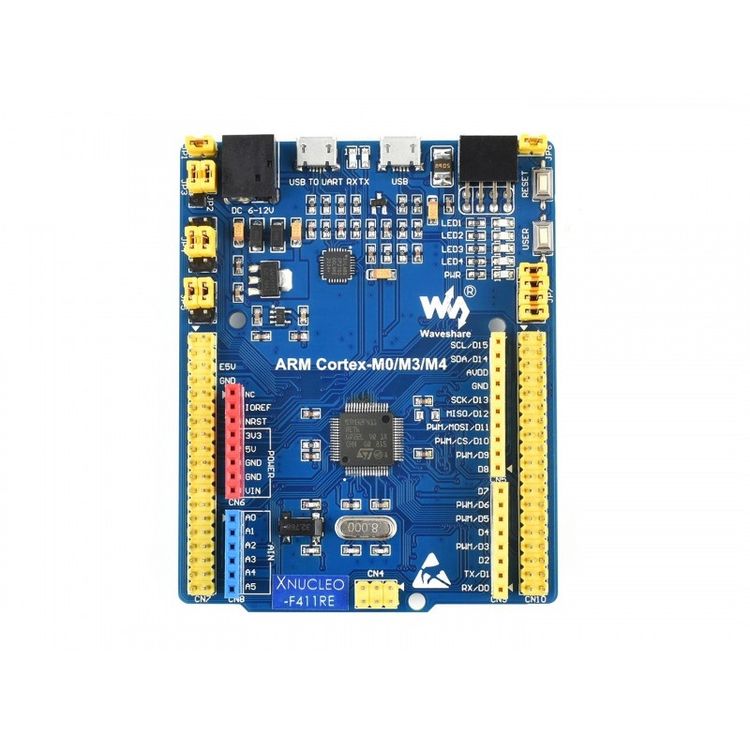

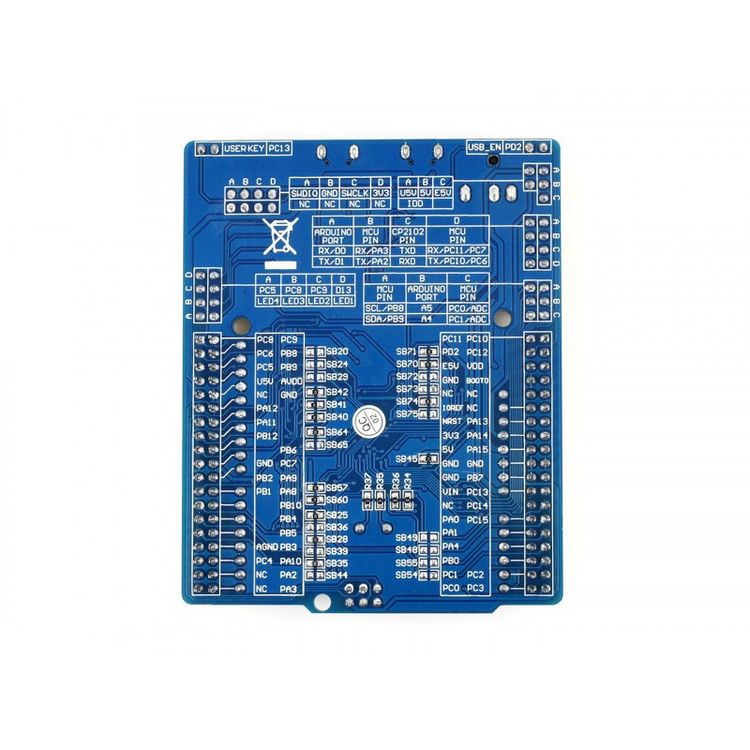

Waveshare XNUCLEO-F411RE Improved STM32 NUCLEO Board


R1610

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features

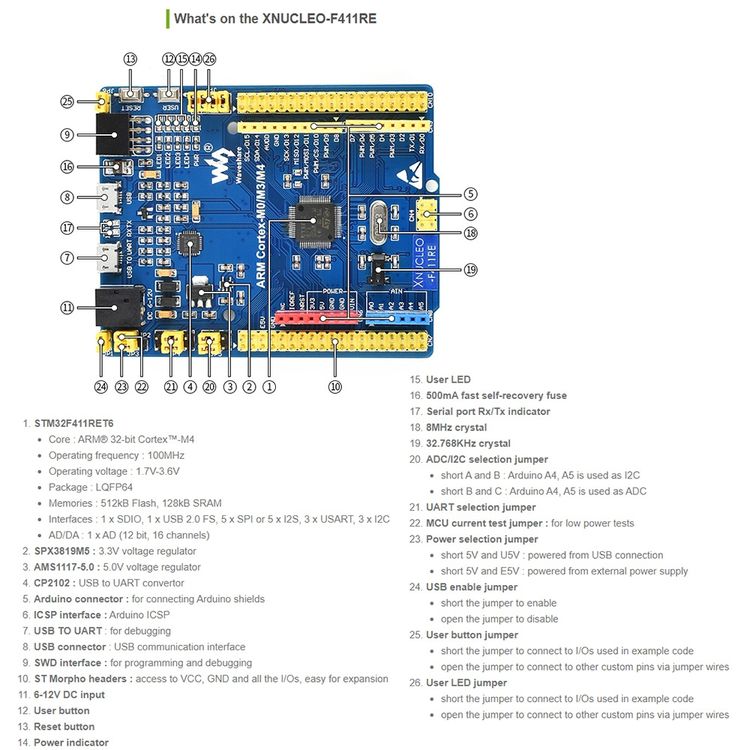

1. Compatible with NUCLEO-F411RE, onboard Cortex-M4 microcontroller STM32F411RET6
2. Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources

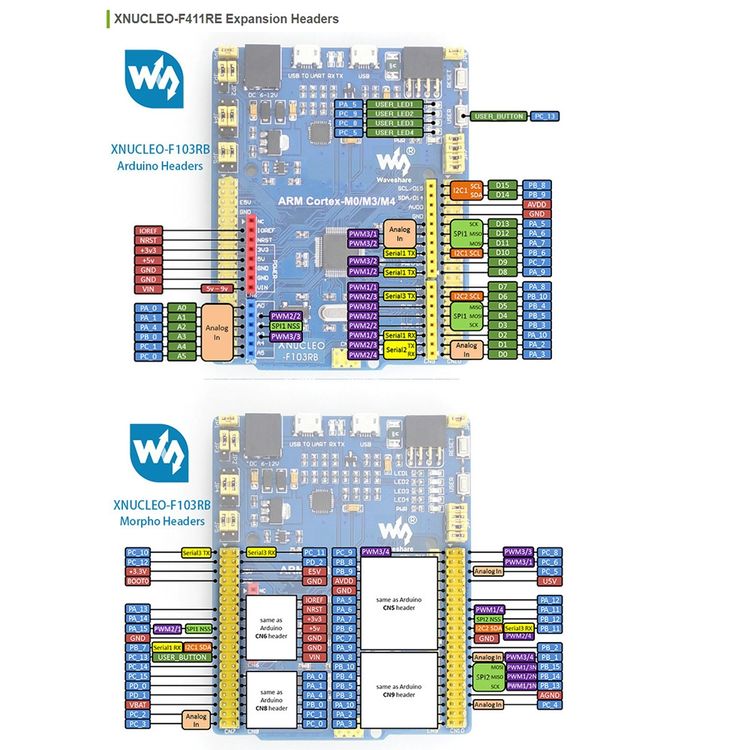

3. ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion
4. Support mbed, build prototype quickly by mbed SDK and online tools
5. Comprehensive free software HAL library including a variety of so ftware examples
6. Comes with a separated ST-LINK/V2 module

Specifications

1. Arduino compatibility: UNO, Leonardo
2. Arduino ICSP interface: Yes
3. USB connectivity: Yes
4. USB connector: Micro USB
5. Morpho headers mark: Most
6. Common interfaces are connected via: Jumpers
7. UART debugging: Available while in-circuit debugging
8. 8MHz crystal: Yes
9. 32.768KHz crystal: Yes
10. USB fuse: Yes (500mA)
11. LEDs: 4
12. UART indicator: Yes
13. DC input: Yes
14. Button position: Close to PCB edge
15. ST-LINK: Separated
16. Comes with USB cable: Yes

Package List

1. XNUCLEO-F411RE x 1
2. ST-LINK/V2 (mini) x 1
3. USB Type A Plug to Micro B Plug Cable x 1
4. USB Type A Plug to Receptacle Cable x 1

Additional Information

Weight & Size

Weight: 0.189kg

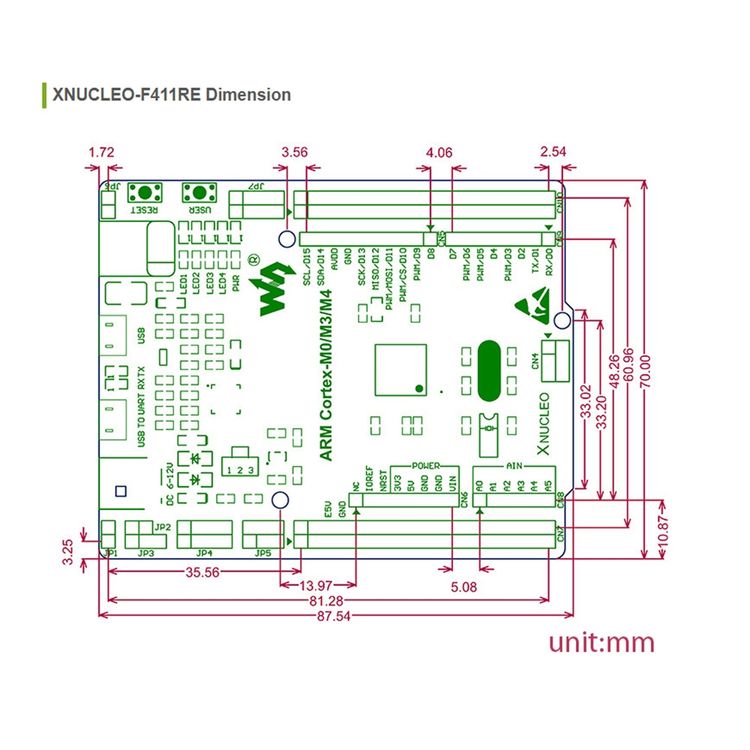

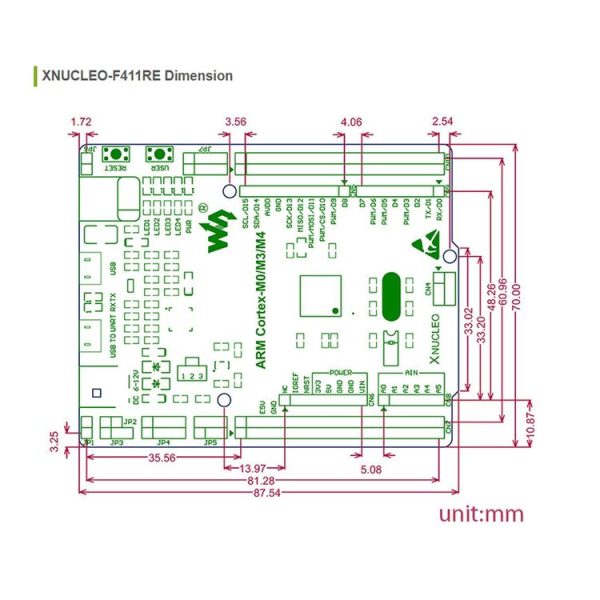

Size: 20cm x 16cm x 3cm

SKU: A0100095599 Category: Tag: Condition: New
