Overview

Features

This development kit includes:
1. XNUCLEO-F411RE (STM32 Development Board, Supports Arduino, Compatible with NUCLEO-F411RE)
2. IO Expansion Shield (Provides interfaces for connecting XBee, WiFi-LPT100, and sensors)
3. Sensors Pack (Gas, Color, Flame, Hall, IR, UV, Laser, Sound, Temperature and Humidity, Tilt, Liquid level, etc.)

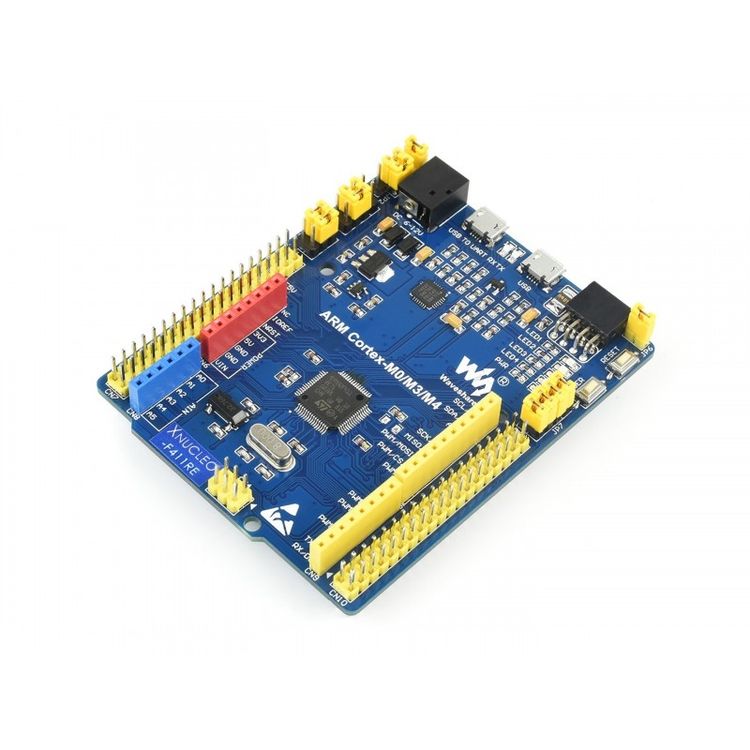

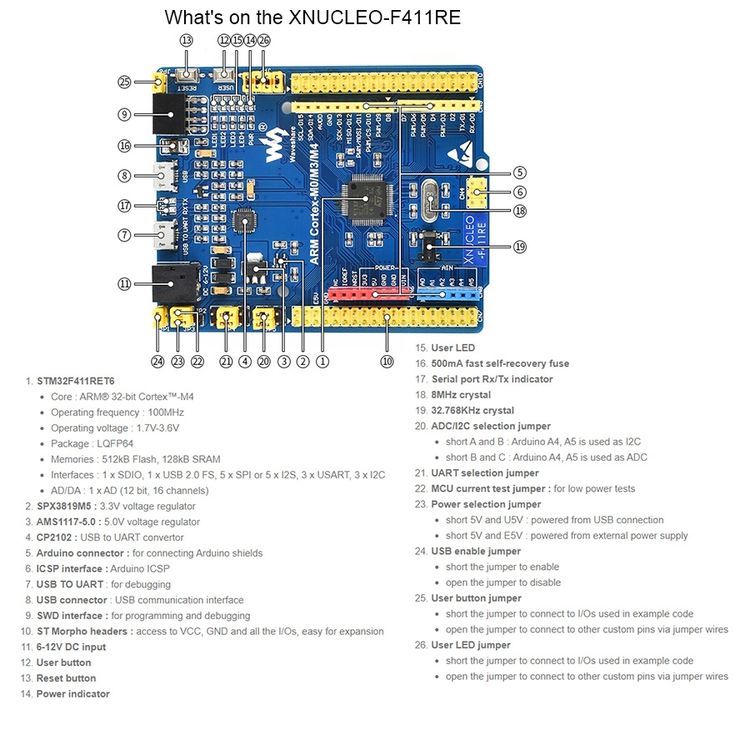

XNUCLEO-F411RE Features
1. Compatible with NUCLEO-F411RE, onboard Cortex-M4 microcontroller STM32F411RET6
2. Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources

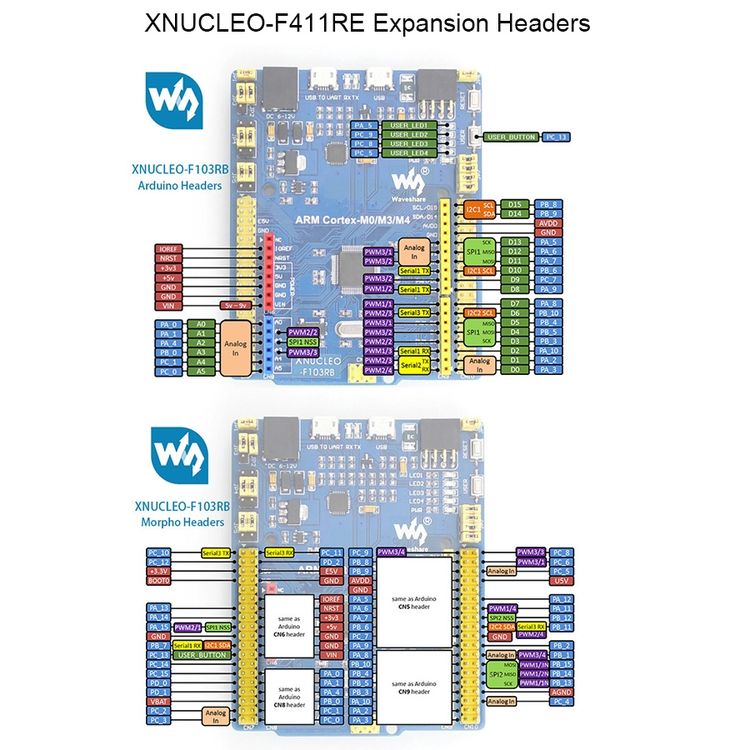

3. ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion
4. Support mbed, build prototype quickly by mbed SDK and online tools
5. Comprehensive free software HAL library including a variety of software examples
6. Comes with a separated ST-LINK/V2 module

Specifications

1. Arduino compatibility: UNO, Leonardo
2. Arduino ICSP interface: Yes
3. USB connectivity: Yes
4. USB connector: Micro USB
5. Morpho headers mark: Most
6. Common interfaces are connected via: Jumpers
7. UART debugging: Available while in-circuit debugging
8. 8MHz crystal: Yes
9. 32.768KHz crystal: Yes
10. USB fuse: Yes (500mA)
11. LEDs: 4
12. UART indicator: Yes
13. DC input: Yes
14. Button position: Close to PCB edge
15. ST-LINK: Separated
16. Comes with USB cable: Yes

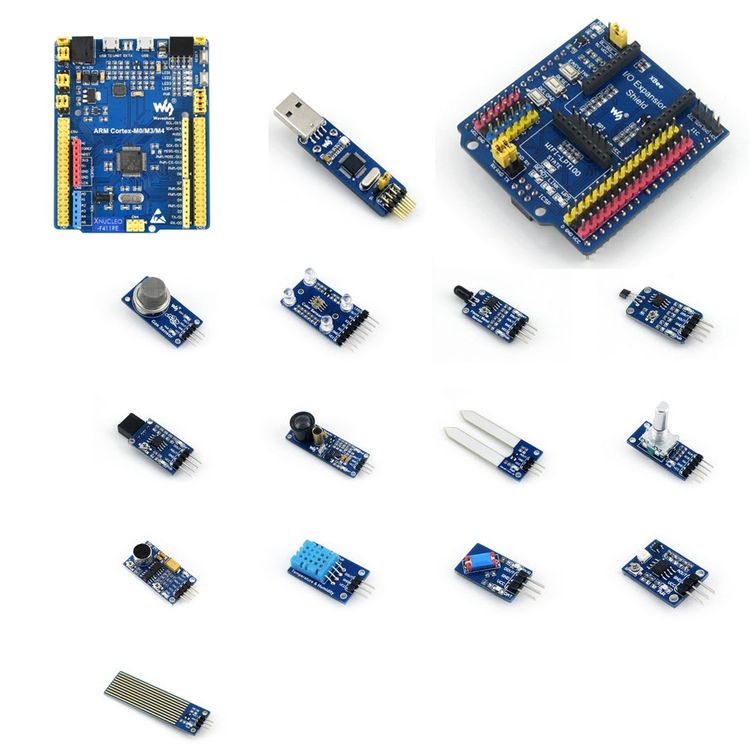

Package List

1. XNUCLEO-F411RE x 1
2. ST-LINK/V2 (mini) x 1
3. USB Type A Plug to Micro B Plug Cable x 1
4. USB Type A Plug to Receptacle Cable x 1
5. IO Expansion Shield x 1
6. Sensors Pack x 1

Additional Information

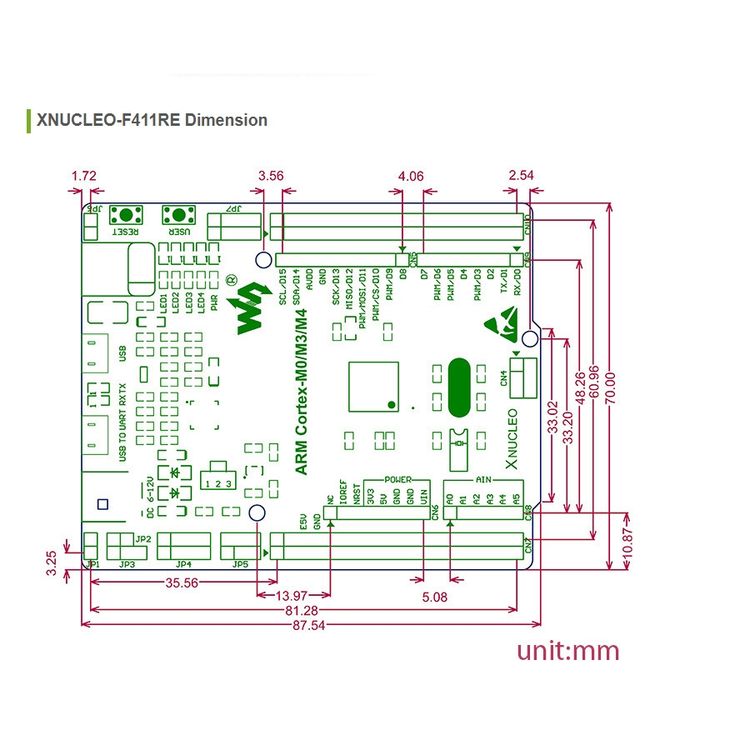

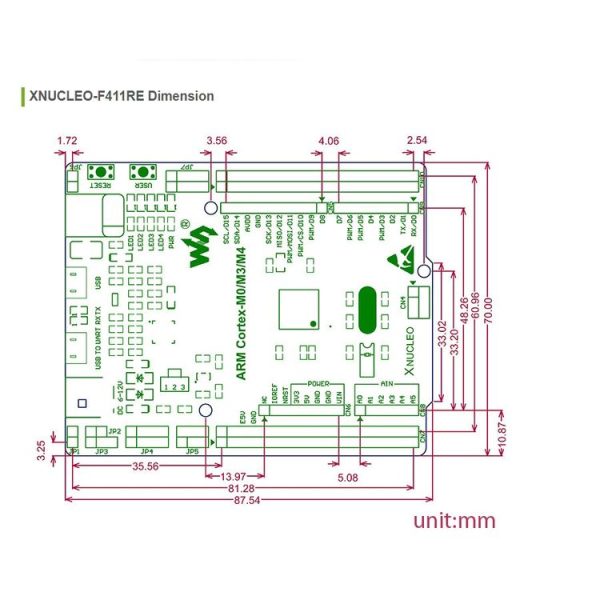

Weight & Size

Weight: 0.269kg
Size: 20cm x 16cm x 3cm

SKU: A0100095601 Category: Condition: New
