Waveshare WIFI501 WiFi Module Mother Board


R157

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Overview

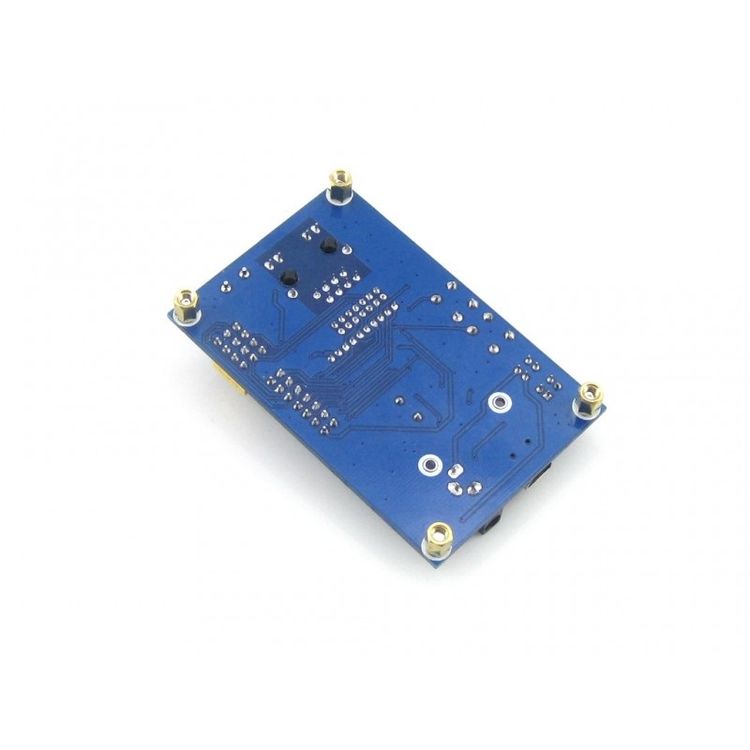

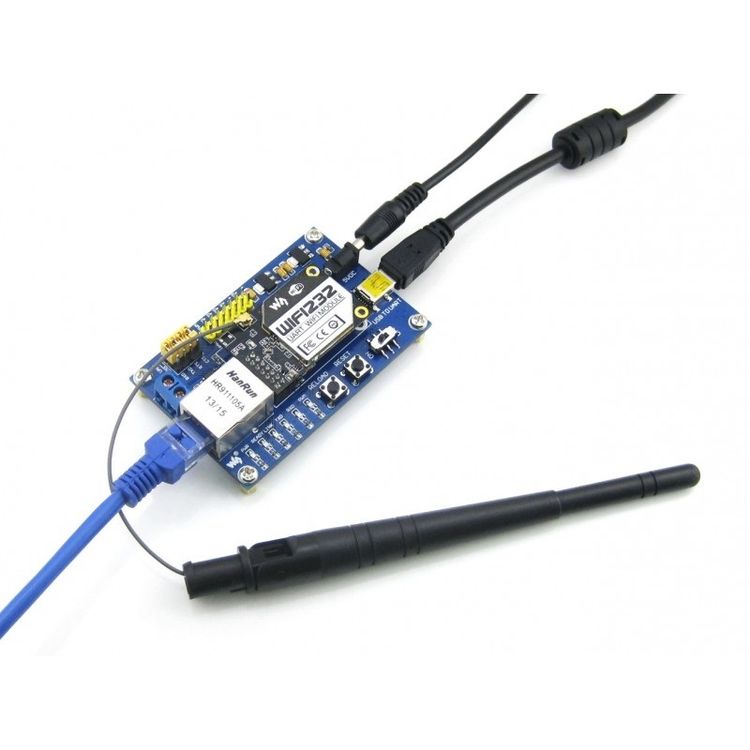

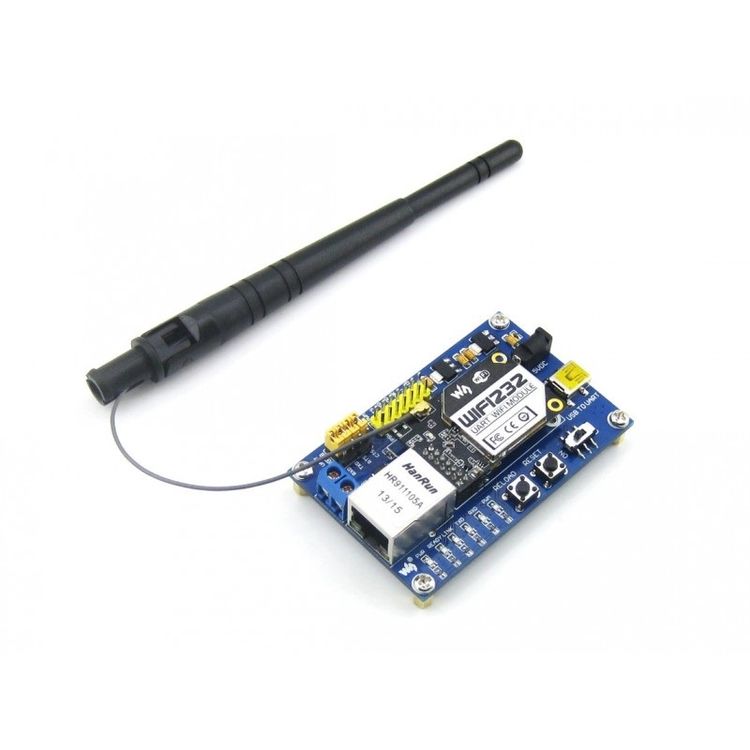

WIFI501 is a mother board designed to be used with WiFi modules like WIFI232 series, WIFI-LPT100. It provides an easy way to test/evaluate these WiFi to UART modules.

Features

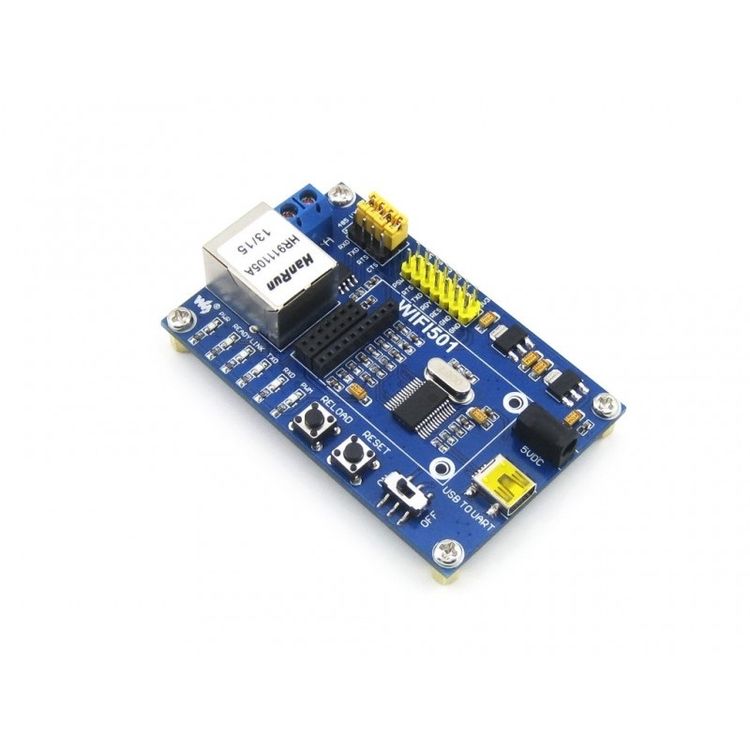

1. What is onboard: USB to UART connector, Reload button, LED indicators, Reset button, RJ45 Ethernet connector, RS485 connector
2. Indicators: Power, Ready, Link, RXD, TXD, PWM
3. Powered from DC 5V
4. Provide TCP/IP host computer examples (VB / Delphi / Borland C++)

How to Use

1. Reload button: power up, press and hold it (>=3s) then release, to restore the module to its factory settings immediately
2. Ready indicator: lights up when the WiFi module starts up successfully
3. Link indicator: works with the WIFI232 series modules, lights up when network connection detected
4. PWM indicator: works with the WIFI-LPT100 module, the indicator brightness will be changed while PWM output was enabled

Additional Information

Weight & Size

Weight: 0.030kg
Size: 9cm x 7cm x 2cm

SKU: A0100070310 Category: Condition: New
