Overview

Overview

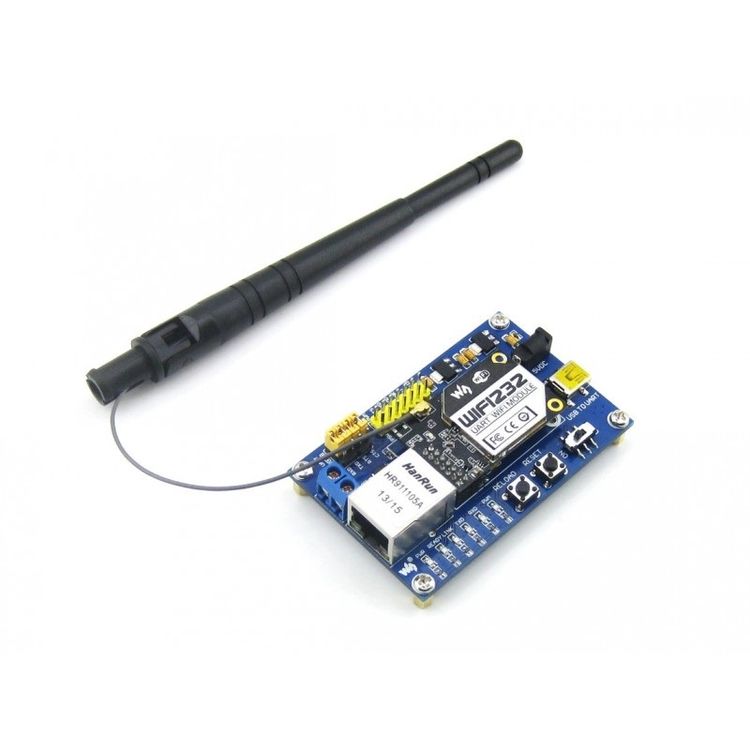

WIFI232 Eval Kit is a WiFi to UART Evaluation Kit, including a convertor module WIFI232-B, and a mother board WIFI501 for testing/evaluating.

Features

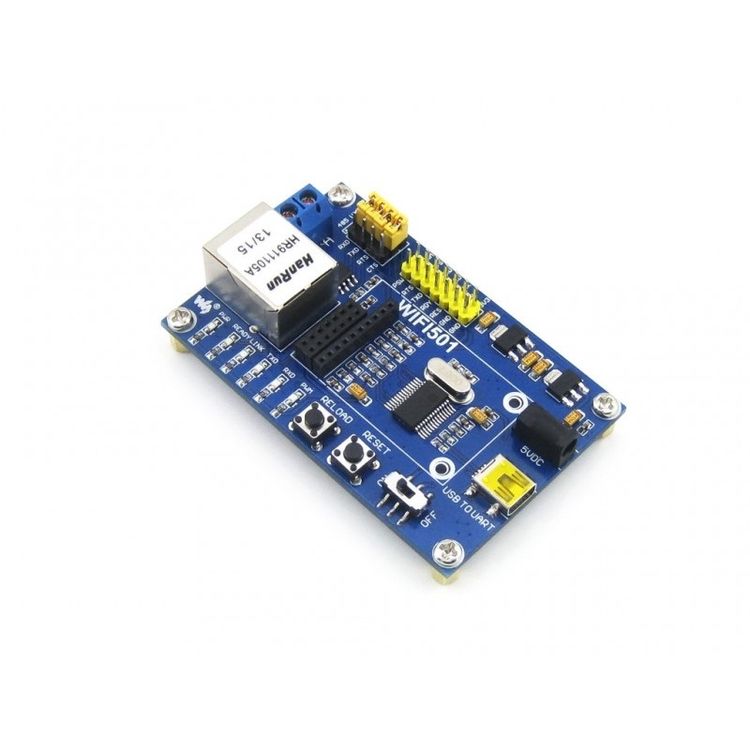

1. What is onboard: USB to UART connector, Reload button, LED indicators, Reset button, RJ45 Ethernet connector, RS485 connector
2. Indicators: Power, Ready, Link, RXD, TXD, PWM
3. Powered from DC 5V
4. Provide TCP/IP host computer examples (VB / Delphi / Borland C++)

How To Use

1. Reload button: Power up, press and hold it (>=3s) then release, to restore the module to its factory settings immediately
2. Ready indicator: Light up when the WiFi module starts up successfully
3. Link indicator: Work with the WIFI232 series modules, lights up when network connection detected
4. PWM indicator: Work with the WIFI-LPT100 module, the indicator brightness will be changed while PWM output was enabled

Package Contents

1. WIFI232-B x 1
2. WIFI501 x 1
3. External antenna x 1
4. USB type A plug to mini-B plug cable x 1
5. 5V power adapter x 1

Additional Information

Weight & Size

Weight: 0.220kg
Size: 12cm x 8cm x 2cm
