Waveshare Universal e-Paper Raw Panel Driver Board, ESP32 WiFi / Bluetooth Wireless


R263

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Overview
1. This is a universal driver board for e-Paper raw panels, thanks to the dual wireless features – WiFi & Bluetooth – it is easy to display images from PC / smart phone via WiFi or Bluetooth.
2. Furthermore, it can also be used for Arduino development, just like any other normal Arduino board.
Features
1. Onboard ESP32, supports Arduino development
2. Provide Android APP, allows to refresh display content via Bluetooth EDR
3. Provide HTML host code, allows to refresh display content via remote webpage, suit for Internet applications
4. Support Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image
5. Support popular image formats: BMP, JPEG, GIF, PNG, etc.
6. Easy to be integrated into wireless applications
7. Come with e-Paper driver (open source)
8. Come with development resources and manual
Specifications
1. WiFi protocol: 802.11b/g/n
2. Bluetooth protocol: 4.2, includes traditional BR/EDR, and low power BLE
3. Interface: 3-wire SPI, 4-wire SPI (default)
4. Operating voltage: 5V
5. Operating current: 50mA ~ 150mA
6. Outline dimension: 29.46mm x 48.25mm
Package Contents
1. e-Paper ESP32 Driver Board x1
2. e-Paper Adapter x1
3. 24PIN FFC x1

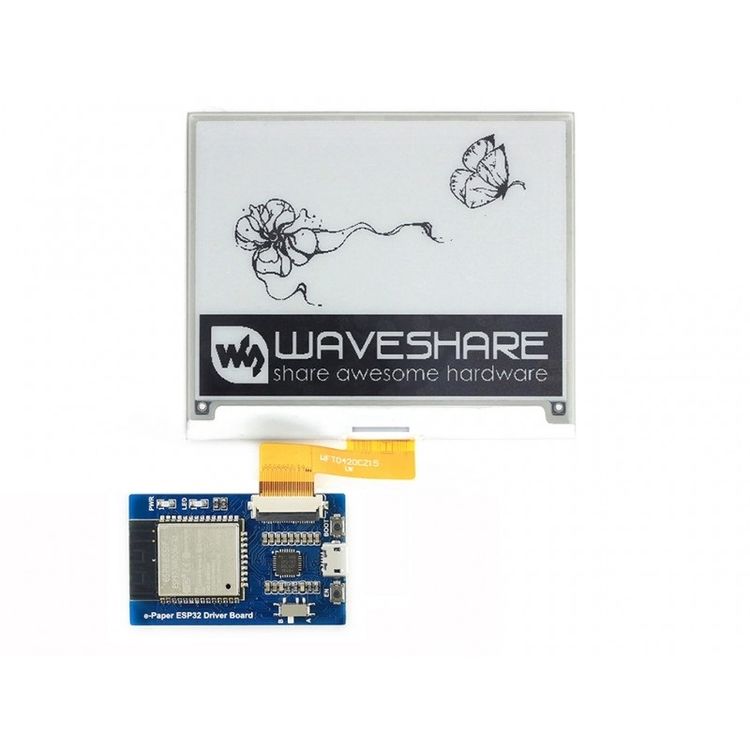

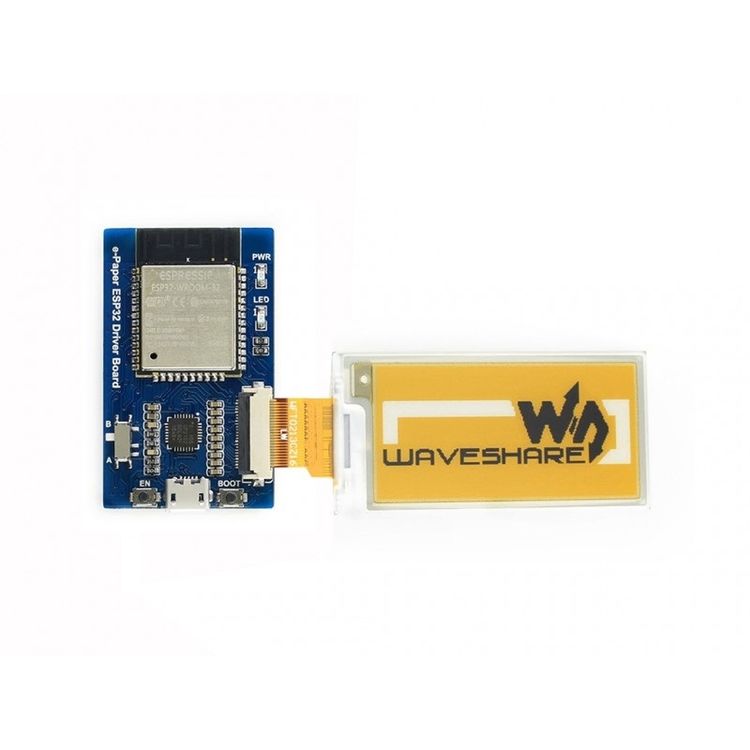

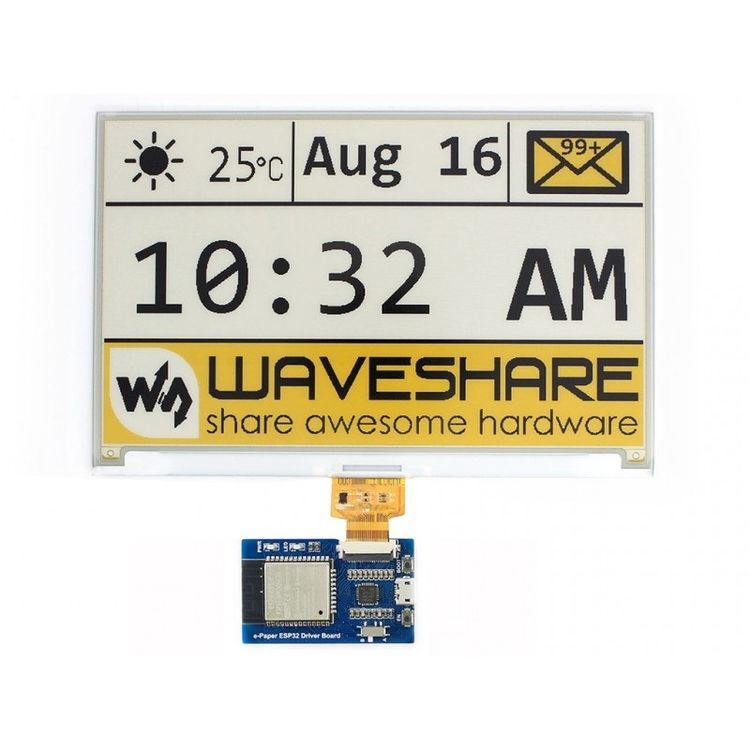

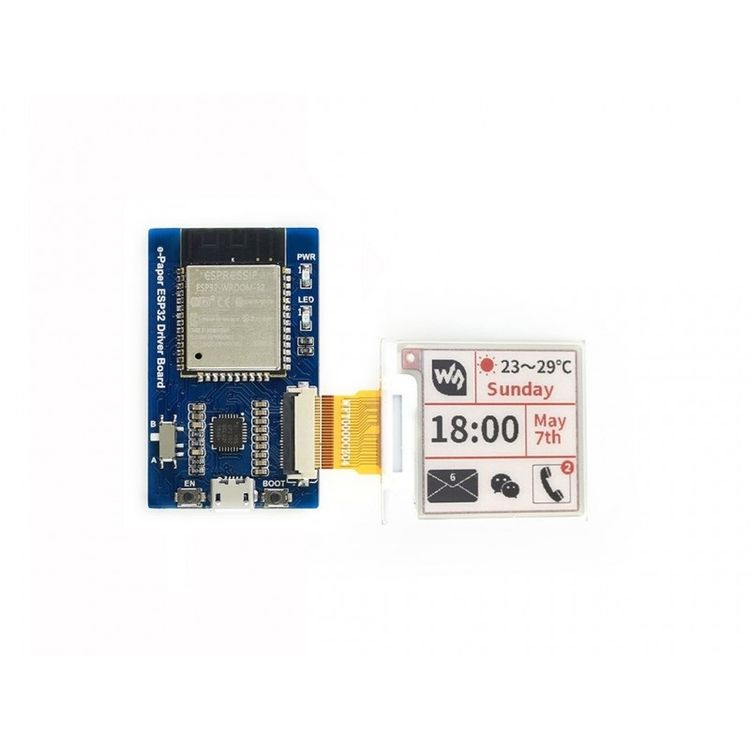

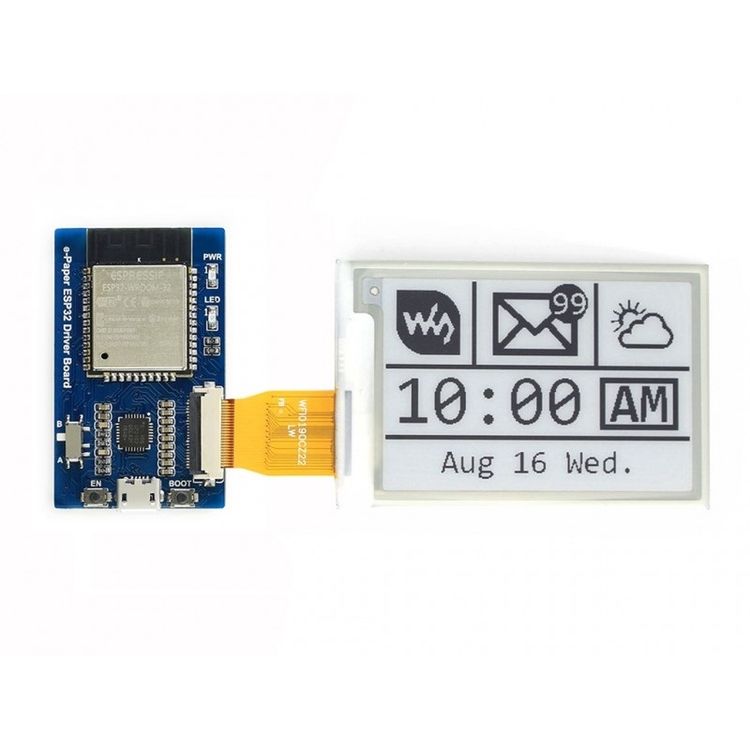

Note: e-Paper panels in the photos are NOT included.

Additional Information

Weight & Size

Weight: 0.050kg
Size: 10cm x 6cm x 2cm

SKU: A0100070580 Category: Condition: New
