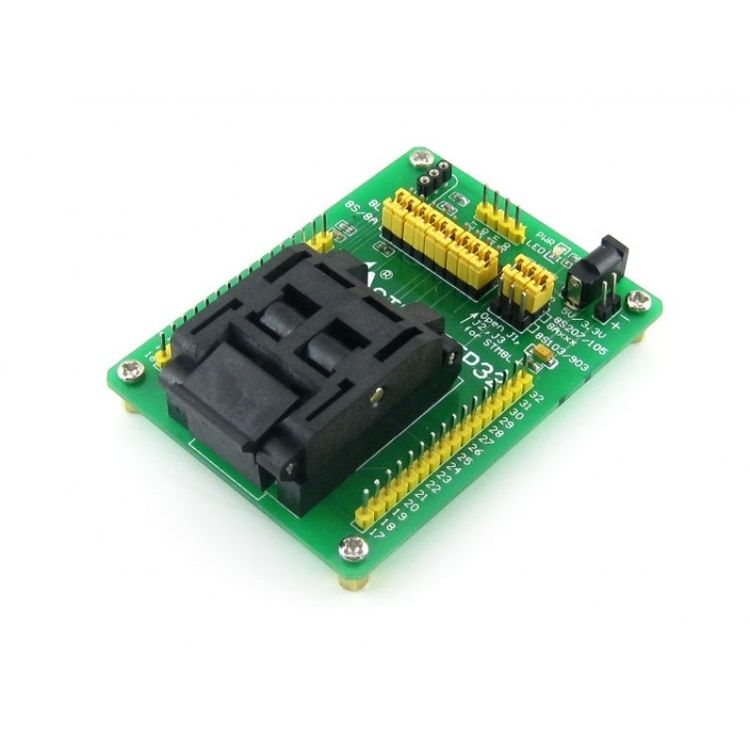

Overview

Features

1. 4-pin SWIM Port for programming or testing
2. External crystal can be connected via on board socket
3. All the MCU pins are accessible on expansion connectors
4. Supports more devices
– STM8L series
– STM8S series
– STM8A series

Supported Devices

STM8 microcontroller in QFP32(0.8mm pitch) package with compatible pinouts
STM8S103KxTxC / STM8S903KxTxC / STM8S105KxTxC / STM8S207KxTxC
STM8Ax52x6Tx / STM8Ax62x6Tx / STM8Ax51x6Tx / STM8Ax61x6Tx
STM8L101KxTx / STM8L151KxTx / STM8L152KxTx

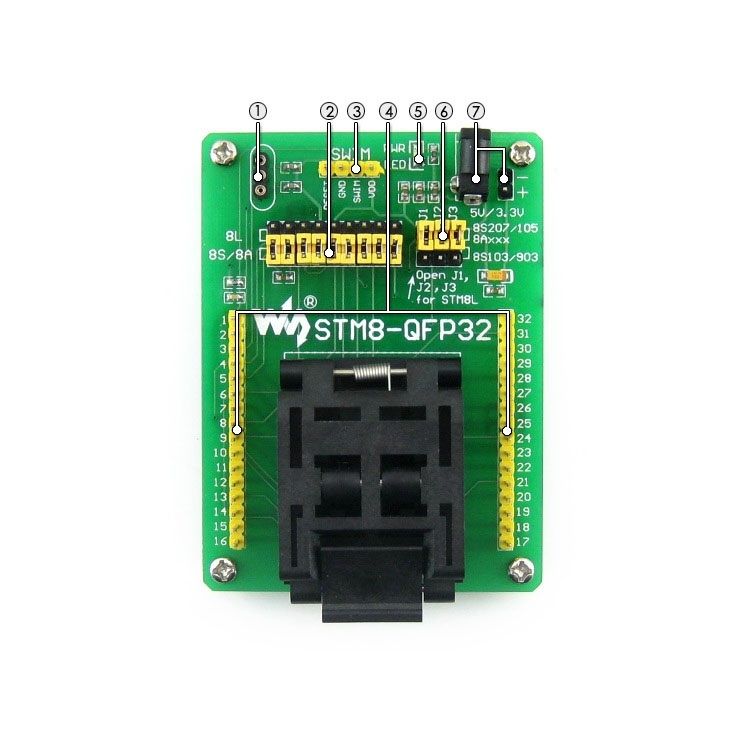

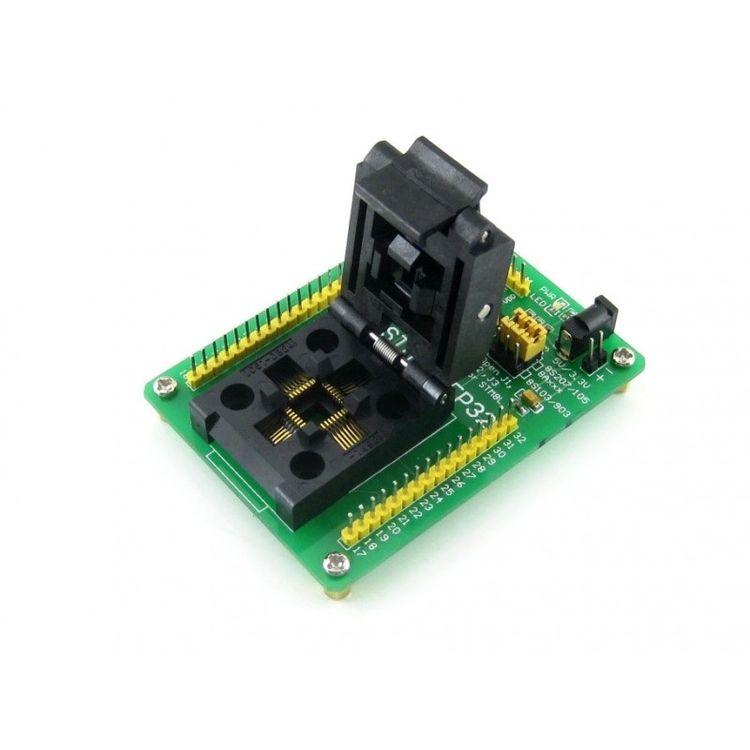

Photos

1. External crystal socket
insert crystal to the holes on two sides, regardless of the middle hole
2. MCU selection jumpers A
– 8L for STM8L series
– 8S/8A for STM8S/STM8A series

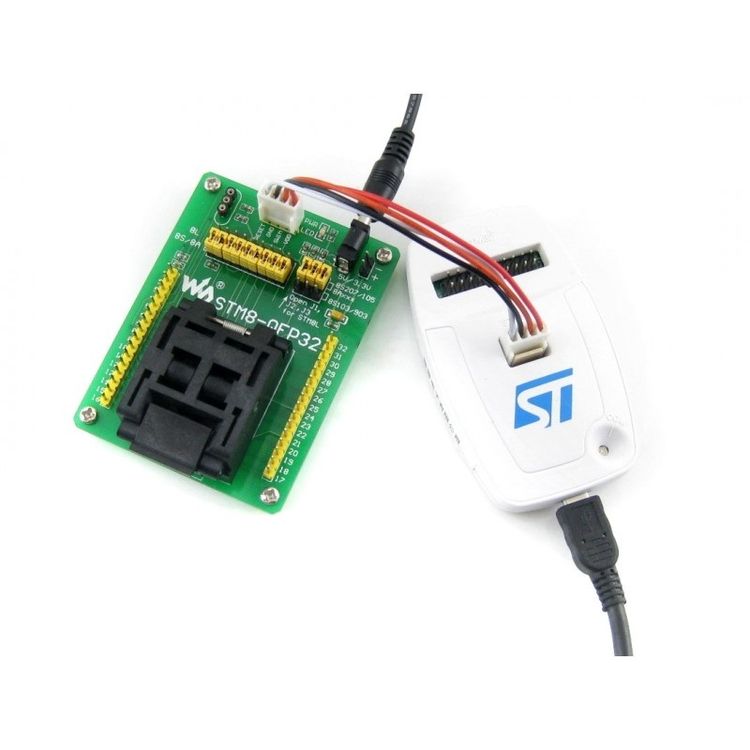

3. SWIM port
– For programming/debugging/testing
– Compatible with ST-LINK, ST-LINK/V2, etc.
4. Pin headers connected to MCU pins
– Clearly labeled with onboard marks
– Sasy for testing and further expansion
5. Power indicator
6. MCU selection jumpers B
– STM8L series: needs no configuration, just open OR ignore them
– STM8S series: short the upper two pins for STM8S207/STM8S105, short the lower two pins for STM8S103/STM8S903
– STM8A series: short the upper two pins
7. Power input: DC5V/3.3V

Package Contents

1. STM8-QFP32 × 1
2. USB power cable × 1Power input: DC5V/3.3V

Additional Information

Weight & Size

Weight: 0.104kg
Size: 16cm x 9cm x 5cm
