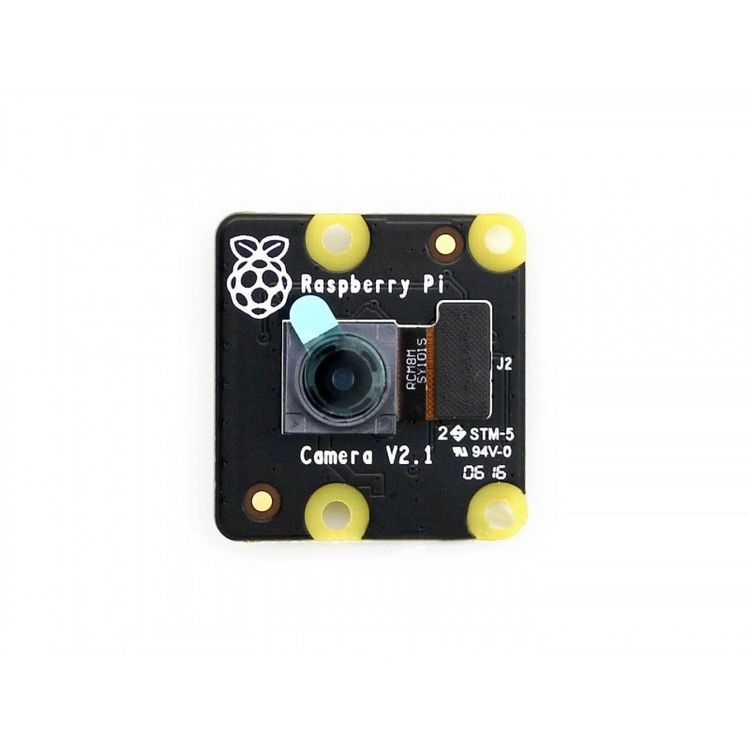

Waveshare RPi NoIR Camera V2 Infrared Camera Module, Support Night Vision


R686

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features

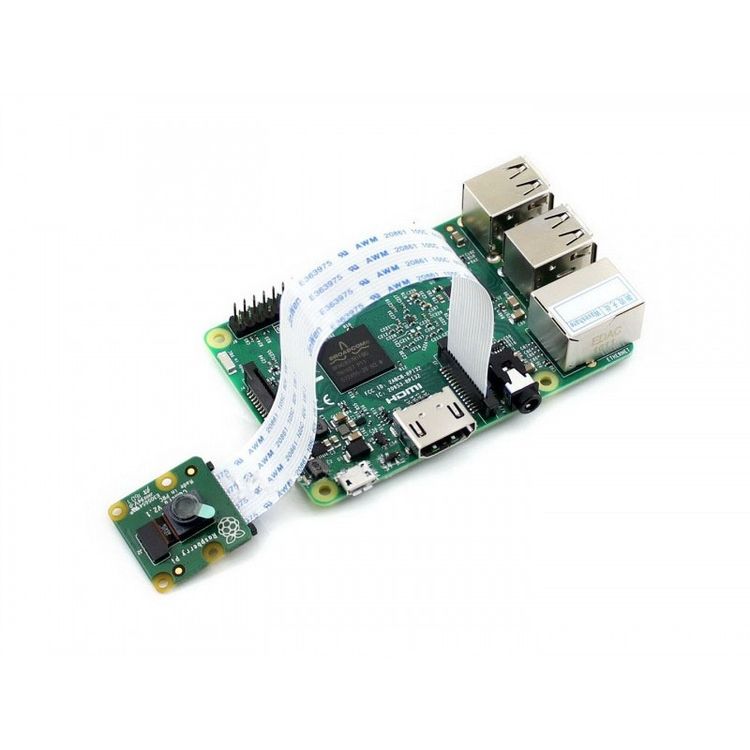

1. Official Raspberry Pi Camera, supports Raspberry Pi and Jetson Nano
2. Sony IMX219 8-megapixel sensor
3. Camera specifications
– CCD size: 1/4 inch
– Aperture (F): 2.0
– Focal Length: 3.04mm
– Angle of View (diagonal): 62.2 degree
4. 3280 x 2464 still picture resolution
5. Support 1080p30, 720p60 and 640x480p90 video record
6. No infrared filter, supports night vision
7. Dimension: 25mm x 24mm x 9mm

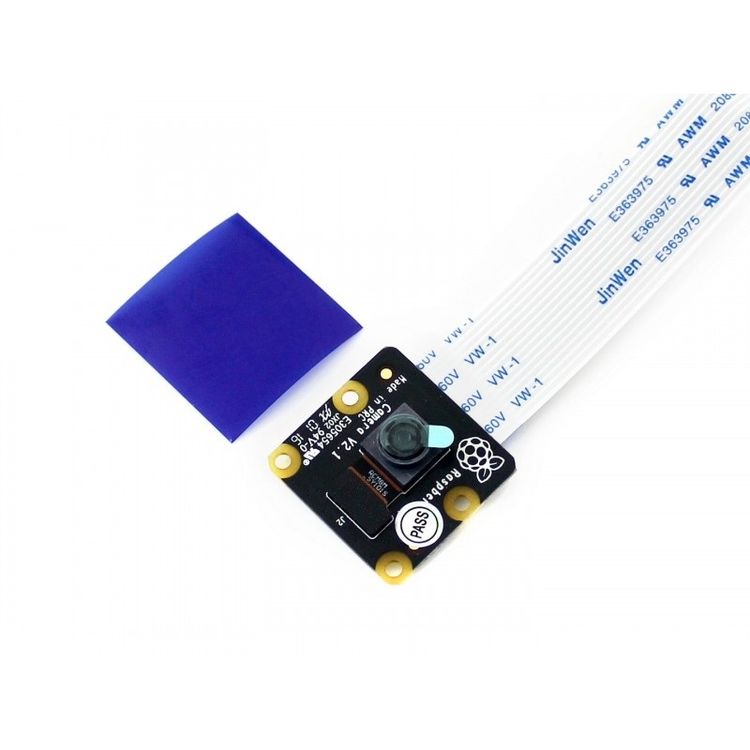

Package Contents
1. RPi NoIR Camera V2 x1
2. 15-pin FFC (opposite sides contact) x1
3. Blue gel filter x1

Note:

Infrared LED is required to provide Infrared lighting for night vision.

Note:

to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Additional Information

Weight & Size

Weight: 0.035kg
Size: 5cm x 4cm x 1cm

SKU: A0100070293 Category: Condition: New
