Waveshare Raspberry Pi Compute Module 3+ / 32GB Development Kit Type B


R5425

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Overview
1. Since the Raspberry Pi Foundation released the Compute Module 3+, you may have been watching it for some time, don’t know how to get started. Now it is time to get moving. We prepare this development kit for you to evaluate the Compute Module 3+ quickly, reducing your development cycle.
2. The key parts in this Compute Module 3+ development kit includes:
– Compute Module 3+/32GB: Raspberry Pi 3 Model B+ industrial version, the Pi in a flexible form factor, with 32GB eMMC Flash
– Compute Module IO Board Plus: Extend kinds of interfaces from CM3+, such as USB, HDMI, just like the regular Pi, to help evaluating

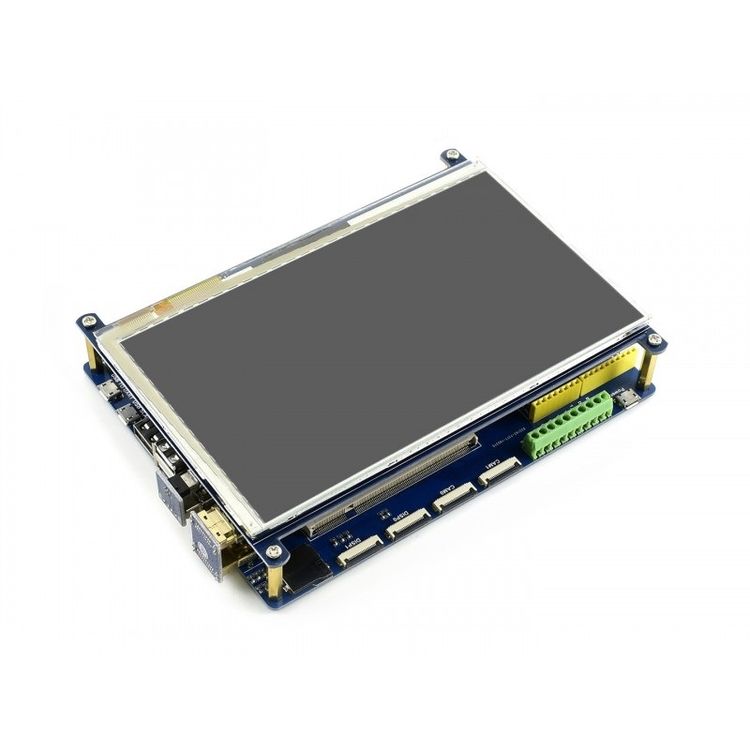

– 7 inch HDMI LCD (C): The high resolution touch screen LCD, provides an easy way to achieve Human-Machine-Interaction

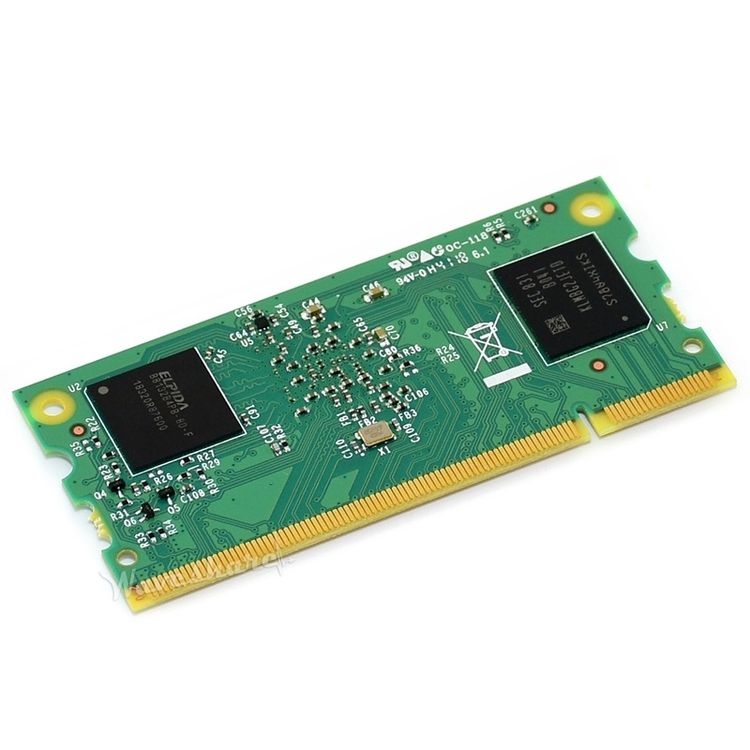

CM3+ Features
1. Broadcom BCM2837B0
– Cortex-A53 (ARMv8) 64-bit SoC @ 1.2GHz
2. 1GB RAM
3. eMMC Flash
– CM3+/32GB: 32GB
4. 200PIN SODIMM connector (35U hard gold plating I/O pins)
– 48 x GPIO
– 2 x I2C
– 2 x SPI
– 2 x UART
– 2 x SD/SDIO (1x SD has been used for eMMC Flash on non-Lite variants)
– 1 x HDMI 1.3a
– 1 x USB2 HOST/OTG
– 1 x DPI (parallel RGB display)
– 1 x NAND(SMI)
– 1 x 4-lane CSI Camera Interface (up to 1Gbps per lane)
– 1 x 2-lane CSI Camera Interface (up to 1Gbps per lane)
– 1 x 4-lane DSI Display Interface (up to 1Gbps per lane)
– 1 x 2-lane DSI Display Interface (up to 1Gbps per lane)
5. Compared to CM1, the CM3+ supports more OS, like Windows 10 (the free IOT-specific version from Microsoft)

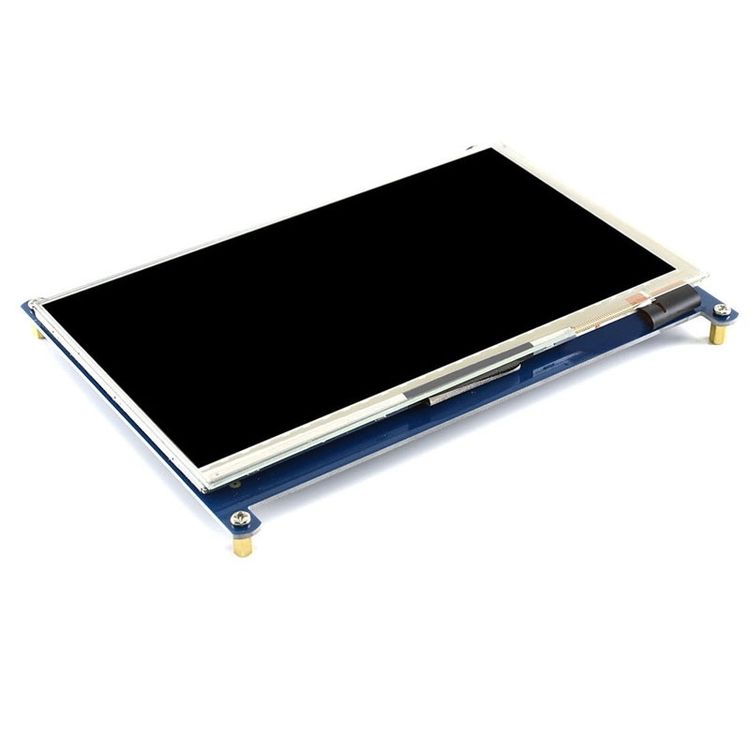

7 inch HDMI LCD (C) Features
1. 7 inch IPS screen, 1024×600 hardware resolution
2. Capacitive touch control
3. Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers
– When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
– When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
4. Backlight can be turned off to lower power consumption

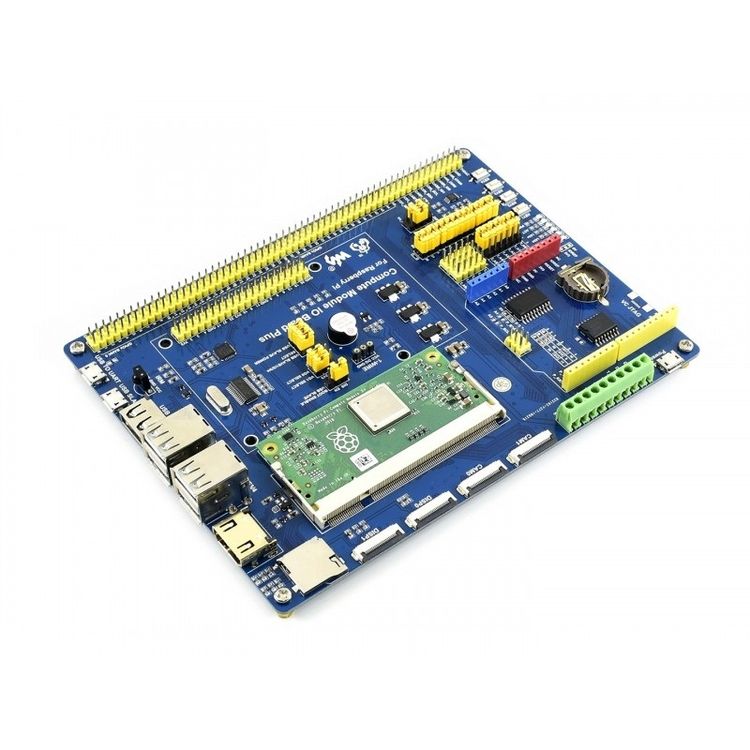

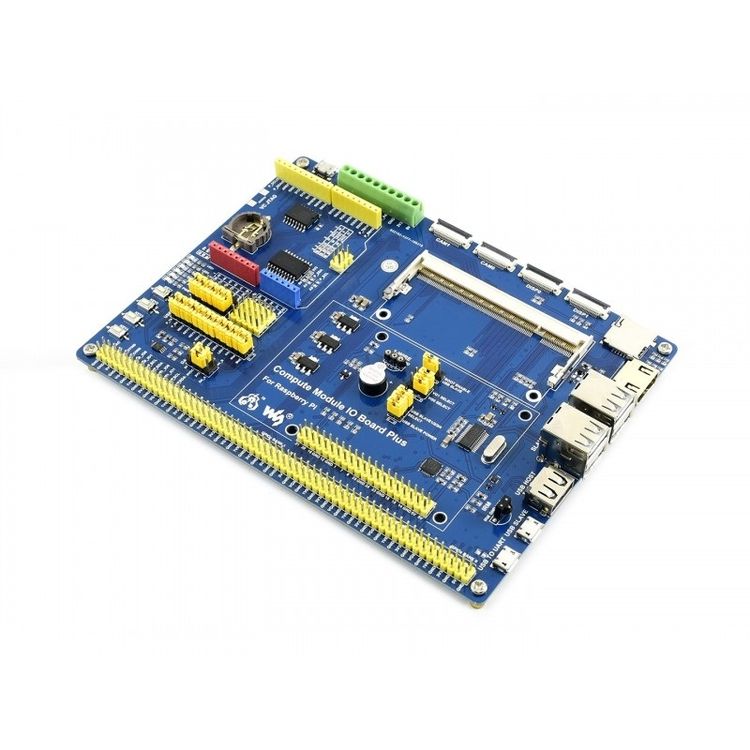

Compute Module IO Board Plus Features
1. Compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation
2. Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs
3. Arduino connectivity, also supports Arduino shields
4. 1-WIRE interface, for connecting single-bus devices like DS18B20
5. 4x keys, 4x LEDs, 1x Buzzer, for I/O testing
6. Onboard USB HUB, allows connecting more USB devices
7. IR receiver, IR remote control is available
8. Onboard USB TO UART, for serial debugging
9. Sensor interface
10. 10-bit ADC, 38KSPS, 11-ch (6-ch for Arduino interface, 5-ch for sensors)
11. 16-bit DAC, 2-ch
12. Onboard RTC, one of the most common and useful functions
13. Weight: 705g

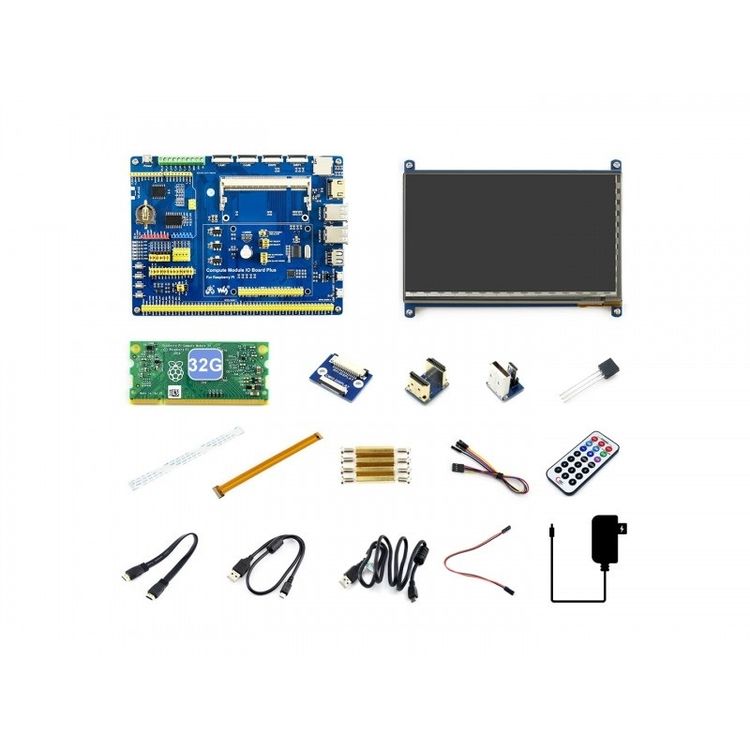

Packing List:
1.Compute Module 3+ 32GB x1
2. Compute Module IO Board Plus x1
3. 7inch HDMI LCD (C) x1
4. DS18B20 x1
5. IR remote controller x1
6. LCD adapter x1
7. HDMI cable x1
8. HDMI adapter x1
9. USB adapter x1

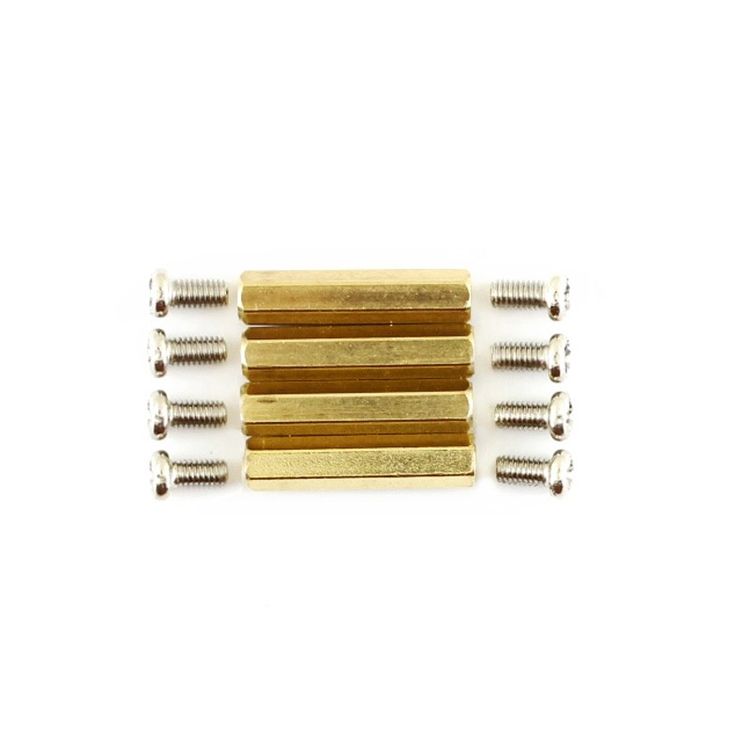

10. RPi screws pack (4pcs) x1
11. 22PIN FFC x1
12. RPi Zero V1.3 Camera Cable 15cm x1
13. Power adapter US standard 5V/3A micro x1
14. USB type A plug to micro B plug cable 35cm x1
15. USB type A plug to micro B plug cable 120cm x2
16. Jumper Wire 4-pin to separated pins x2
17. Jumper Wire 2-pin 2.54-pitch 200mm x2

Additional Information

Weight & Size

Weight: 0.725kg
Size: 22cm x 15cm x 4cm

SKU: B0100016885 Category: Tag: Condition: New
