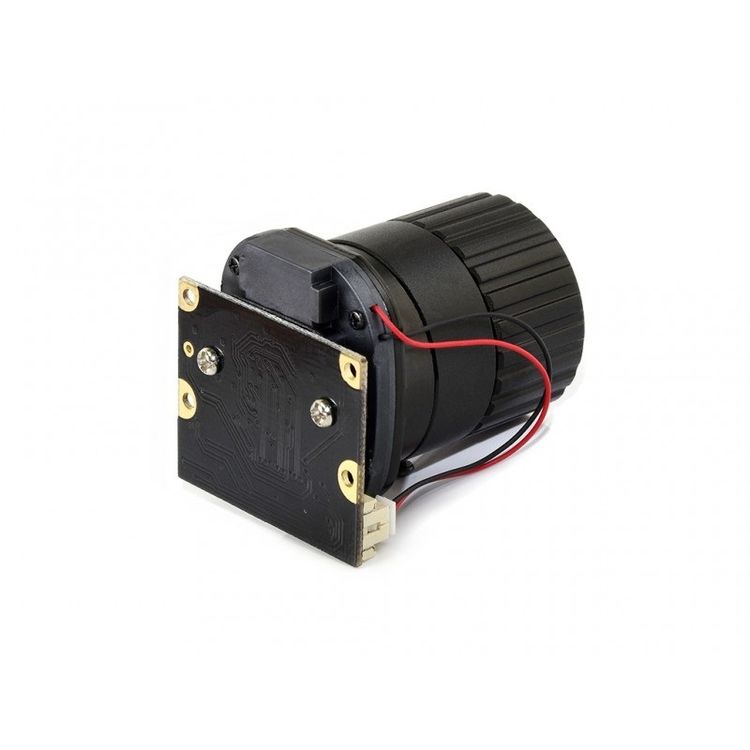

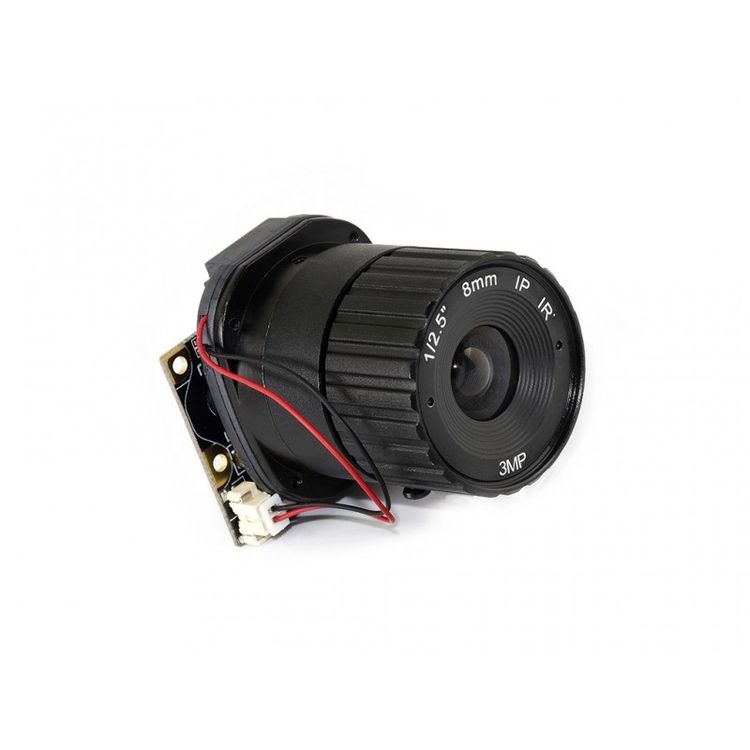

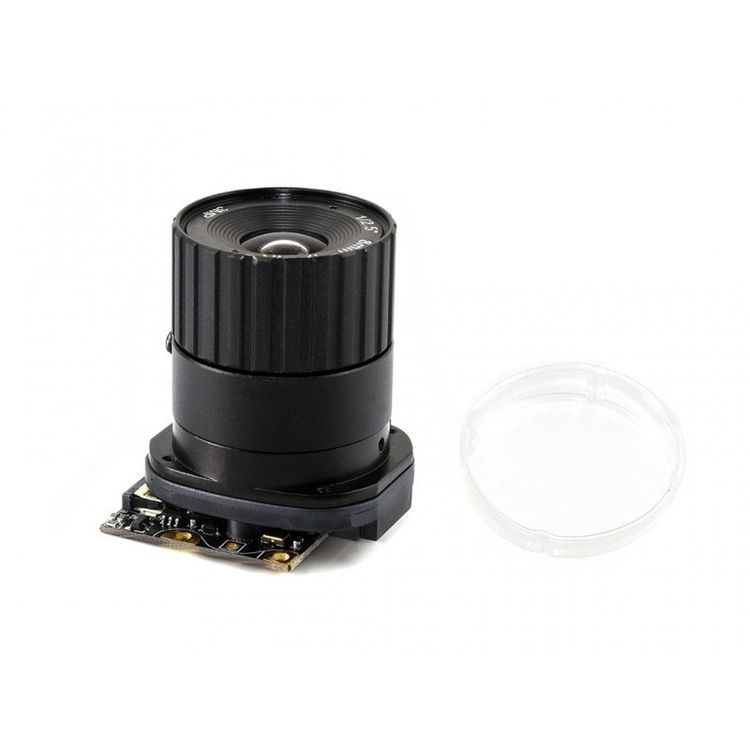

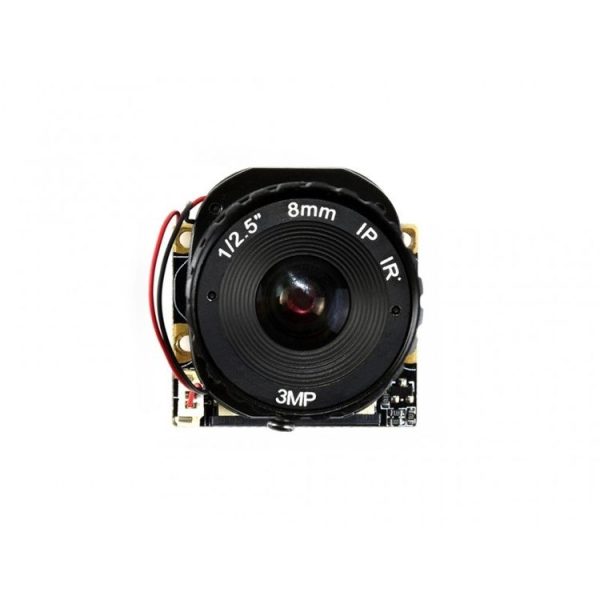

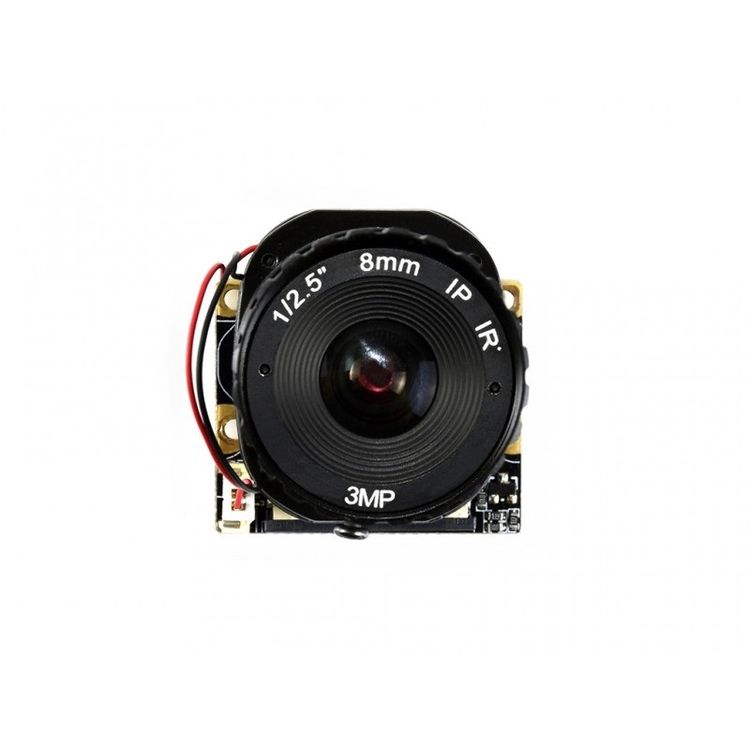

Waveshare Raspberry Pi Camera Module, Embedded IR-CUT, Supports Night Vision, Type B


R462

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features
1. Raspberry Pi camera, supports all revisions of the Pi
2. Embedded removable IR-CUT filter, eliminating color distortion in the daylight
3. Comes with infrared LED, supports night vision
4. 5 megapixel OV5647 sensor
5. Adjustable focus distance
6. Camera specifications
– CCD size: 1/4 inch
– Aperture (F): 1.2
– Focal Length: 8mm
– Angle of View (diagonal): 40 degree
– Sensor best resolution: 1080p
7. 4 screw holes
– Used for attachment
– Provides 3.3V power output
– Supports connecting infrared LED and/or fill flash LED
8. Dimension: 31mm x32mm
Note: To use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Note: The actual image pixels is 5MP, which depends on the sensor, so it doesnt matter that there is a 3MP silk mark on the camera.
Package Contents
1. RPi IR-CUT Camera (B) x1

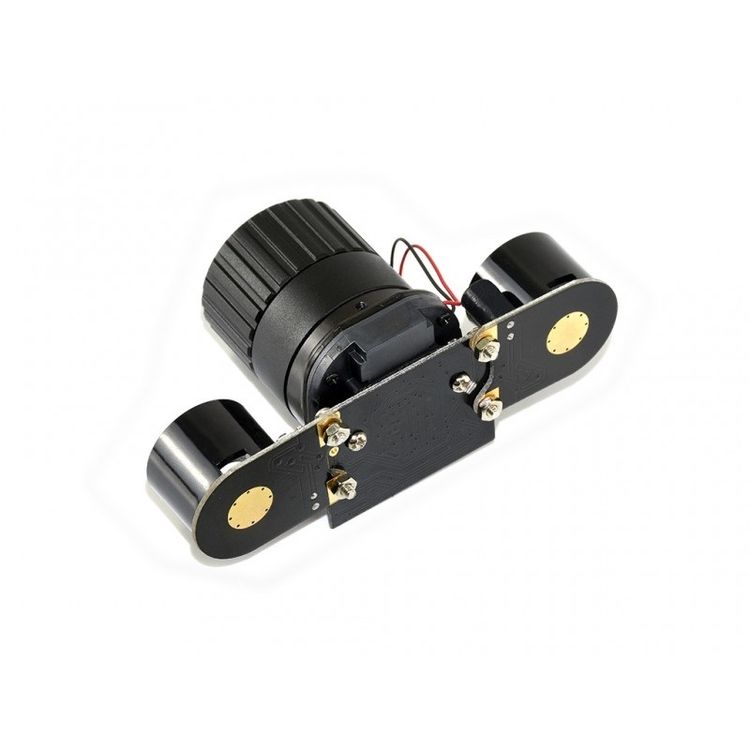

2. Infrared LED Board (B) x2
3. 15-pin FFC (opposite sides contact) x1

Additional Information

Weight & Size

Weight: 0.065kg
Size: 6cm x 6cm x 2cm

SKU: A0100070650 Category: Condition: New
