Waveshare Original Raspberry Pi 1.6MP Global Shutter Camera Module (24385)


R1764

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

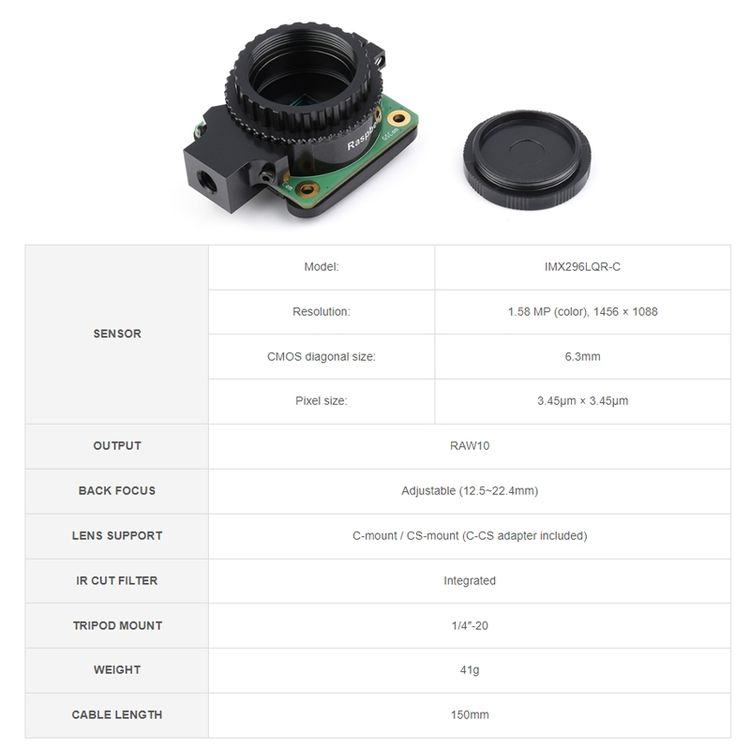

1. Resolution: 1.58 MP (color), 1456 × 1088
2. CMOS diagonal size: 6.3mm
3. Pixel size: 3.45μm × 3.45μm
4. Output: RAW10
5. Adjustable back focus (12.5~22.4mm)
6. The lens supports C-mount / CS-mount (including C-CS adapter)
7. IR CUT FILTER integration
8. Tripod: 1/4″-20
9. Weight: 41 grams
10. Data cable length: 150 mm
11. Based on IMX296 sensor with a resolution of 1.6MP
12. Capable of capturing fast moving objects without rolling shutter jelly effect, ideal for fast motion photography and machine vision applications
13. With a large pixel size of 3.45μm × 3.45μm providing high light sensitivity, the global shutter camera can operate at short exposure times (as low as 30μs with sufficient light)

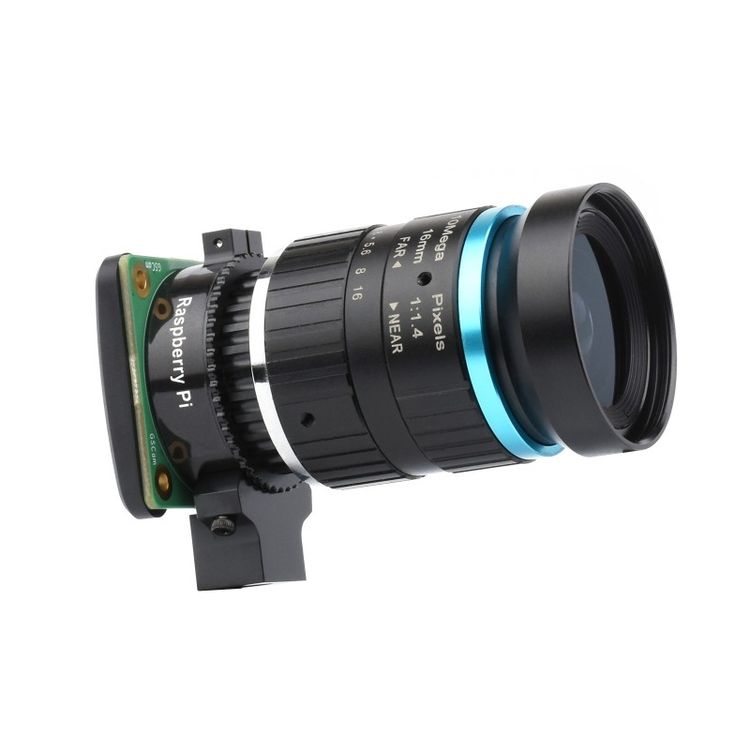

14. The global shutter camera includes a C to CS mount adapter for industrial lenses with C or CS mount

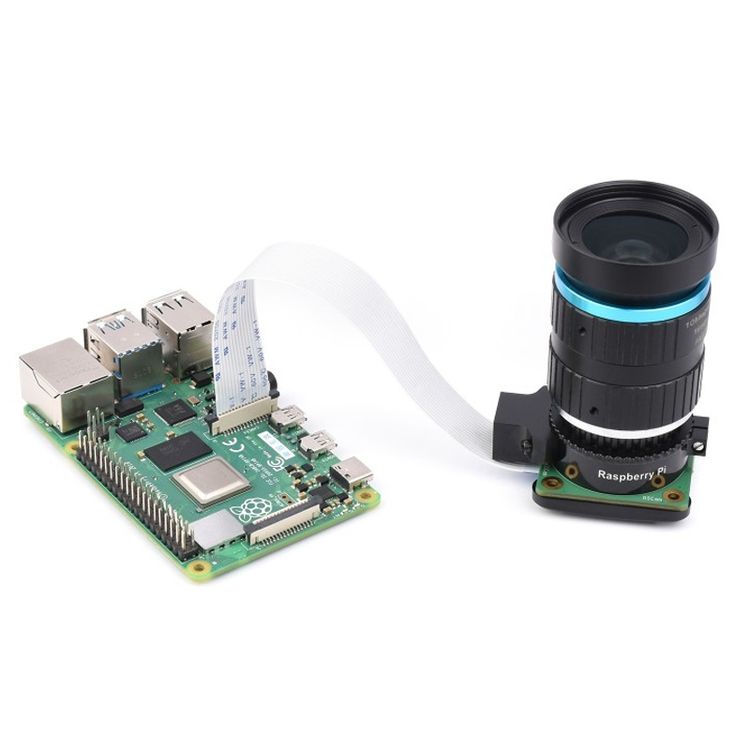

15. Compatible with all Raspberry Pi series boards (Extra adapter required for Raspberry Pi Zero or Compute Module series)
16. Global shutter, clearer imaging
17. The global shutter eliminates the jelly effect when shooting fast-moving objects, which is more suitable for high-speed motion capture
Packing list:
Global shutter camera x 1
C-CS adapter x 1
Dust cap x 1
screwdriver x 1
FFC ribbon x 1
box x 1

Additional Information

Weight & Size

Weight: 0.064kg
Size: 13cm x 13cm x 4cm

SKU: A0100070788 Category: Condition: New
