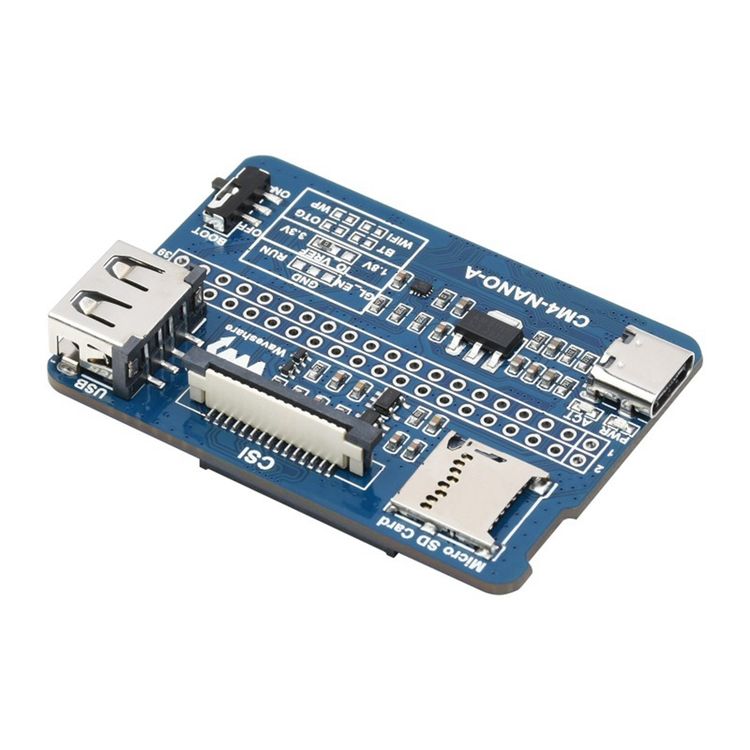

Waveshare Nano Base Board A for Raspberry Pi CM4


R269

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

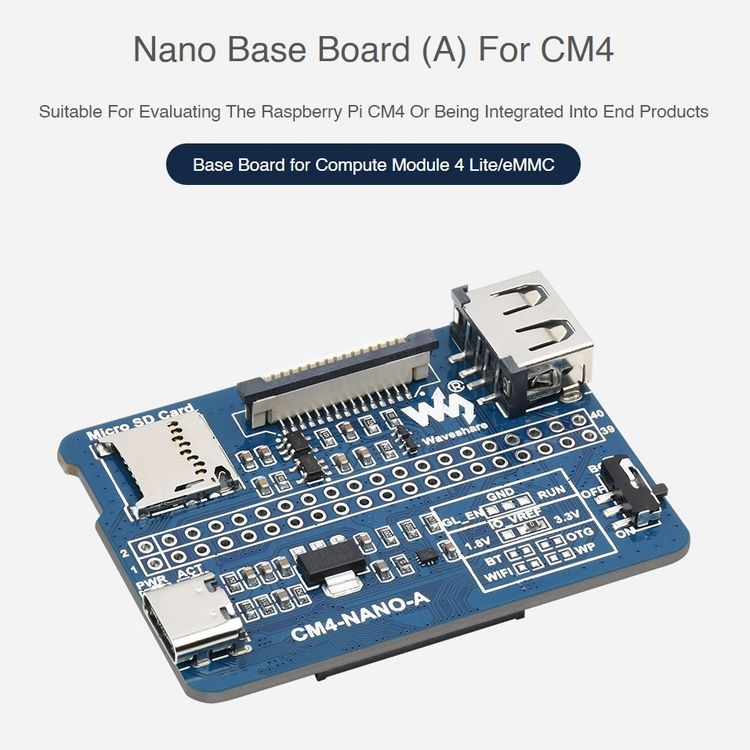

1. Base board for Compute Module 4 Lite / eMMC

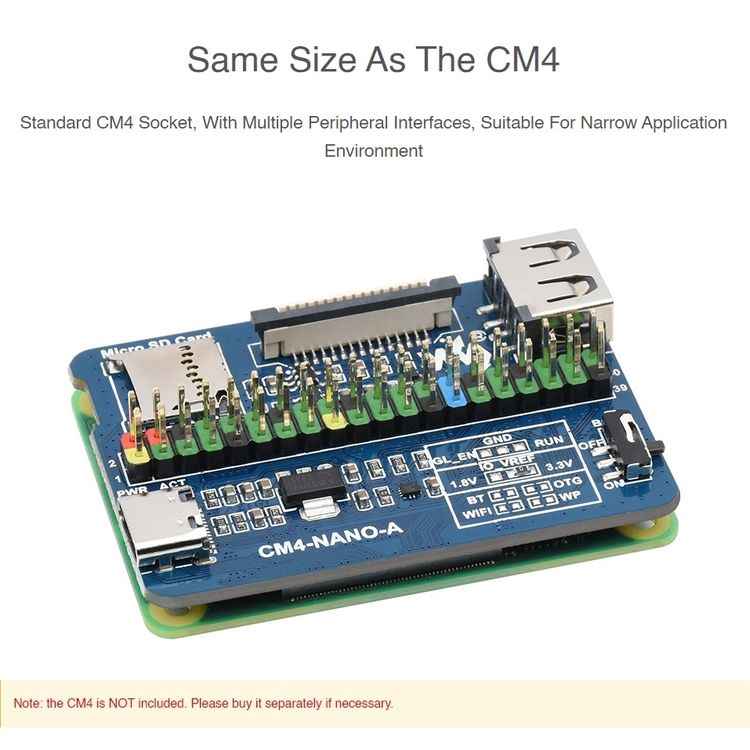

2. Standard CM4 socket, with multiple peripheral interfaces, suitable for narrow application environment

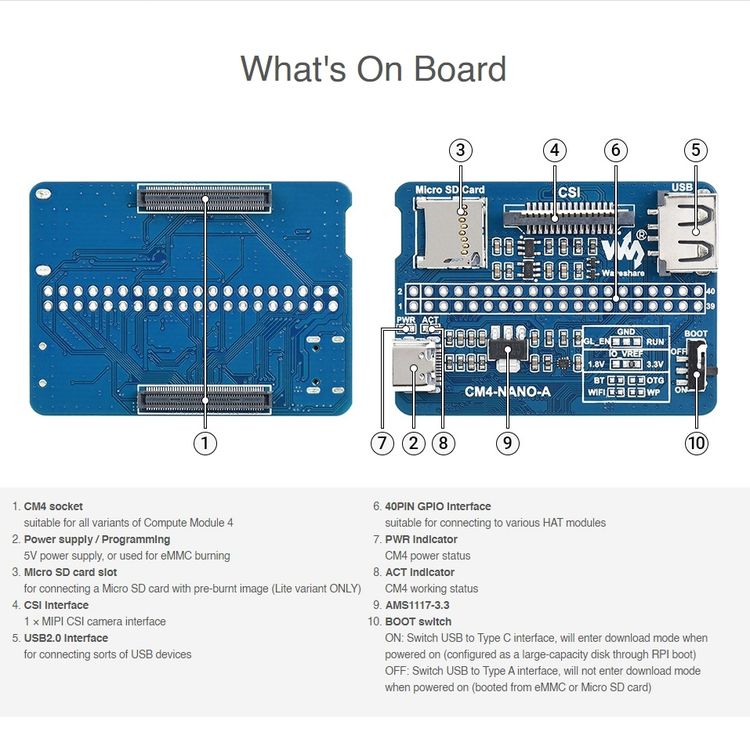

Specifications:

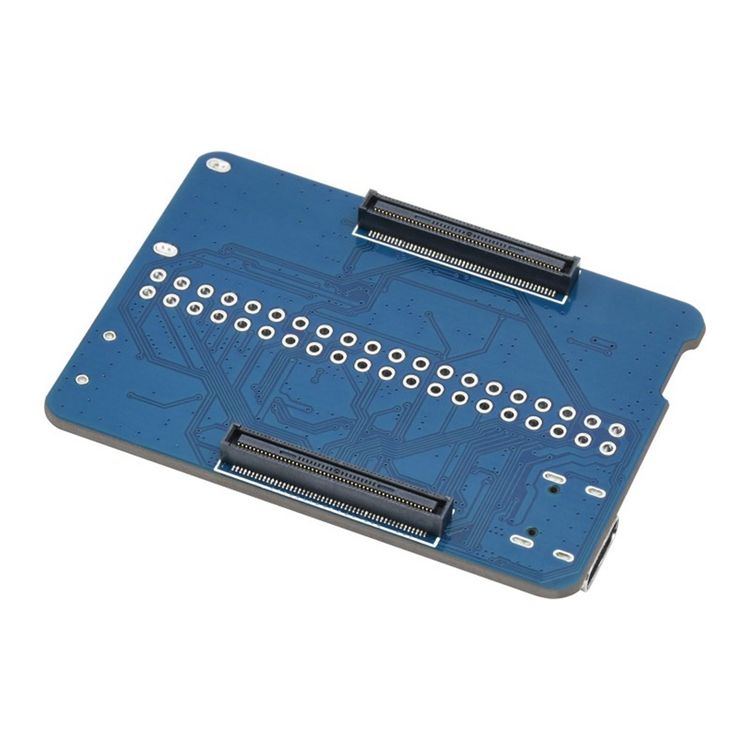

1. CM4 socket: Suitable for all variants of Compute Module 4
2. Connector: Raspberry Pi 40PIN GPIO interface x 1
3. USB: USB 2.0 Type A interface x 1
4. Camera: MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector)
5. Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
6. Power: 5V

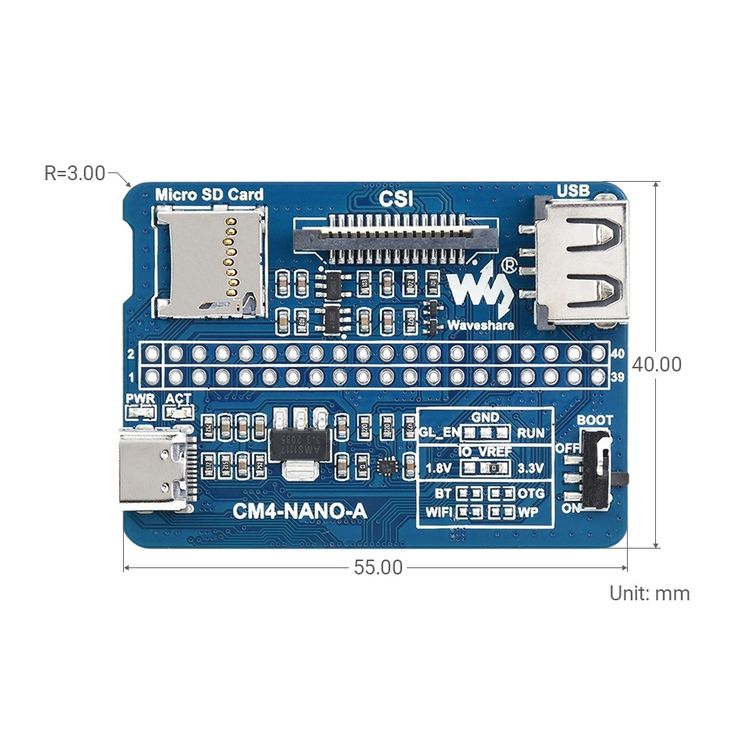

7. Size: 55 x 40mm

Package list
1. CM4-NANO-A x1

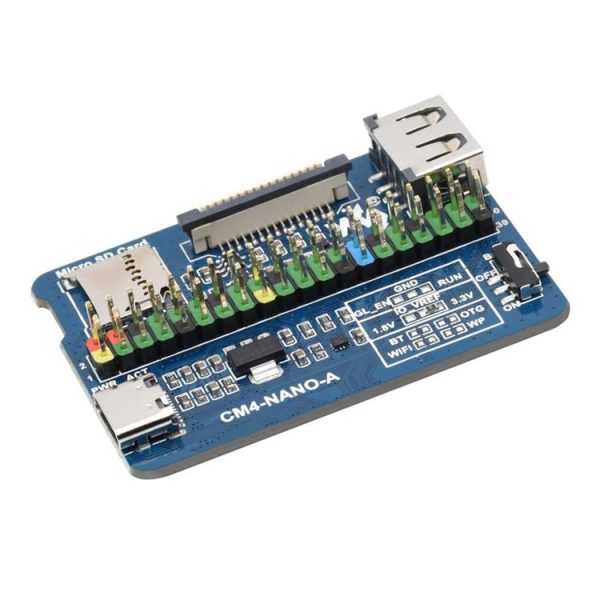

2. 2 x 20PIN color-coded straight pinheader x 2

Additional Information

Weight & Size

Weight: 0.033kg
Size: 15cm x 12cm x 1cm

SKU: A0100024564 Category: Tag: Condition: New
