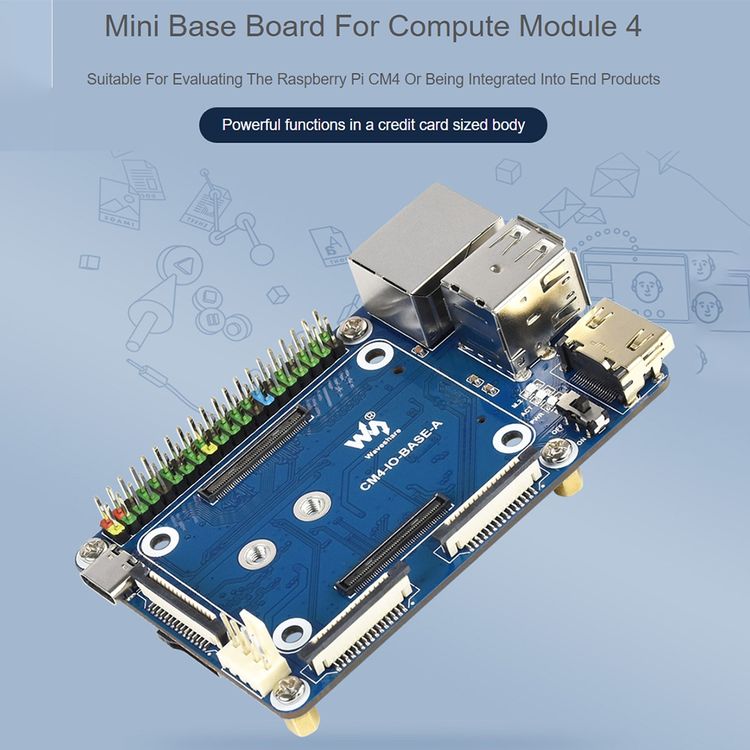

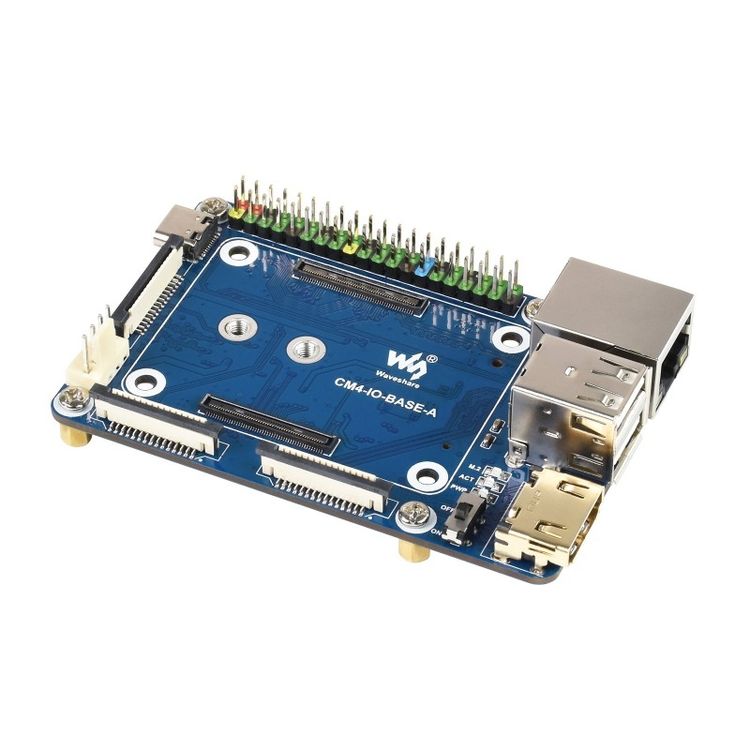

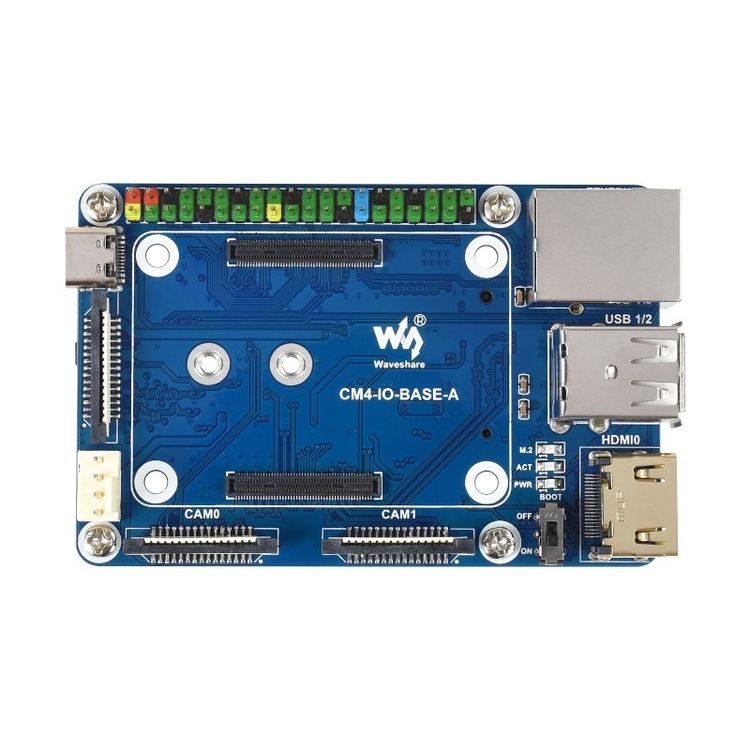

Waveshare Mini Base Board A for Raspberry Pi Compute Module 4


R379

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

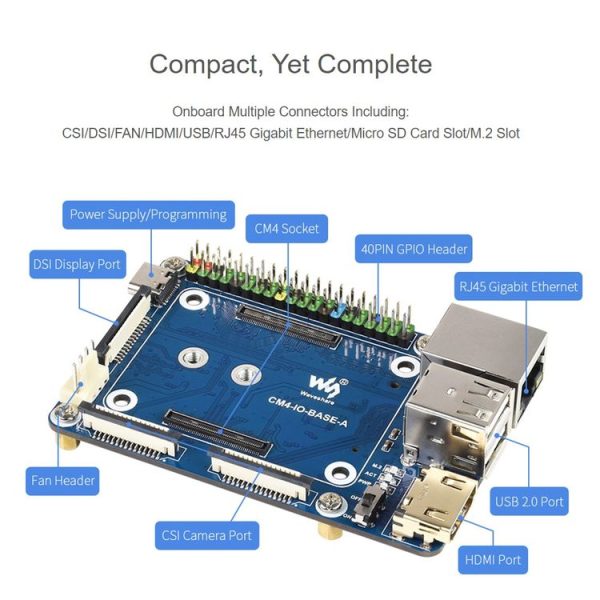

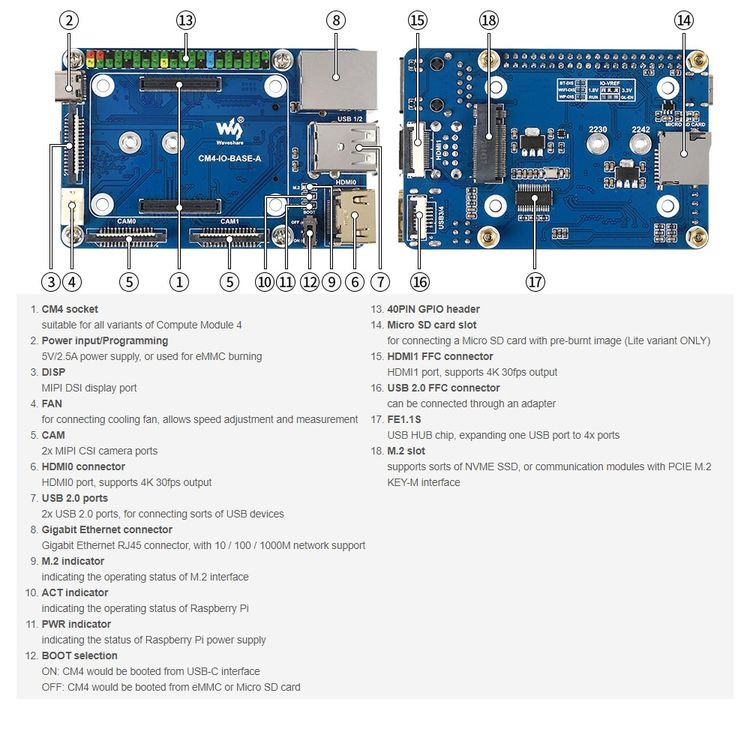

Overview

1. USB:
– USB 2.0 x 2
– USB 2.0 x 2 (via FFC connector)
2. GPIO: Raspberry Pi 40 PIN GPIO x 1

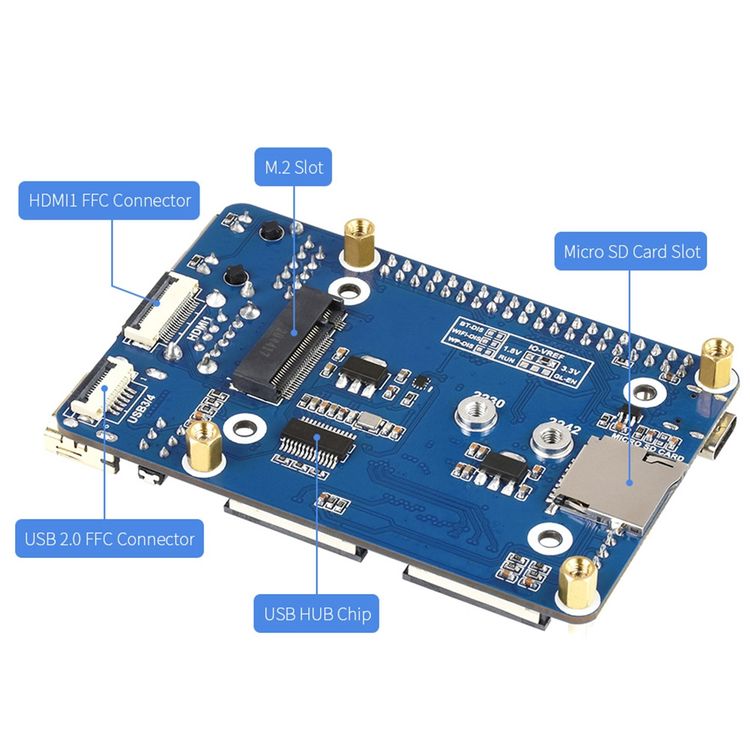

3. Header: M.2 slot x 1
4. HD media interface: HDMI x 2, 1x via FFC connector, support 4K 30fps output
5. DSI display: MIPI DSI x 1 (15pin 1.0mm FPC)
6. CSI camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
7. Power input: 5V
8. FAN: 5V / 12V (no fan control)
9. RJ45 Ethernet: Gigabit Ethernet

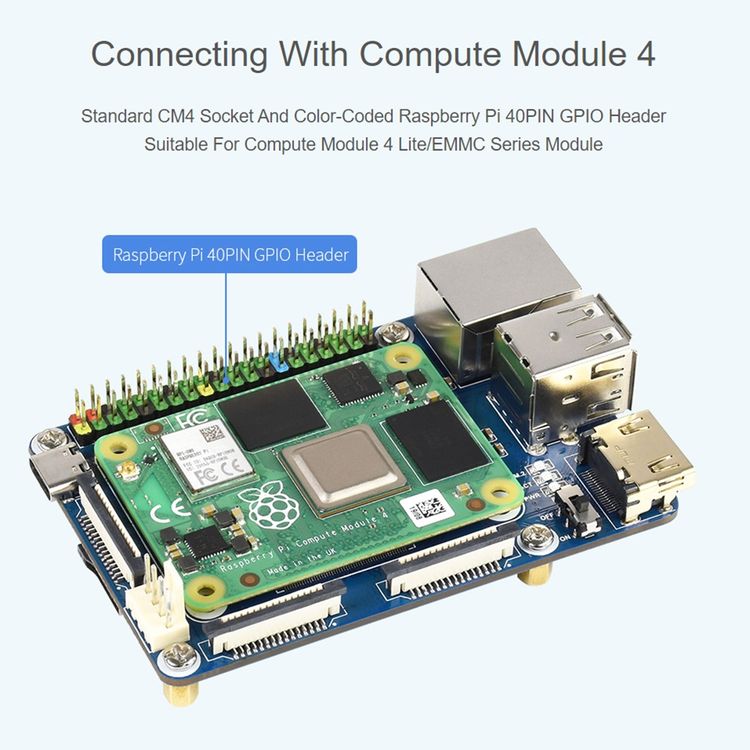

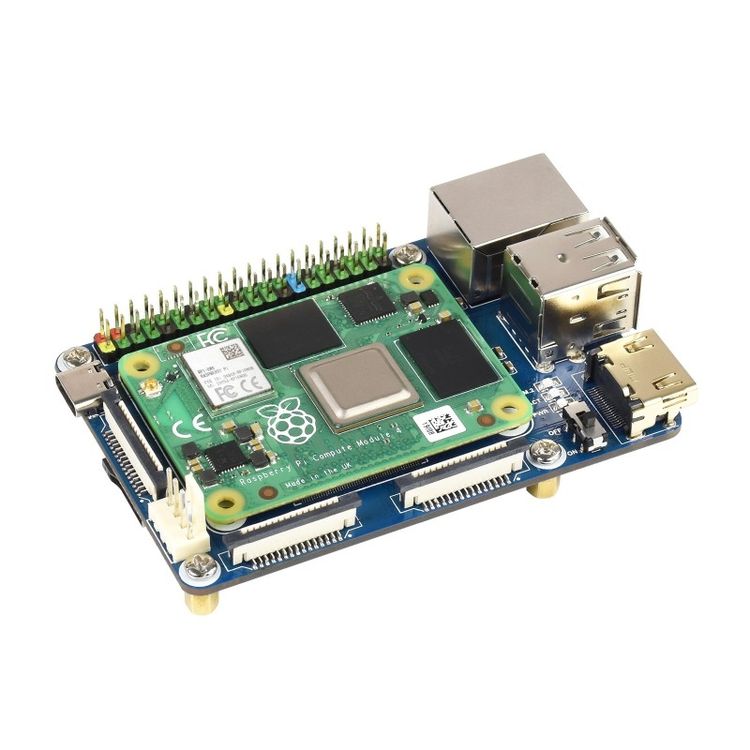

10. CM4 slot: Suitable for all variants of Compute Module 4
11. SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

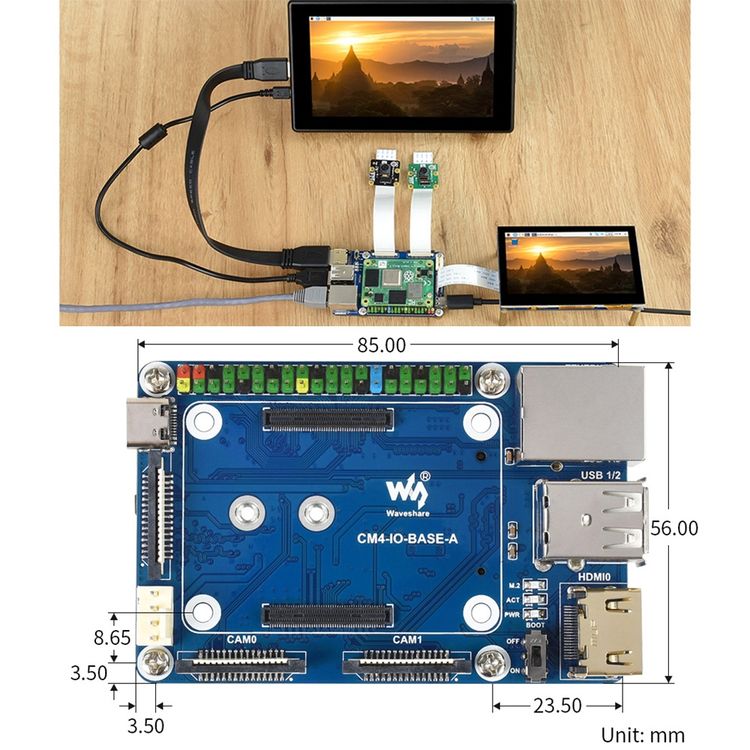

12. Size: 85.0 x 56.0mm

Additional Information

Weight & Size

Weight: 0.072kg
Size: 15cm x 12cm x 2cm

SKU: A0100024640 Category: Tag: Condition: New
