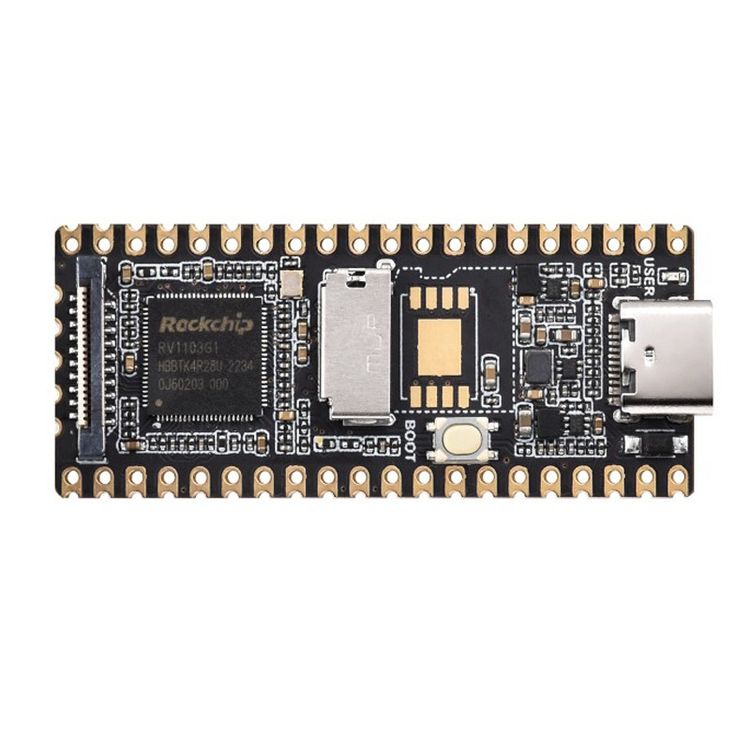

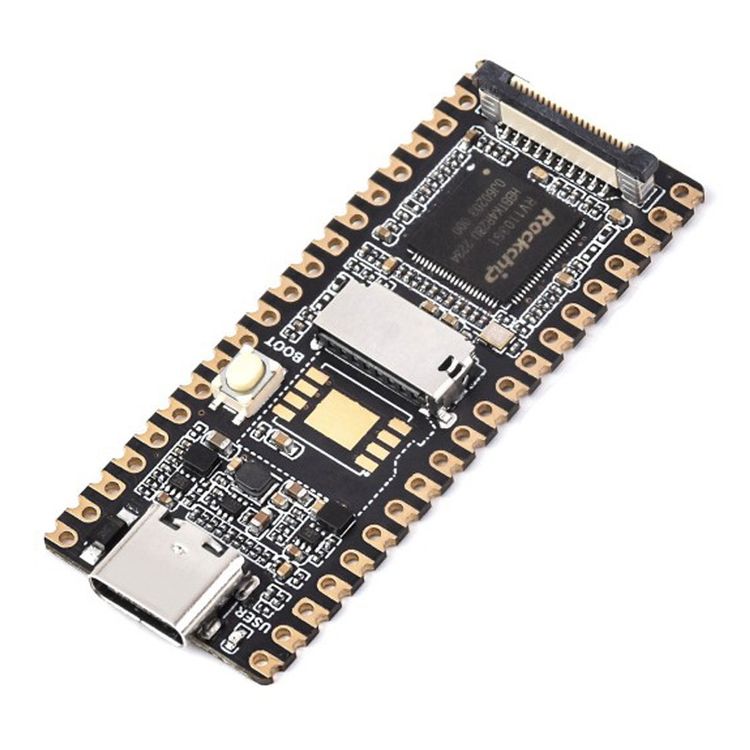

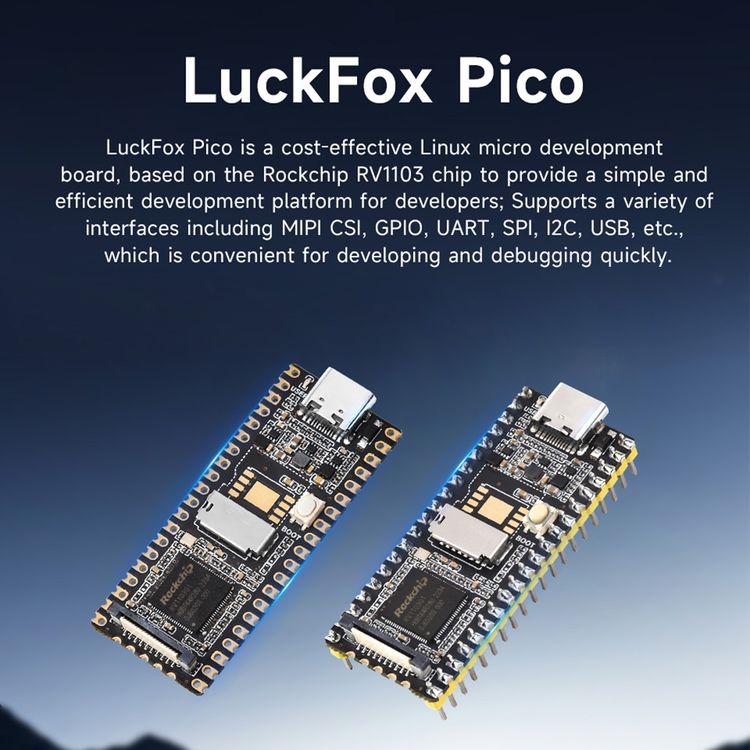

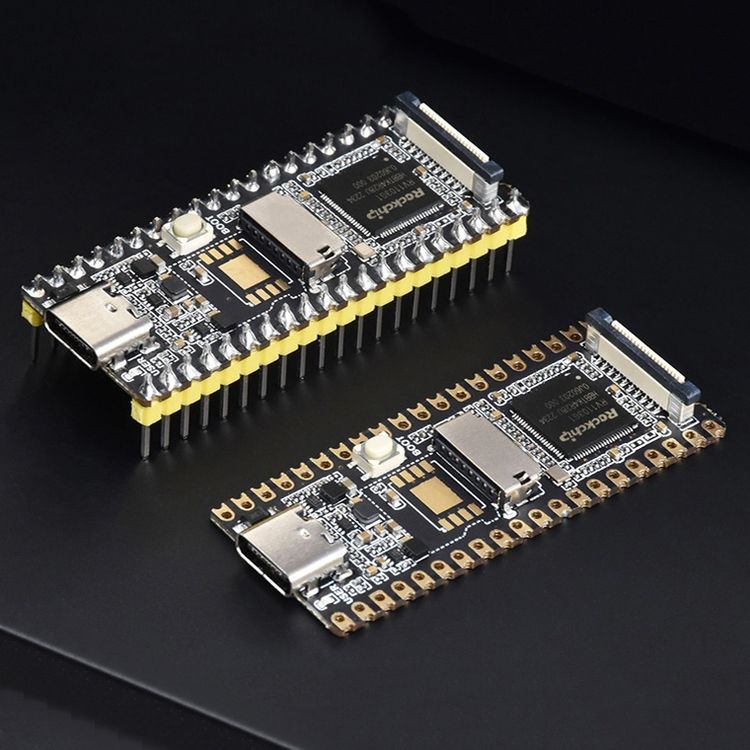

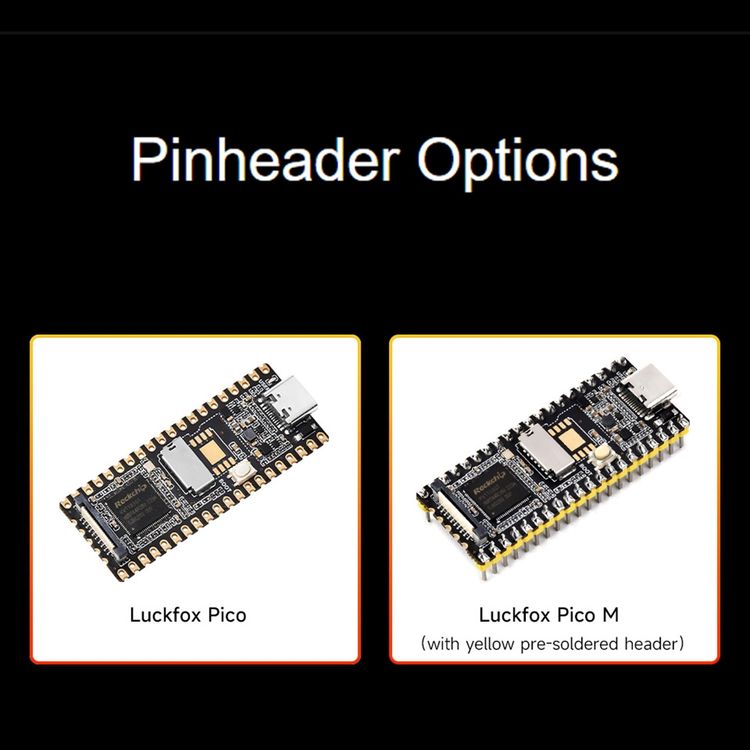

Waveshare LuckFox Pico RV1103 Linux Micro Development Board without Header


R181

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features:
1. Single-core ARM Cortex-A7 32-bit core, integrated NEON and FPU
2. Built-in Rockchip’s self-developed fourth-generation NPU, with high calculation accuracy and support for int4, int8, and int16 mixed quantization. The computing power of int8 is 0.5 TOPS, and int4 can reach 1.0 TOPS
3. Built-in self-developed third-generation ISP3.2, supports 4 megapixels, and has various image enhancement and correction algorithms such as HDR, WDR, and multi-level noise reduction.
4. Powerful encoding performance, supports intelligent encoding mode and adaptive throttling according to the scene, saving more than 50% bit rate than conventional CBR mode, making camera images higher-definition, smaller in size, and doubling the storage space
5. The built-in RISC-V MCU supports low power consumption and fast startup, supports 250ms fast image capture and simultaneous loading of the AI model library, achieving “one second” face recognition
6. Built-in 16-bit DRAM DDR2, capable of meeting the required memory bandwidth
7. Integrated built-in POR, audio codec and MAC PHY

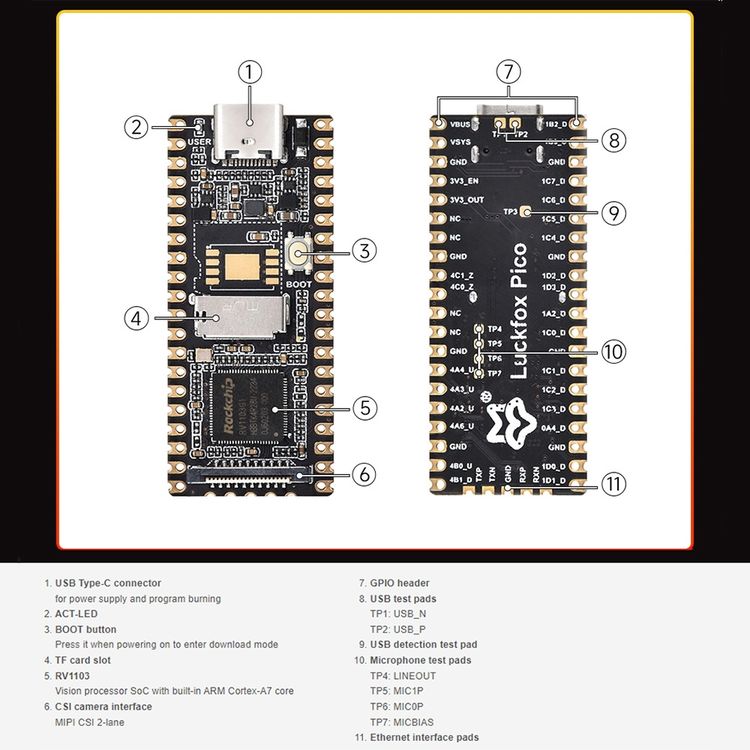

Product parameters:
1. Processor: Cortex A7@1.2GHz + RISC-V
2. NPU: 0.5TOPS, supports int4, int8, int16
3. ISP: Input 4M @30fps (maximum)
4. Memory: 64MB DDR2
5. USB: USB 2.0 host/device

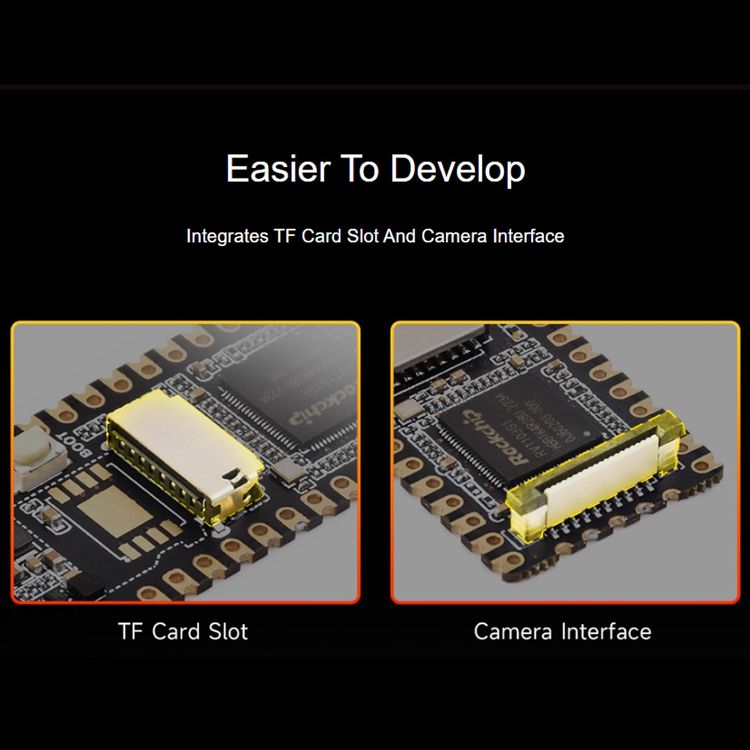

6. Camera: MIPI CSI 2-lane

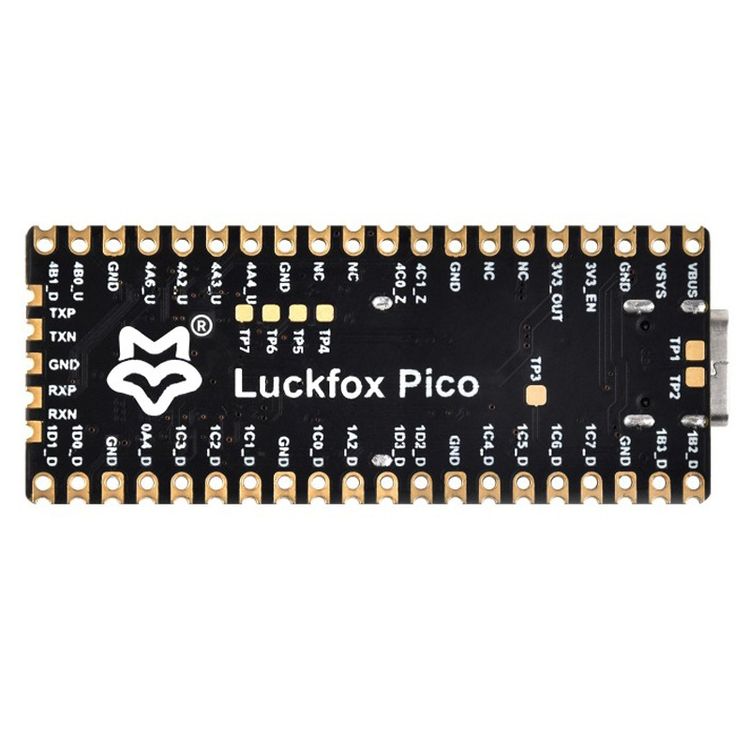

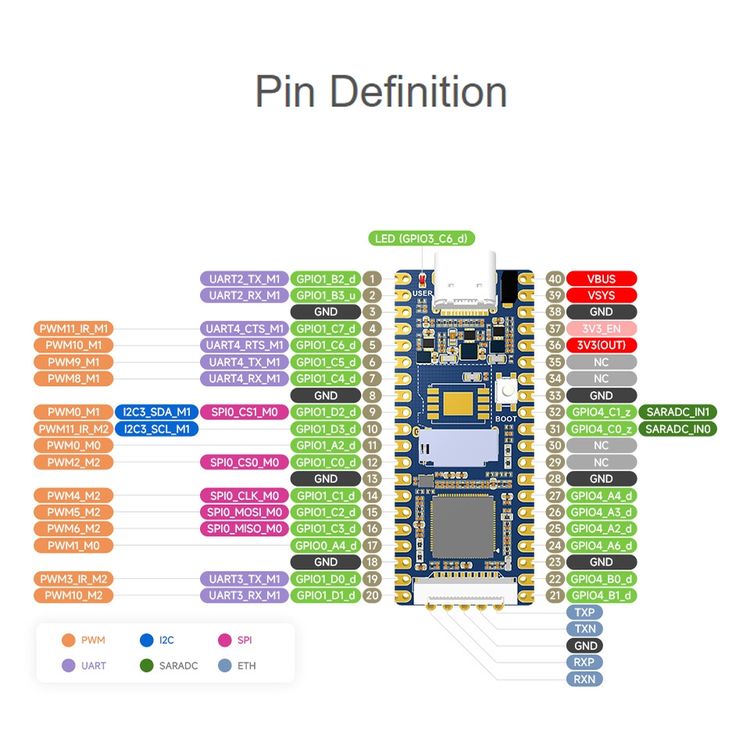

7. GPIO: 24×GPIO pins
8. Ethernet port: 10/100M Ethernet controller and embedded PHY
9. Default storage: TF card (not included in delivery)

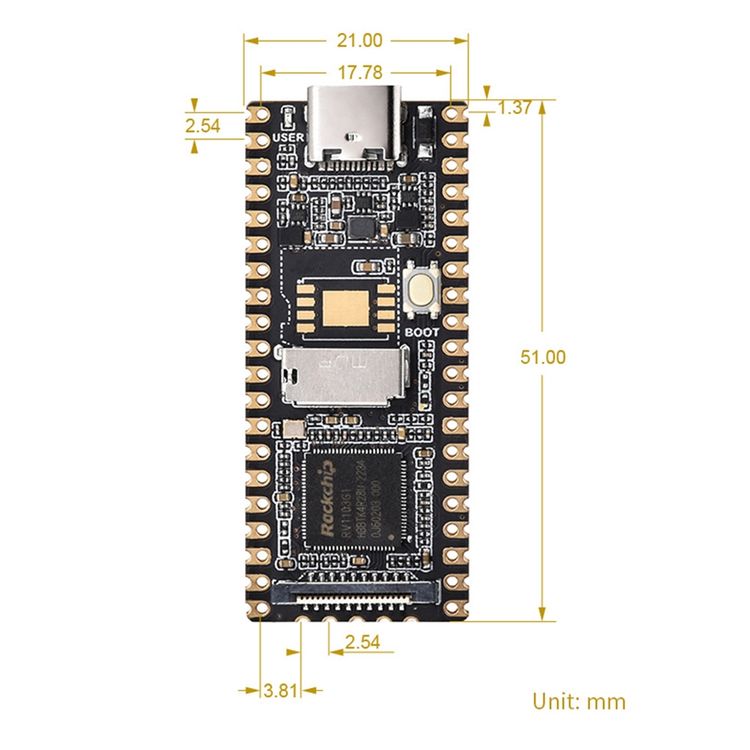

10. Product size: 51 x 21mm
11. Weight: 4g, 6g

Additional Information

Weight & Size

Weight: 0.014kg
Size: 8cm x 5cm x 1cm
