Overview

About The Protuct

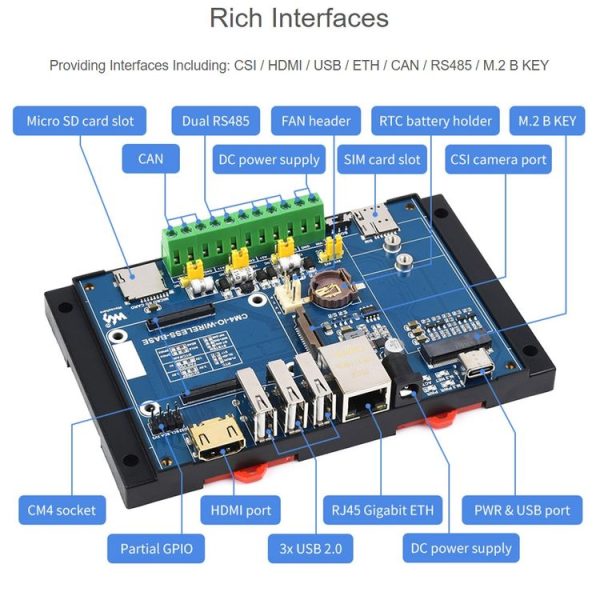

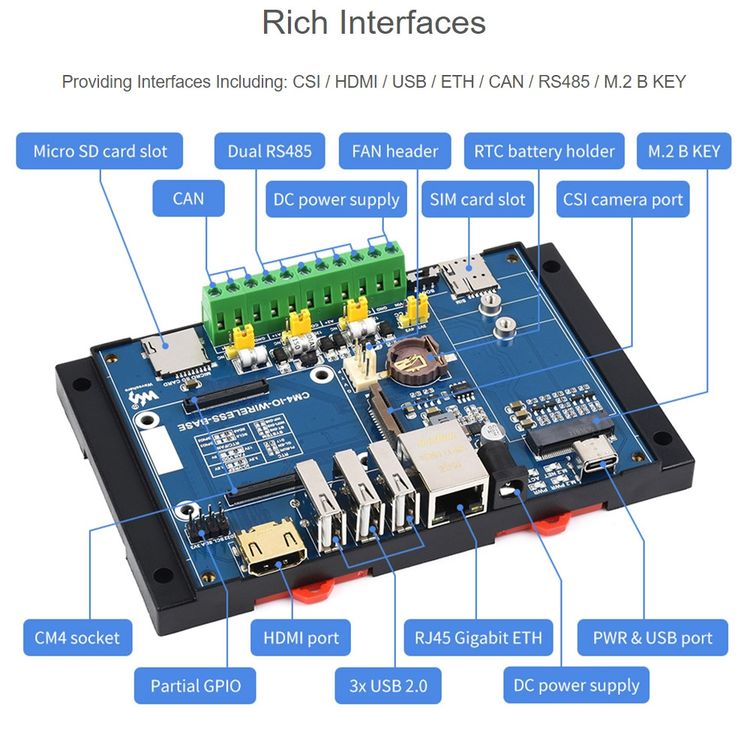

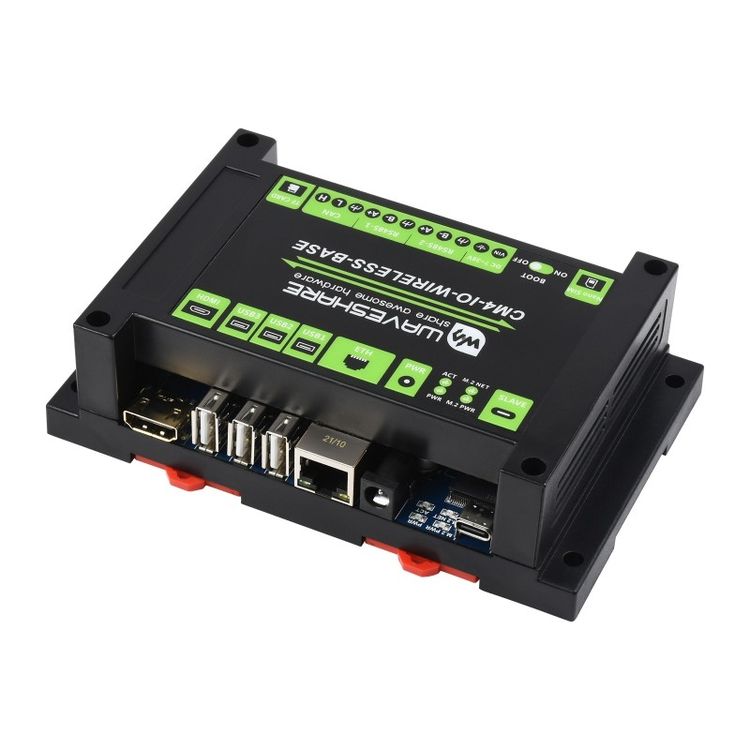

This is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G / LoRa wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.

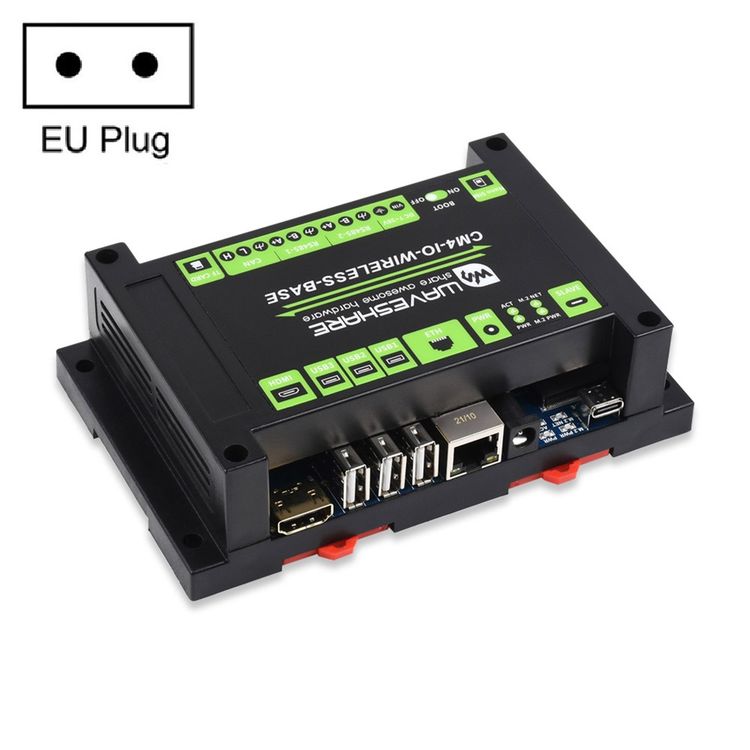

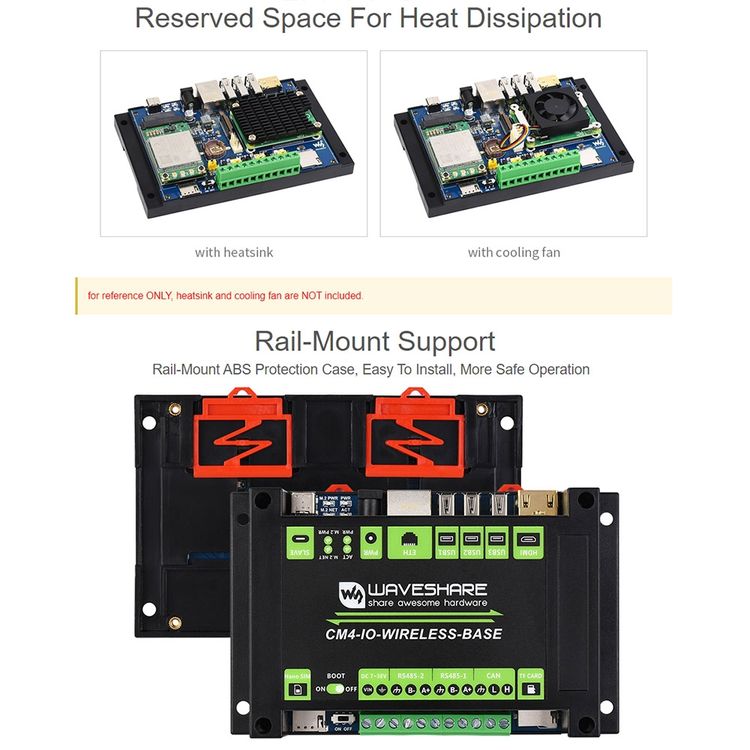

Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial automatic control system, and more.

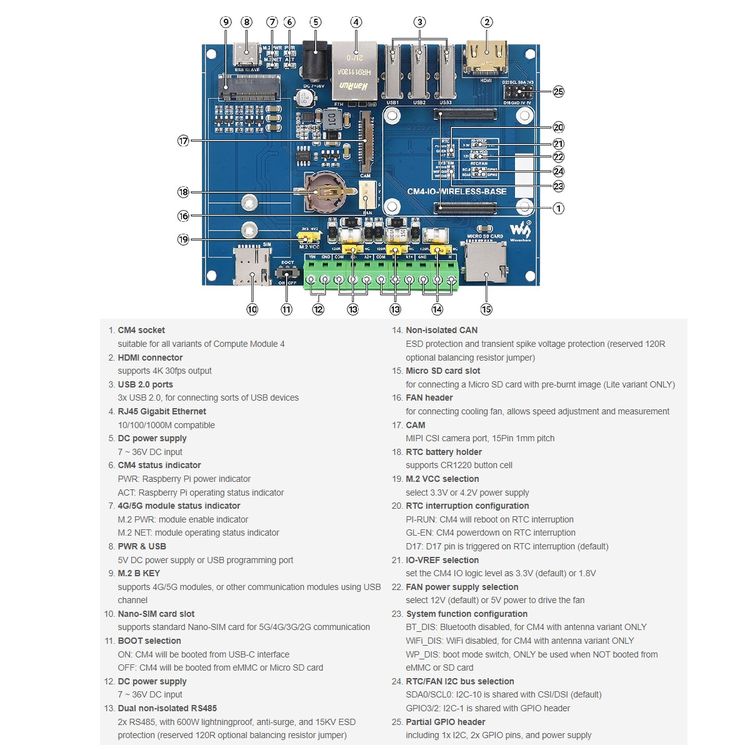

Specifications

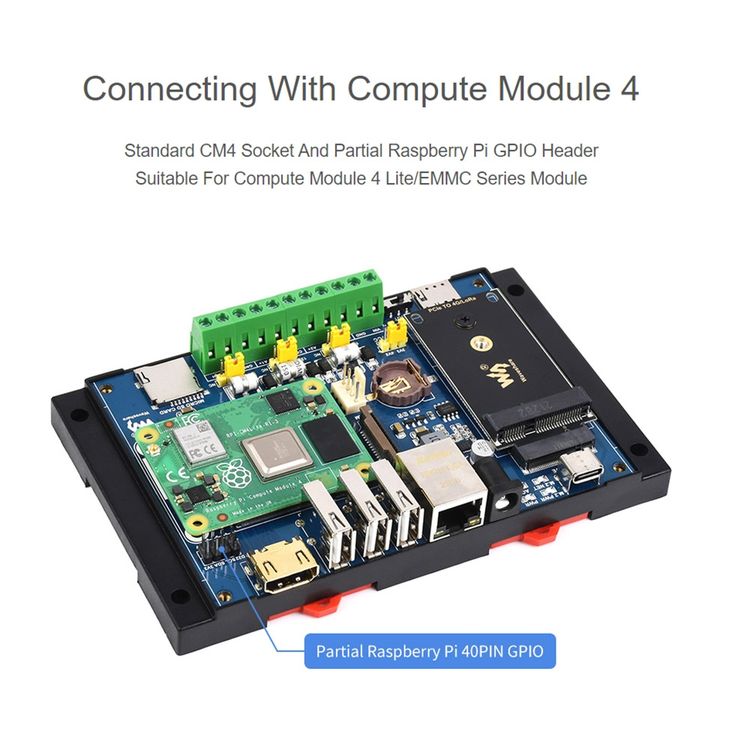

1. CM4 socket: For all variants of Compute Module 4
2. Networking:
– Gigabit Ethernet RJ45

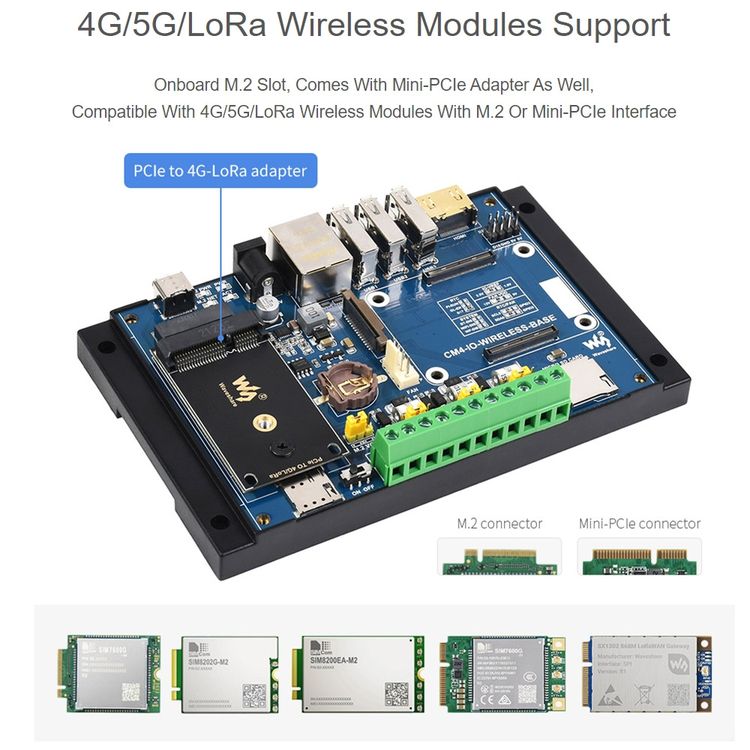

– M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module
– Nano-SIM card slot, support standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB: USB 2.0 x 3
4. PIN header: Non-isolated RS485 x 2, non-isolated CAN x 1, some GPIO pins
5. Camera: MIPI CSI-2 x 1 (15pin 1.0mm FPC connector)
6. Video: HDMI x 1, support 4K 30fps output
7. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
8. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
9. Fan header: 5V/12V, allows speed adjustment and measurement
10. Power input: 5V or 7~36V

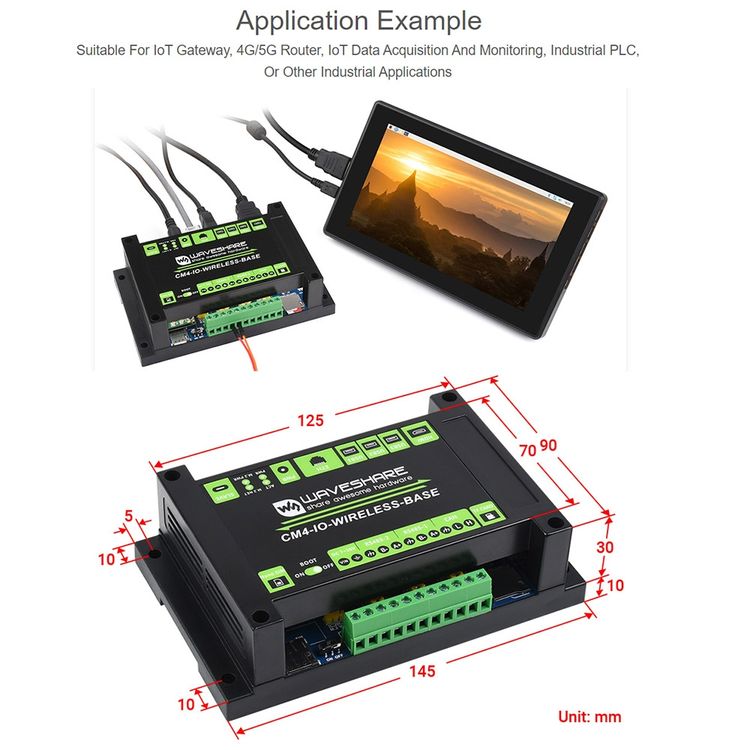

11. Dimensions: 145 x 90 x 40mm

Package List

1. CM4-IO-WIRELESS-BASE x 1
2. PCIe to 4G/LoRa adapter x 1
3. Screwdriver x 1
4. Screws pack x 1
5. 12V 2A power adapter x 1

Additional Information

Weight & Size

Weight: 0.375kg
Size: 16cm x 12cm x 5cm
