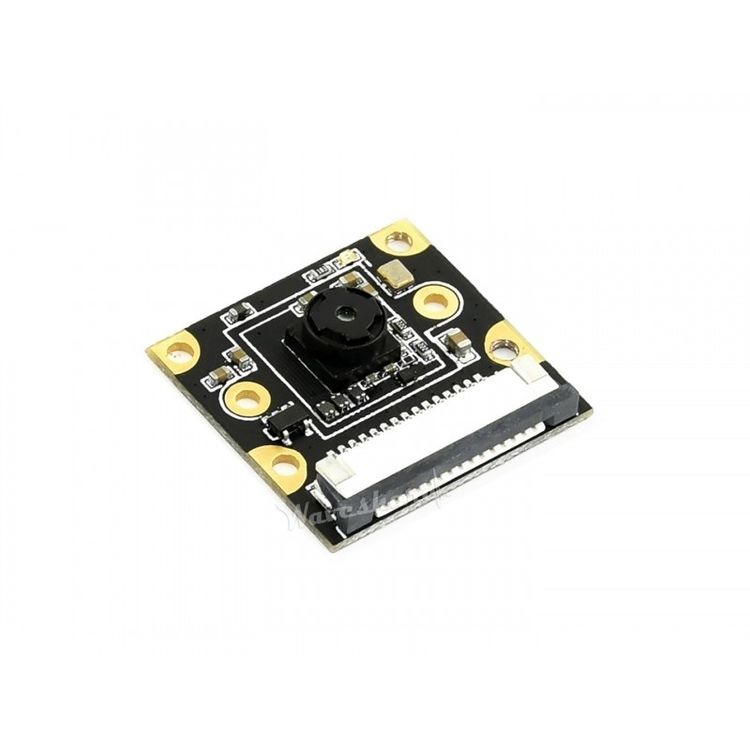

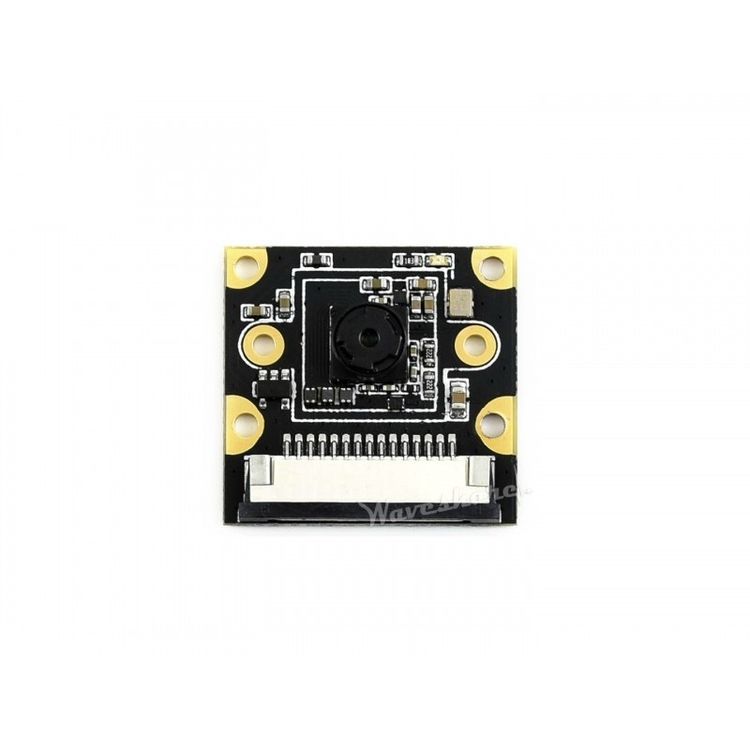

Waveshare IMX219-77IR 8MP 77 Degree FOV Infrared Camera, Applicable for Jetson Nano


R408

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features

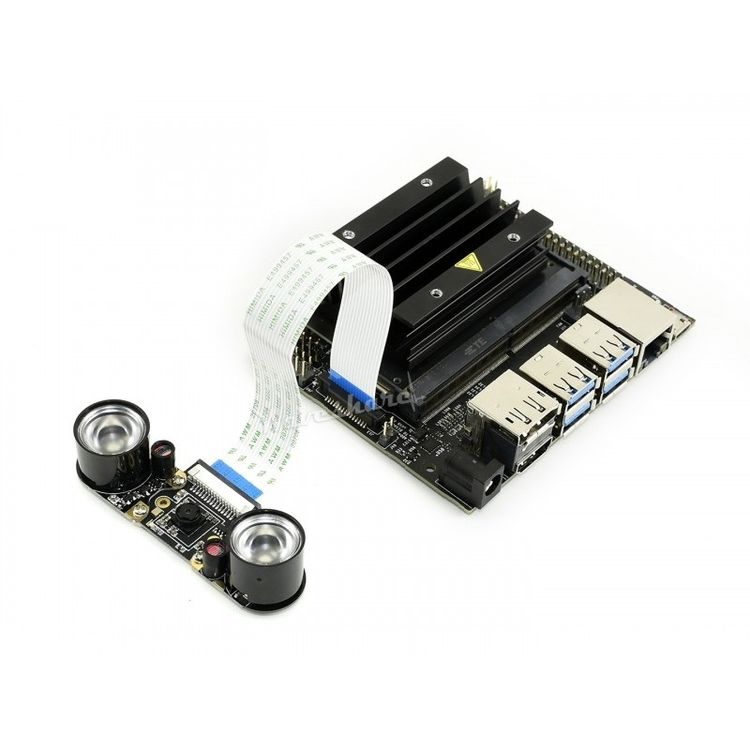

1. Supports NVIDIA Jetson Nano Developer Kit
2. Supports night vision when works with infrared LEDs
3. 8 Megapixels
4. Sensor: IMX219
5. Resolution: 3280 × 2464
6. Lens specifications:
– CMOS size: 1/4inch
– Aperture (F): 2.0
– Focal Length: 2.96mm
– Angle of View (diagonal): 77 degree
– Distortion: <1%
– Lens dimensions: 6.5mm × 6.5mm

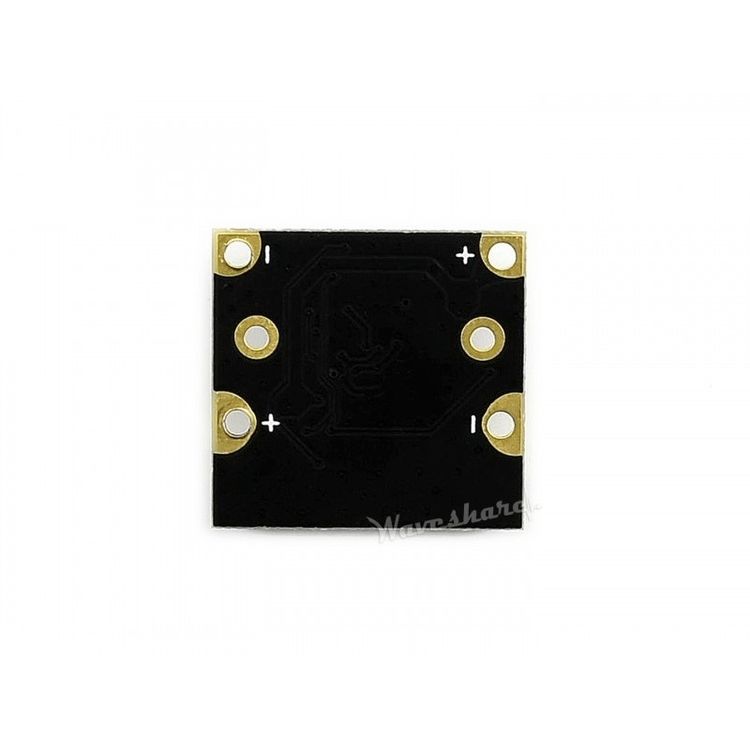

7. 4 screw holes
8. Used for attachment
9. Provides 3.3V power output
10. Supports connecting infrared LED and/or fill flash LED
11. Dimension: 25mm x 24mm
12. Weight: 31g
Packing List
1. IMX219-77IR Camera x1

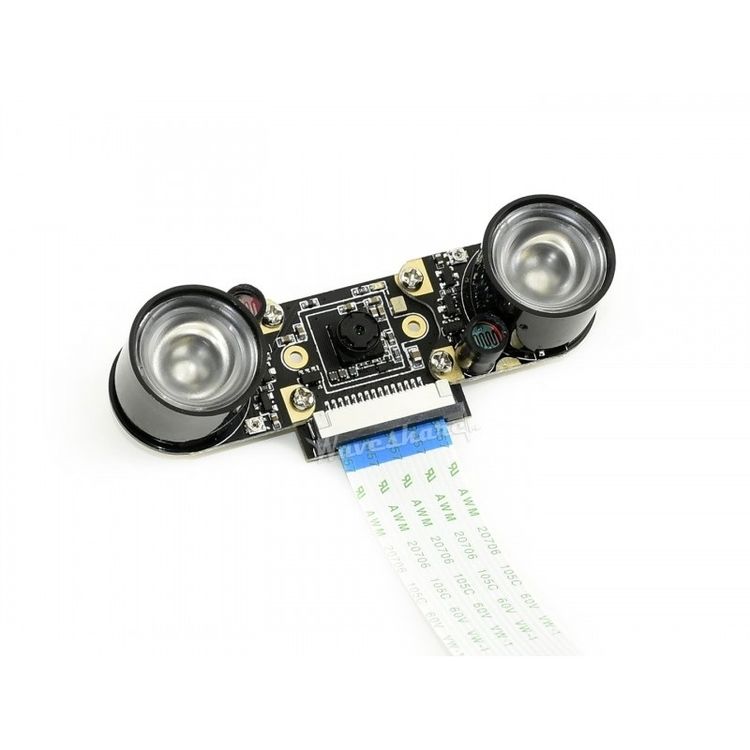

2. Infrared LED Board (B) 2PCS x1
3. 15-pin FFC (opposite sides contact) x1

Additional Information

Weight & Size

Weight: 0.035kg
Size: 10cm x 6cm x 3cm

SKU: A0100024765 Category: Tag: Condition: New
