Overview

1.5inch OLED display Module, 128×128 pixels, 16 gray scale, SPI/I2C interface
Overview

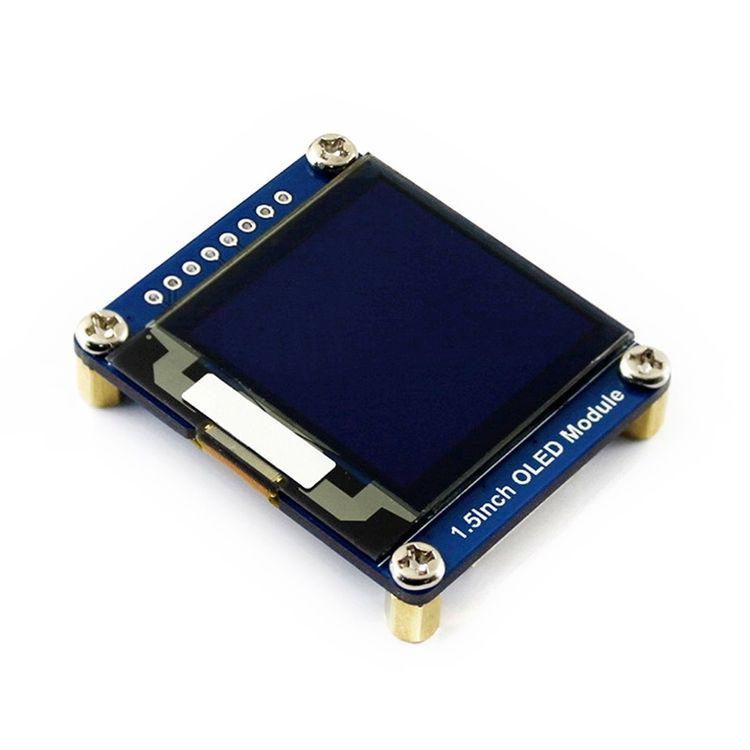

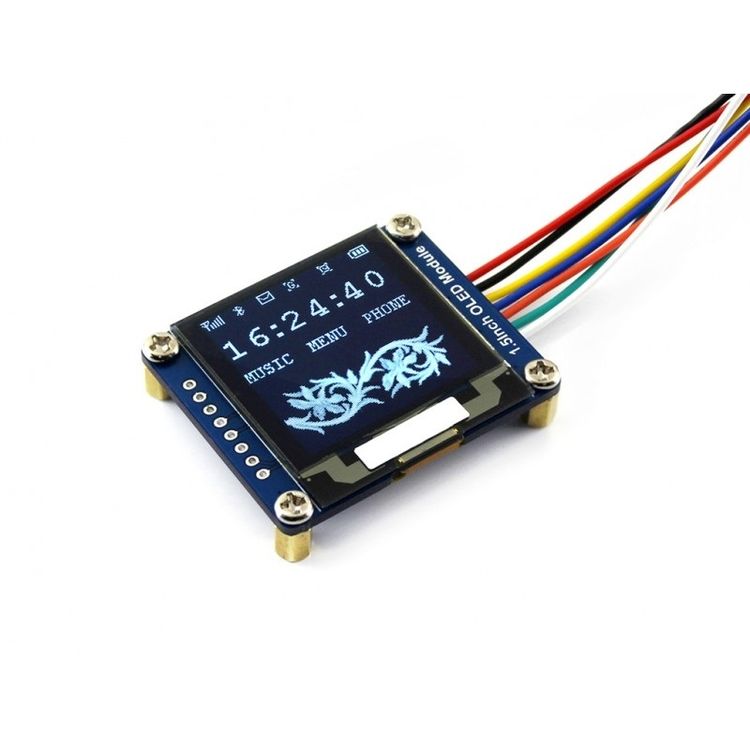

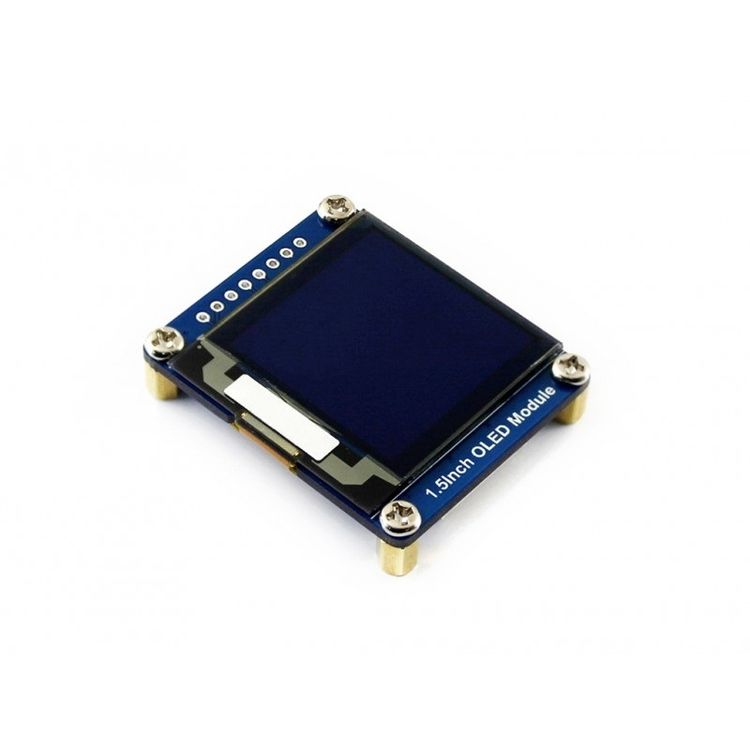

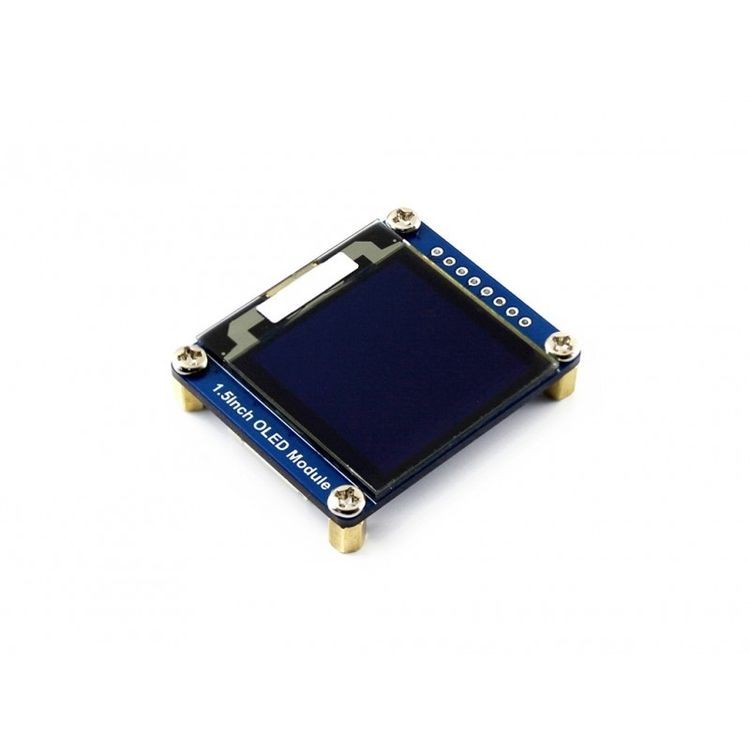

This is a general OLED display Module, 1.5inch diagonal, 128×128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface.
Features
1. 128×128 high resolution
2. 16 gray scale, better display effect

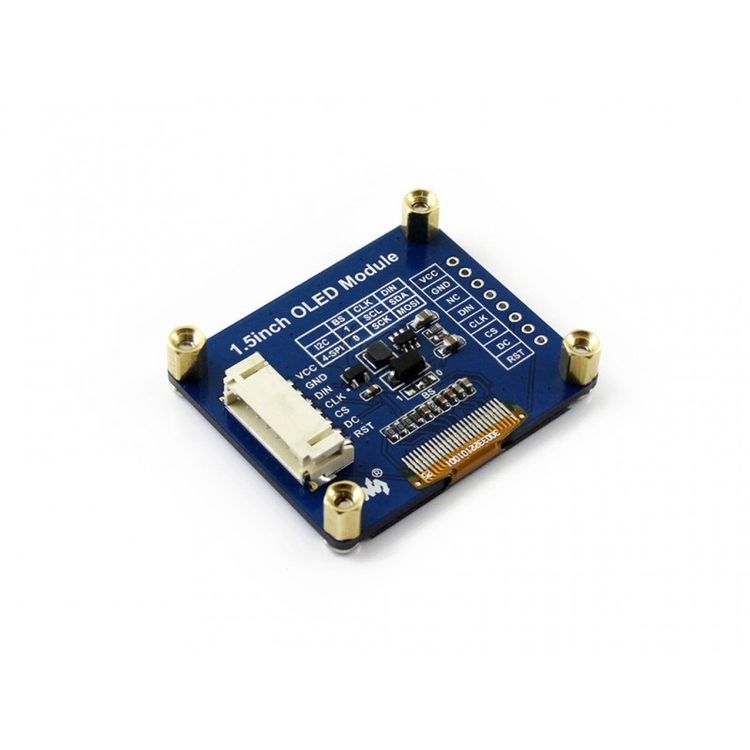

3. Support SPI or I2C interface, configured via onboard resistor
4. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
1. Driver: SSD1327
2. Interface: SPI / I2C
3. Display color: White
4. Gray scale: 16
5. Resolution: 128×128 (most other competitive products are typically 128×64)
6. Viewing angle: >160 degree
7. Operating voltage: 3.3V / 5V

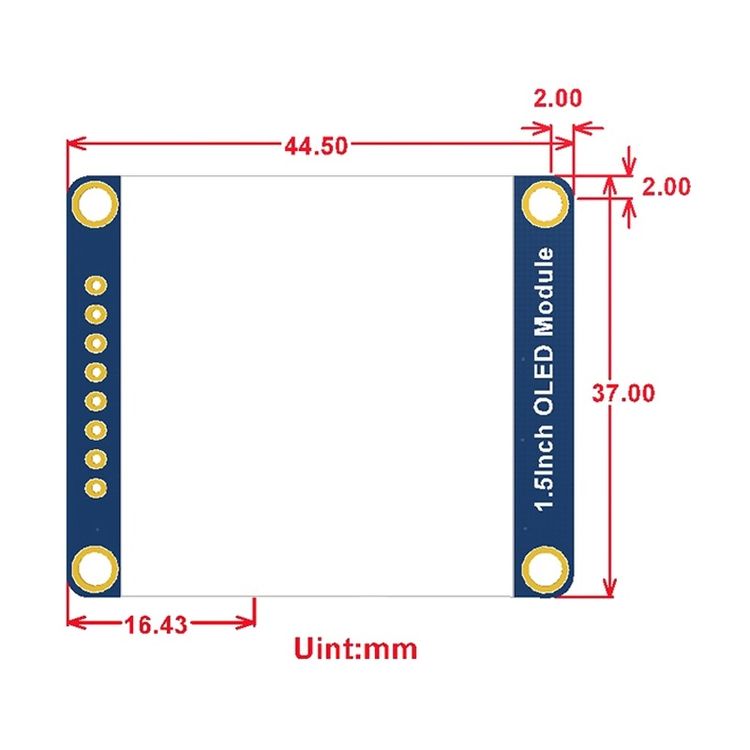

8. Dimension: 44.5 x 37 (mm)
Package Contents
1. 1.5 inch OLED Module x1
2. PH2.0 7Pin x1

Additional Information

Weight & Size

Weight: 0.030kg
Size: 6cm x 4cm x 2cm

SKU: A0100070612 Category: Condition: New
