Overview

Overview

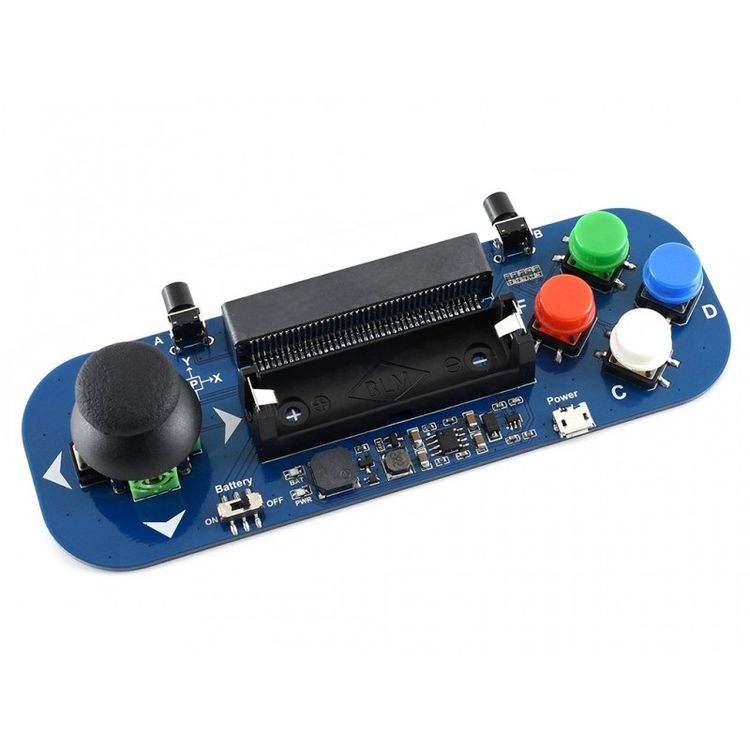

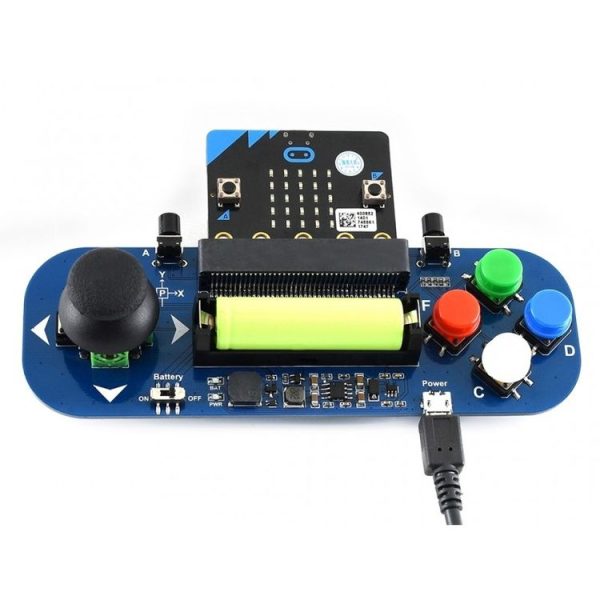

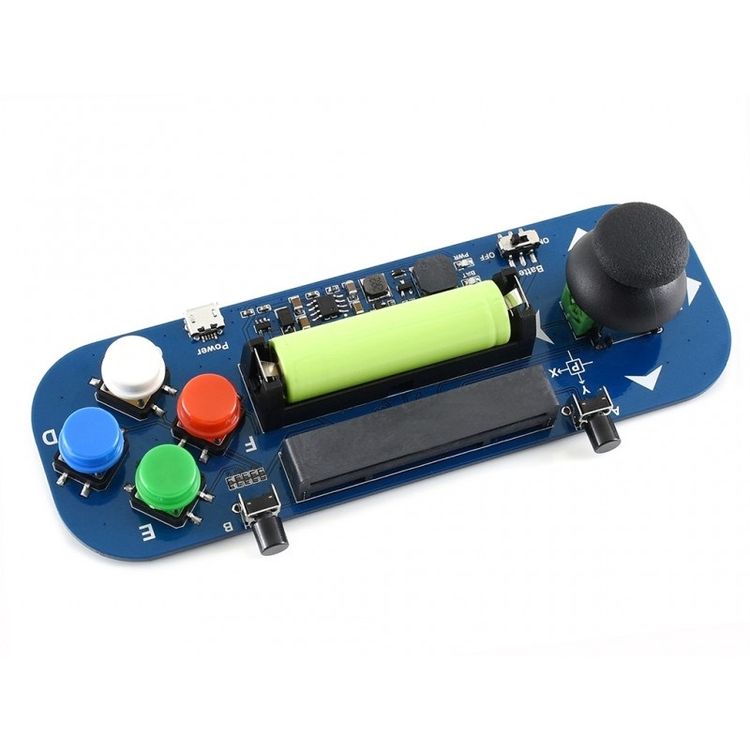

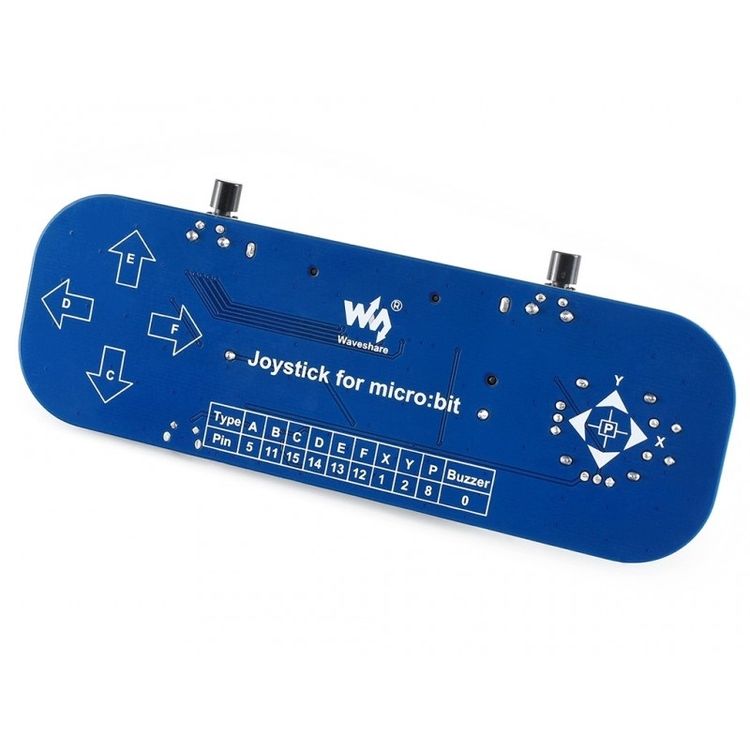

This little module adds arcade controls to your micro:bit, makes it possible to turn the micro:bit into a mini game console. There’s onboard buzzer to play music and game background effect. It is powered from a 14500 Li-ion battery (not included), conversely, it allows to charge the battery through USB connection.
Features
1. micro:bit edge connector, directly pluggable
2. High quality joystick, dual channel analog outputs for precise positioning, one channel digital output for press control
3. Onboard battery and charge circuitry, powered from battery, also charges the battery through USB connection
4. Battery indicator, blinks 1/2/3/4 times indicates the power remains about 25%/50%/75%/100% respectively
5. 4x colorful buttons
6. 2x side buttons, related to the A/B buttons of micro:bit, easy to use
7. Buzzer for playing music and game background effect
8. Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)
Specifications
1. Operating voltage: 5V
2. Battery type: 14500 Li-ion
3. Dimension: 150mm x 50mm

Additional Information

Weight & Size

Weight: 0.020kg
Size: 17cm x 6cm x 2cm

SKU: A0100024481 Category: Condition: New
