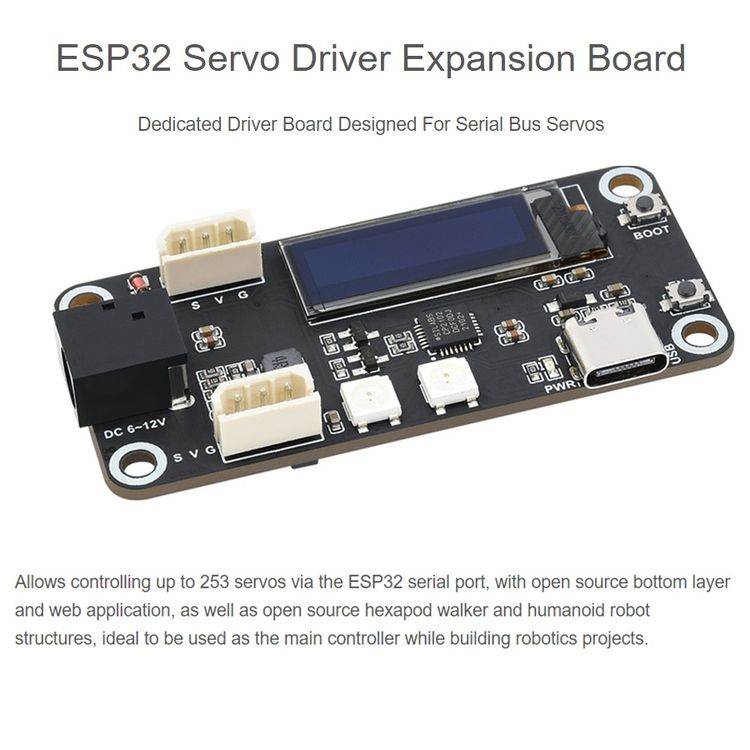

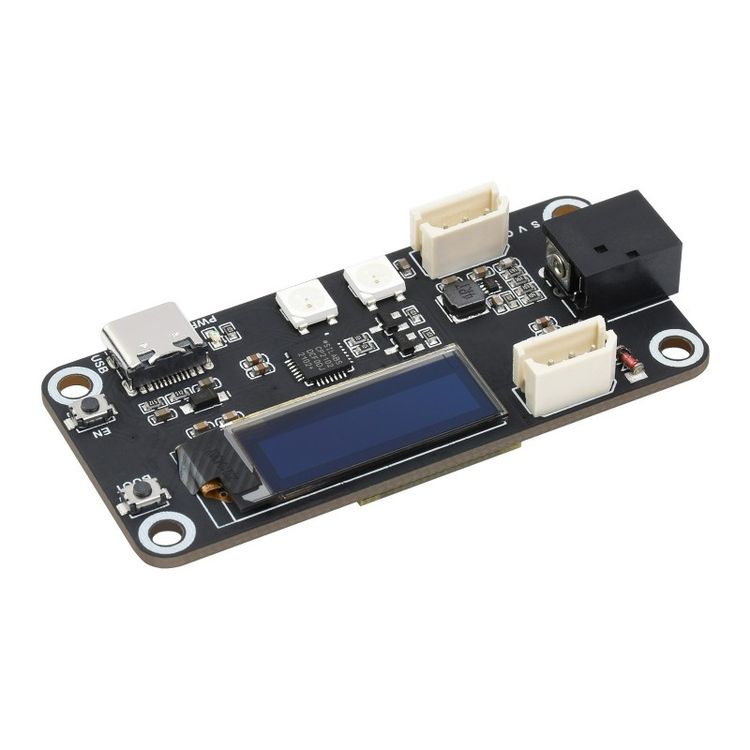

Waveshare ESP32 Servo Driver Expansion Board, Built-In WiFi and BT


R309

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features

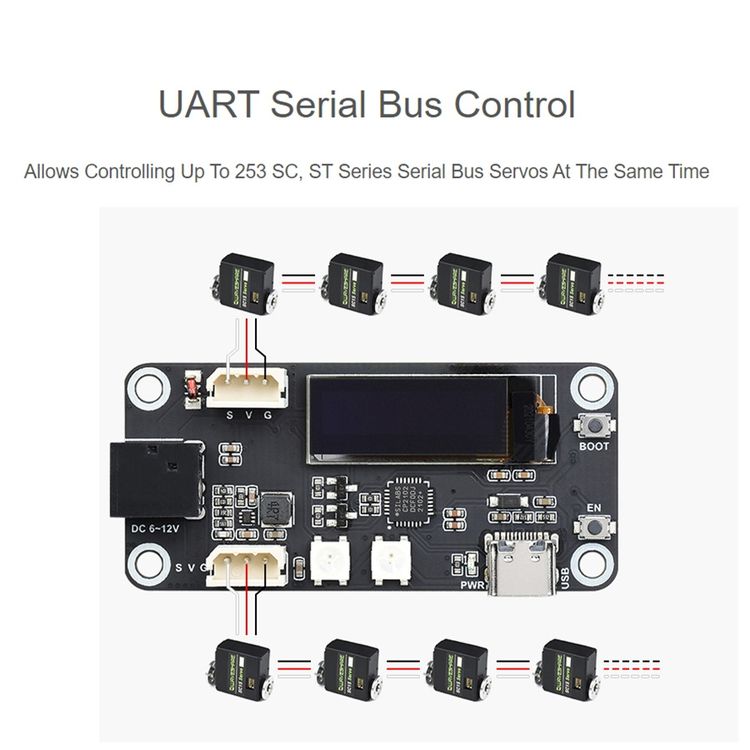

1. Allows controlling up to 253 SC, ST series serial bus servos at the same time (adequate power supply required)

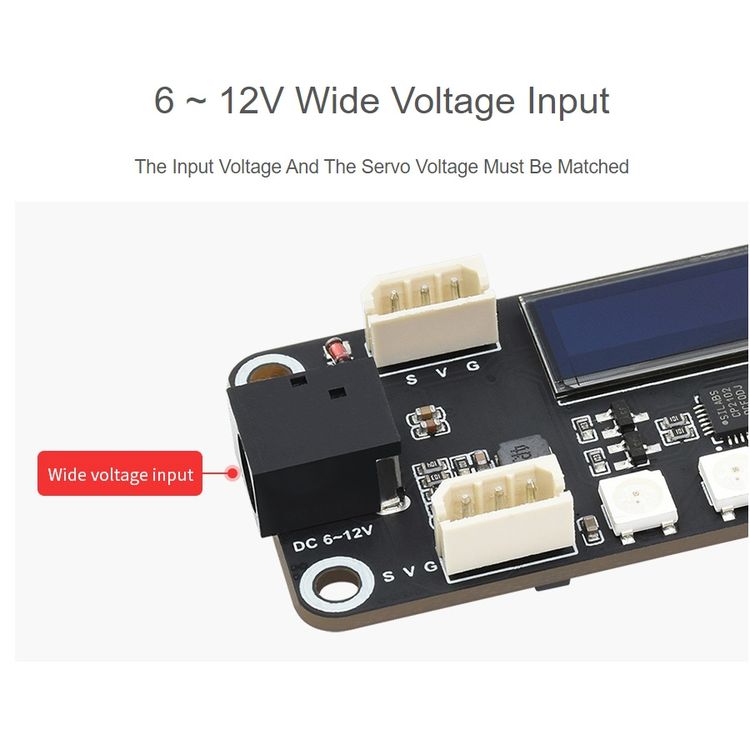

2. Wide range voltage input 6-12V (the input voltage and the servo voltage must be matched)

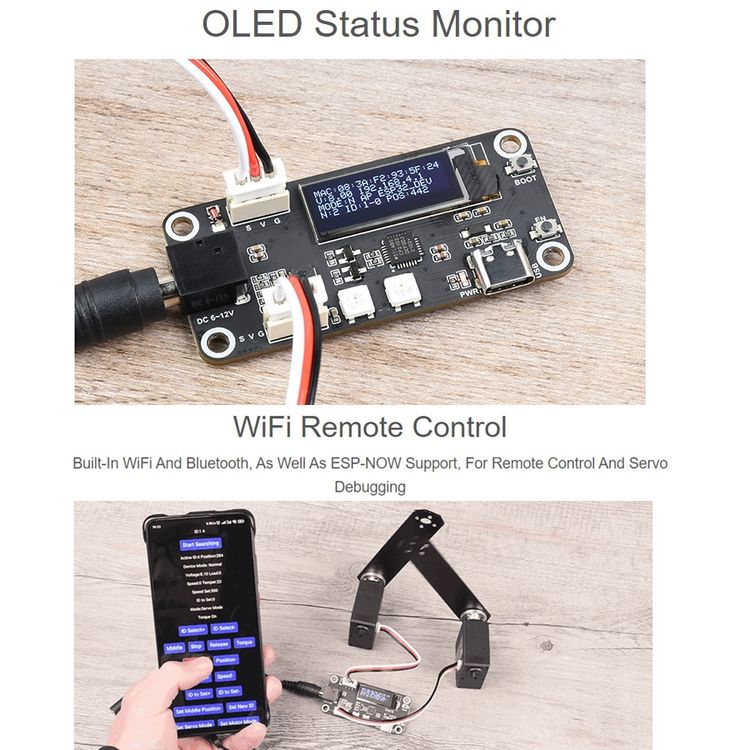

3. Built-in WiFi and Bluetooth, as well as ESP-NOW support, for remote control and servo debugging
4. Automatic download circuit for easy uploading programs

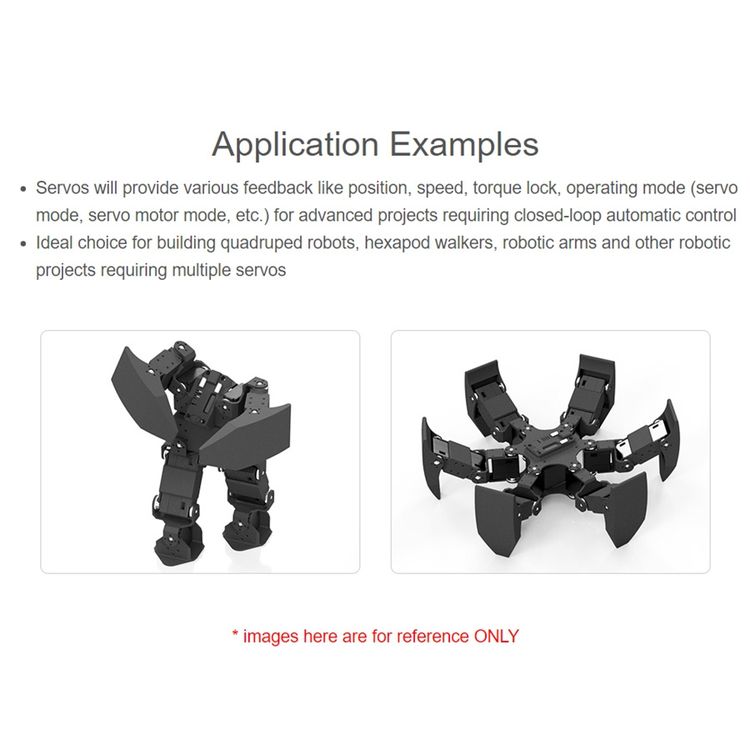

5. Open source web application and various robot structures
6. Compact size and space saving, suitable for integration into sorts of space-limited projects

Specifications

1. Power supply voltage: DC 6-12V
2. Power Connector: 5.5 x 2.1mm DC
3. Download interface: Type-C

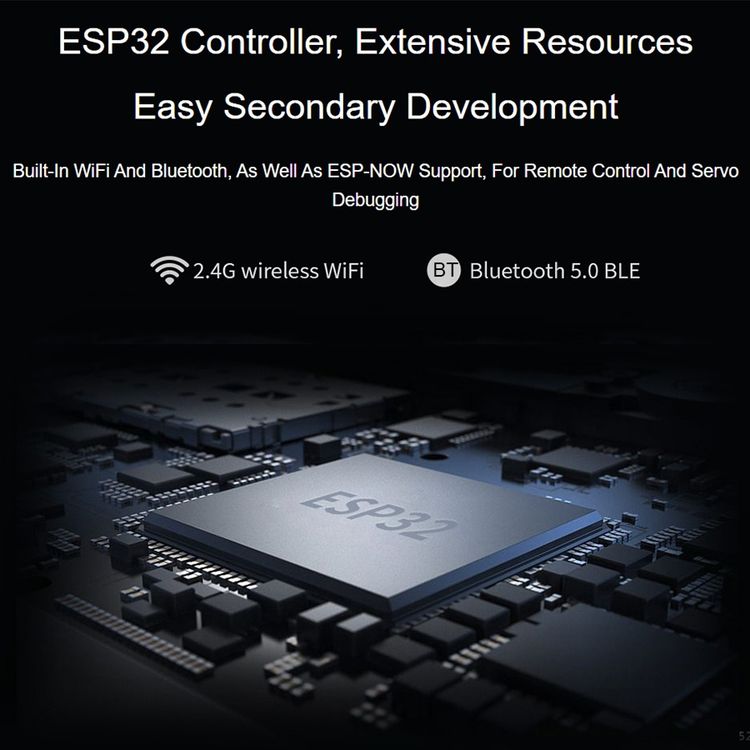

4. Controller: ESP32
5. Control interface: UART

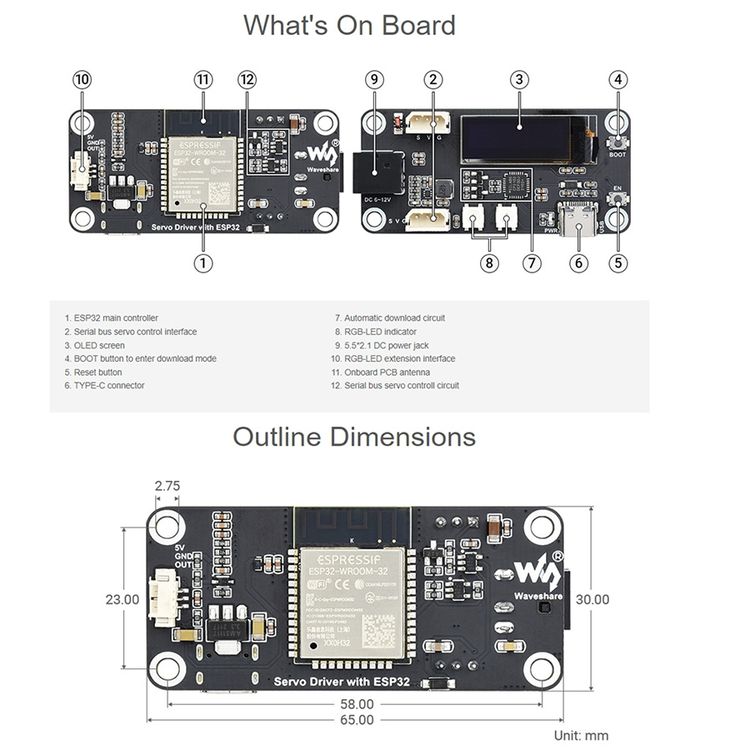

6. Dimensions: 30 x 65mm
7. Mounting hole size: 2.75mm
8. Mounting hole spacing: 23 x 58mm

Package List

1. Servo Driver with ESP32 x 1
2. Screws pack x 1

Additional Information

Weight & Size

Weight: 0.034kg
Size: 15cm x 12cm x 2cm

SKU: A0100069865 Category: Condition: New
