Waveshare Dust Sensor


R229

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Overview

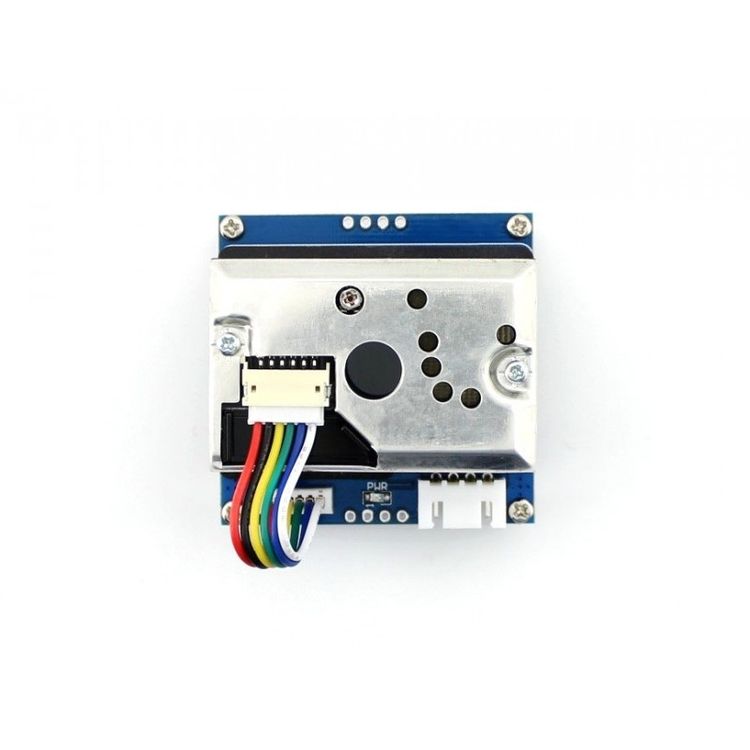

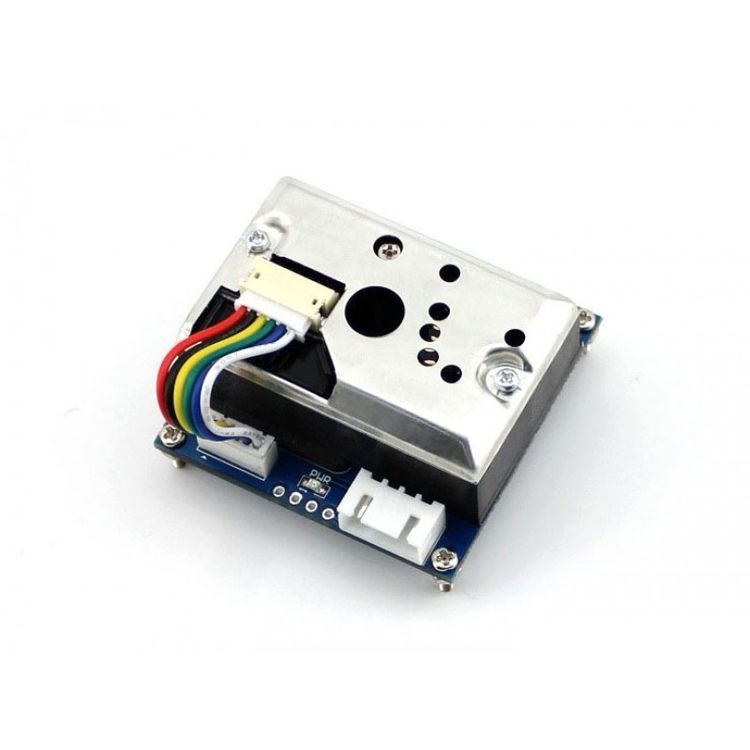

1. Sharp GP2Y1010AU0F onboard, detecting fine particle larger than 0.8μm in diameter, even like the cigarette smoke
2. Low power consumption, analog voltage output, the output level is linear with dust density
3. Embedded voltage boost circuit to support wide range of power supply
Specifications
1. Sensitivity: 0.5V/(100ug/m3)
2. Measurement range: 500ug/m3
3. Power: 2.5V~5.5V
4. Operating current: 20mA(max)
5. Operating temperature: -10~65 degree C
6. Storage temperature: -20~80 degree C
7. Life time: 5 years
8. Dimension: 63.2mmx41.3mmx21.1mm
9. Mounting holes size: 2.0mm
10. Air hole size: 9.0mm
Applications
1. Air purifier
2. Air conditioner
3. Air monitor
4. PM2.5 Detector

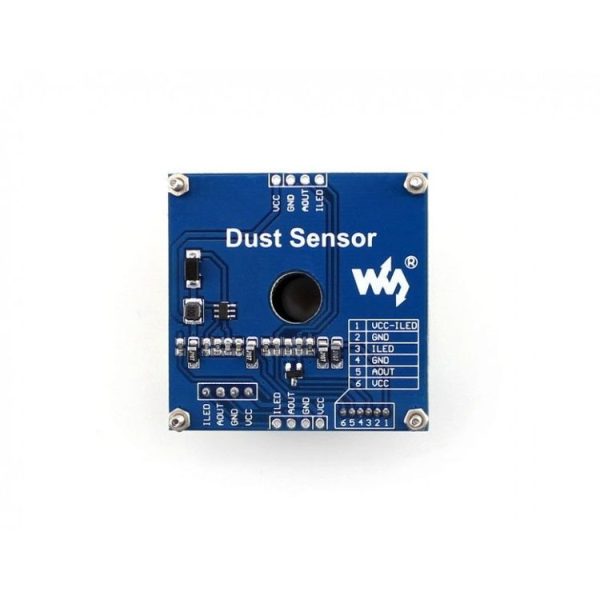

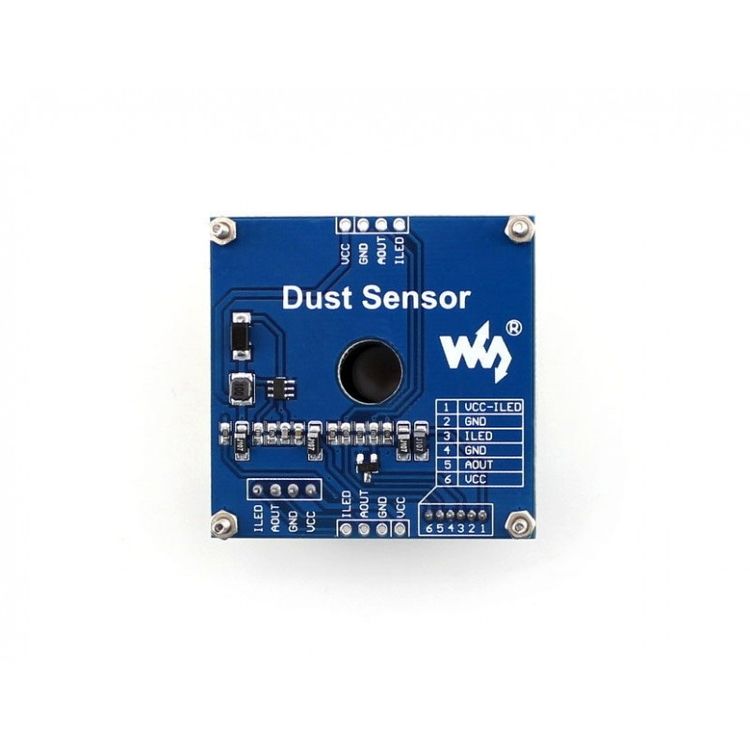

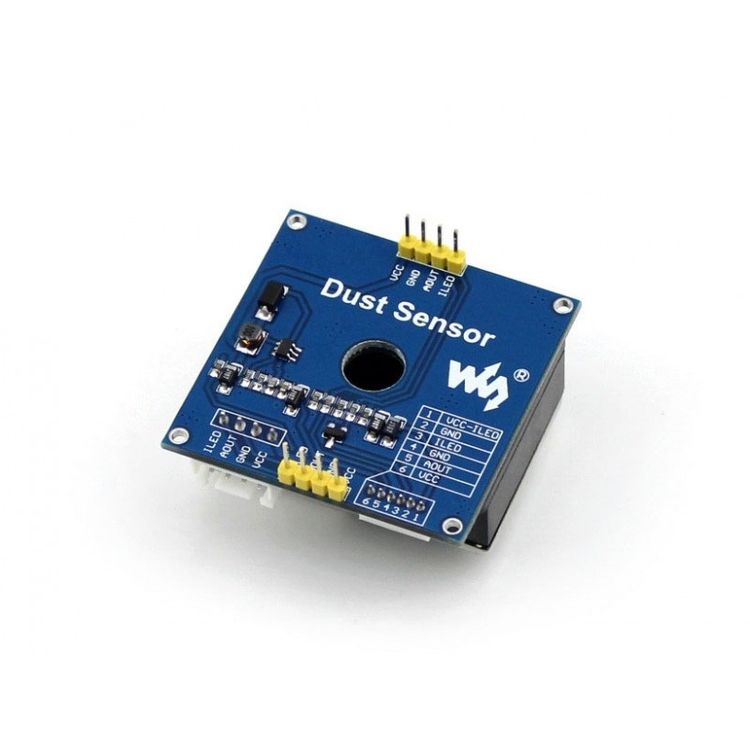

How to Use

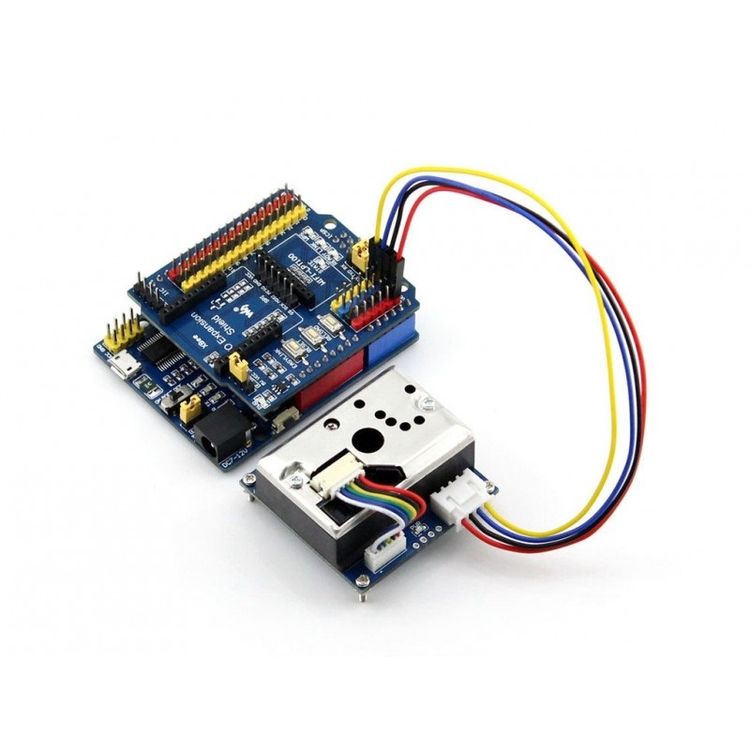

In the case of working with a MCU:
1. VCC: 2.5V ~ 5.0V
2. GND: GND
3. AOUT: MCU.IO (analog output)
4. ILED: MCU.IO (module driving pin)
Package Contents
1. Dust Sensor × 1
2. XH2.54 4-pin wire × 1

Additional Information

Weight & Size

Weight: 0.035kg
Size: 5cm x 4cm x 1cm

SKU: A0100070539 Category: Condition: New
