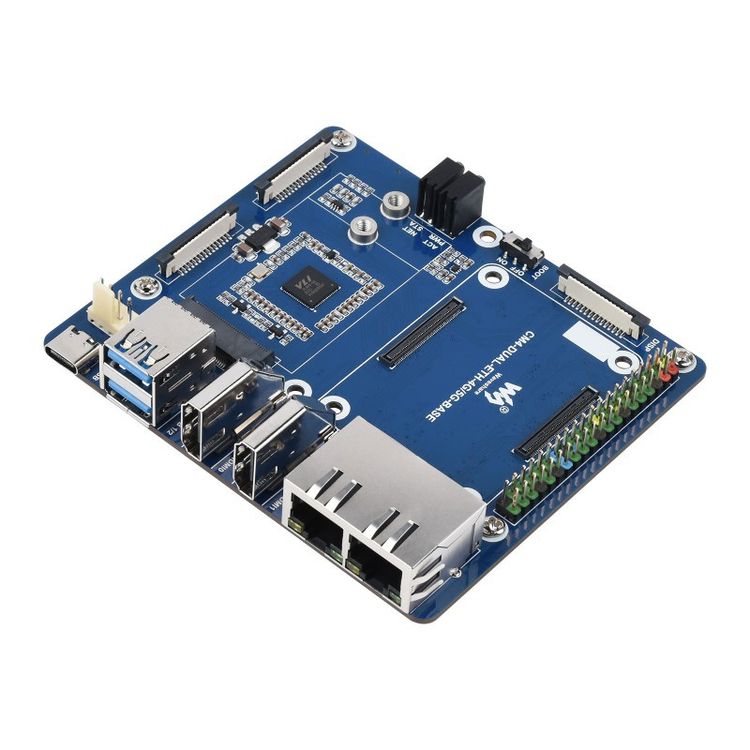

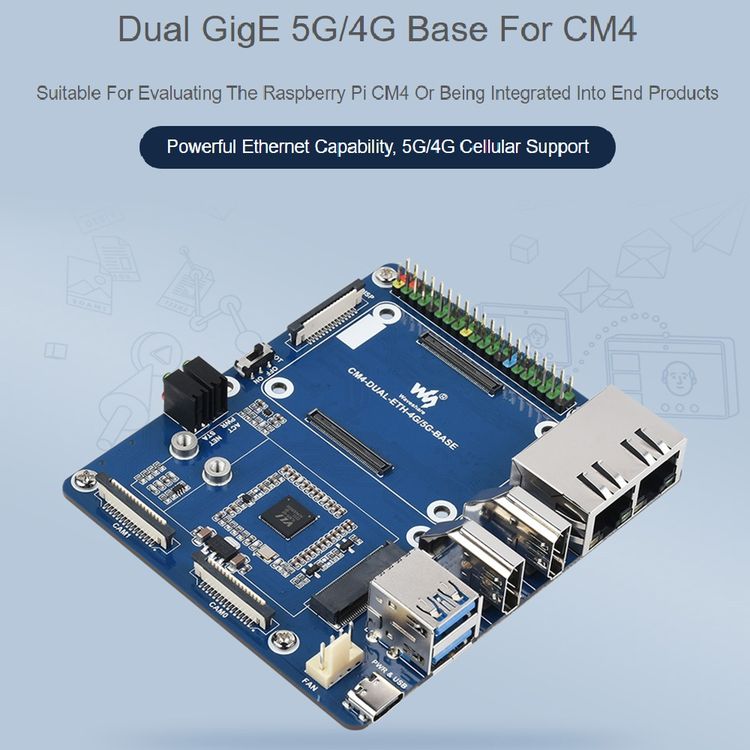

Waveshare Dual Gigabit Ethernet 5G / 4G Base Board for Raspberry Pi CM4


R1048

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Specifications

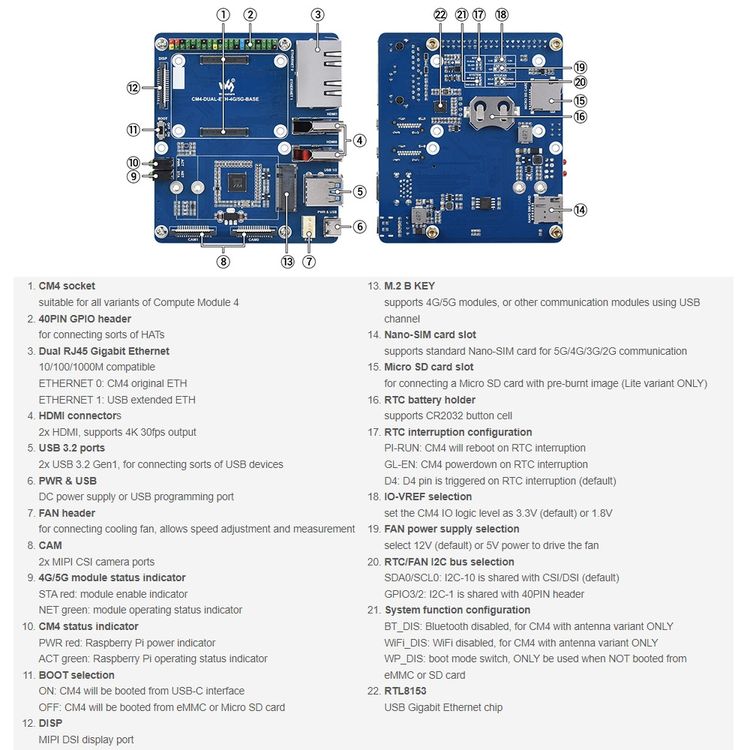

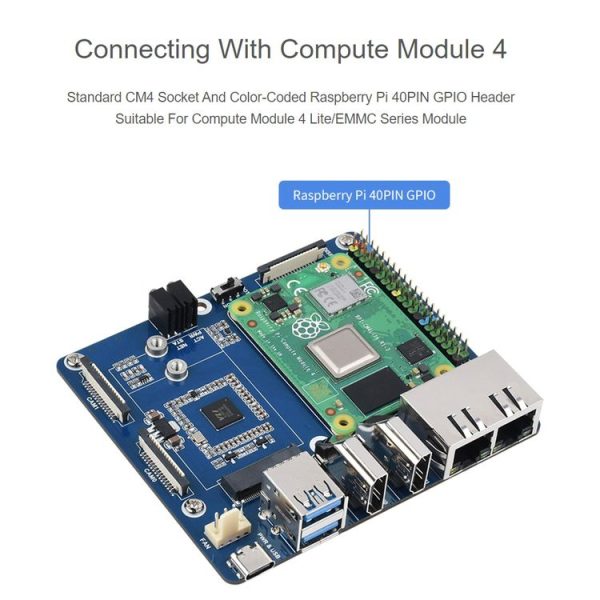

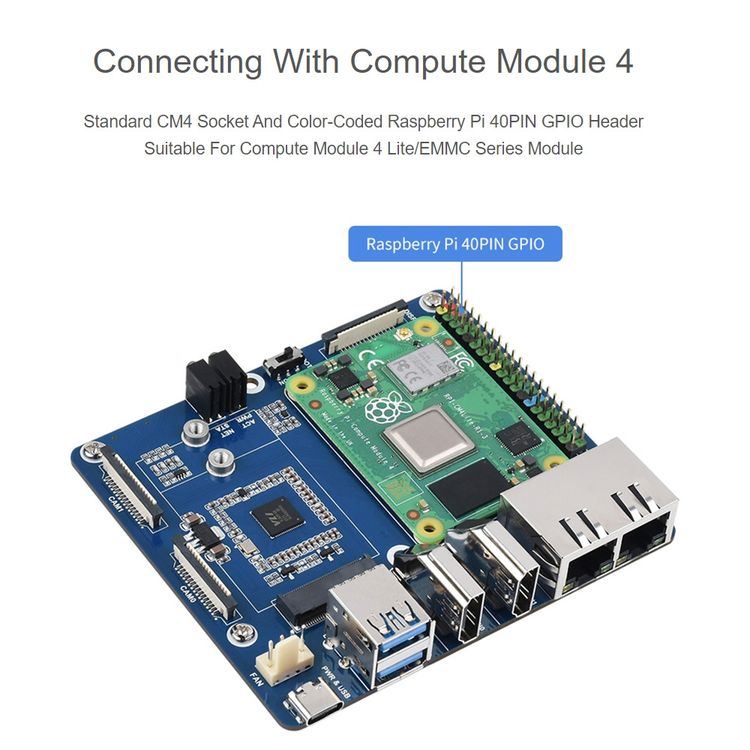

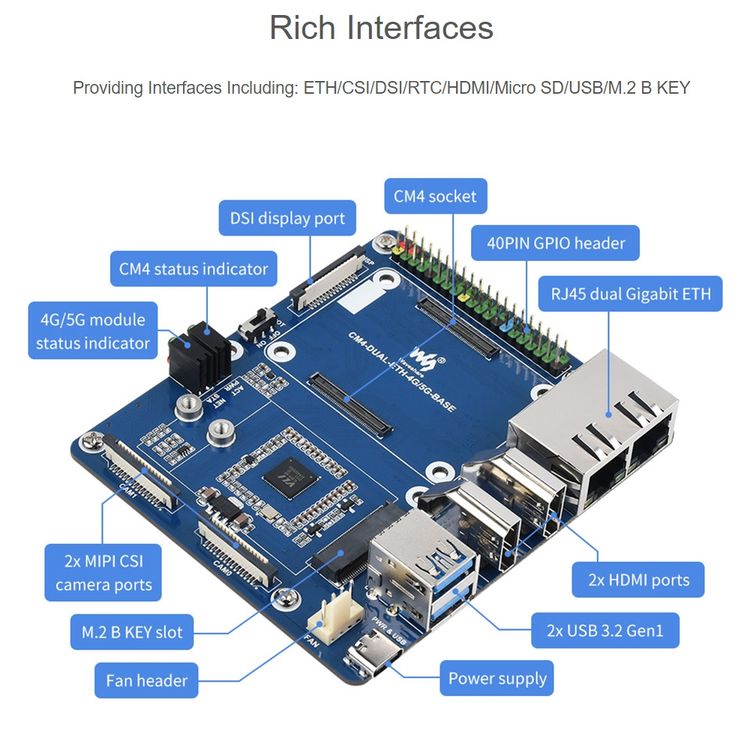

1. CM4 socket: Suitable for all variants of Compute Module 4
2. Network:
– Ethernet: Dual Gigabit Ethernet RJ45
– M.2 B KEY, for connecting 5G / 4G module
– Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB 3.2 Gen1 x 2
4. PIN header: Raspberry Pi 40PIN GPIO headerx 1
5. Display: MIPI DSI port (15pin 1.0mm FPC connector)
6. Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
7. Video: HDMI x 2, supports 4K 30fps output

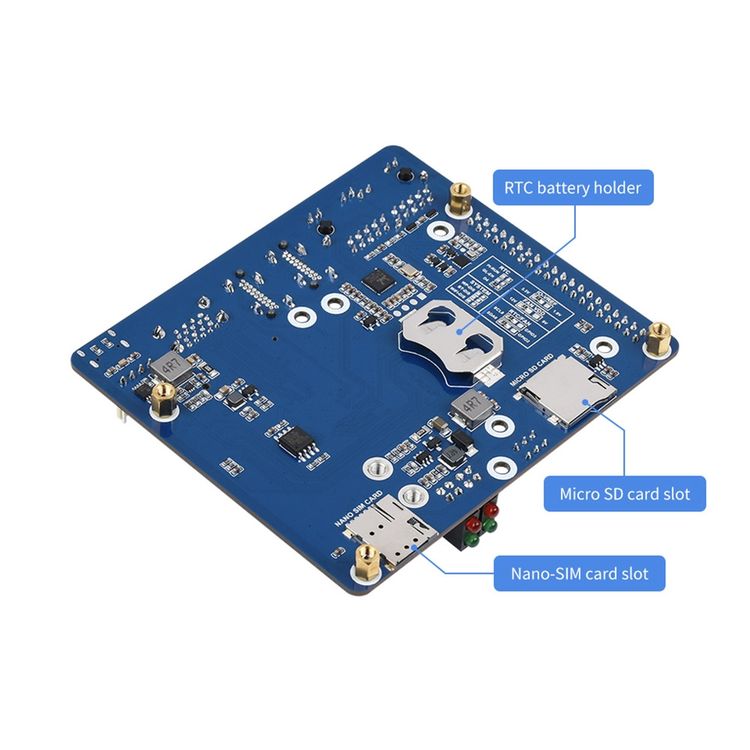

8. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
9. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
10. Fan header: 5V/12V (12V by default), allows speed adjustment and measurement
11. Power input: 5V/2.5A

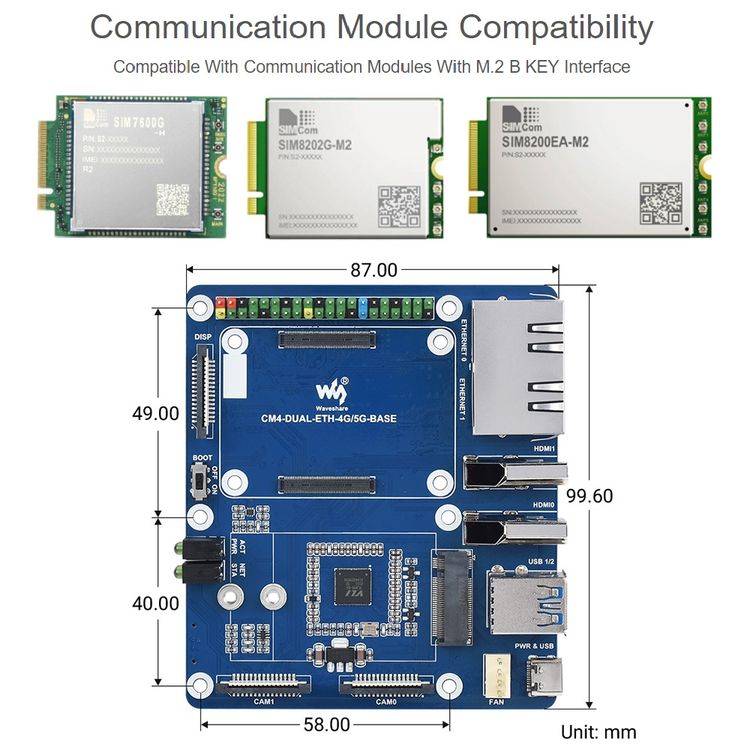

12. Size: 99.6 x 87.0mm

Additional Information

Weight & Size

Weight: 0.094kg
Size: 15cm x 12cm x 2cm

SKU: A0100024689 Category: Tag: Condition: New
