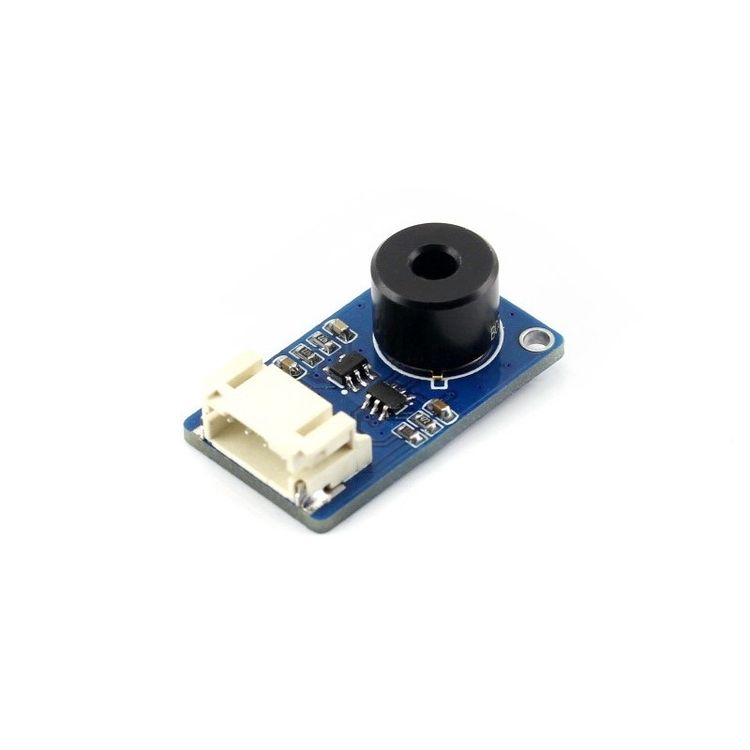

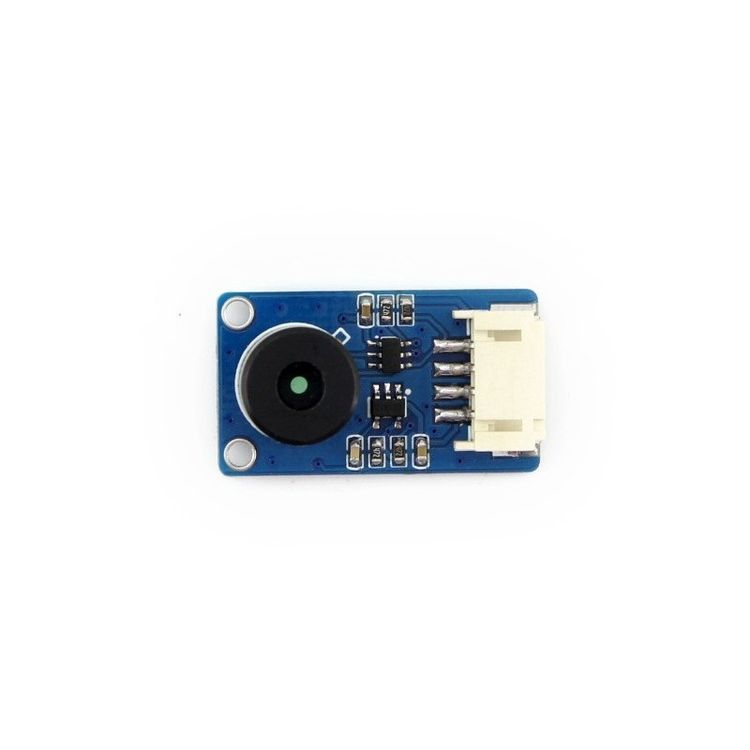

Waveshare Contact-less Infrared Temperature Sensor


R294

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Overview
1. Measures the surface temperature of an object without touching it, depending on the emitted IR waves of the target
– Also measures the average temperature over an area
2. Contact-less, high precision, high resolution, fast response
3. Calibrated before delivery, with gradient temperature compensation
4. Works with 3.3V/5V MCU system directly, thanks to the built-in level translation
1. Power: 3.3V ~ 5V
2. Measuring range (area): 40 degree C ~ 85 degree C
3. Measuring range (object): -70 degree C ~ 380 degree C
4. Resolution: 0.02 degree C
5. Precision: +/-0.5 degreeC ( 0~50 degreeC)
6. Field of view (FOV): 35 degree
7. Dimension: 28mm x 16 mm
8. Mounting holes size: 2.0mm
Applications
1. High-precision contact-less temperature measurement
2. Industrial temperature control
3. Household appliances temperature control
How to Use

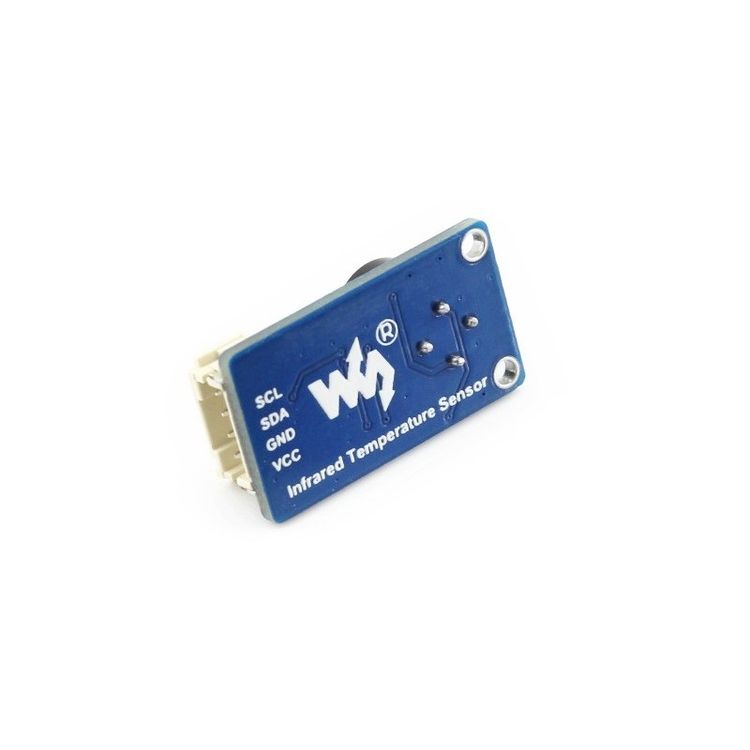

In the case of working with a MCU:
1. VCC: 3.3V ~ 5V
2. GND: GND
3. SDA: MCU.I2C data line
4. SCL: MCU.I2C clock line
Package Contents

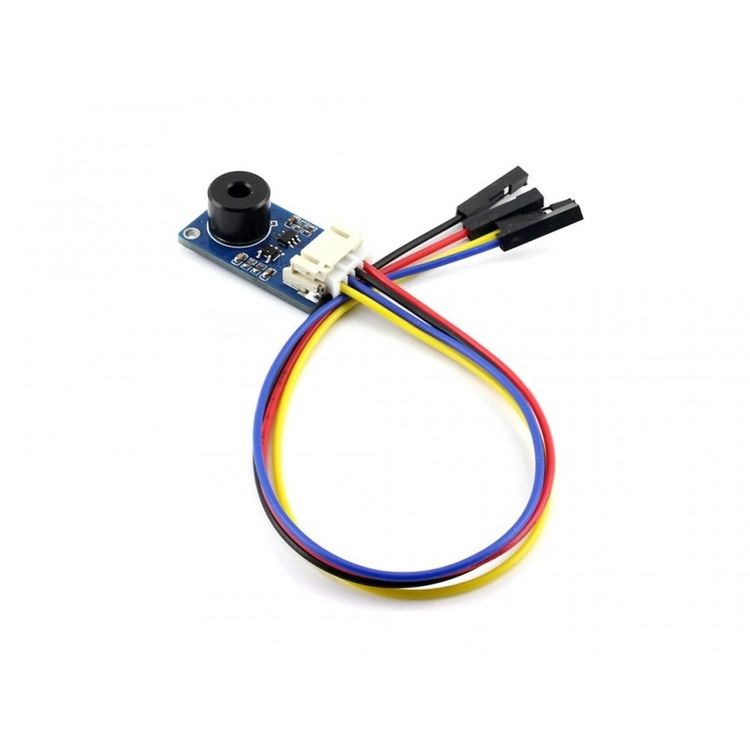

1. Infrared Temperature Sensor x 1
2. PH2.0 4PIN wire x 1

Additional Information

Weight & Size

Weight: 0.010kg
Size: 5cm x 3cm x 1cm

SKU: A0100070286 Category: Condition: New
