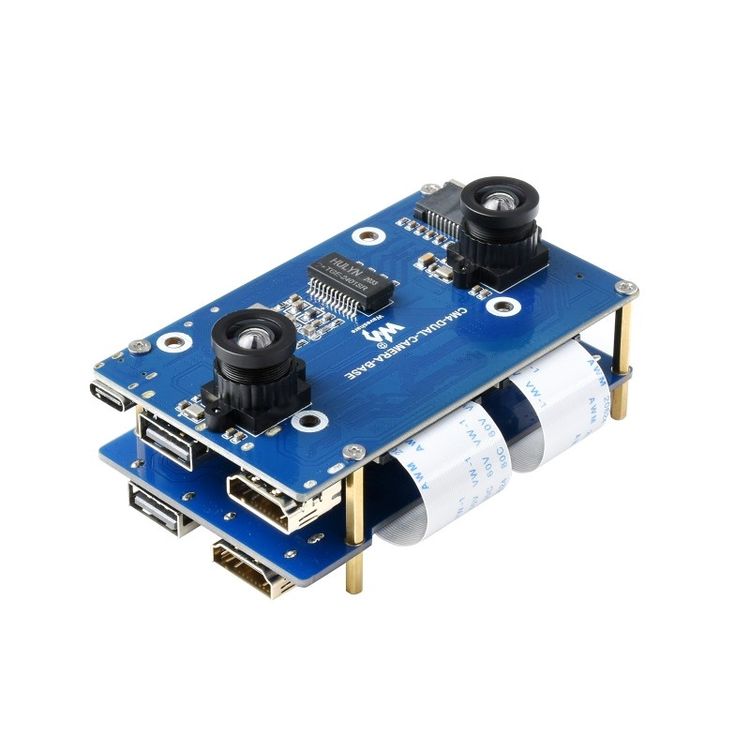

Waveshare Binocular Camera Base Board with Interface Expander for Raspberry Pi Compute Module 4


R1361

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

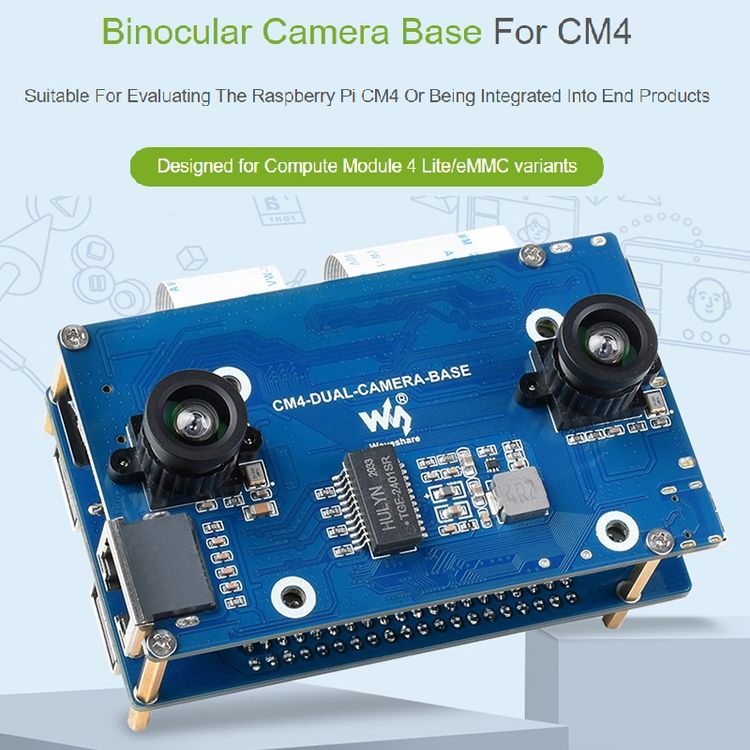

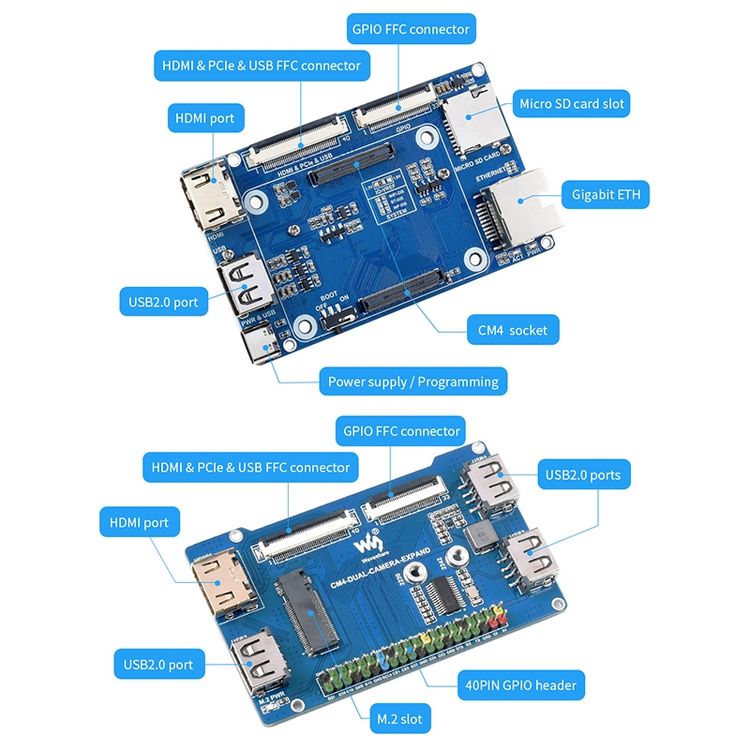

Camera Base Board

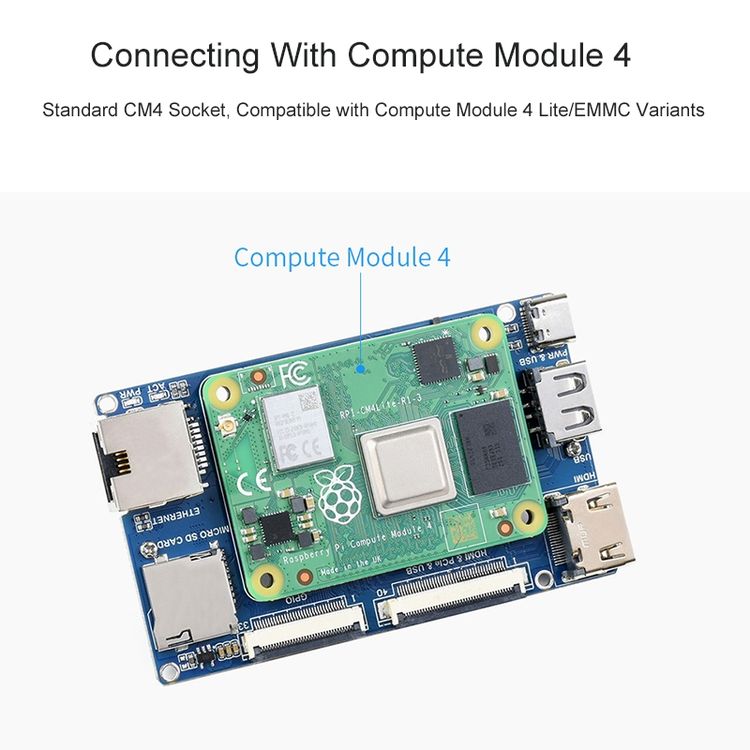

1. CM4 socket: Suitable for all variants of Compute Module 4
2. Networking: Gigabit Ethernet RJ45
3. USB: USB 2.0 x 1
4. FFC connector:
– HDMI-compatible & PCIe & USB FFC connector x 1
– GPIO FFC connector x 1
5. Dual-lens camera
– Pixels: 8MP
– Sensor: IMX 219
– Resolution: 3280 x 2464 (per channel)
– CMOS size: 1/4 inch
– Aperture: F2.4
– Focal length: 2.6mm
– FOV: 83/73/50 degree (diagonal/horizontal/vertical)
– Distortion: Less than 1%
– Baseline length: 60mm
6. Video: HDMI-compatible x 1, supports 4K 30fps output
7. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
8. Power input: 5V/2.5A

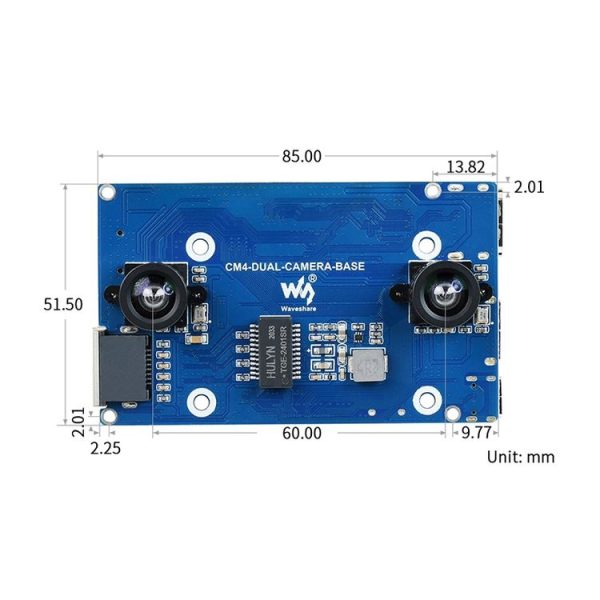

9. Dimensions: 85.0 x 51.5mm

Interface Expander

1. USB: USB 2.0 x 3
2. FFC connector:
– HDMI-compatible & PCIe & USB FFC connector x 1
– GPIO FFC connector x 1
3. Other connector:
– M.2 M KEY x 1, for connecting NVME SSD or communication module
– Raspberry Pi 40PIN GPIO header x 1
4. Video: HDMI-compatible x 1, support 4K 30fps output
5. Dimensions: 85.0 x 51.5mm

Package List

1. Dual camera base x1
2. Screws pack x1
3. Interface expander x1
4. FFC 2PCS x1

Additional Information

Weight & Size

Weight: 0.084kg
Size: 15cm x 12cm x 2cm
