Waveshare Analog Test Shield


R166

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Overview

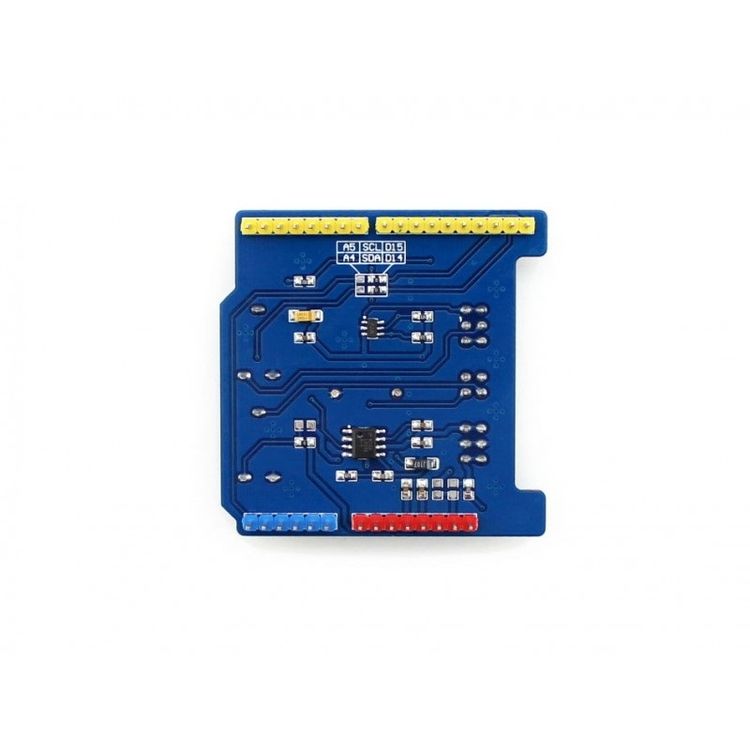

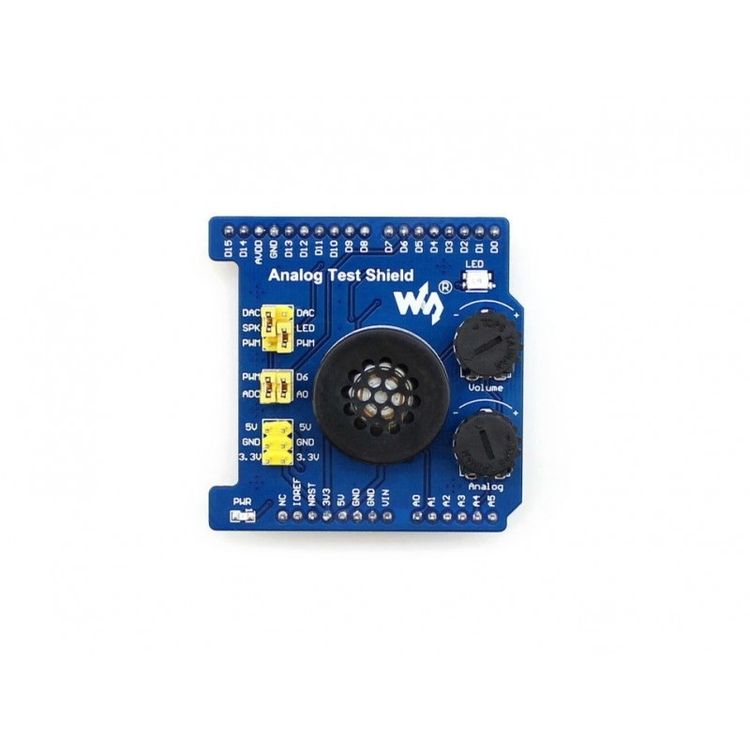

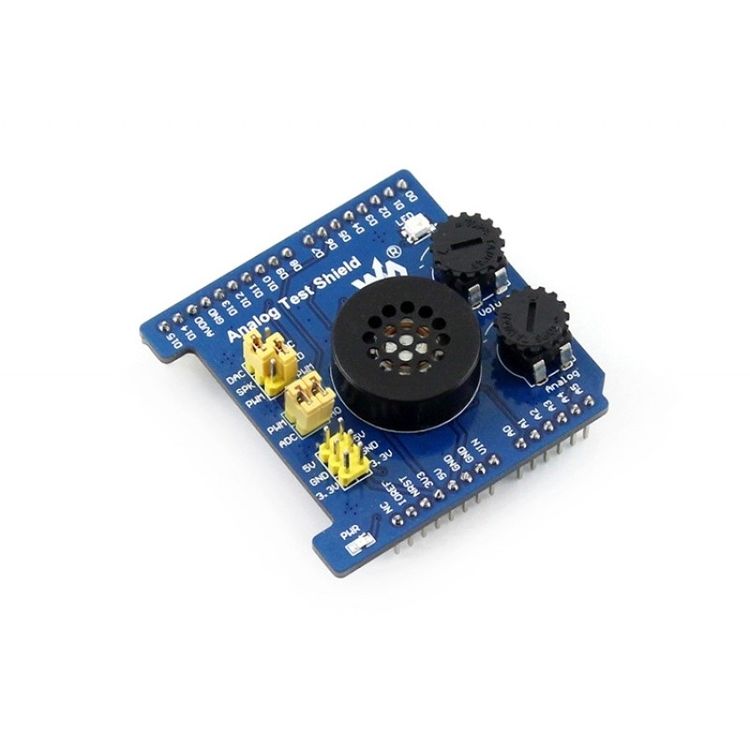

Analog Test Shield is an Arduino expansion board, supports analog input/output.

Features

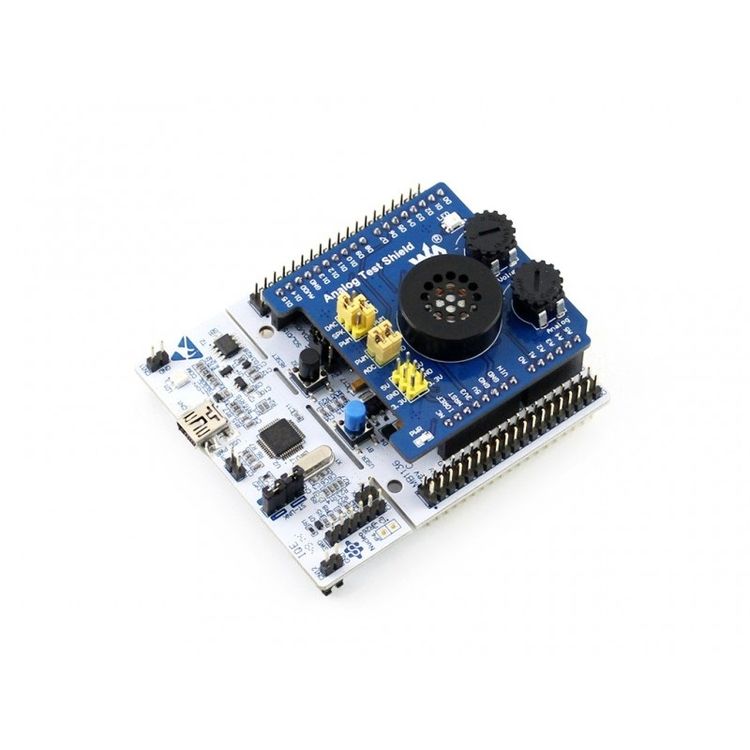

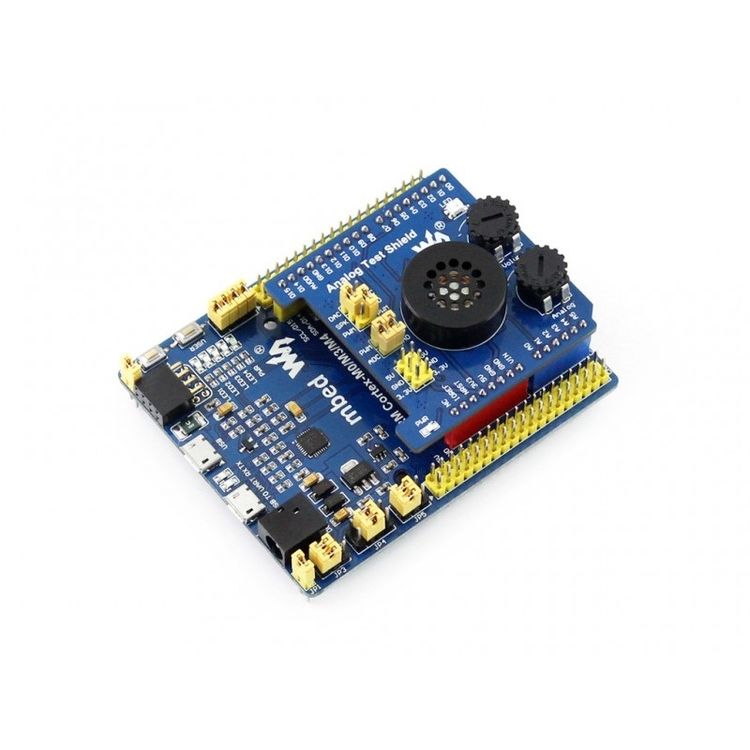

1. Arduino standard interfaces, compatible with Arduino boards like Arduino UNO, Leonardo, NUCLEO, XNUCLEO
2. Rotate the potentiometer to adjust analog input signal
3. Onboard 12bit DAC MCP4725, outputs required wave form
4. Demonstrate the DAC/PWM effects via LED and speaker

Development Resources

1. User manual
2. Schematic
3. Demo code
4. Datasheet

Additional Information

Weight & Size

Weight: 0.020kg
Size: 8cm x 5cm x 2cm

SKU: A0100113118 Category: Tag: Condition: New
