Waveshare AlphaBot (for Europe), Raspberry Pi Robot Building Kit (no Pi)


R1903

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Overview

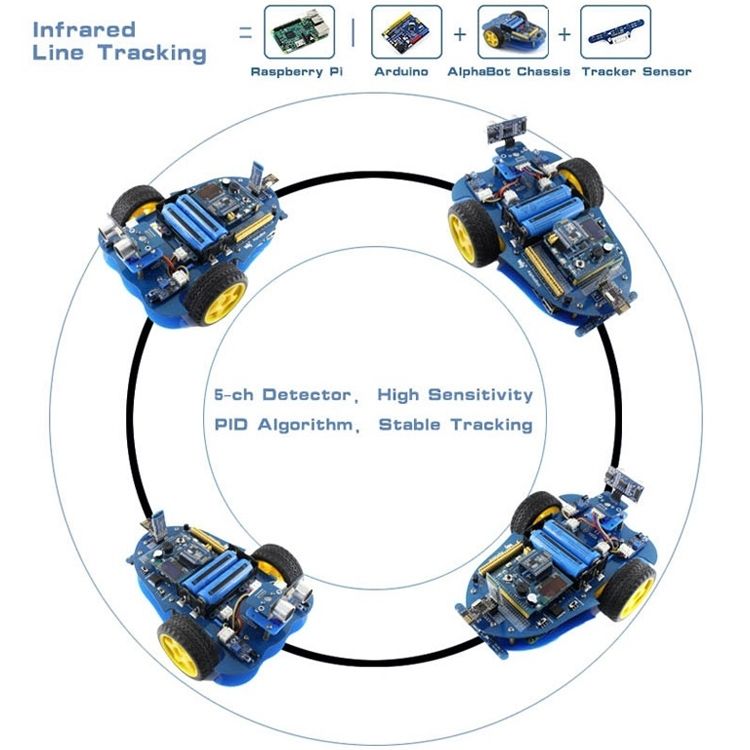

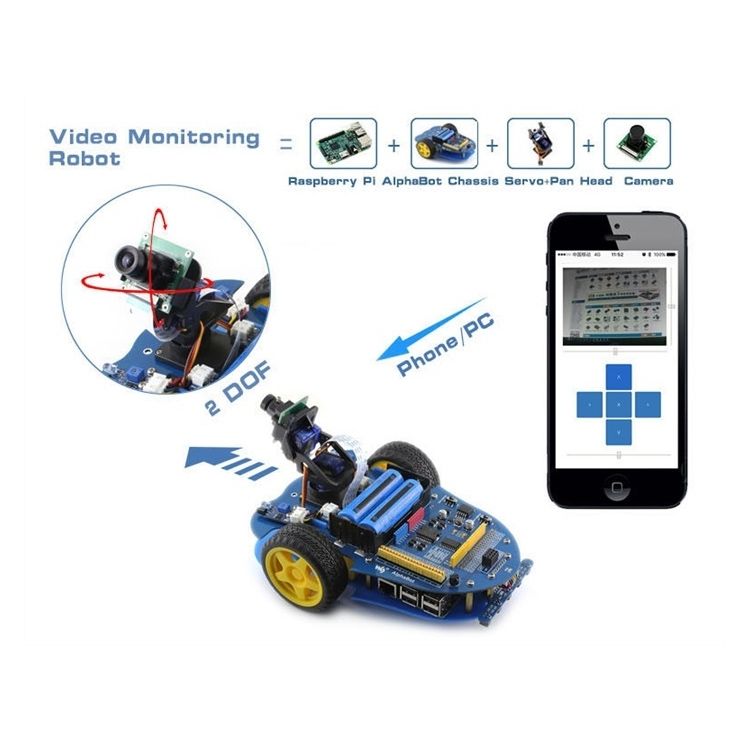

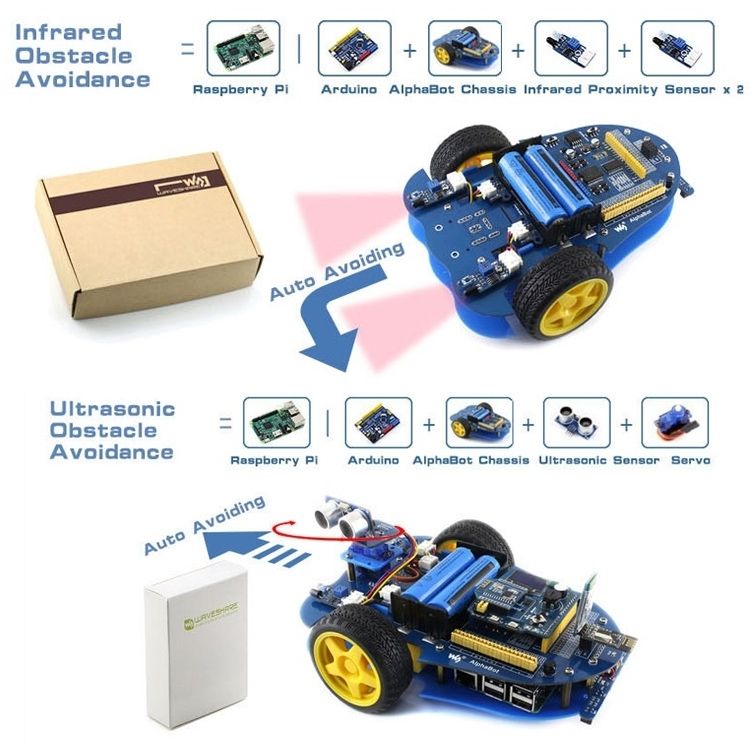

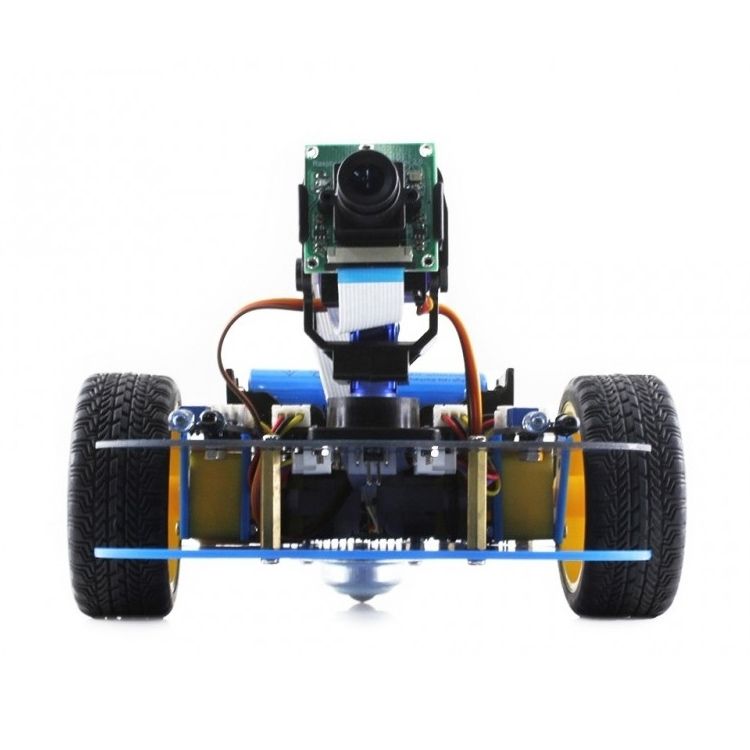

This kit comes with AlphaBot robotic platform (line tracking, obstacle avoidance, speed measuring, IR control), and a camera (with servo and 2 DOF pan head).
With modules in the kit, you can fast get started with robotic development like line tracking, obstacle avoidance, IR remote control, and video monitoring via network, etc. Whats more, thanks to the rich Raspberry Pi open source resources, and the modular design of AlphaBot, youll learn how to extend and refit, and finally build your own Raspberry Pi robot.

AlphaBot Features

1. Raspberry Pi/Arduino interfaces, works with either one separately, or both
2. Arduino extend header, supports Arduino shields

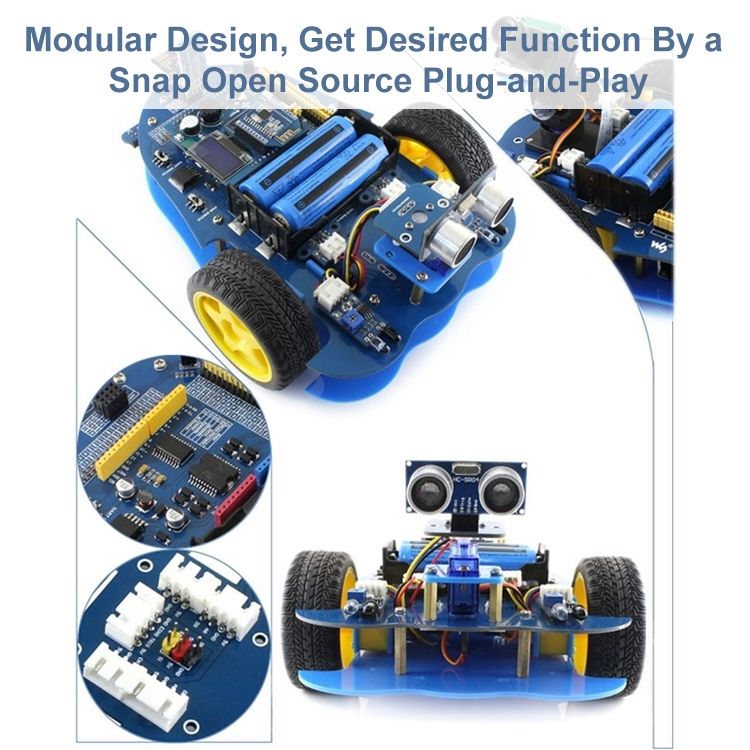

3. Modular design, plug-and-play modules like line tracking, obstacle avoidance, speed measuring, etc. eliminating the trouble of connecting mess wires.
4. LM298P motor driver with diode protection circuit, more safety
5. LM2596 voltage regular, provides stable 5V power to the Raspberry Pi/Arduino
6. TLC1543 AD acquisition chip, allows the Pi to use analog sensors

Package contents

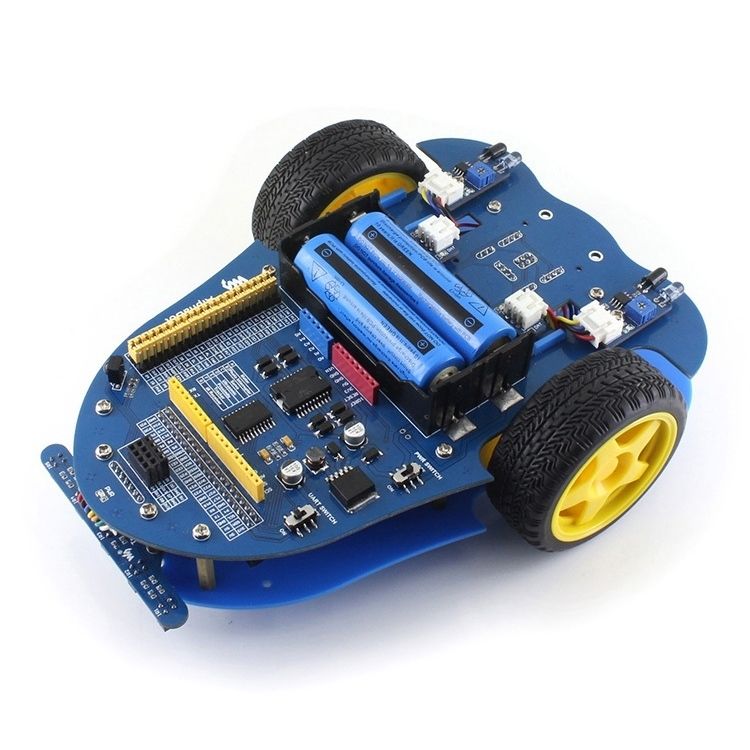

1. AlphaBot mainboard x1
2. Tracker Sensor x1
3. Photo Interrupter Sensor x2
4. Infrared Proximity Sensor x2
5. Motor with gearbox 2PCS x1
6. AlphaBot wheel 2PCS x1
7. AlphaBot acrylic chassis x1
8. Motor mounting plate 4PCS x1
9. Omni-direction wheel x1
10. 20-slots encoder disk 2PCS x1
11. IR remote controller x1
12. XH2.54 4cm 4Pin 2PCS x1
13. XH2.54 4cm 3Pin 2PCS x1
14. XH2.54 4cm 7Pin x1
15. AlphaBot screws x1

Additional Information

Weight & Size

Weight: 0.504kg
Size: 19cm x 20cm x 15cm

SKU: B0100033959 Category: Condition: New
