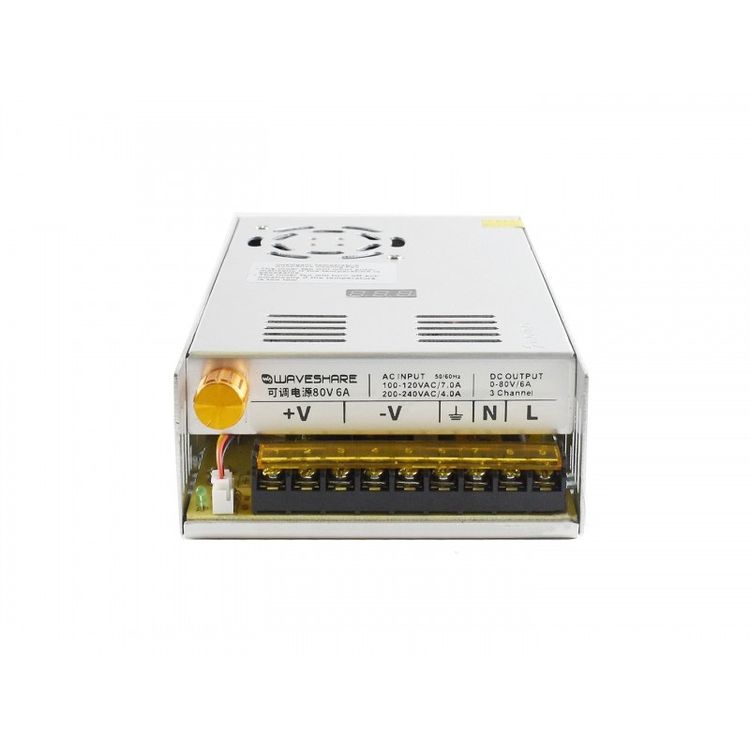

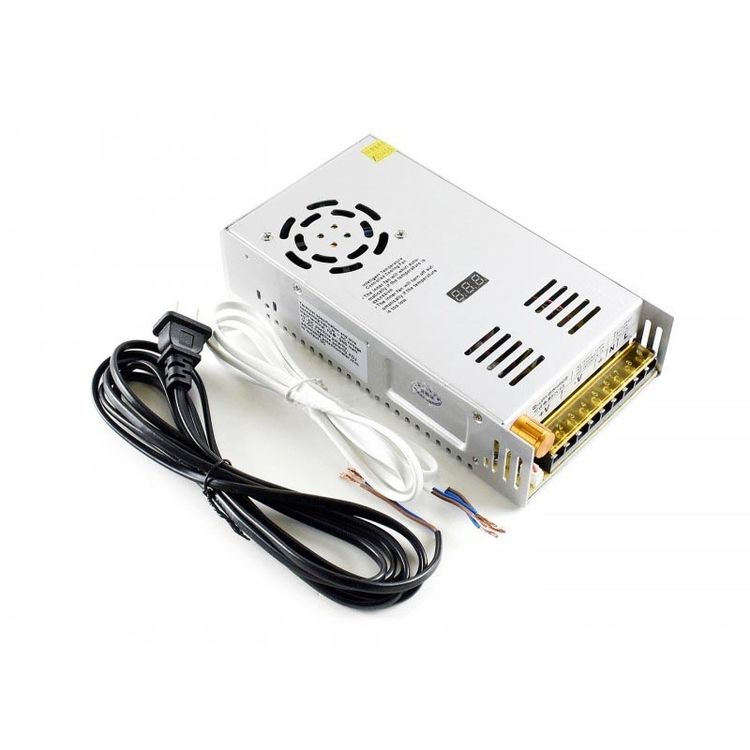

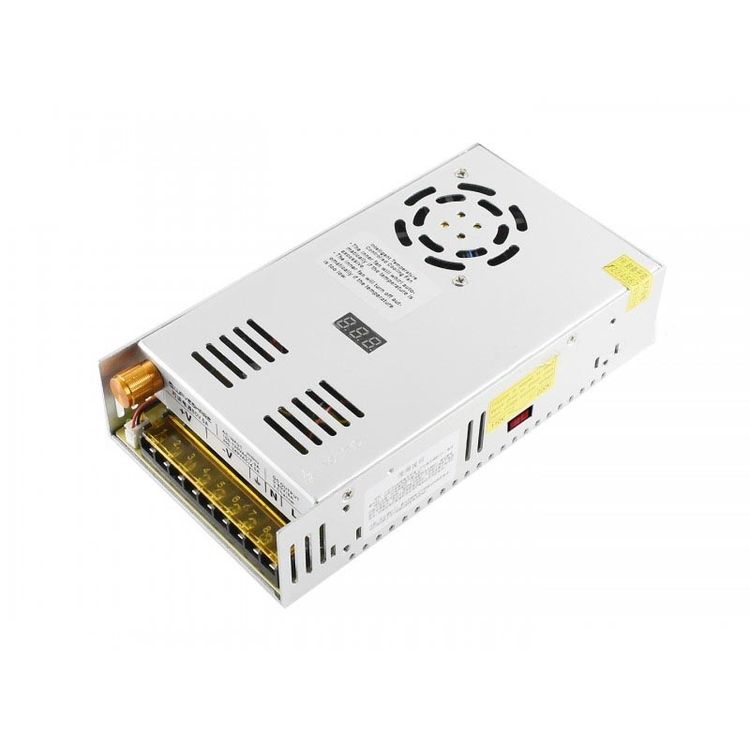

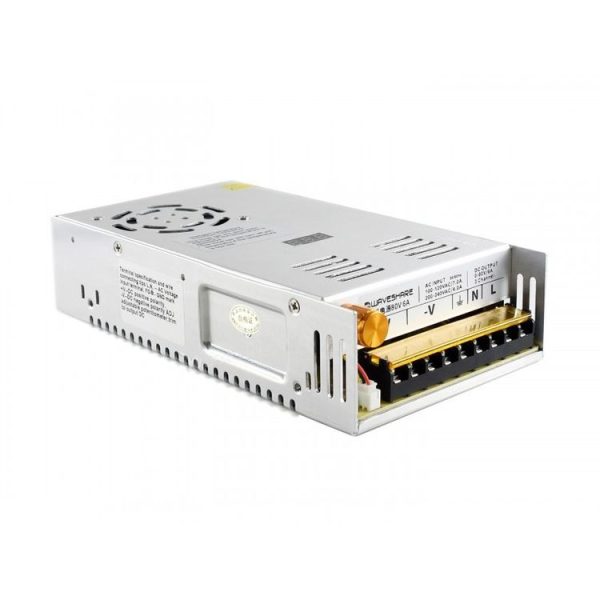

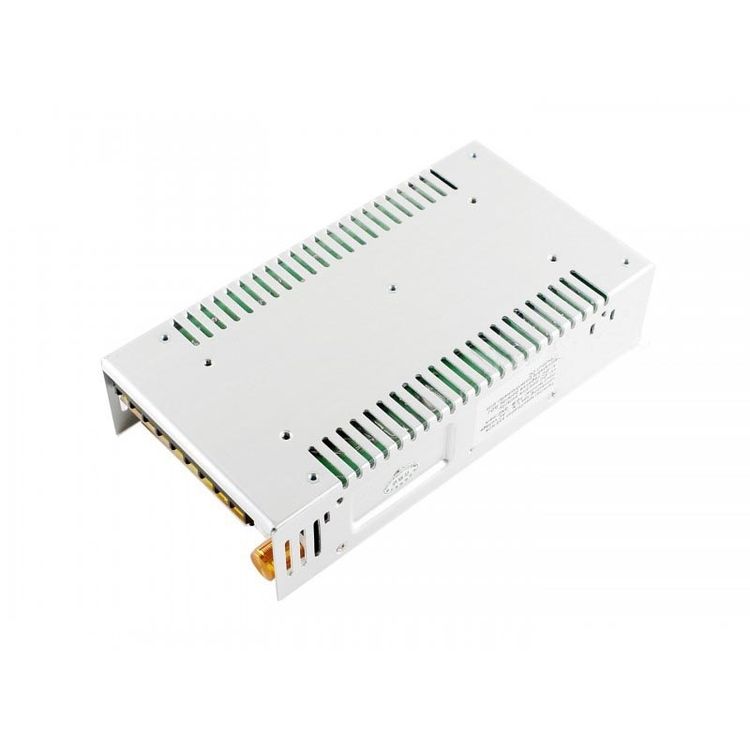

Waveshare Adjustable Regulated Power Supply, DC Output 80V 6A


R1359

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Overview

This is a regulated power supply with adjustable output. It accepts selectable 110V / 220V AC input, and then provides adjustable 0~80V DC output, the output current is up to 6A. There is also a 3-digit LED display to show the output voltage.

Features

1. Strengthened aluminium alloy case, reliable & durable
2. Effective cut-out on the case body, better heat sinking, nice looking
3. Built-in temperature controlled cooling fan, automatically on / off according to the temperature
4. 3-digit LED display for monitoring the output voltage, high accuracy
5. Output voltage adjustment knob, allows to adjust the output voltage at any time

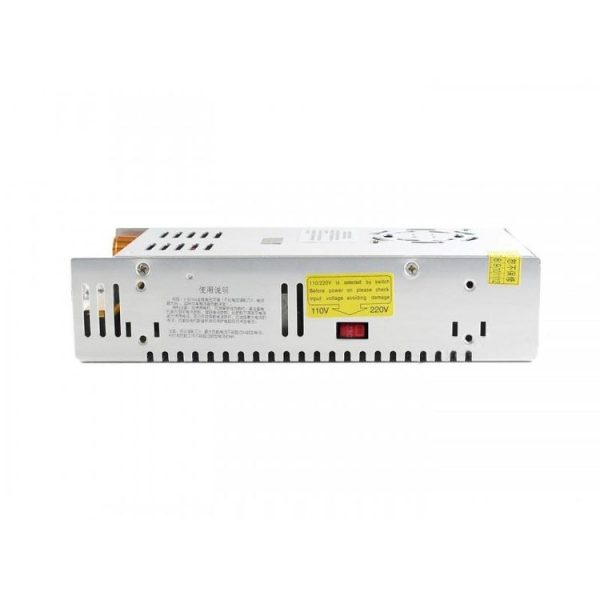

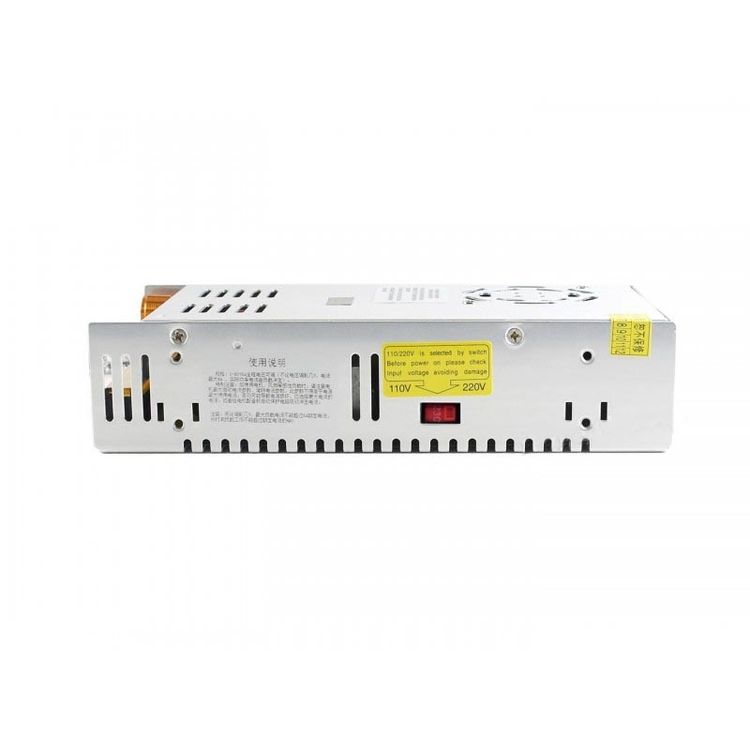

6. 110V / 220V AC input, selected by onboard switch, 220V by default

Specifications

1. Product type: Adjustable power supply
2. Input voltage: AC 110V/220V±15% 47~63Hz
3. Output voltage: 0~80V (adjustable)
4. Output current: 6A
5. Rated power: 480W
6. Over load protection: 105%~200% (rated load), auto recover
7. Over voltage protection: 115%~135% (rated output voltage)
8. Short circuit protection: auto recover
9. Dimension: 21.5mm × 11.5mm × 5mm
10. Operating environment: -10℃~50℃, 20%~90%RH (non-condensing)

Application

1. DC devices
2. DC motor stepless speed adjustment
3. LED stepless brightness adjustment
4. Science test
5. Student experiment

Additional Information

Weight & Size

Weight: 1.113kg
Size: 5cm x 3cm x 2cm

SKU: C0100013758 Category: Condition: New
