Waveshare 7.5 inch 640×384 E-Ink Display HAT for Raspberry Pi, Three-color, SPI Interface


R1128

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Overview

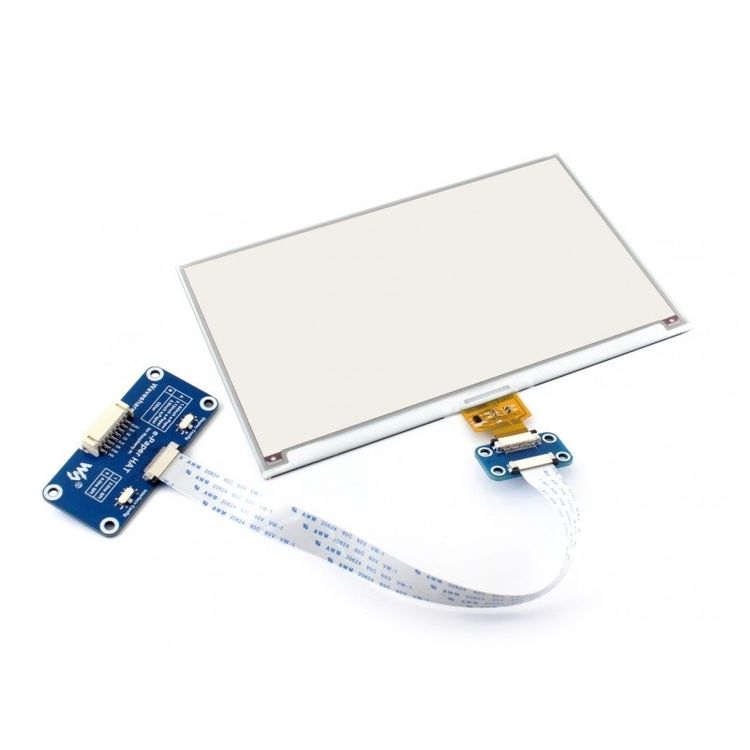

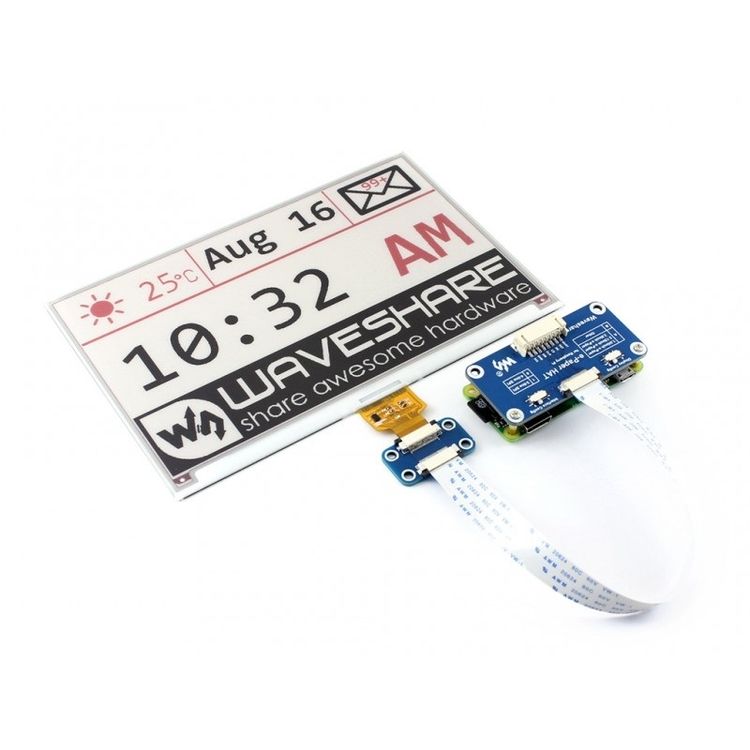

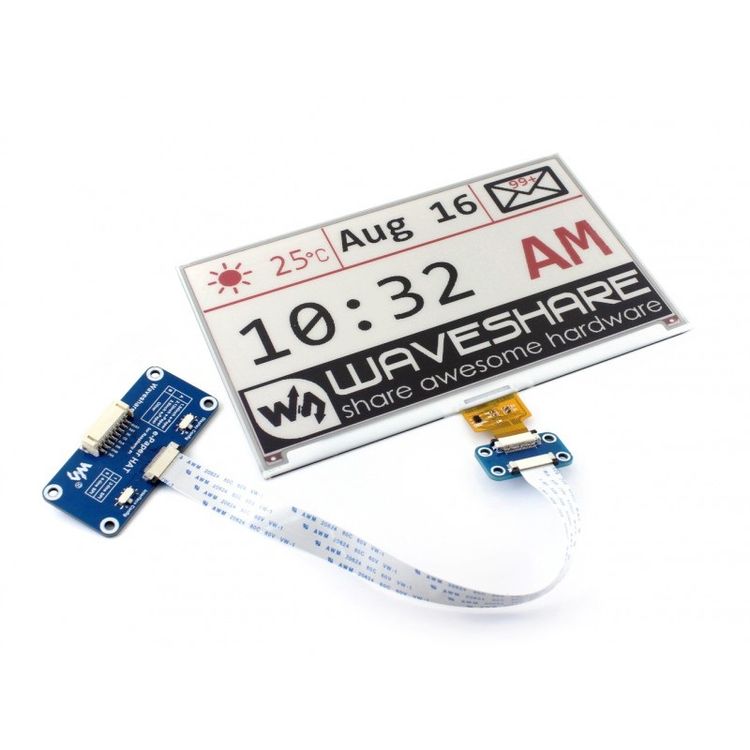

1. This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 640×384 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing

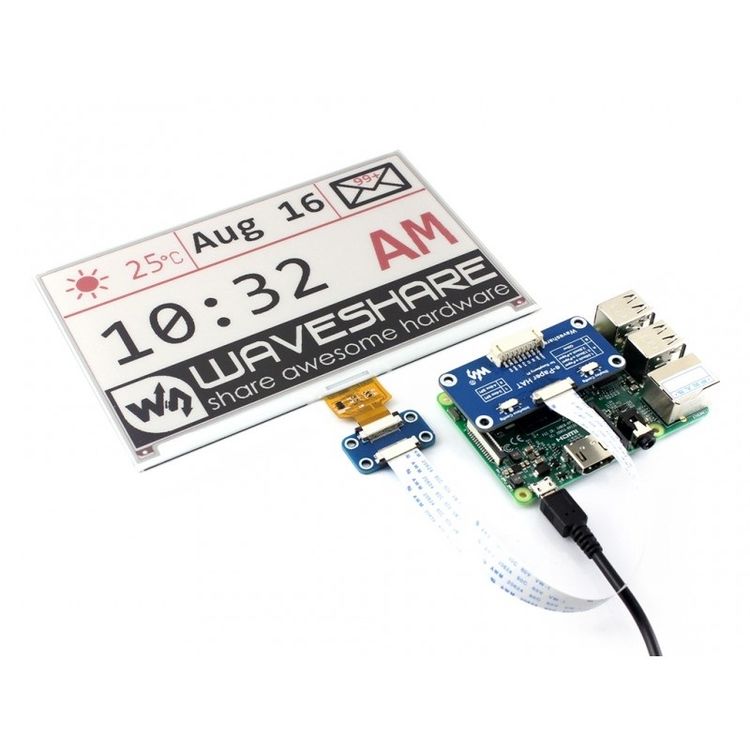

3. Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W
4. SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
5. Onboard voltage translator, compatible with 3.3V/5V MCUs
6. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
1. Operating voltage: 3.3V~5V
2. Interface: SPI
3. Outline dimension: 170.2mm x 111.2mm
4. Display size: 163.2mm x 97.92mm
5. Dot pitch: 0.255 x 0.255
6. Resolution: 640 x 384
7. Display color: red, black, white
8. Grey level: 2
9. Full refresh time: 16s
10. Refresh power: 38mW(typ.)
11. Standby power: <0.017mW
12. Viewing angle: >170 degree
13. Weight: 0.065 kg
Package Contents

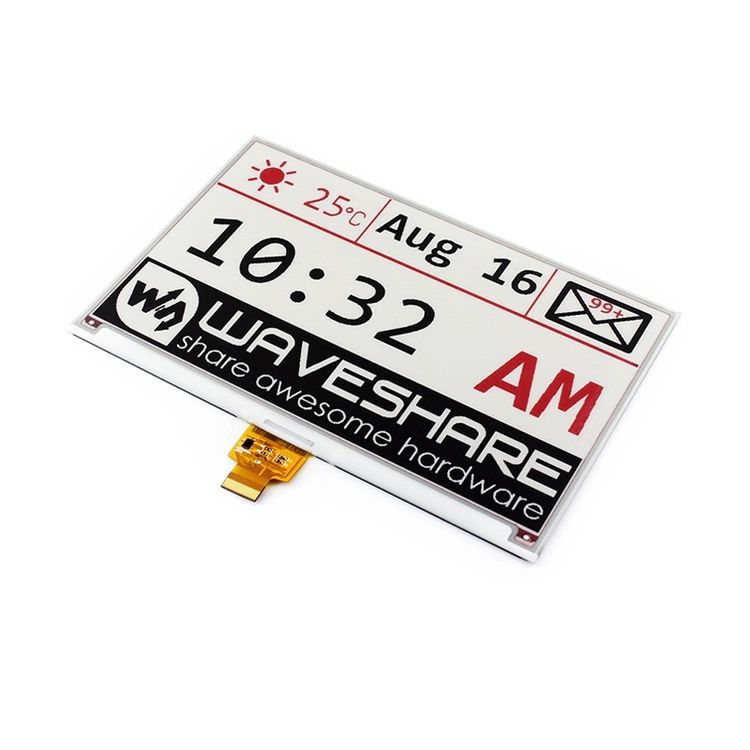

1. 7.5 inch e-Paper (B) x1

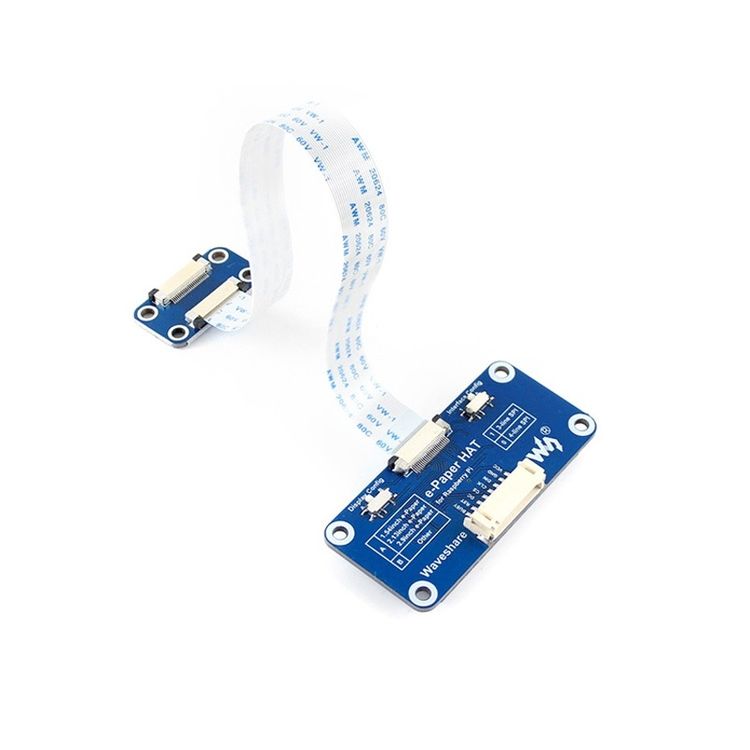

2. e-Paper Driver HAT x1

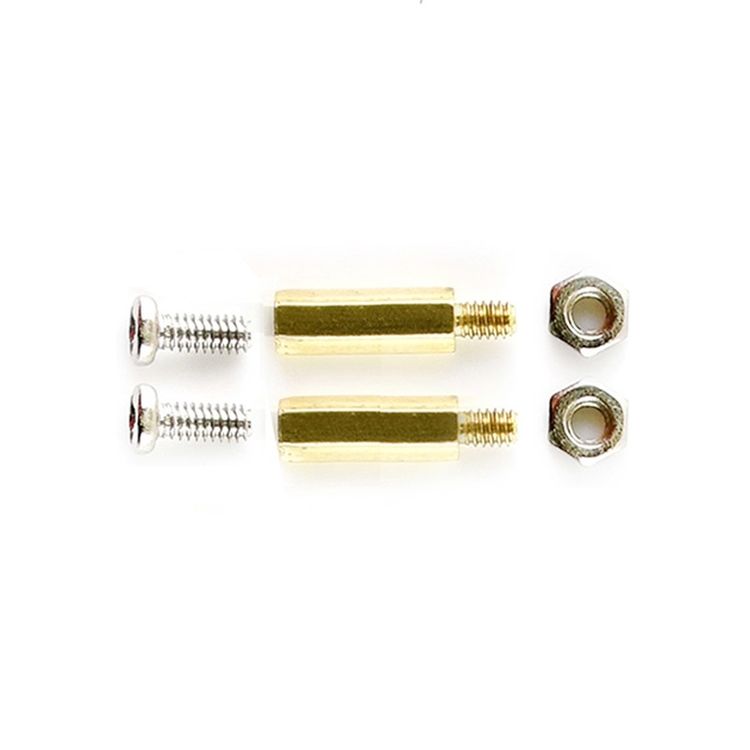

3. RPi screws pack (2pcs) x1

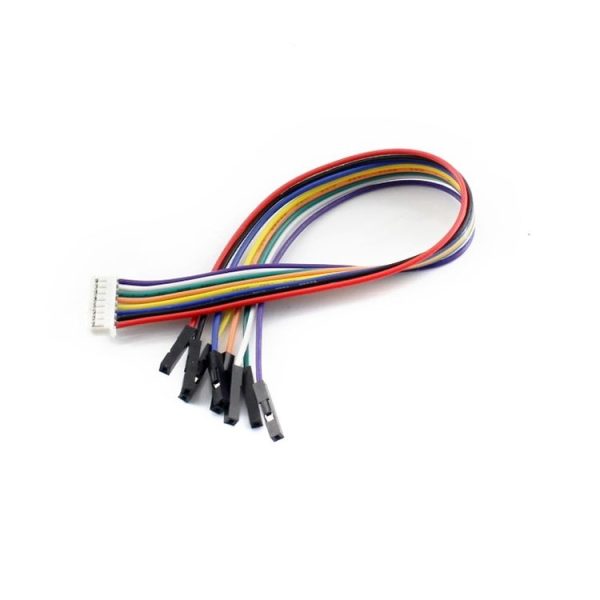

4. PH2.0 20cm 8Pin x1

Additional Information

Weight & Size

Weight: 0.080kg
Size: 20cm x 12cm x 2cm

SKU: A0100112580 Category: Tag: Condition: New
