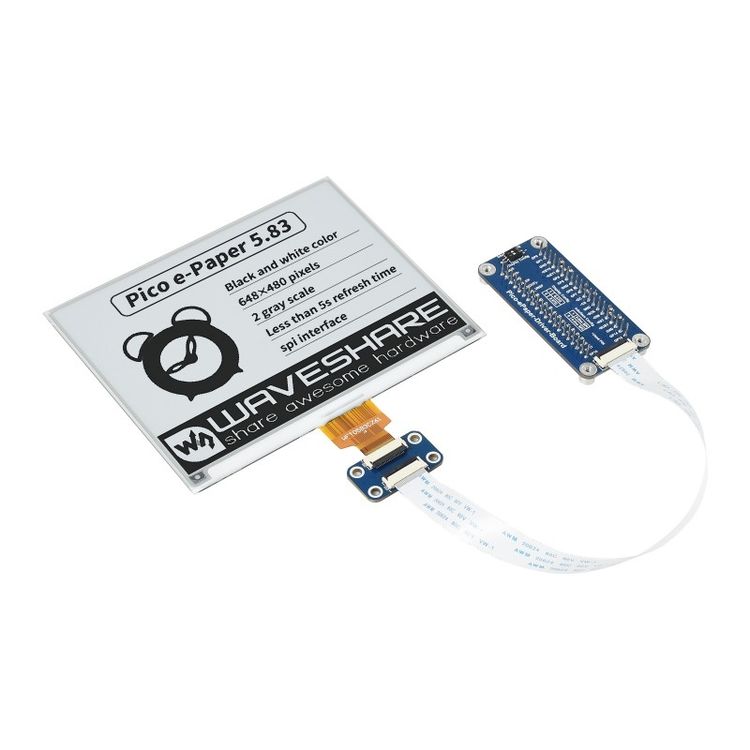

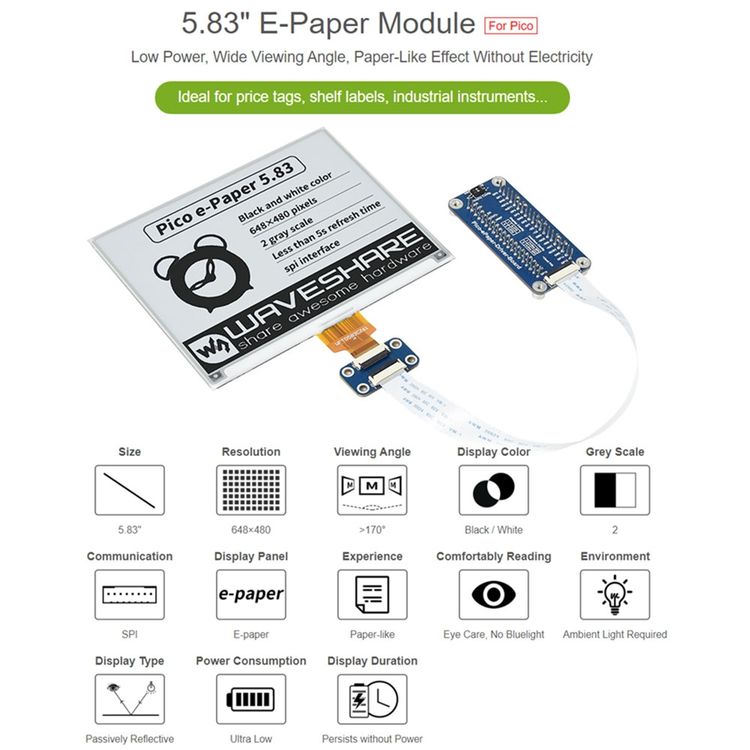

Waveshare 5.83 inch 648×480 Pixel Black White E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface


R969

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features

1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing
3. SPI interface, requires minimal IO pins
4. 2x user buttons and 1x reset button for easy interacting
5. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specification

1. Operating voltage: 3.3V
2. Display color: Black, white
3. Resolution: 648×480 pixels
4. Grey scale: 2

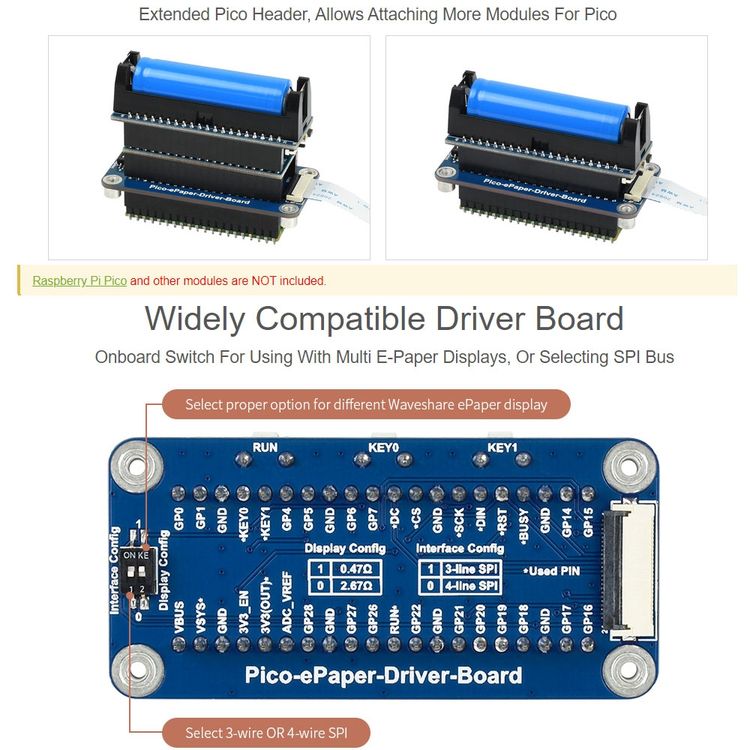

5. Interface: 3-wire SPI, 4-wire SPI
6. Viewing angle: Greater than 170 degree
7. Partial refresh time: N/A
8. Full refresh time: 5s

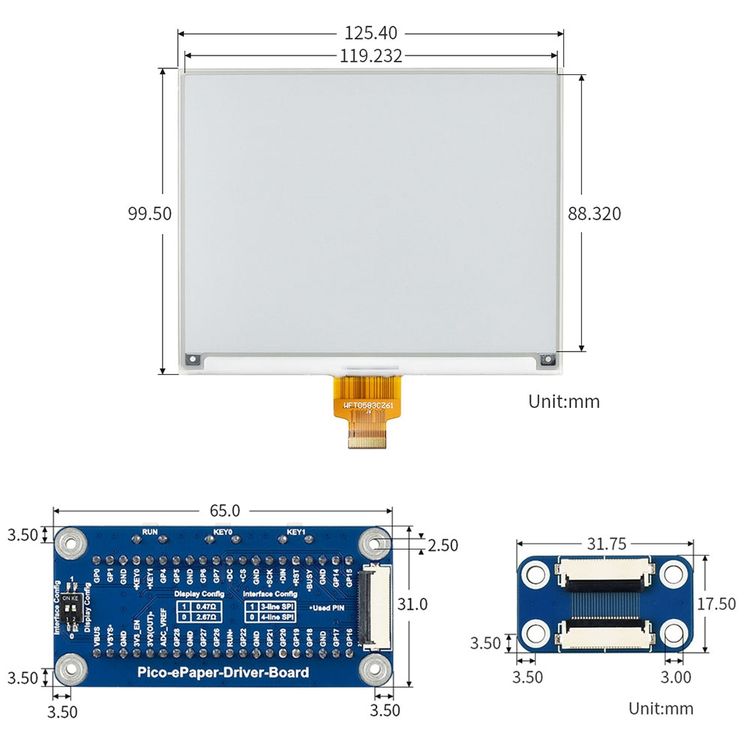

9. Dimensions: 125.4×99.5mm
10. Display size: 119.232×88.320mm
11. Refresh power: 26.4mW (typ.)
12. Standby current: Less than 0.01uA (almost none)
13. Dot pitch: 0.184 x 0.184mm

Advantages Of EINK

1. E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
2. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180 degree viewing angle. It is usually used as e-reader due to its paper-like effect.

Package List

1. 5.83 inch e-Paper x 1

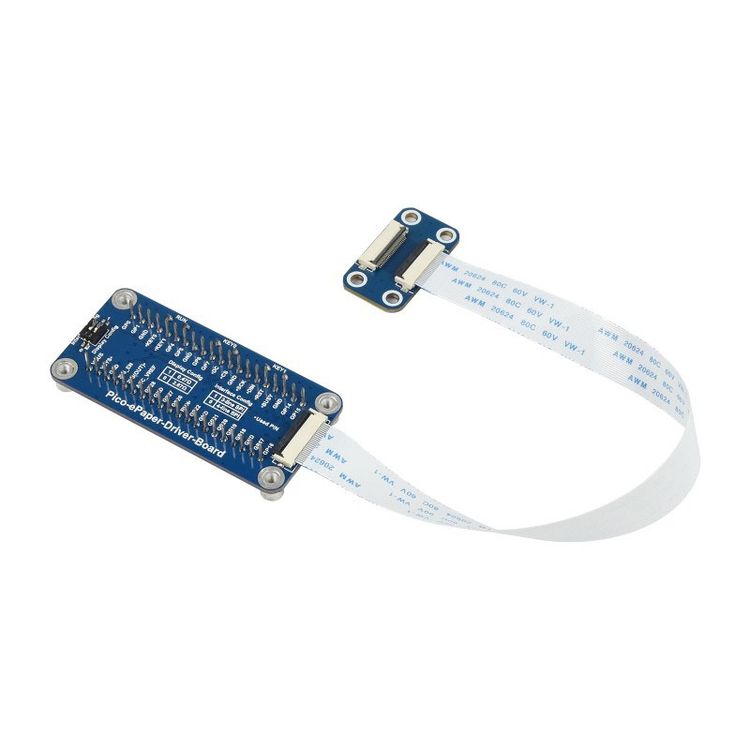

2. Pico-ePaper-Driver-Board x 1
3. Standoff pack x 1

Additional Information

Weight & Size

Weight: 0.079kg
Size: 15cm x 12cm x 2cm

SKU: A0100070057 Category: Tag: Condition: New
