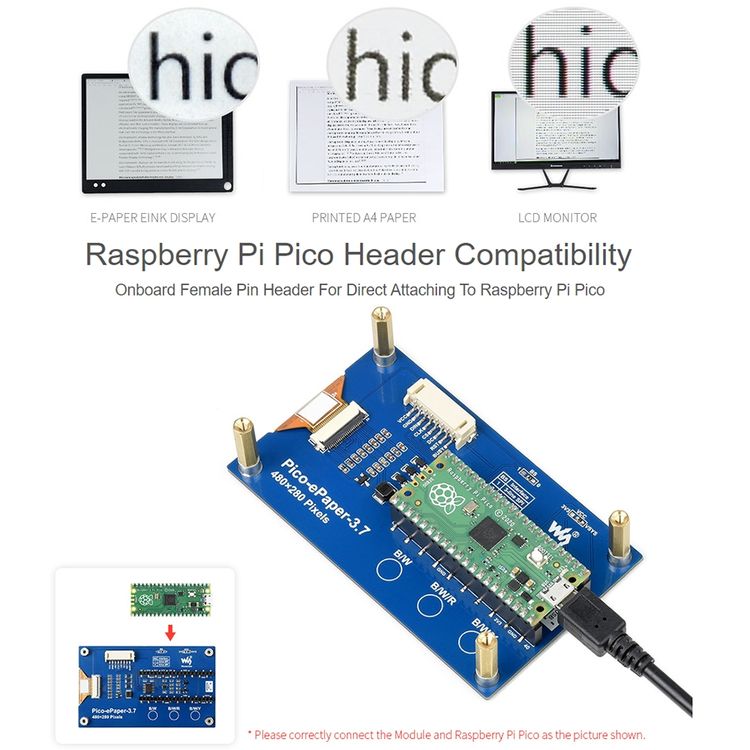

Waveshare 3.7 inch 480×280 Pixel E-Paper E-Ink Display Module for Raspberry Pi Pico, 4 Grayscale, SPI Interface


R526

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features

1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing
3. SPI interface, requires minimal IO pins

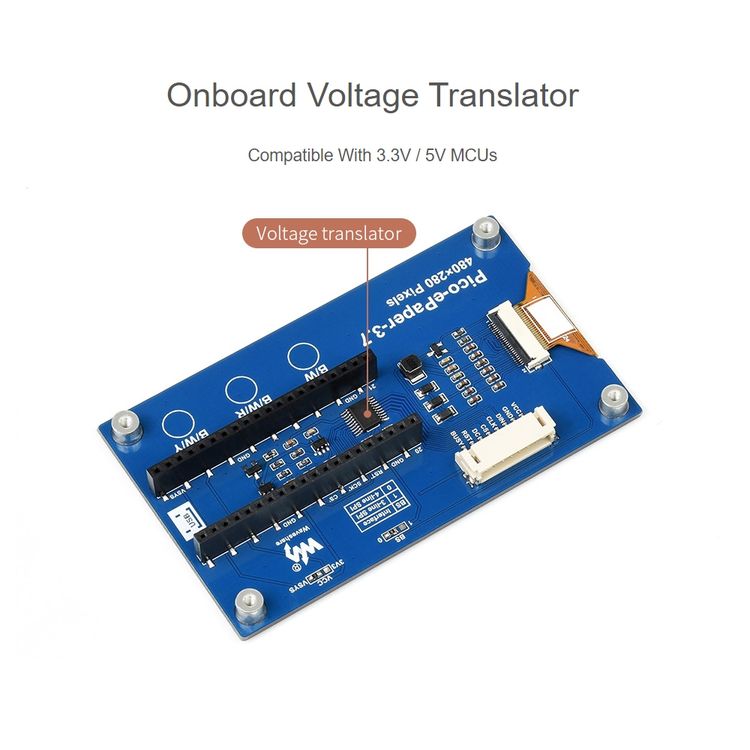

4. Onboard voltage translator, compatible with 3.3V / 5V MCUs
5. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specification

1. Operating voltage: 3.3V/5V
2. Display color: Black, white
3. Resolution: 480×280 pixels

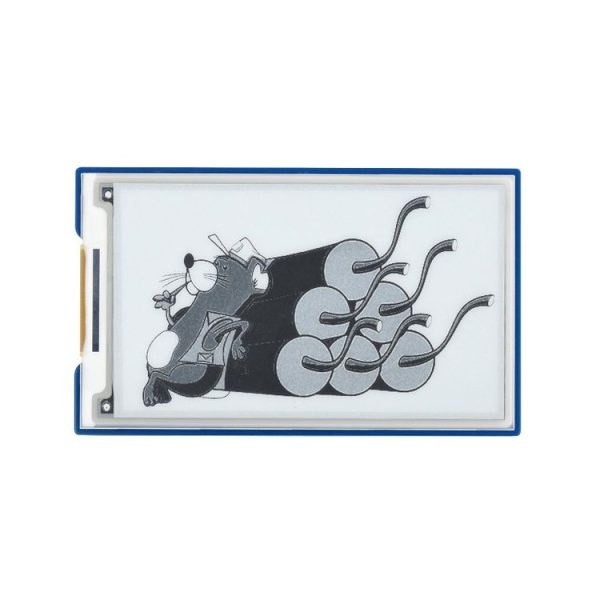

4. Grey scale: 4
5. Interface: 3-wire SPI, 4-wire SPI
6. Viewing angle: Greater than 170 degree
7. Partial refresh time: 0.3s
8. Full refresh time: 3s

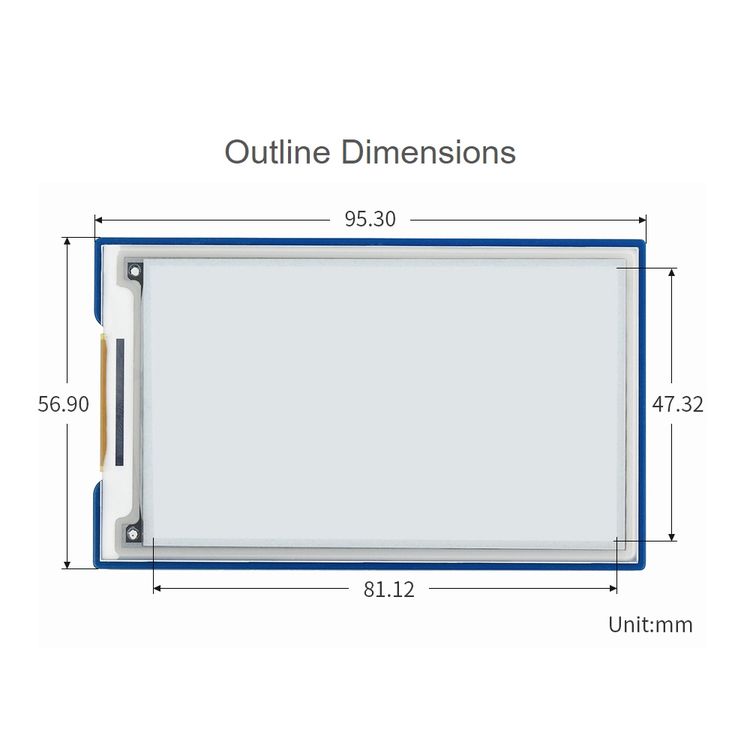

9. Outline dimensions: 95.3 x 56.9mm
10. Display size: 81.12 x 47.32mm
11. Refresh power: 26.4mW (typ.)
12. Standby current: Less than 0.01uA (almost none)
13. Dot pitch: 0.169 x 0.169 mm

Package List

1. Pico-ePaper-3.7 x 1
2. Standoff pack x 1

Additional Information

Weight & Size

Weight: 0.069kg
Size: 15cm x 12cm x 2cm

SKU: A0100070049 Category: Tag: Condition: New
