Waveshare 2-DOF Pan-Tilt HAT for Raspberry Pi, Light Intensity Sensing, I2C Interface


R326

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Overview

This is a 2-DOF pan-tilt kit designed for Raspberry Pi. With onboard PCA9685 PWM chip and TSL2581 ambient light sensor, it allows the Pi to control camera movement and sense light intensity through I2C interface.

Features

1. Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
2. I2C interface, only 2 pins are required for moving and light intensity sensing
3. Onboard PCA9685 chip, provides 12-bit resolution PWM signal for moving control
4. Onboard TSL2581FN light-to-digital converter, with embedded ADC, provides a value that approximates the human eye response to assist the module
5. Onboard voltage level translator, compatible with 3.3V/5V operating voltage
6. Specific acrylic board to fix the Raspberry Pi camera, make it easy to install
7. Comes with development resources and manual (demo code, assembly guide)

Specifications

1. PWM driver: PCA9685
2. PWM resolution: 12-bit
3. Ambient light sensor: TSL2581FN
4. Ambient light resolution: 16-bit
5. Communication interface: I2C
6. Operating voltage: 3.3V/5V

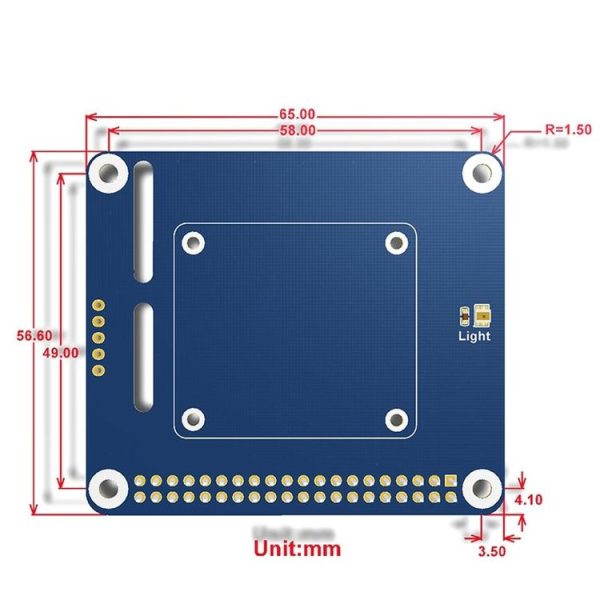

7. Dimension: 56.6mm x 65mm

How to Assemble

A little assembly work is required to use the Pan-Tilt HAT, yet its pretty easy to do, heres the assembly guide.

Package Contents

1. Pan-Tilt HAT x1

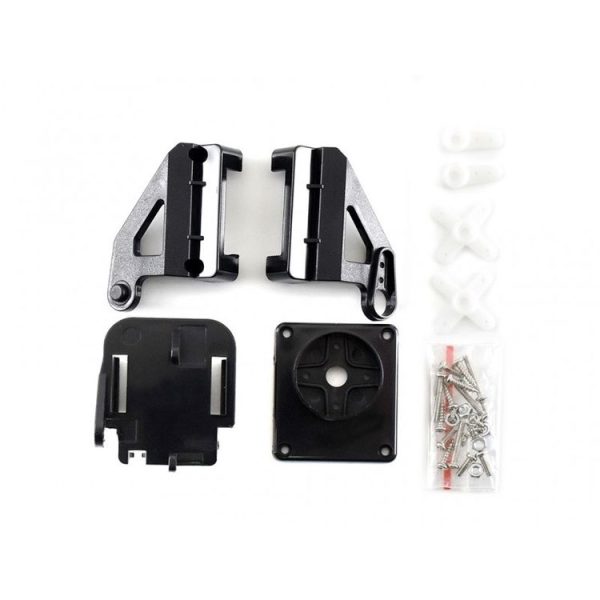

2. 2-DOF pan-tilt kit x1
3. SG90 servo x1
4. MG90S servo x1
5. Acrylic board x1
6. M2 screws pack x1
7. RPi screws pack (2pcs) x1

Additional Information

Weight & Size

Weight: 0.095kg
Size: 8cm x 7cm x 2cm

SKU: A0100070544 Category: Condition: New
