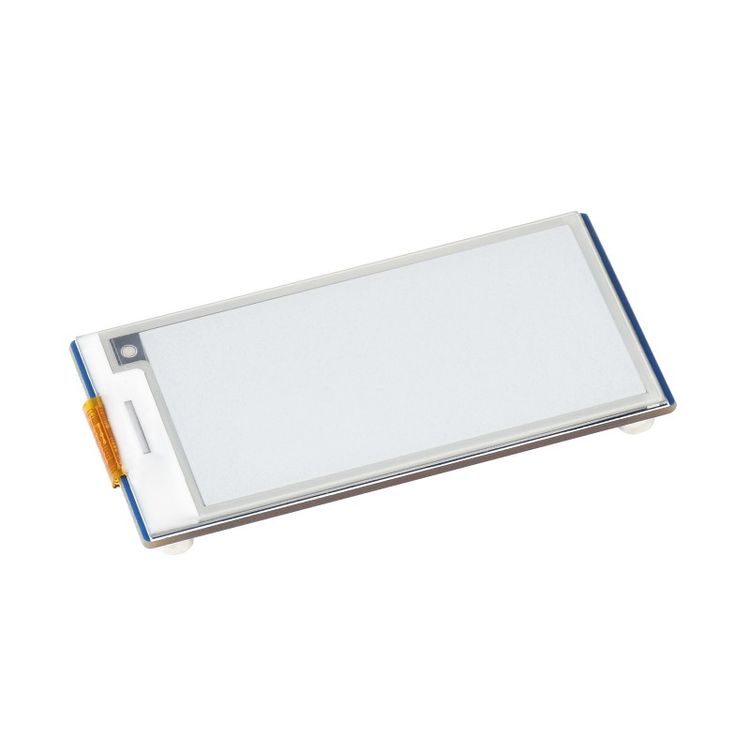

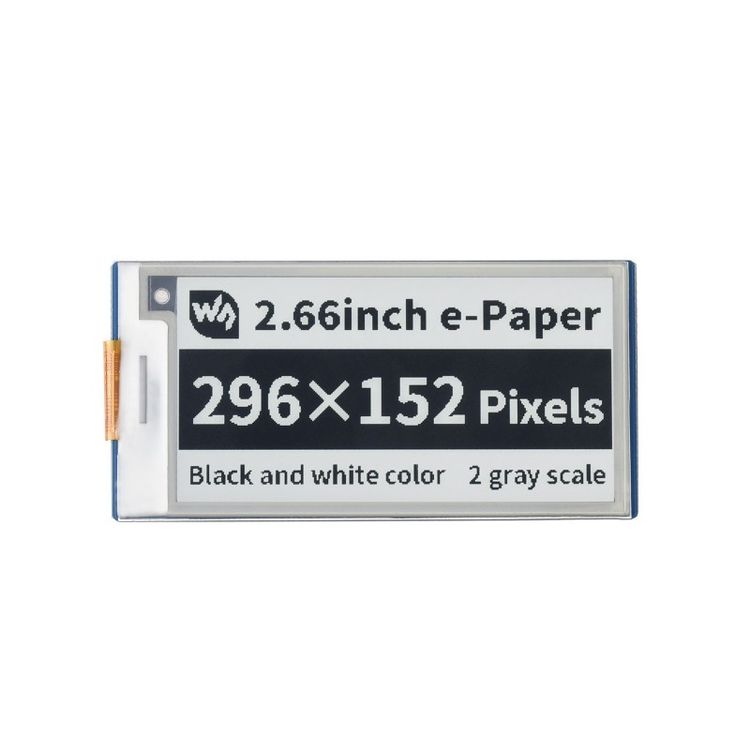

Waveshare 2.66 inch 296 x 152 Pixel Black / White E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface


R337

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features

1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing
3. SPI interface, requires minimal IO pins
4. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

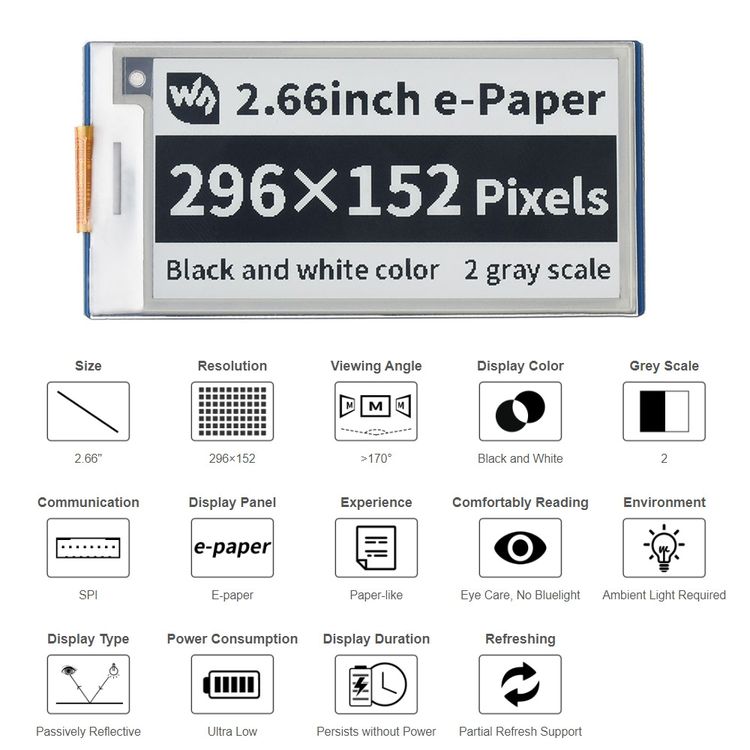

Specification

1. Operating voltage: 3.3V
2. Display color: Black, white
3. Resolution: 296 x 152 pixels
4. Grey scale: 2
5. Interface: 3-wire SPI, 4-wire SPI
6. Viewing angle: Greater than 170 degree
7. Partial refresh time: 0.3s
8. Full refresh time: 2s
9. Dimensions: 74.00 x 37.50mm
10. Display size: 60.088 x 30.704mm
11. Refresh power: 42.4mW(typ.)
12. Standby current: Less than 0.01uA (almost none)
13. Dot pitch: 0.203 x 0.202mm

Package List

1. Pico-ePaper-2.66 x1
2. Standoff pack x1

Additional Information

Weight & Size

Weight: 0.049kg
Size: 15cm x 12cm x 2cm

SKU: A0100070042 Category: Tag: Condition: New
