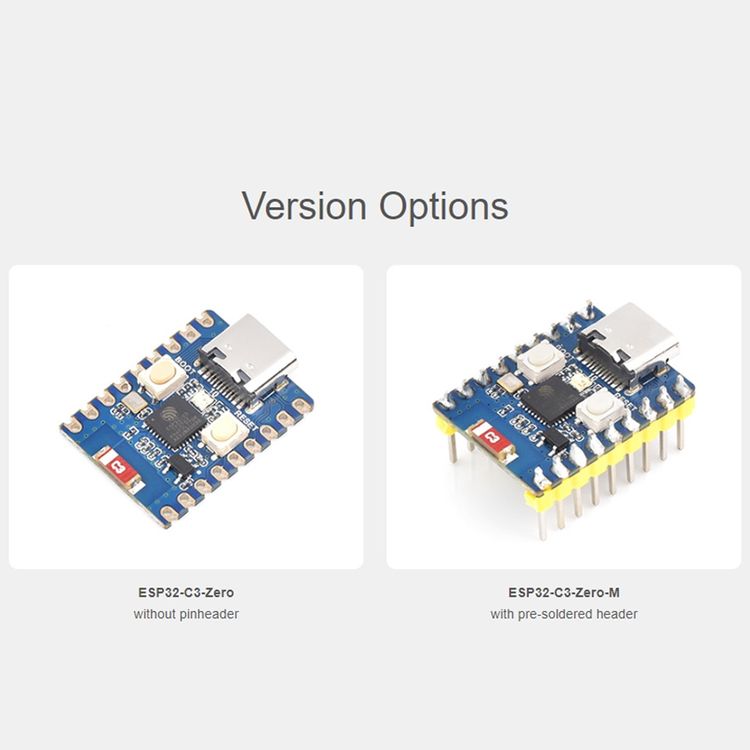

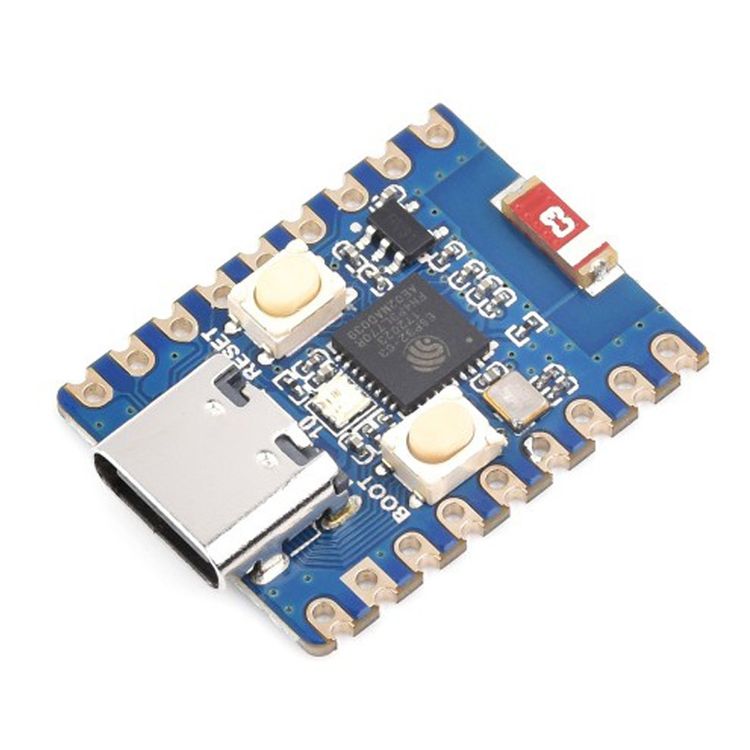

Waveshare 2.4GHz ESP32-C3 Mini Development Board, Based ESP32-C3FN4 Single-core Processor without Header


R129

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. Low-power SoC equipped with RISC-V 32-bit single-core processor, clocked at up to 160MHz
2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
3. 400KB SRAM and 384KB ROM, and 4MB onboard flash memory

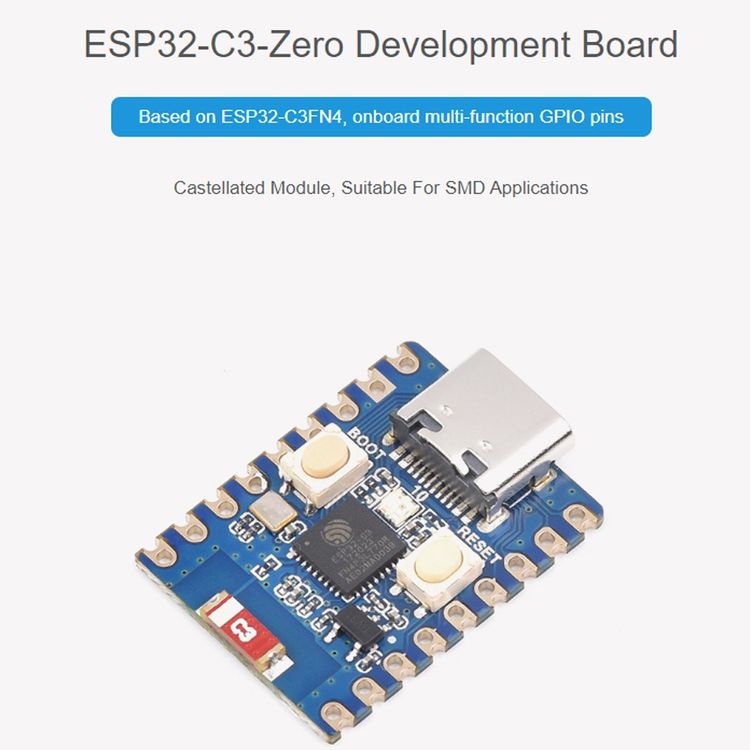

4. Castle-shaped module and on-board ceramic antenna, allowing direct soldering to the carrier board
5. Support flexible clock and module power independent settings and other controls to achieve low power consumption in different scenarios

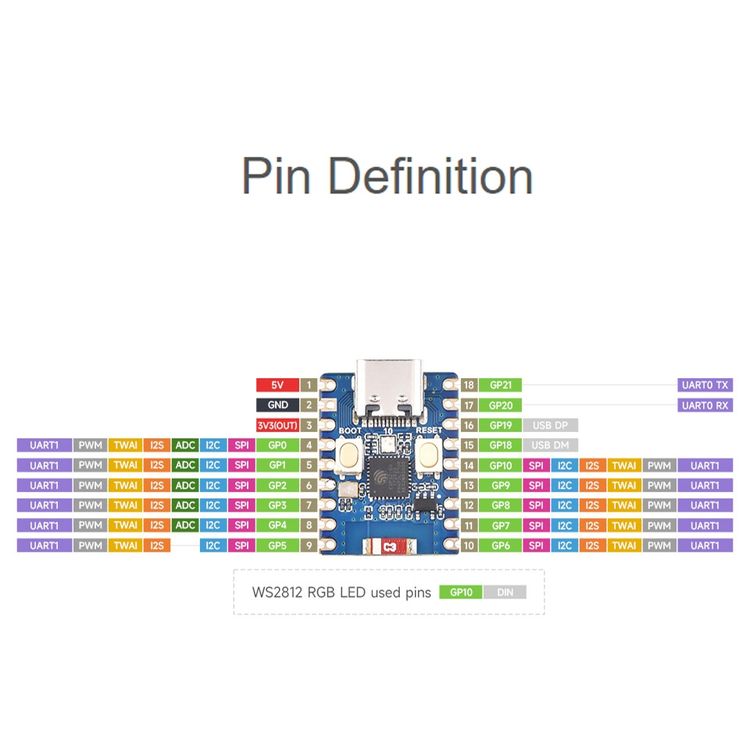

6. Integrated USB serial port full-speed controller, 15×GPIO pins, pin functions can be flexibly configured
7. 3×SPI, 1×I2C, 2×UART, 1×I2S, 2×ADC, etc.

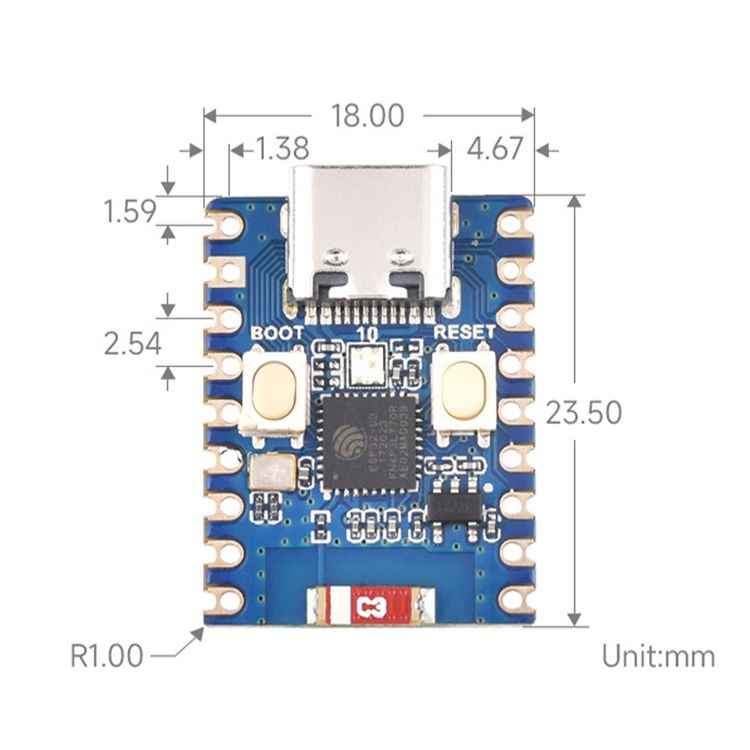

8. Product size: 23.5 x 18mm
9. Weight: 2g, 3g

Additional Information

Weight & Size

Weight: 0.014kg
Size: 8cm x 5cm x 2cm

SKU: A0100024151 Category: Condition: New
