Overview

Overview

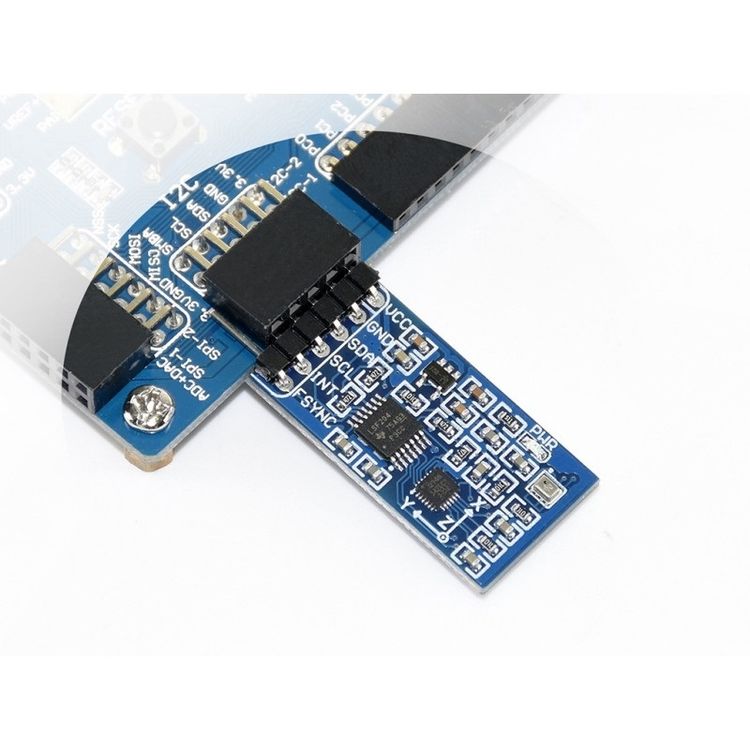

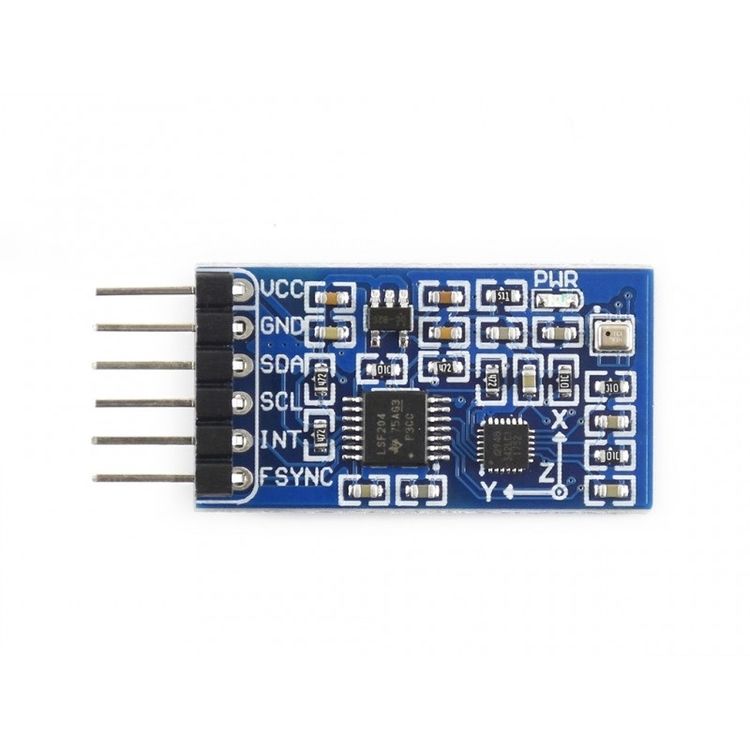

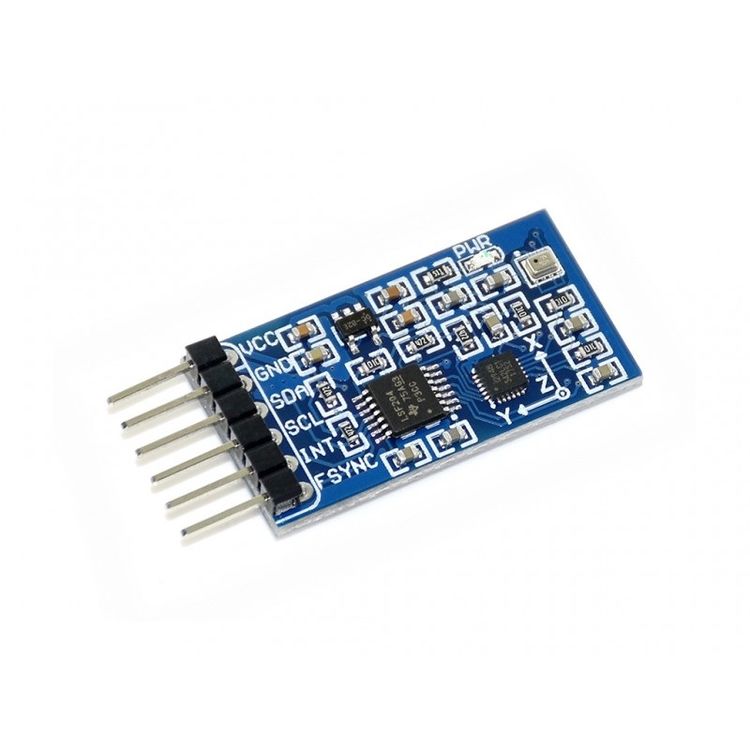

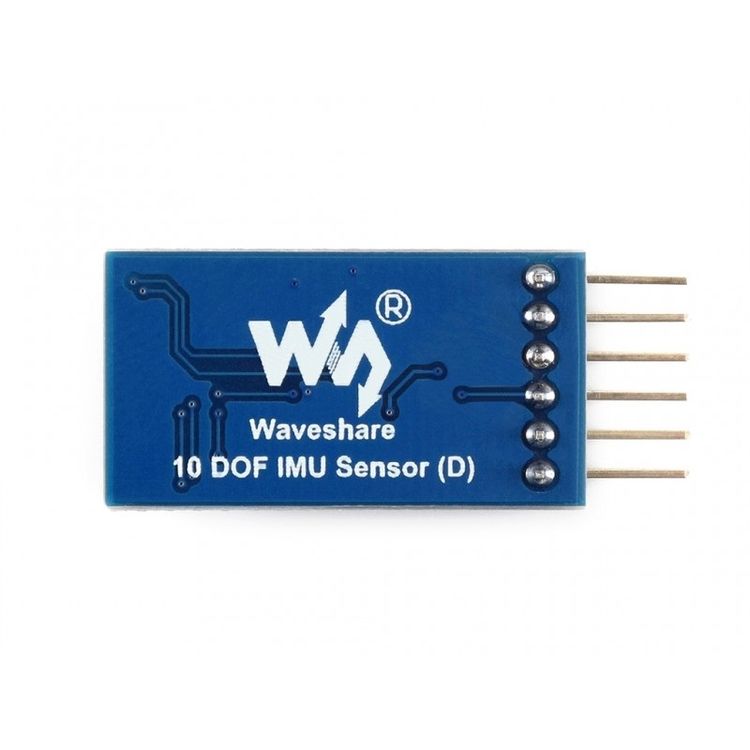

10 DOF IMU Sensor (D) features the low power ICM20948 onboard, it is good at motion monitoring, as well as detecting/measuring the position, height, and temperature.
This tiny module would be helpful for making your own copter or balancing robot, provides great man-machine interaction.

Features

1. ICM20948: Low power 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass/magnetometer
– Internal Digital Motion Processing™ (DMP™) engine, offloads complicate fusion calculation, sensor synchronization, gesture recognition, etc.
– Comparing with MPU9250, it is higher precision, lower power consumption, and more suitable for wearable devices
2. BMP280: barometric pressure sensor
– Embedded temperature sensor for temperature compensation
– Comparing with BMP180, it is lower power consumption, and higher performance
3. You can get the 10 DOF data through I2C interface

Additional Information

Weight & Size

Weight: 0.050kg
Size: 6cm x 3cm x 1cm

SKU: A0100024454 Category: Condition: New
