Overview

10 DOF IMU Sensor (C), Inertial Measurement Unit, Lower Power Consumption

Overview

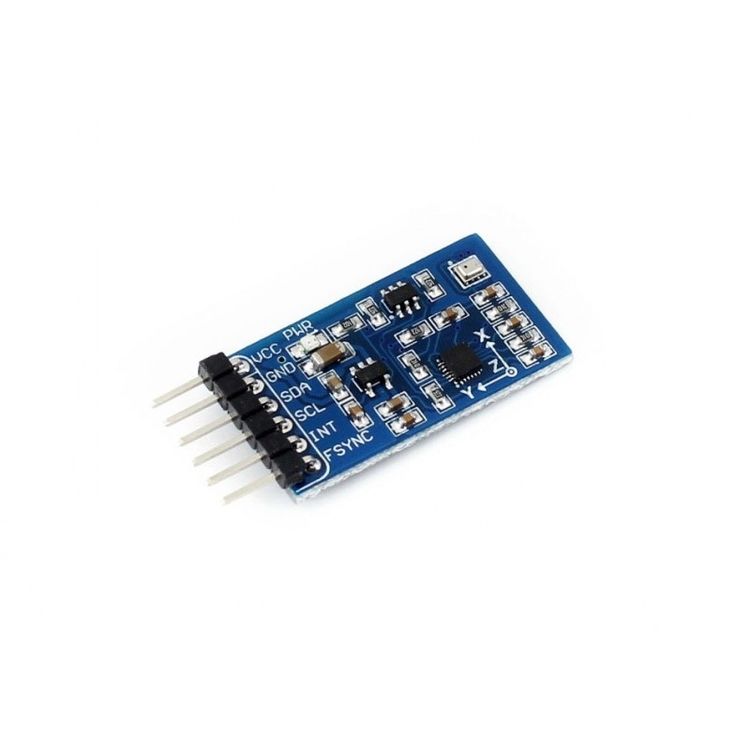

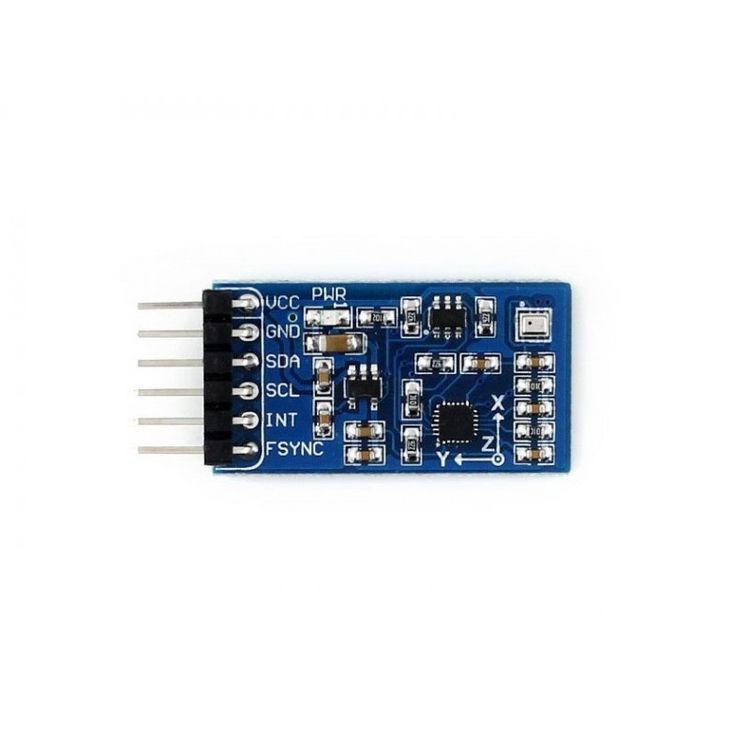

10 DOF IMU Sensor (C) is good at motion monitor, as well as detecting/measuring the position, height, and temperature. It would be helpful for making your own copter or balancing robot, provides great man-machine interaction.

Features

1. MPU9250: 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass/magnetometer
– Internal Digital Motion Processing™ (DMP™) engine, offloads complicate fusion calculation, sensor synchronization, gesture recognition, etc.
– Comparing with MPU6050, it is lower power consumption, and more suitable for wearable devices
2. BMP280: barometric pressure sensor
– Embedded temperature sensor for temperature compensation
– Comparing with BMP180, it is lower power consumption, and higher performance
3. You can get the 10 DOF data through I2C interface

Additional Information

Weight & Size

Weight: 0.010kg
Size: 5cm x 4cm x 1cm
