Overview

1. Durable and reliable.
2. Easy to install, play and plug.
3. OBDII Supported Protocol:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2(5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
4. Compatible software:

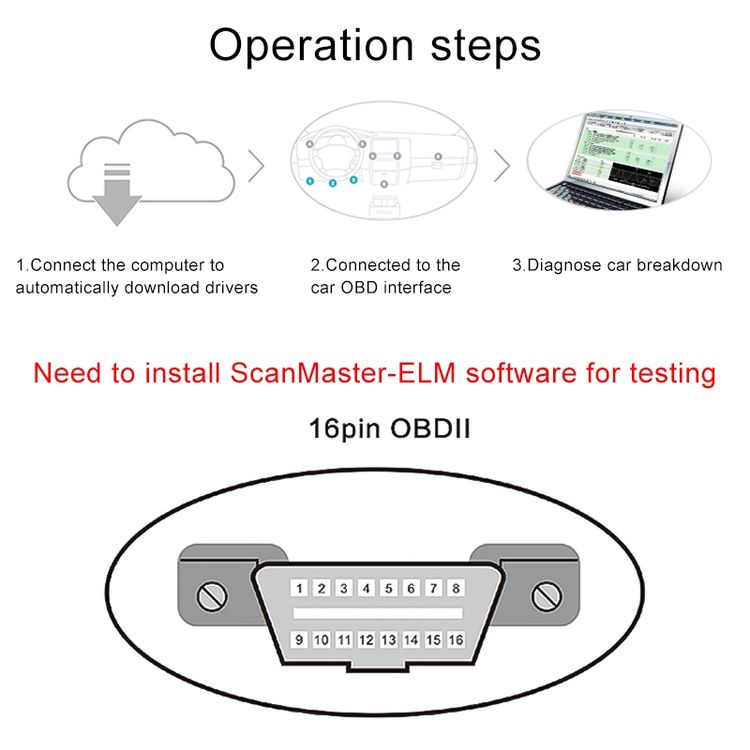

Window Edition: ScanMaster-ELM, ScanTool.net, PCMSCAN etc;

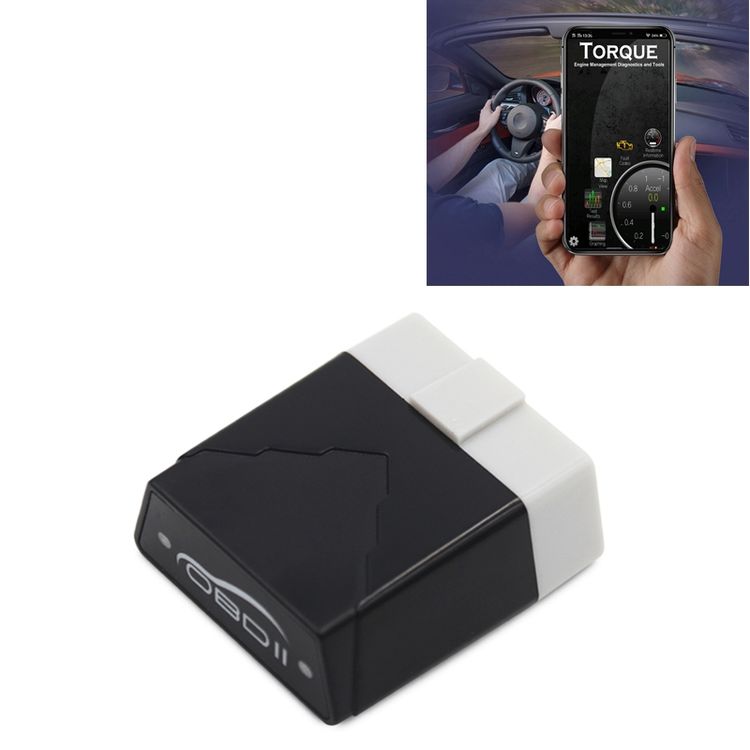

Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD etc;
iOS version: Auto Doctor, Mini OBDII
Symbian version: OBDScope.
5. Compatible platform:
Software support platform: Windows XP, Windows 7/8, Android, Saipan and other systems.
6. Product parameters:
Communication mode: Bluetooth 4.0

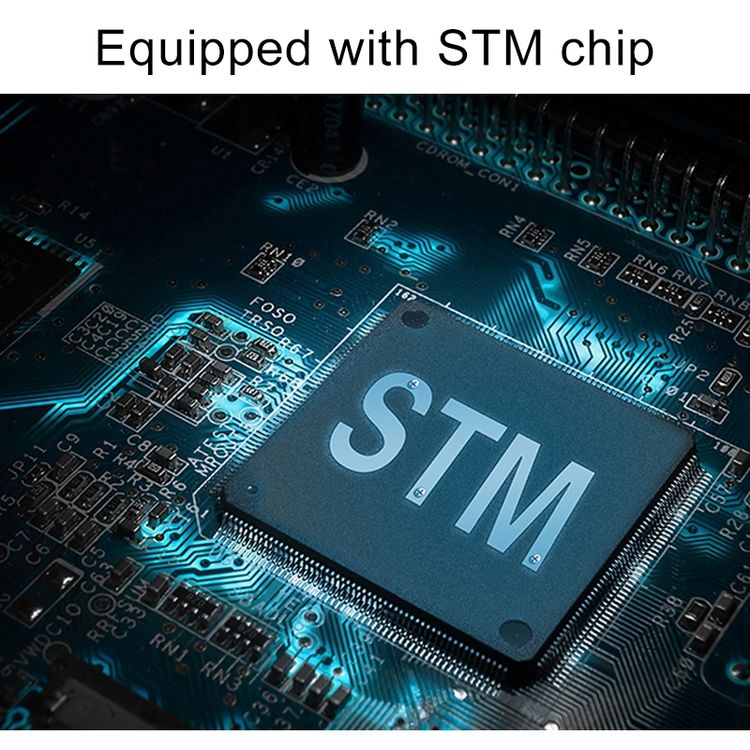

Main control chip: ST chip
Software platform: support Android / Windows / iOS
Working voltage: 9V~16V
Working current: 35mA
Standby current: 25mA
working temperature: -40 ~85 degrees Celsius
Working humidity: less than 60%

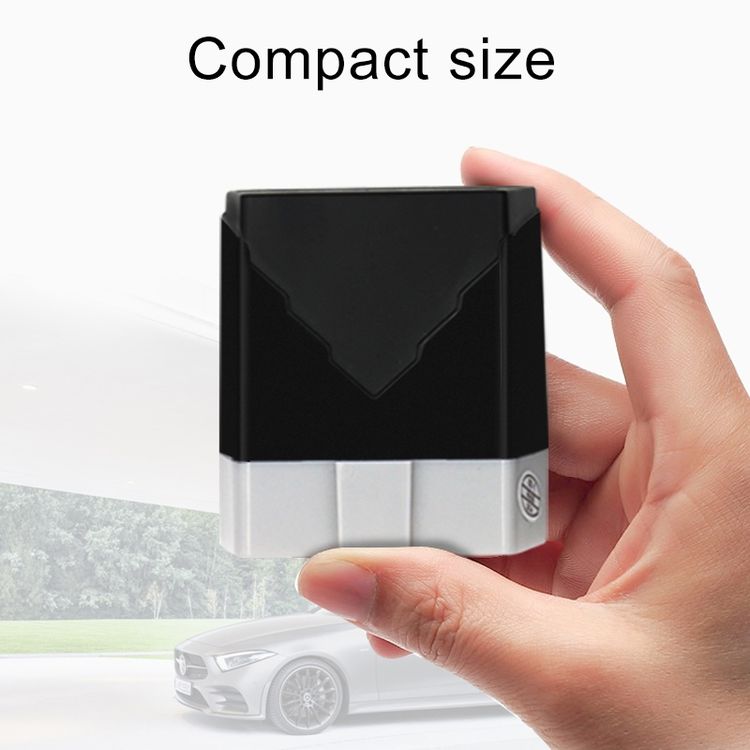

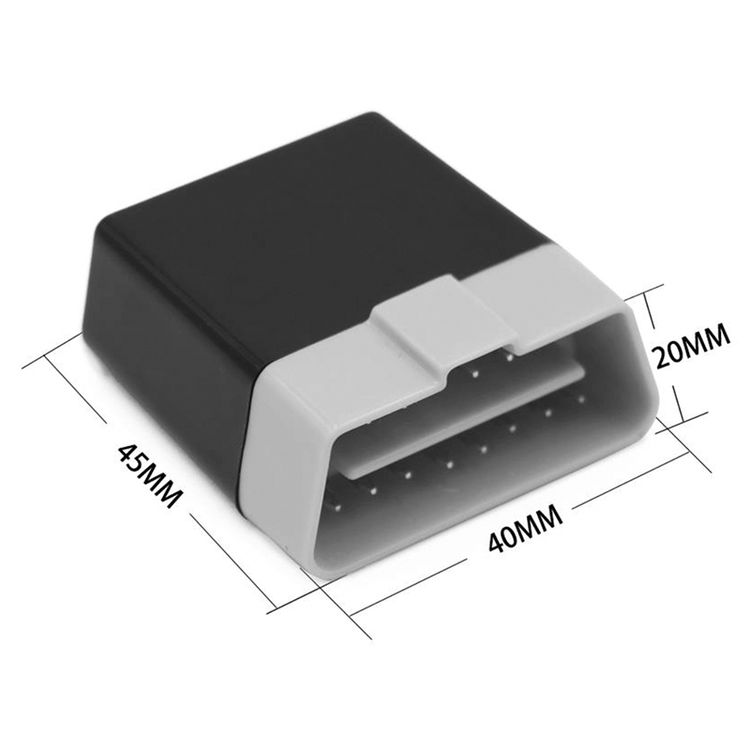

Product size: 45mm x 40mm x 20mm
7. Software can perform the following operations:
Read the error diagnostic code — Generic and vendor specific, and show what they mean (the database has
more than 3000 generic code definitions)
Clear the error code and turn off the MIL (check engine indicator).

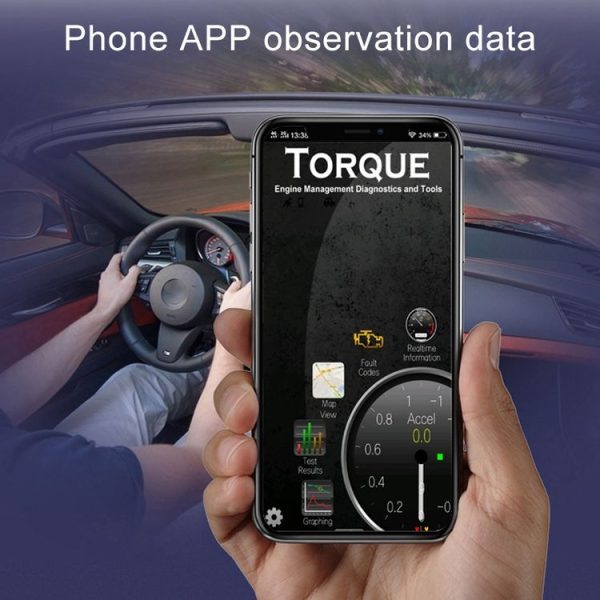

Display current sensor data, including:
Engine speed per minute (RPM)
Calculated load values
Coolant temperature
Fuel system status
Speed
Short term fuel situation
Long term fuel situation
manifold pressure
Injection advance time
Intake temperature
Air velocity
Absolute position of throttle valve
Oxygen detection voltage associated with short term fuel state
Fuel system status
Fuel pressure
There are many other data for fuel consumption monitoring.

Additional Information

Weight & Size

Weight: 0.044kg
Size: 11cm x 7cm x 3cm
