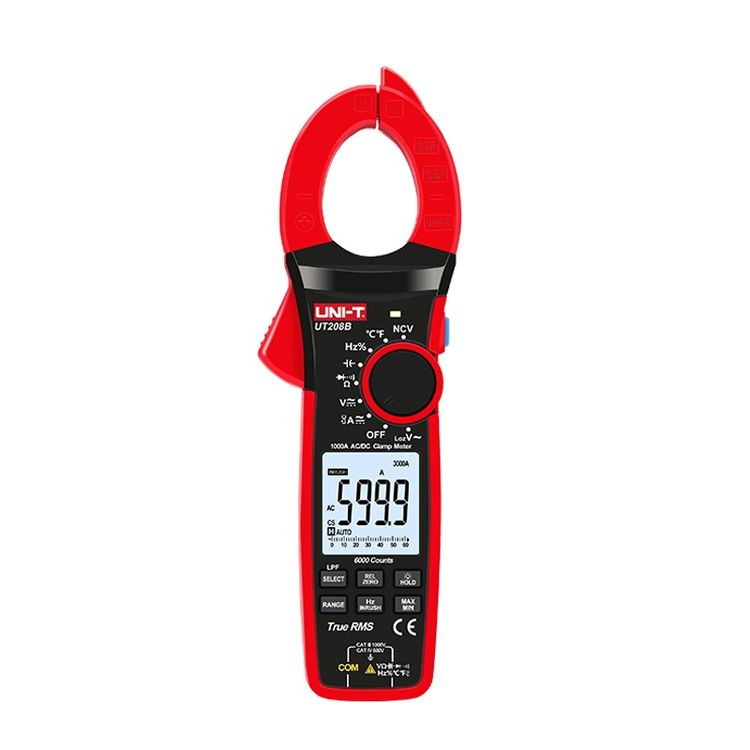

UNI-T UT208B 1000A 42mm Jaw Size Digital Clamp Meter AC DC Voltage Detector


R3103

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

UT208B:
– Diode test
– duty cycle
– true rms
– Continuity test

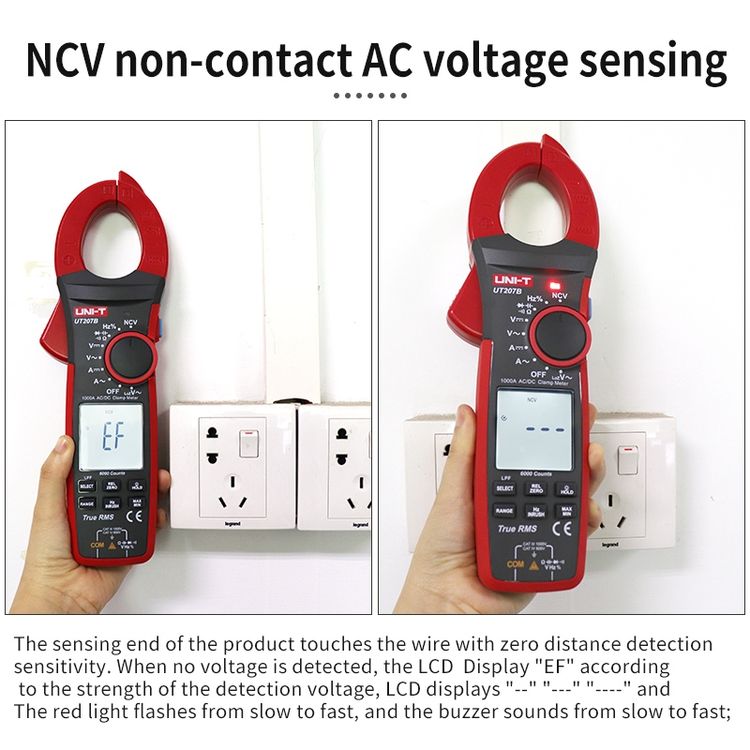

– NCV test pen
– Inrush current
– Maximum/minimum value
– Automatic/manual ranging
– relative value
– Flashlight/Backlight
– Gear record

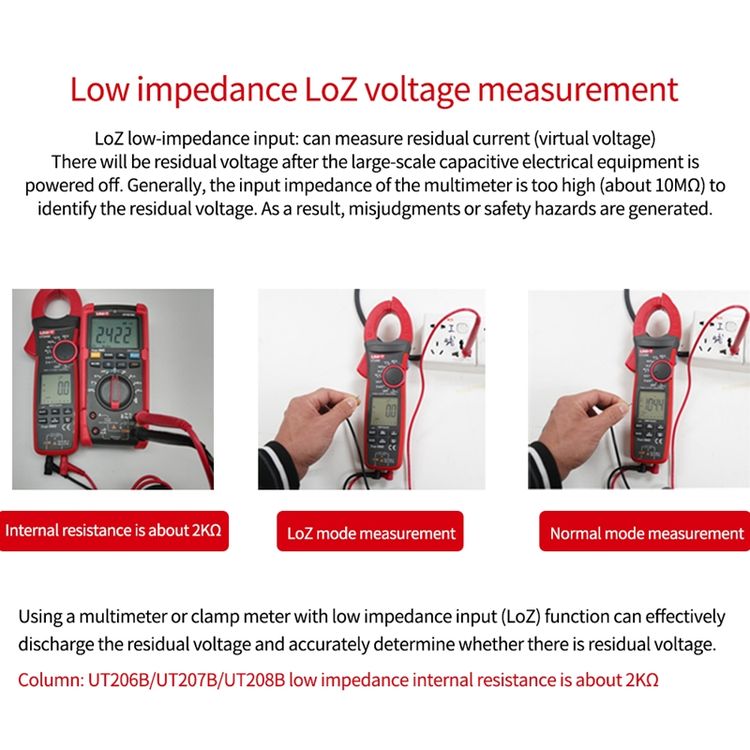

– Low impedance input
– Low pass filtering
– Analog bar
– Automatic shut-down

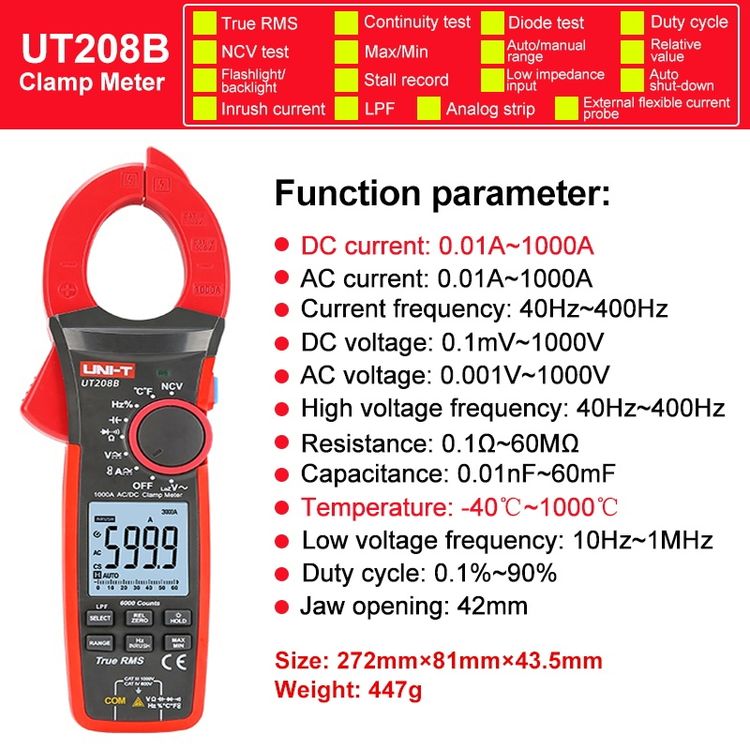

parameter:
– DC current: 0.01A~1000A
– AC current: 0.01A~1000A
– Current frequency: 40Hz~400Hz
– DC voltage: 0.1mV~1000V
– AC voltage: 0.001V~1000V
– High voltage frequency: 40Hz~400Hz
– Resistance measurement: 0.1ohm~60mohm
– Capacitance measurement: 0.01nF-60mF
– Temperature measurement: -40~1000 degrees Celsius
– Low voltage frequency: 10Hz~1MHz

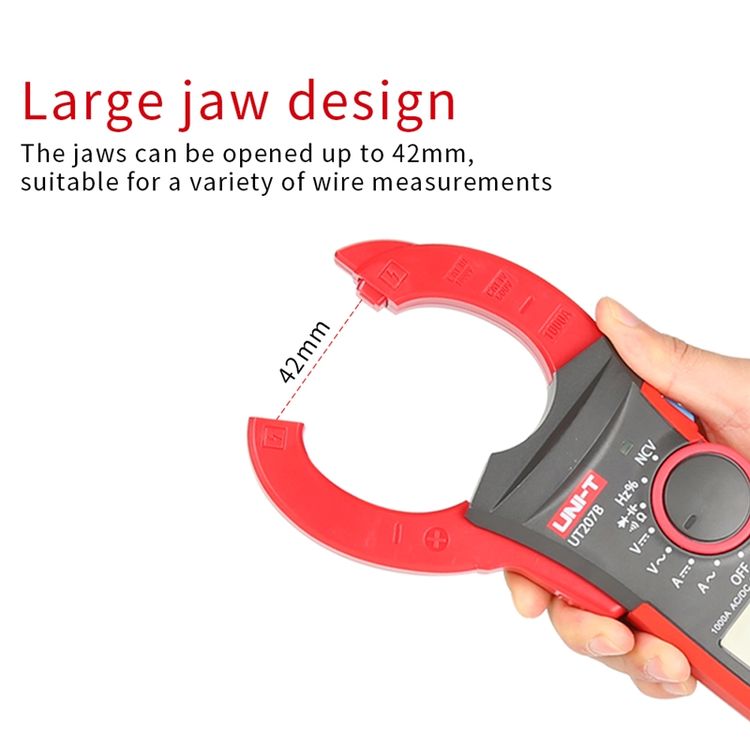

– Jaw opening: 42mm
– Duty cycle: 0.1%~90%
– Machine size: 272 x 81 x 43.5mm
– Machine weight: 447g
– Power supply mode: 3 AAA batteries (batteries are not included)

Standard configuration: packing box + manual + test lead + cloth bag + temperature measuring probe

Additional Information

Weight & Size

Weight: 0.504kg
Size: 30cm x 14cm x 8cm

SKU: B0100001424 Category: Condition: New
