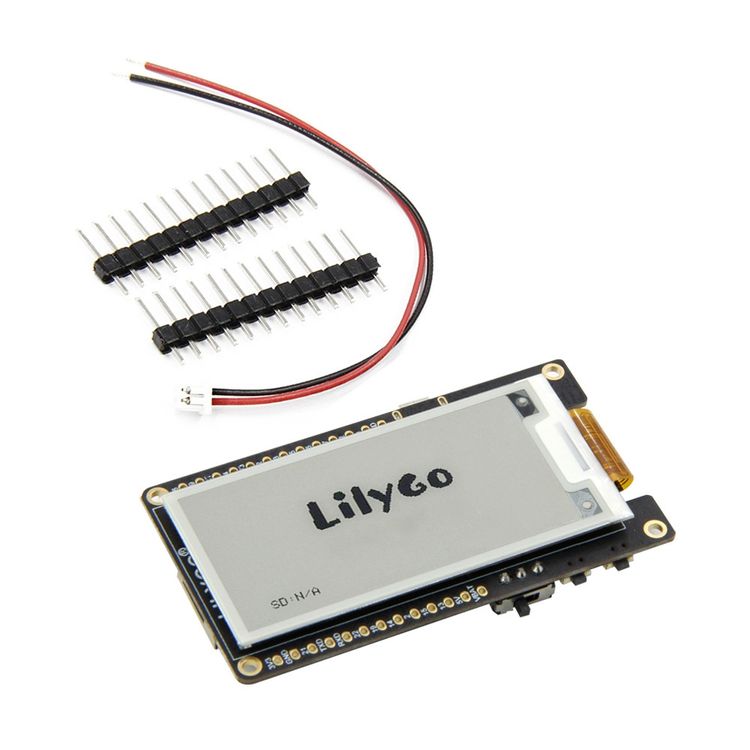

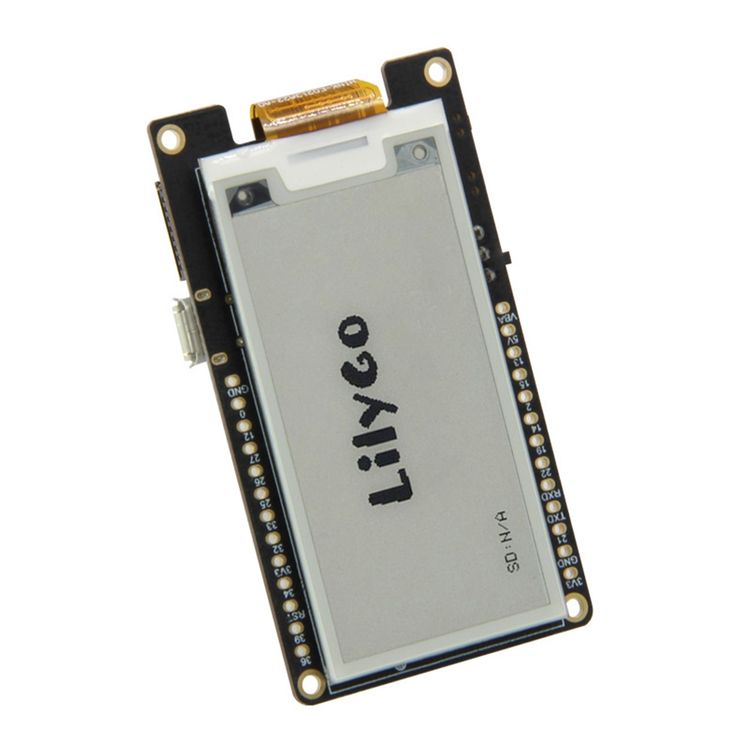

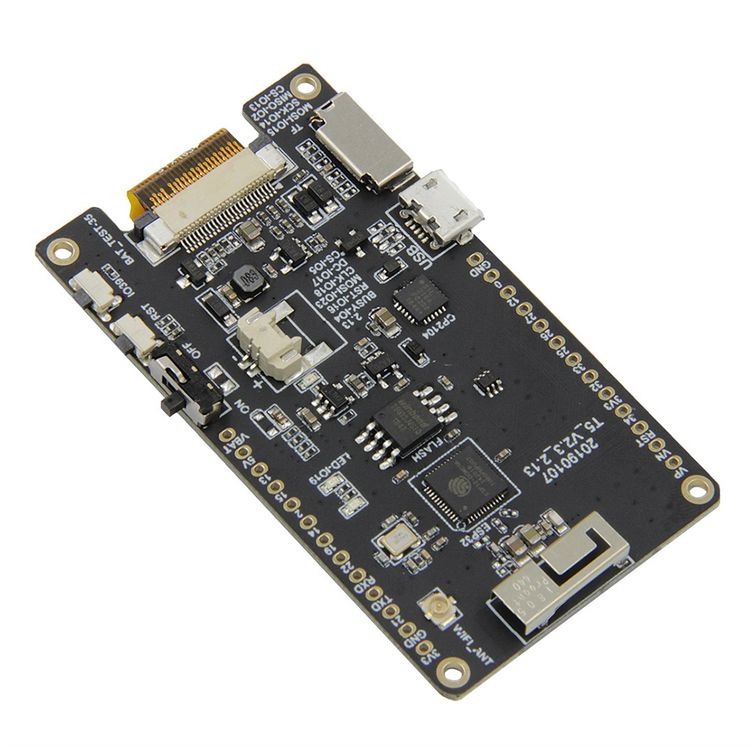

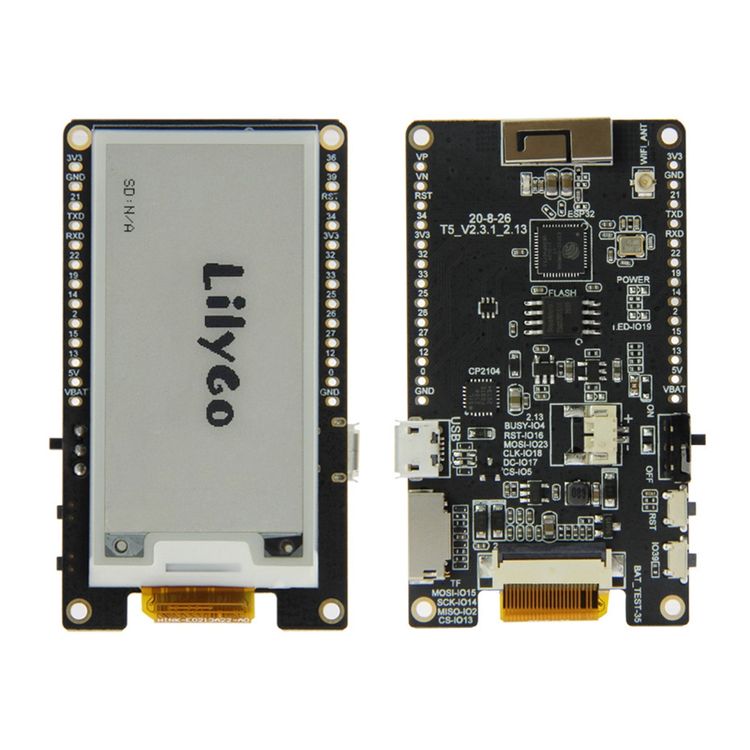

TTGO T5 V2.3.1 ink screen GDEW0213M21 WiFi Bluetooth Module 2.13 inch ink Screen Development Board


R172

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Overview
Due to the advantages of ultra-low power consumption, wide viewing angle, and clear display without electricity, it is an ideal choice for applications such as shelf labels and industrial instruments.

Features
1. Without backlight, the last content can be displayed for a long time even if it is turned off
2. Ultra-low power consumption, basically only need to refresh the power supply
3. Attached with development resources and manuals (example of Arduin-esp32)

Product specifications
1. Working voltage: 3.3V
2. Interface: 3-wire SPI, 4-wire SPI
3. Display color: black, white
4. Grayscale: 2
5. Full refresh time: 8s
6. Refresh power: 26.4mW (typical value)
7. Driver chip: GDEW0213M21

ESP32 features:
1. Immersion Gold Craft
2. High cost performance
3. Small size, easy to embed other products
4. Powerful function supports LWIP protocol, Freertos
5. WiFi supports three modes: AP, STA and AP + STA
6. Support Windows system (cygwin and msys32) and Linux system
7. Support Arduino-ide, ESP-IDF, Micropython multiple development environments
8. Support Lua program, easy development

Additional Information

Weight & Size

Weight: 0.049kg
Size: 10cm x 6cm x 1cm

SKU: A0100024007 Category: Tag: Condition: New
