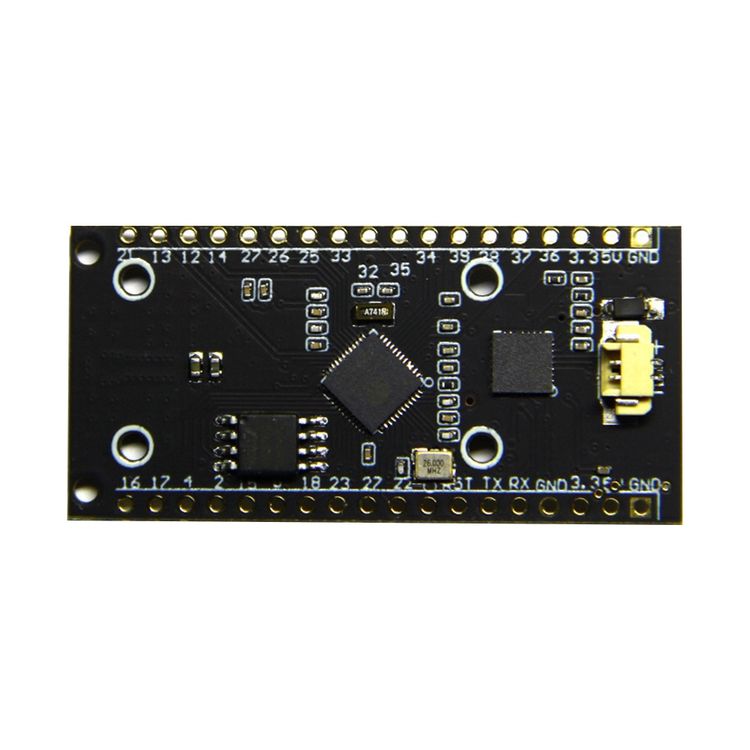

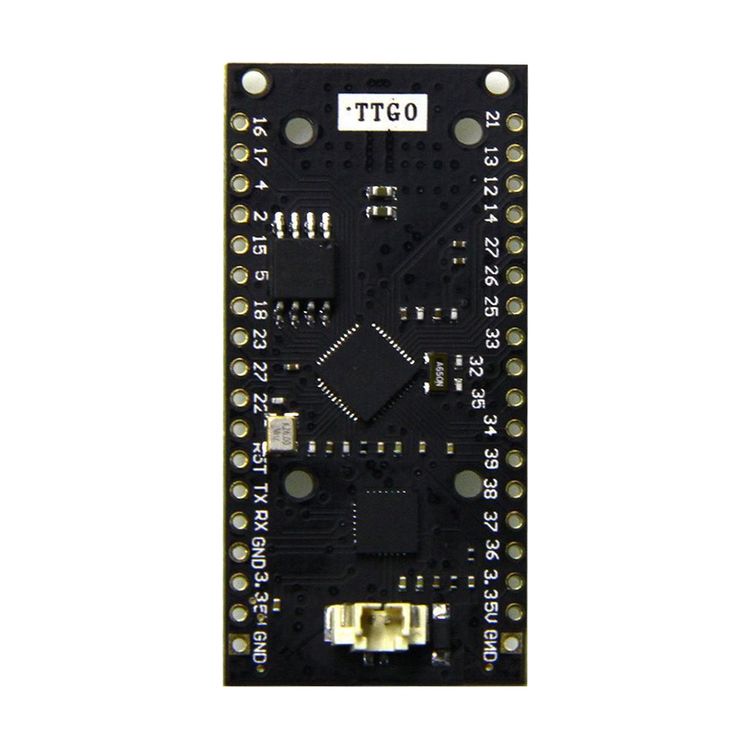

TTGO SX1278 LoRa 433MHz ESP32 WiFi Bluetooth Module with Antenna


R86

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Feature:
1. The main chip adopts Lexin ESP32, Tensilica LX6 dual-core processor, main frequency 240MHz, computing power up to 600DMIPS, built-in 520KB SRAM, 802.11 b/g/n HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual Modular Bluetooth (traditional Bluetooth and BLE low energy Bluetooth).
2. This product is based on WIFI 32 with the addition of SX1278 chip, namely LoRa remote modem, 433MHz frequency, about -148dBm high sensitivity, +20dBm power output, high reliability.
3. Onboard 16M bytes (128Mb bits), Wi-Fi antenna, lithium battery charging circuit and interface, CP2102 USB to serial chip, support Arduino development environment, can perform program verification and product development simply and quickly.

Specification:
1. Operating voltage: 3.3V to 7V
2. Operating temperature range: -40 degrees C to +90 degrees C
3. Support for Sniffer, Station, softAP, and Wi-Fi Direct modes
4. Data rates: 150 Mbps at 11n HT40, 72 Mbps at 11n HT20, 54 Mbps at 11g, 11 Mbps at 11b
5. Transmit power: 19.5 dBm at 11b, 16.5 dBm at 11g, 15.5 dBm at 11n
6. Receiver sensitivity up to -98 dBm
7. UDP sustained throughput of 135 Mbps

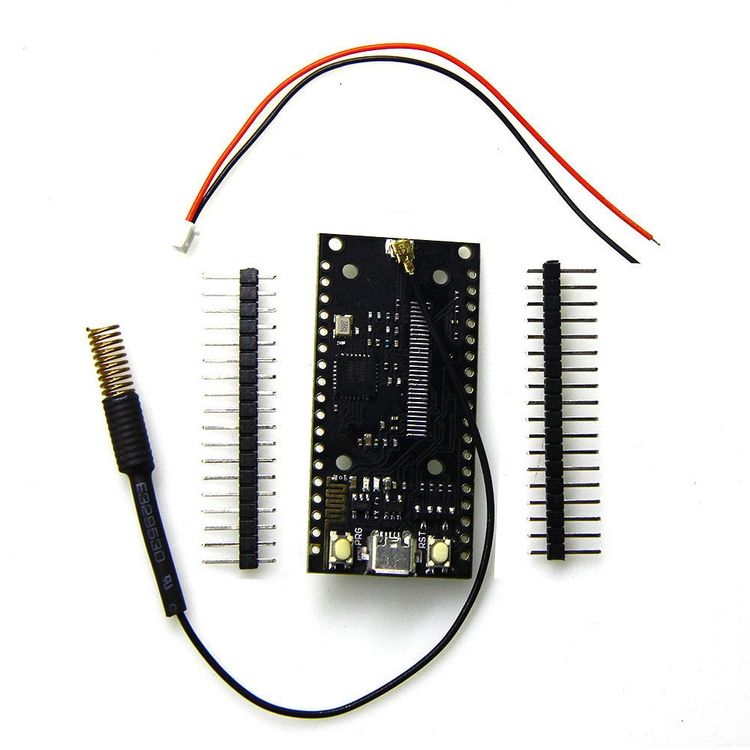

Includes:
1. WIFI Bluetooth Module x 1
2. Pins x 2
3. Cable x 1
4. Antenna x 1

Additional Information

Weight & Size

Weight: 0.029kg
Size: 10cm x 6cm x 1cm

SKU: A0100112871 Category: Condition: New
