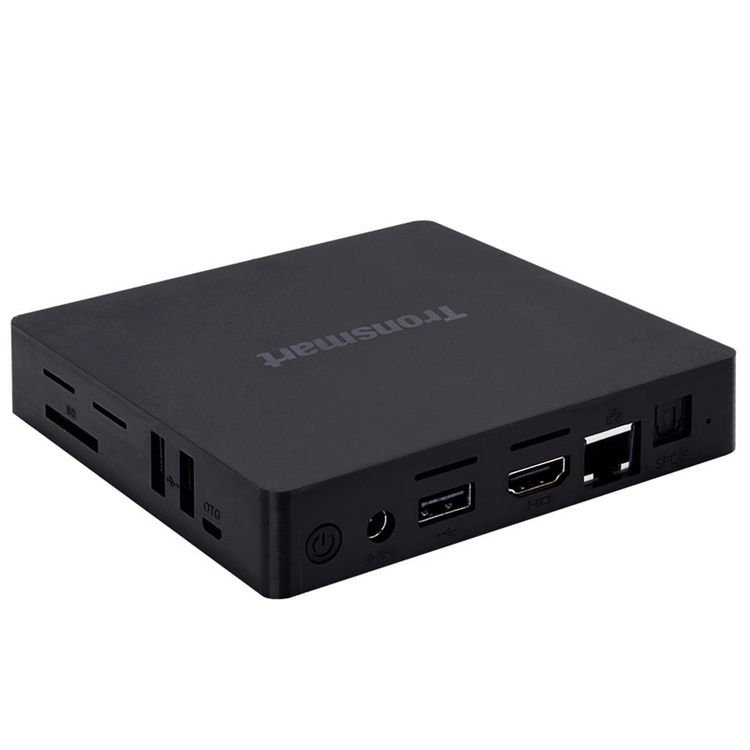

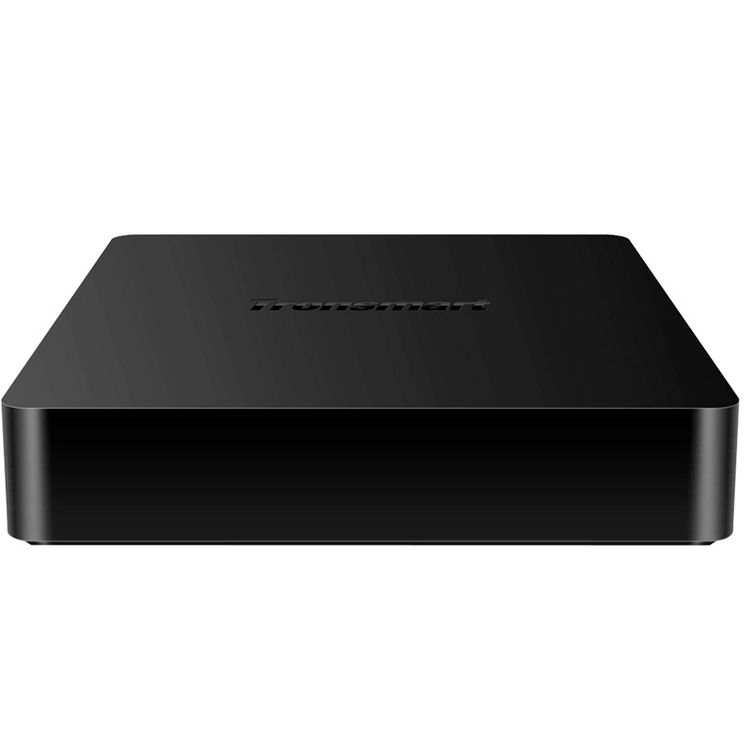

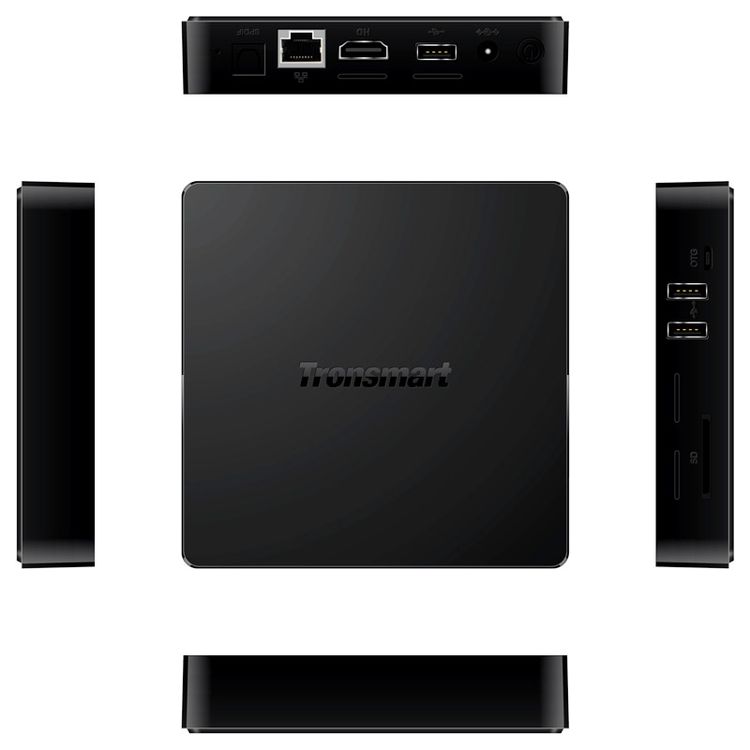

Tronsmart Orion R68 Meta Google Android 5.1 TV Box, CPU: Rockchip R3368 Octa Core Cortex-A53 64bit 1.6GHz, RAM: 2GB, ROM: 16GB, Support RJ45 / OTG / HDMI / Bluetooth / WiFi / TF Card (Black)


R2201

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. System: Google Android 5.1
2. CPU: Rockchip R3368 Octa Core up to 1.6GHz (Cortex-A53 64bit)
3. SGX6110 GPU
4. DDR3 2GB, Onboard eMMC Flash 16GB
5. Support 4K*2K H.265/H.264
6. 10/100M LAN, IEEE 802.11a/b/g/n/mimo, 4.900GHz ~ 5.845GHz (5.0GHz ISM Band) AP6335 dual-band WIFI
7. Support Bluetooth 4.0

Video & Picture Format

1. Main / Main 10 HEVC/H.265 decoder by 4k@60FPS
2. Support up to 4096×2304 resolution
3. Support up to 100Mbps bit rate
4. Embedded memory management unit(MMU)
5. Stream error detector (28 IDs)
6. Internal 128k cache for bandwidth reduction
7. Multi-clock domains and auto clock-gating design for power saving
8. Real-time video decoder of MPEG-1, MPEG-2, MPEG-4, H.263, H.264, AVS, VC-1, RV, VP6/VP8, Sorenson Spark, MVC
9. Error detection and concealment support for all video formats
10. Output data format is YUV420 semi-planar, and YUV400(monochrome) is also supported for H.264
11. H.264 up to HP level 5.2:4Kx2K@30fps (4096×2304)
12. MPEG-4 up to ASP level 5:1080p@60fps (1920×1088)
13. MPEG-2 up to MP:2160p@30fps (3840×2160)
14. MPEG-1 up to MP:1080p@60fps (1920×1088)
15. H.263:576p@60fps (720×576)
16. Sorenson Spark:1080p@60fps (1920×1088)
17. VC-1 up to AP level 3:1080p@30fps (1920×1088)
18. RV8/RV9/RV10:1080p@60fps (1920×1088)
19. VP6/VP8:2160p@24fps (3840×2160)
20. AVS:1080p@60fps (1920×1088)
21. MVC:2160p@30fps (3840×2160)
22. For AVS, 4:4:4 sampling not supported
23. For H.264, image cropping not supported
24. For MPEG-4, GMC(global motion compensation) not supported
25. For VC-1, upscaling and range mapping are supported in image post-processor
26. For MPEG-4 SP/H.263/Sorenson spark, using a modified H.264 in-loop filter to implement deblocking filter in post-processor unit

Additional Information

Weight & Size

Weight: 0.720kg
Size: 17cm x 8cm x 17cm

SKU: B0100033612 Category: Condition: New
