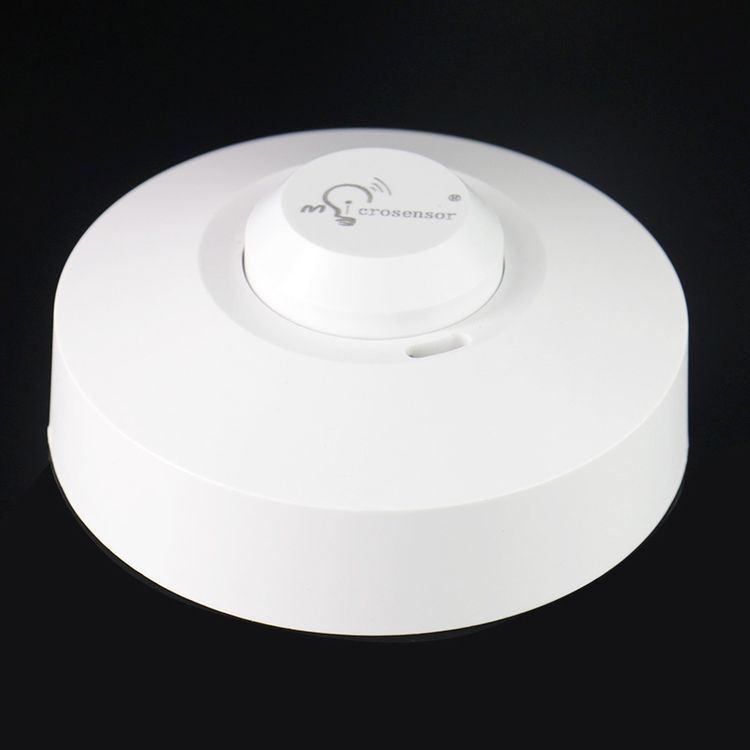

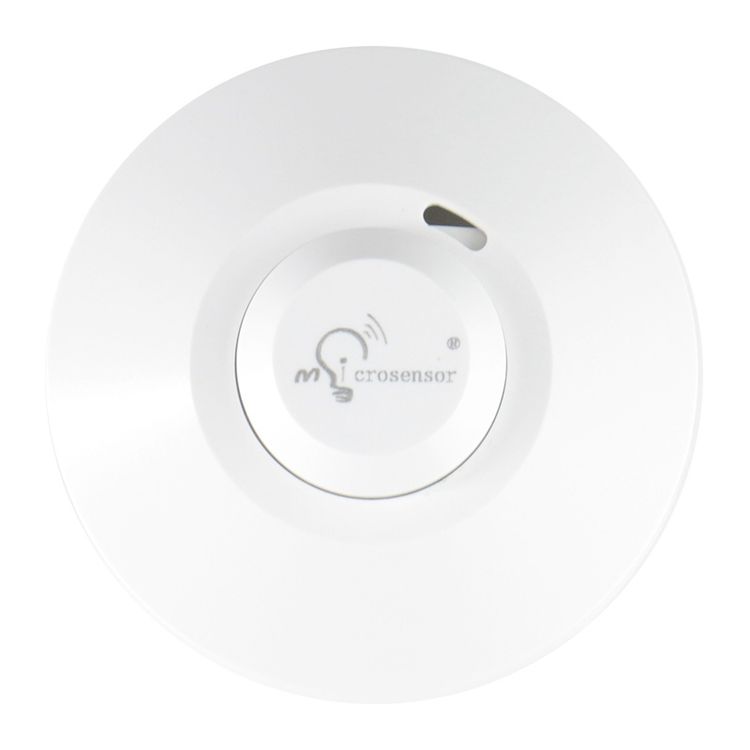

TR-804 AC 220-240V Microwave Sensor Automatic Light Switch, Detection Range: 2-10m
R453
In Stock at Supplier
 |  |  |  |  |  |  |  |
| Didn't find what you're looking for? Take a look at these Similar Products | |
| Got questions or need assistance? Please take a look at our Frequently Asked Questions or Contact Us |
Overview
TR-804 is an active motion detector with adjustable sensitivity, daylight detection and time setting. It’s based doppler principle and RADAR technology, adoption rod antenna & high performance micro-chip. It is easy to install, provide high probability of detection, low nuisance alarms and resistance to rain, fog, wind, dust, falling snow and temperature extremes.
1. Detection area 2-10 meters
2. Time setting 10sec-12min
3. Light control 2~2000lux, can be customized
4. Microware frequency 5.8GHz +/-75MHz
5. Transmission power <0.2mW
6. Installation Ceiling mounting
7. Detection angle 360 degrees
9. Mounting height Max. 5m
10. Note: the high-frequency output of this sensor is <0.2mW that is just one of the transmission power of a mobile phone
1. Take down the top cover by turning it anticlockwise

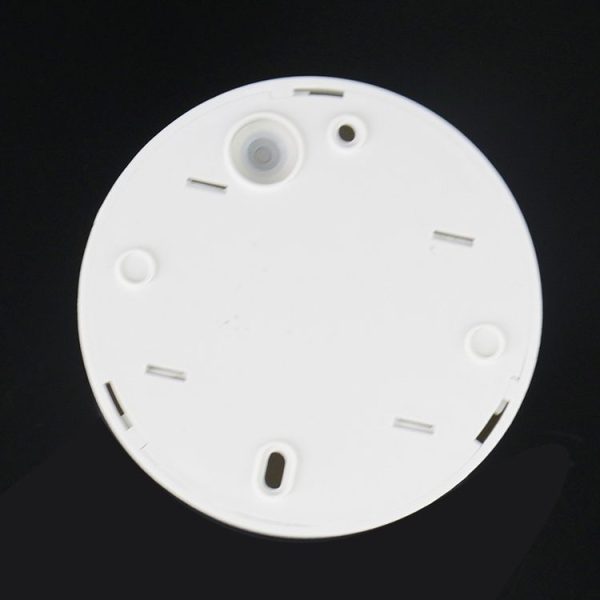

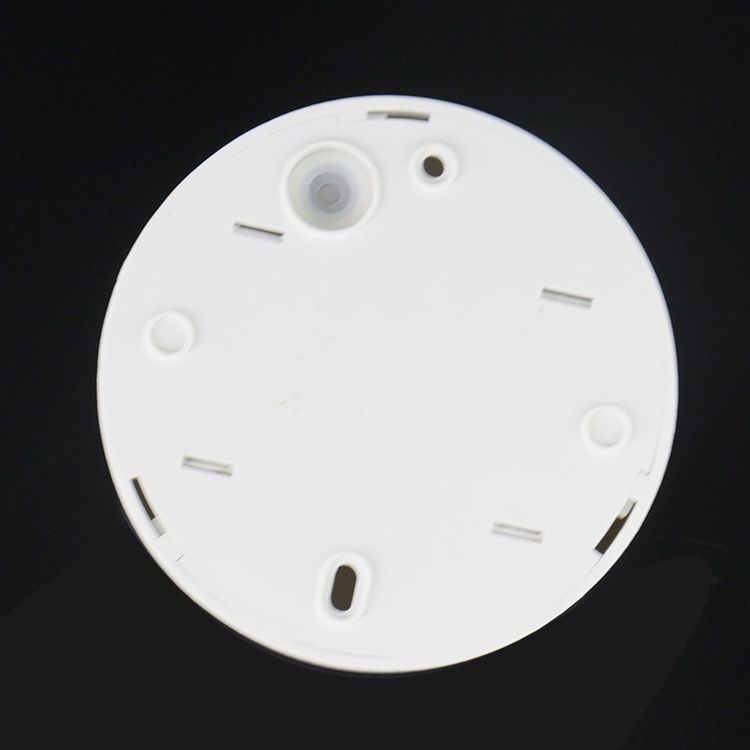

2. Hold base against the wall and mark drill holes, paying attention to any existing wiring in the wall
3. Drill the holes, insert wall plug( 6mm dia.)
4. Put the power wire and load wire through the base holes
5. Screw the base into place

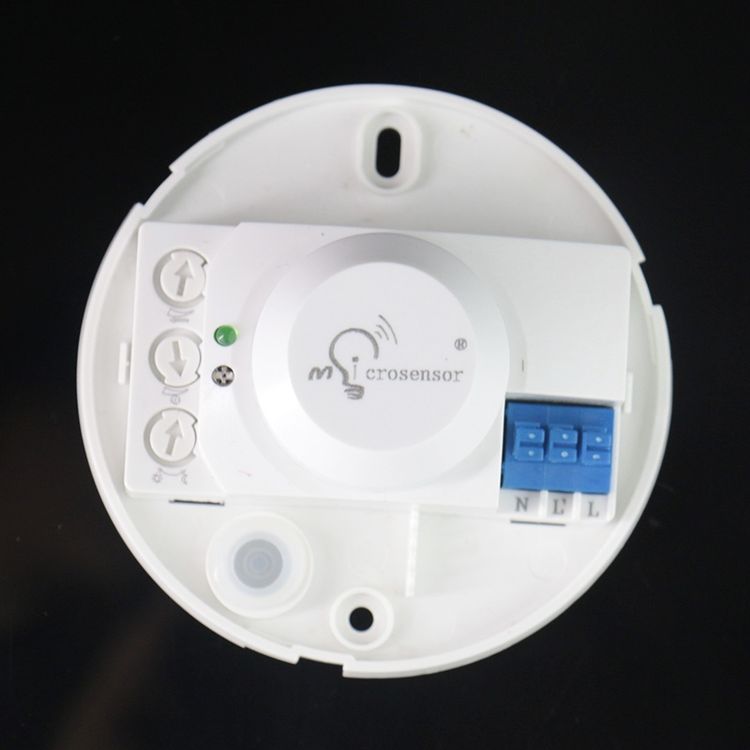

6. Connect the mains power supply and the load wire to the connection terminal according to connection-wire mark
7. Fit glass shad and turn it clockwise

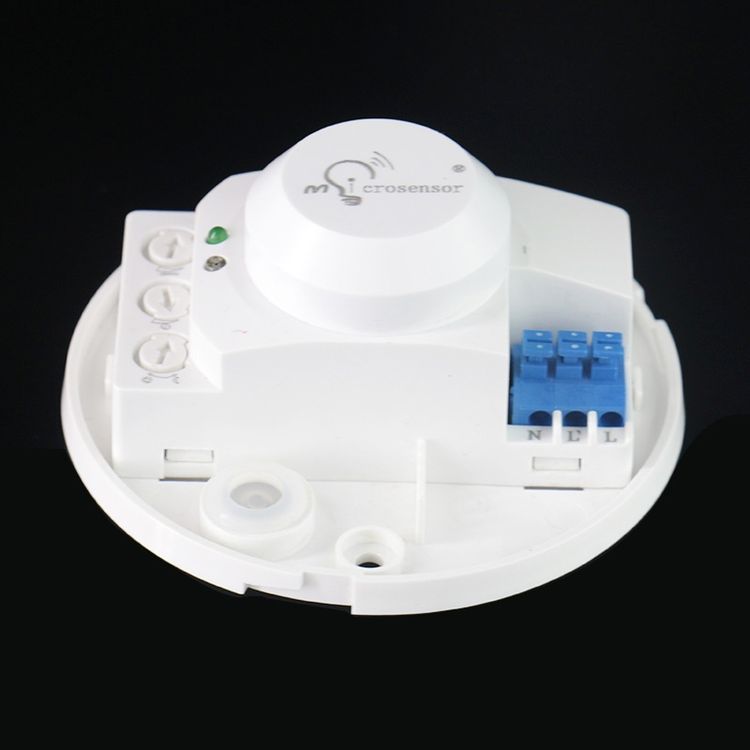

1. Detection range setting (Sensitivity)
Detection range is the term used to describe the diameter to the more or less circular detection zone produced on the ground after mounting the sensor light at a height of 2.5m, turn the detection control fully anti-clockwise to select minimum detection range (approx. 2m), and fully clockwise to select maximum detection range (approx. 10m).
2. Time setting
The light can be set to stay ON for any period of time between approx. 10 sec (turn fully anti-clockwise) and a maximum of 12 min (turn fully clockwise). Any movement detected before this time elapsed will re-start the timer. It is recommended to select the shortest time for adjusting the detection zone and for performing the walk test.
3. Light-control setting
The chosen light response threshold can be infinitely from approx. 2-2000 lux. Turn it fully anti-clockwise to select dusk to dawn operation at about 2 lux. Turn it fully clockwise to select daylight operation at about 2000 lux. The knob must be turned fully clockwise when adjusting the detection zone and performing the walk test in daylight.
Additional Information
Model: TR-804
Material: ABS
Max Load: 300W(Max. inductive Load)/800W (Max. Resistive load)
Voltage: 220-240V
Working Temperature: -10C to +60C
Product Size: 95*95*43mm
Weight: 0.160kg
Size: 7cm x 5cm x 5cm
