Szsinocam SN-NVK-6004BD210 4CH HD 720P P2P 1.0 Mega Pixel IP Camera NVR Kit, Support Night Vision / Motion Detection / ONVIF, IR Distance: 20m


R5660

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features

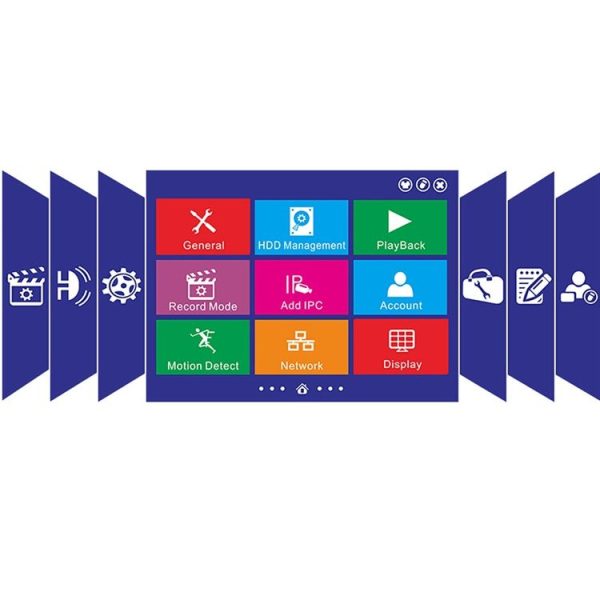

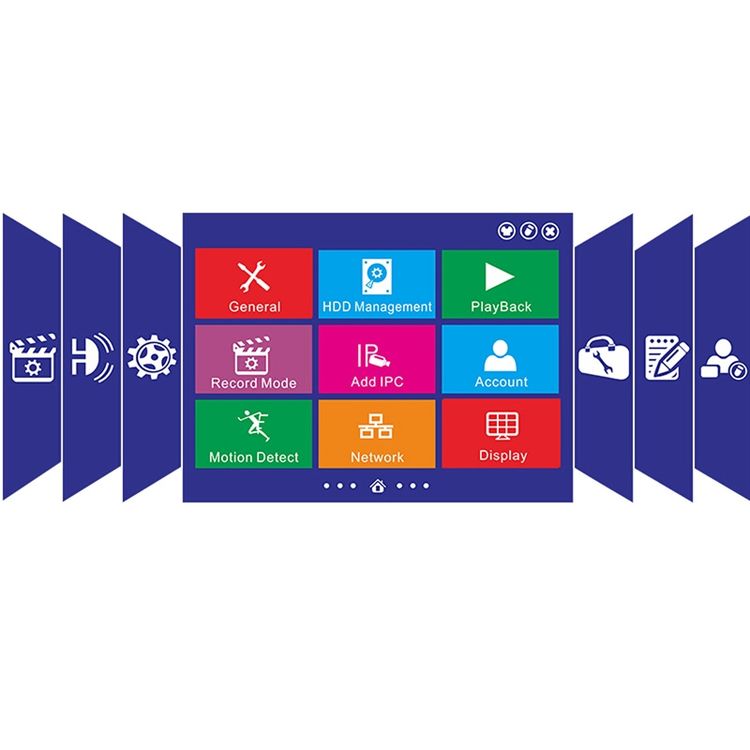

1. NVR WIN8 UI system, fashion, high-end, personalized interface.
2. Support onvif 2.3, P2P, motion detecting, PNP, PIP.
3. NVR video input: 4CH 720P IP camera.
4. 4CH 720P real-time playback

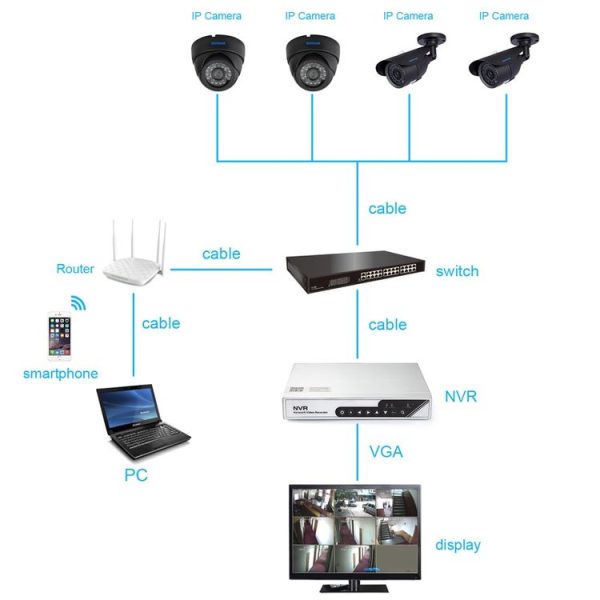

5. Internet, P2P a key support plug and play through the third generation of the P2P technology, don’t need a dynamic DNS DDNS, do not need to set up port forwarding, plug and play.
6. Mini touch panel, fashion, high-end.
7. Applicable environment: hotel, shop, supermarket, home, etc.

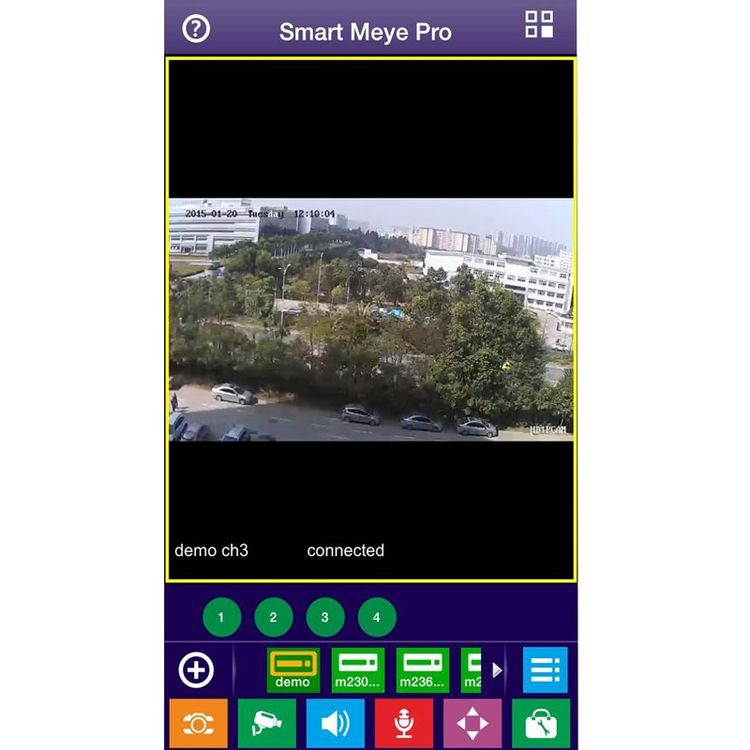

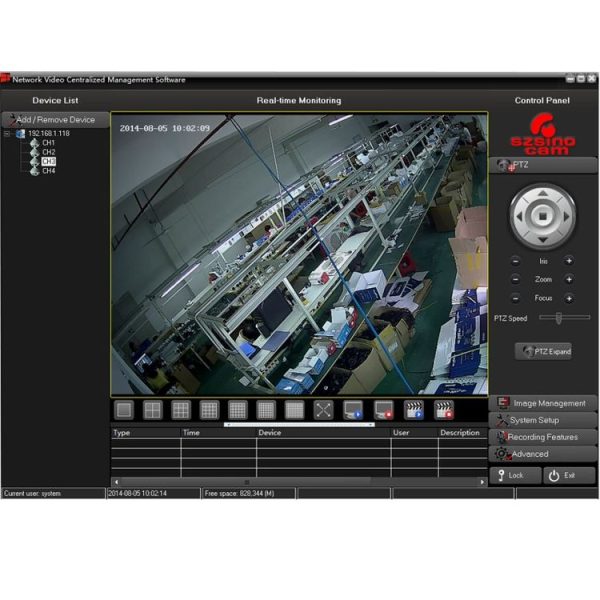

8. Support mobile phone and computer remote monitoring.
9. Phone remote support video playback.
10. Support switch video playback. Browse by the time to reply.
11. Support 1pcs SATA HDD. MAX: 3T
12. The monitor screen at the same time, can play the game on the NVR.
13. Support by event query, playback, backup video files, support image local playback and query.

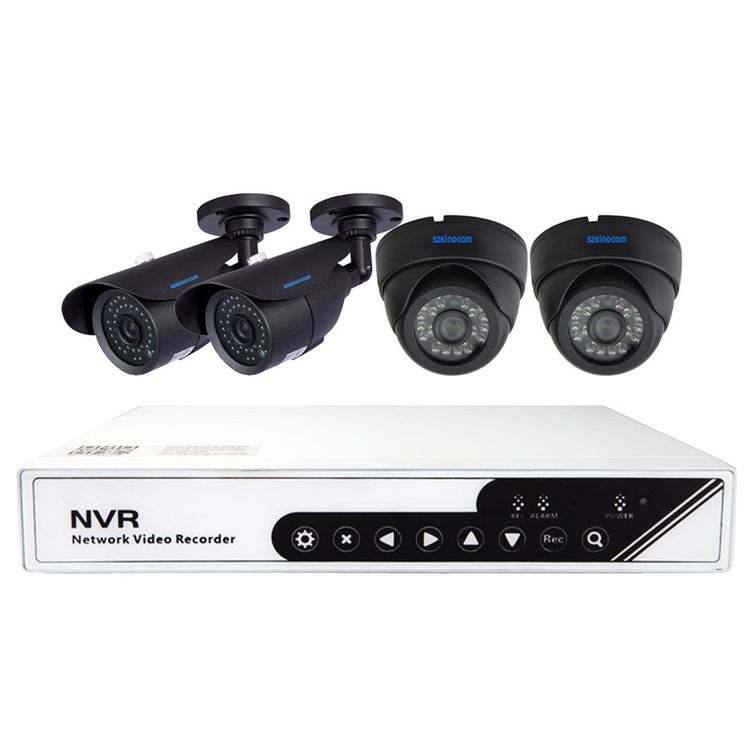

14. 1*SN-NVR-6004 + 2* Metal IR dome IP camera + 2*waterproof IP camera, 20 meter IR camera, 4.0mm 3.0 mega pixels IR lens.

IP Camera

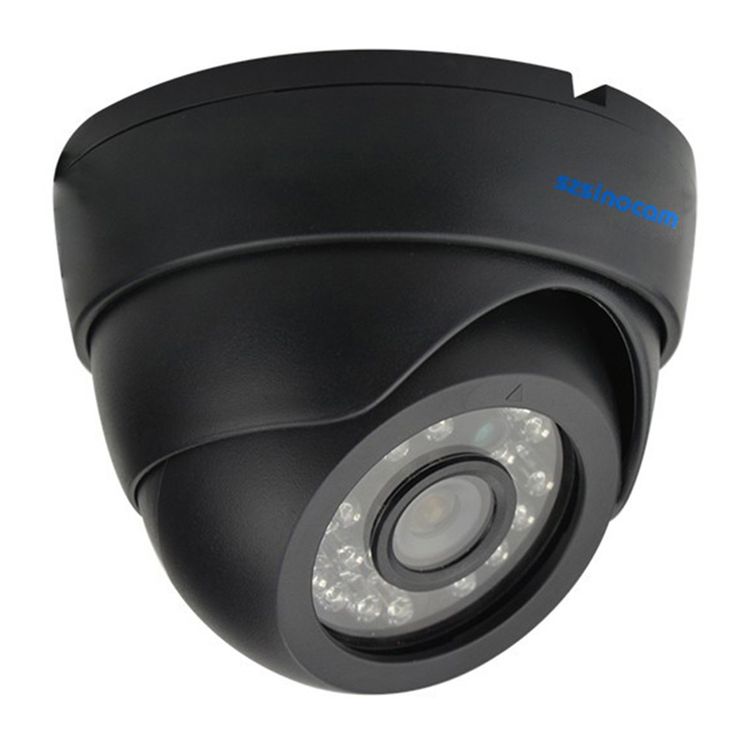

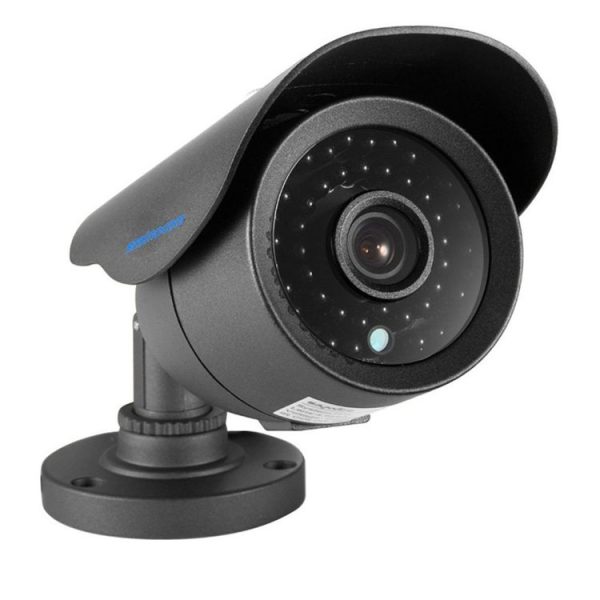

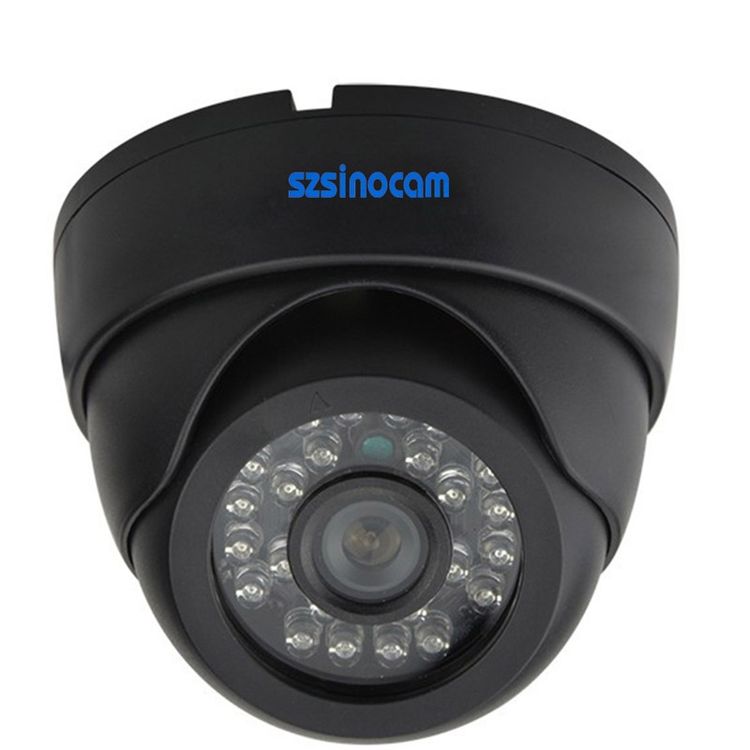

1. 2* metal IR dome IP camera + 2*waterproof IP camera.
2. 2.0MP 4.0mm Lens, 24pcs 5mm IR LEDs, 20 meters IR distance.
3. Video parameter: Saturation, brightness, contrast ratio and color tone can be adjusted by customer end or IE explorer.
4. Compression: H.264 Main Profile @ Level 3.0 / MJPEG optional.
5. Support triple bit streams.
6. Video flame rate: PAL: 1-25 frames/second, NTSC: 1-30 frames/second.

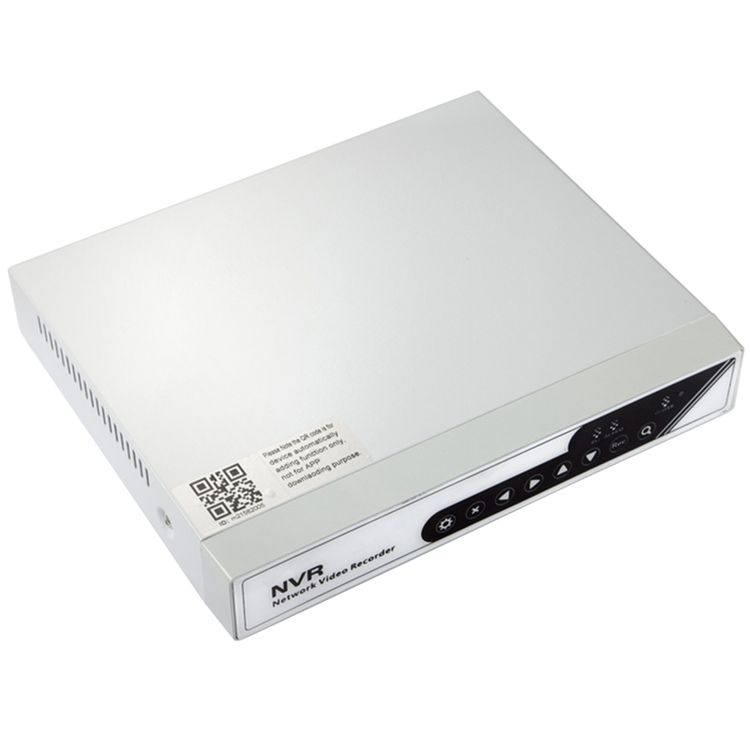

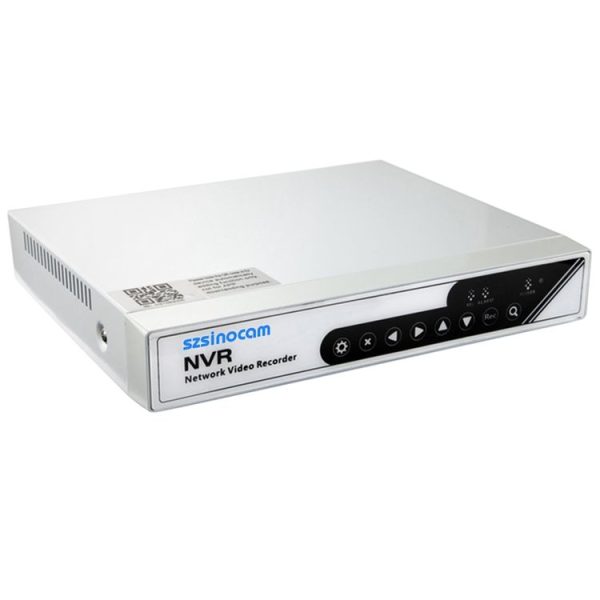

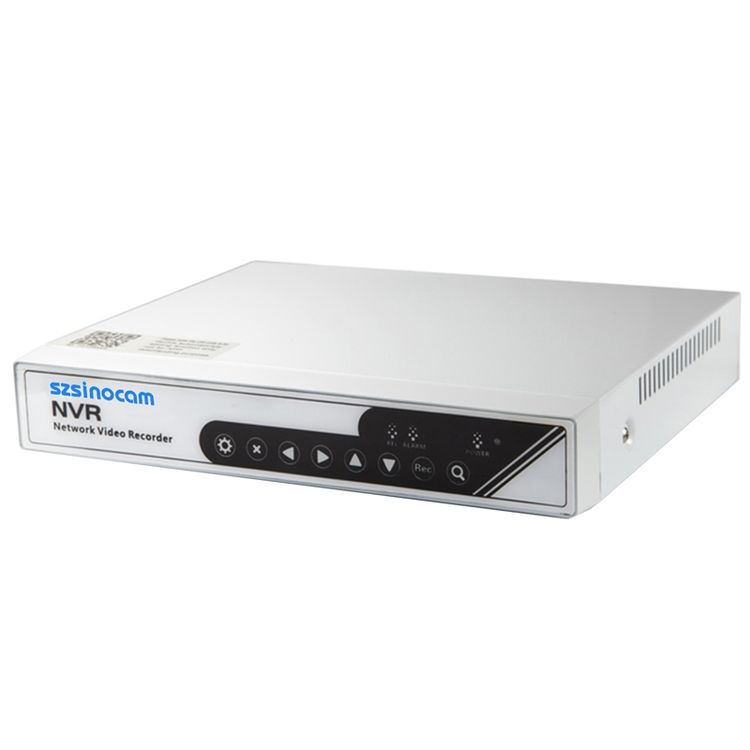

NVR

1. Motion detection: Multiple zone detection, 1~6 sensitivity adjustable (IPC match).
2. Playback: 4ch / 720P; privacy zone: 4 zone for each IPC.
3. Operate mode: Mouse.
4. Login: User name and password.
5. Storage: Local and network.
6. HDD interface type: SATA interface, capacity: Up to 3TB capacity for each disk.

Additional Information

General

Model: SN-NVK-6004BD210
Shape: Dome, Bullet
Mount Types: Wall bracket, Ceiling Bracket
Power Depletion: 6W
Power Supply: DC 12V 1.0A
Performance: Motion detection, Night Vision, Dual-stream, Video block
Alarm Detection: Video loss, Network disconnection
Interface: RJ45
Function: PTZ, Heartbeat mechanism, IP auto pop-out, Password protection, Intellectual, alarm, One-key reset, password protection, watermark technology

Network

Network Interface: RJ45 10/100MB Ethernet interface
Protocol: DDNS, DNS, P2P, ONVIF

System / Hardware

Mobile Access: Android, iPhone OS, iPad
Image Sensor: CMOS
Pixels: 1.0MP
Electronic Shutter: 1/25s-1/30,000s
Minimum Illumination: Color: 0.1Lux@F1.6, B/W: 0.08Lux@F1.2

Media Format

Video Compression Format: H.264, M-JPEG
Video Bit rate: 0.1M-6Mbps, customized, video stream type
Frame Rate (FPS): 30 fps NTSC, 25 fps PAL
Resolution: 1280*720

Night Vision

Infrared Distance: 20m
IR LED: 24pcs 5mm IR LEDs

NVR

System: Windows 8, support P2P, PIP, PAP
Data Rate: Automatically
Dual Stream: Support
Recording: Recording playback: Max support 4ch 720P, Backup mode: Support HDD, USB flash disk store & backup, Frame rate: 30 fps NTSC, 25fps PAL
Record Mode: Manual, Auto, MD, Alarm (IPC match)

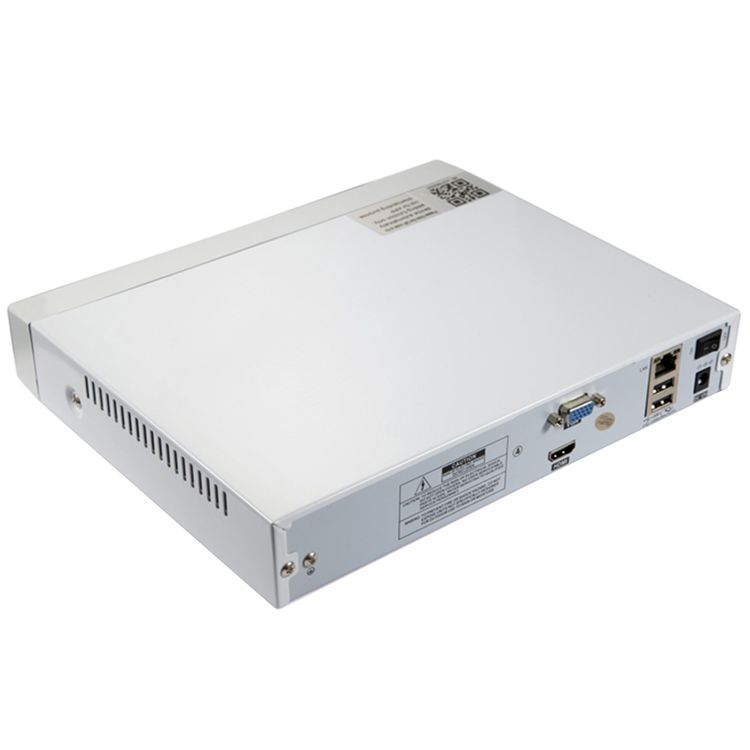

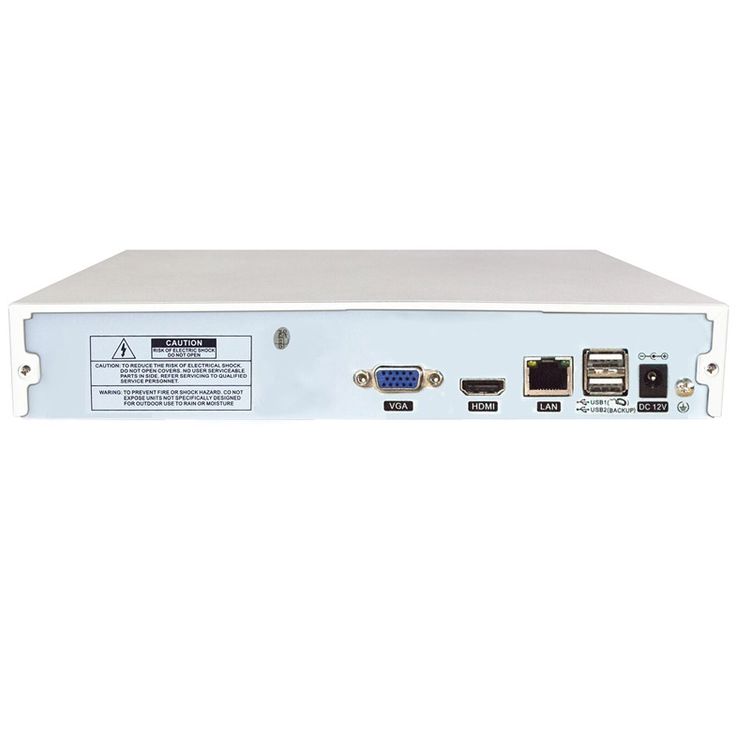

Video interface: Network video Input: 4ch, Video output: 1ch VGA and 1ch HDMI
Network: 1*RJ45,10M/100Madaptive Ethernet Interface
USB Port: 2 x USB 2.0 port
HDD: SATA HDD (not included)
Mobile Surveillance: Support iPhone, Windows Mobile, BlackBerry, Symbian, Android
Operation temperature: -10 to 55 Degree Celsius
Operation humidity: 10-90 percent
Power: DC 12V 2.0A
Power consumption: <= 25W(without HDD)

Physical Environment

Environment: Outdoor, Indoor
Operate Temperature: -10 to 55 Degree Celsius
Working Humidity: 10 to 85 percent

Dimensions

Size: 252*213*42mm NVR
Weight: 850g NVR

Package Include

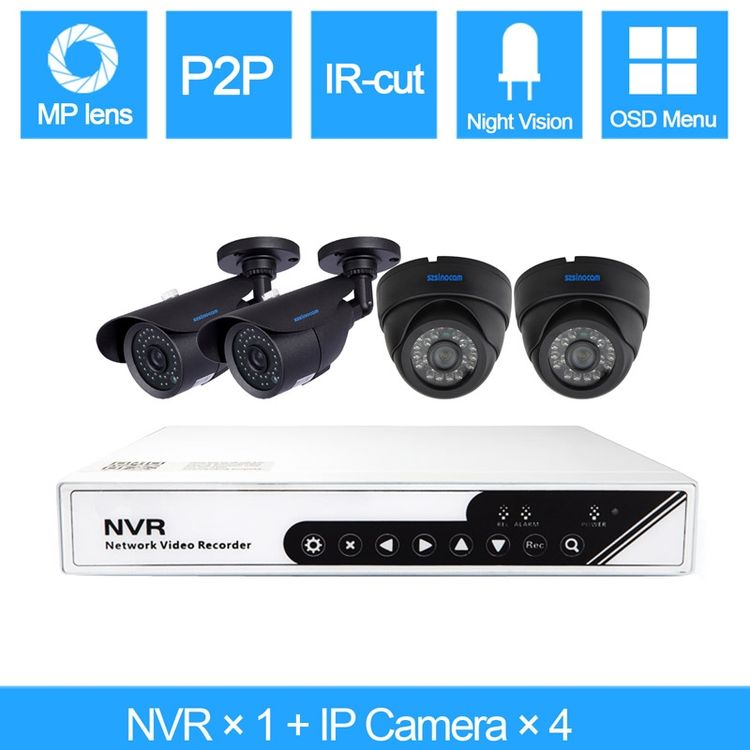

Package Contents: 4 x Cameras, 4 x Connecting Cable, 1 x NVR, 1 x CD, 1 x Power Line In Four, 2 x 12V/2A Power

Weight & Size

Weight: 5.400kg
Size: 46cm x 28cm x 24cm

SKU: C0100005712 Category: Tag: Condition: New
