Overview
Using the latest development of 1/3 inch mega pixel progressive scan CMOS, with enhanced color filters and unique concentrator technology, under a variety of conditions even light environment, can also provide surprising megapixels high-definition, bright image. Applicable to the financial, telecommunications, government, schools, airports, factories, hotels, museums, traffic monitoring, real-time requirements Ultra HD quality places.
1. 1/3 inch line scanning digital and advanced DSP technology.
2. Picture Resolution 1080P color CMOS, 2.0 Mega Pixel, 1920×1080.
3. Optimized H.264 Main Profile compression algorithm, high compression ratio and high quality image; convenient to realize a transmission of HD images on a narrow band, thus it can save the storage space; support triple bit streams.
4. The most advanced network delivery server technology, easily achieve more user access, multi-stage user password rights management.
5. Built-in Web Server, through the IE browser easy to realize the remote control Settings prison see operation.
6. Support facilities remote security upgrade function.
7. Support DDNS, PPPoE and (UPnP); Support Lan, Wan transport; Support onvif 2.3 P2P, Video PUSH.
8. Technology of self adaptability to network that it may adjust its video flame rate automatically according to the bandwidth of network.
9. Functions of alarm in video missing, mobile detection or probe, etc. (available to set the regions and sensitivity).
10. Support mobile detection / image shielding / image snapshot.
11. Functions of auto recovery in abnormality and auto reconnection in network breakdown.
Additional Information

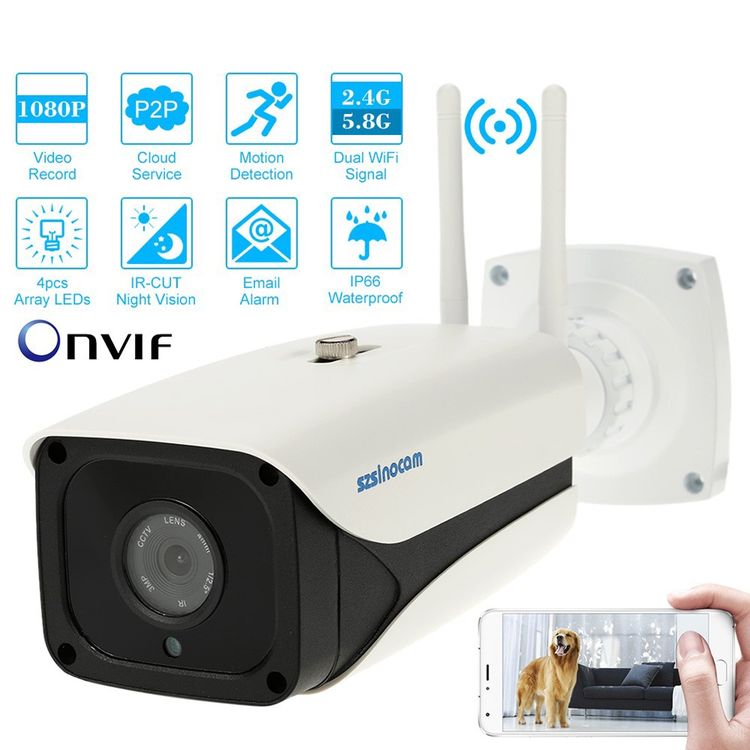

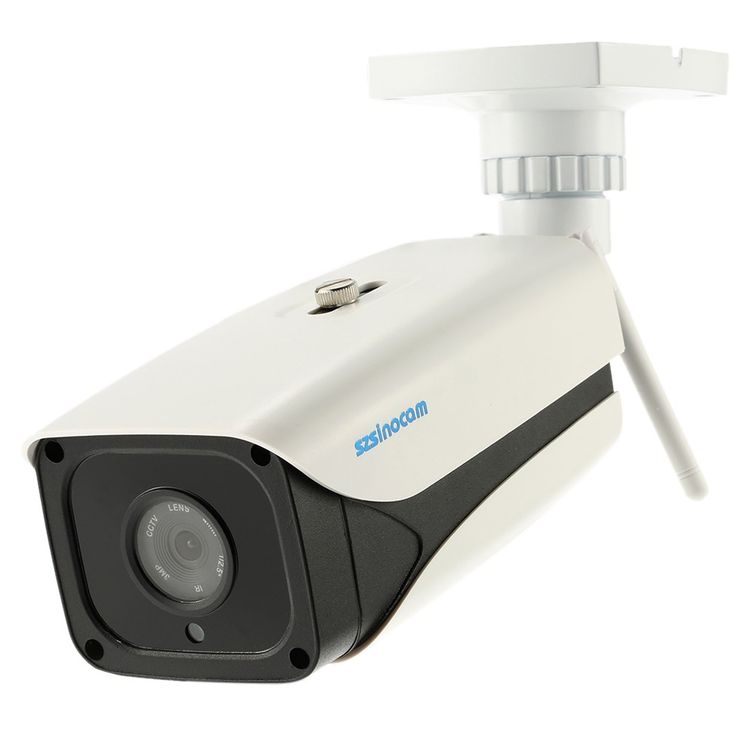

Model: SN-IPC-7038CSW
Power Depletion: <6W(Camera)
Power Supply: DC 12V
Performance: Motion detection, Night Vision

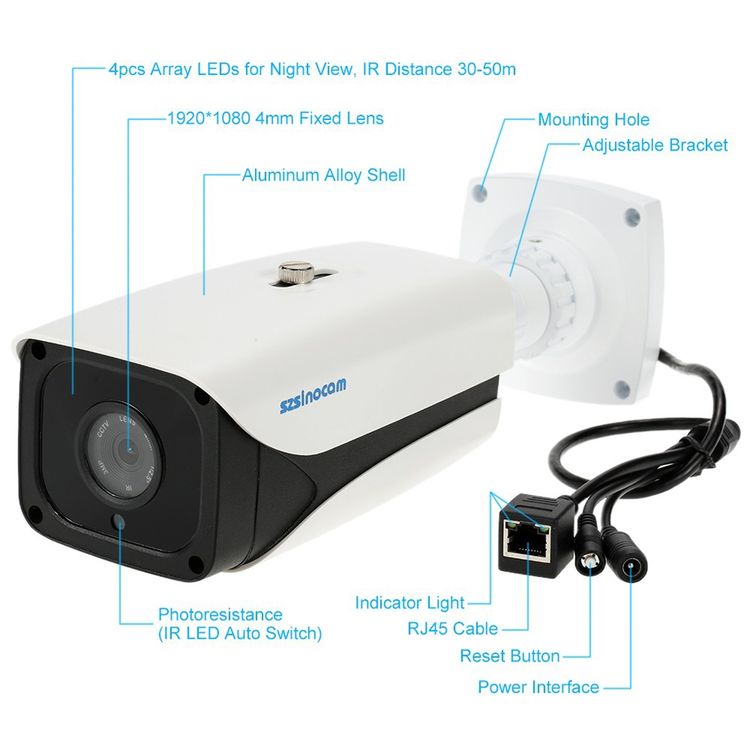

Interface: RJ45, DC Jack
Network Interface: RJ45 10/100MB Ethernet interface
Wireless: WiFi 802.11 b/g/n
WIFI Encryption: WEP, WPA, WPA2
Wireless Distance: 100m (WIFI)
Protocol: DDNS, NTP, UDP, SMTP, UPNP, DHCP, PPPOE, FTP, RTP, RTSP, HTTP, DNS, RTCP, TCP/IP
Online Visitor (Max.): 5
Network Transmission: P2P
Mobile Access: Android, iPhone OS
Image Sensor: OV0330 CMOS
Sensor Size: 1/3 inch Progressive Scan
Effective Pixel: 1920(H)×1080(V)
Pixels: 2.0MP
Lens: 4.0mm, 75-90 Degree View Angle
SNR: >50dB
Day/Night: Auto(ICR) / Color / B/W
Minimum Illumination: Color: 0. 1Lux, B/W: 0.003Lux, 0 Lux (IR on)
Gain Control: Manual, Automatic
Video Compression Format: H.264
Main Stream: 1080P(1920*1080) 25fps
Sub Stream: SVGA 800*600, D1 704*576, 25fps
Infrared Distance: 50m
IR LED: 4pcs
Environment: Outdoor, Indoor
Ingress Protection: IP66
Operate Temperature: -10 to 60 Degree Celsius
Working Humidity: 10 to 90 percent

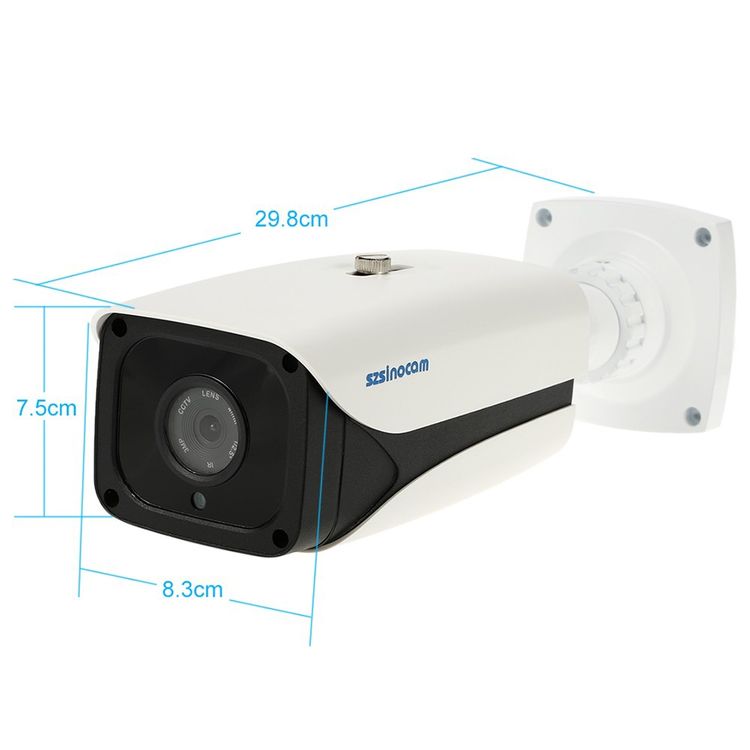

Size: 29.8×8.3×7.5cm
Weight: 500g
Weight: 1.220kg
Size: 19cm x 10cm x 10cm
