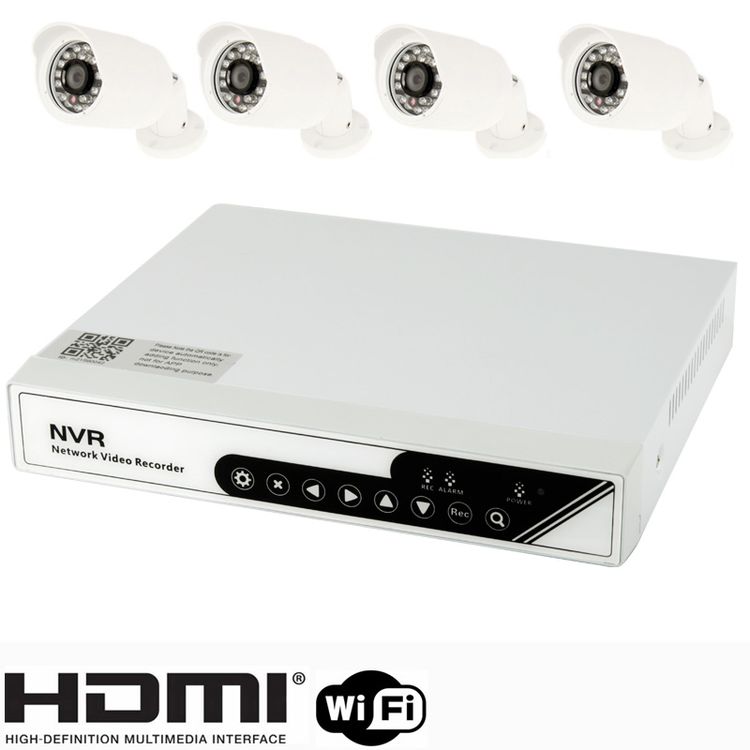

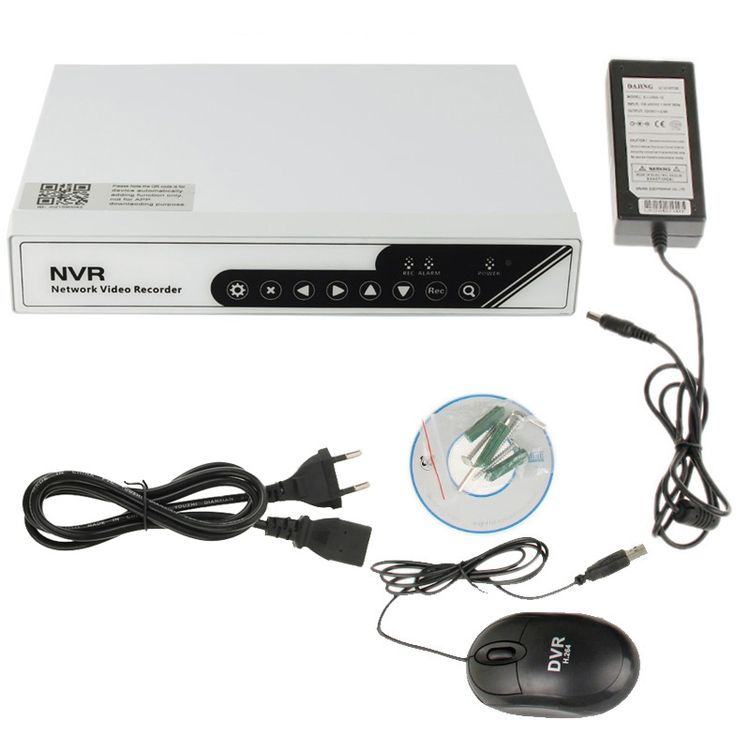

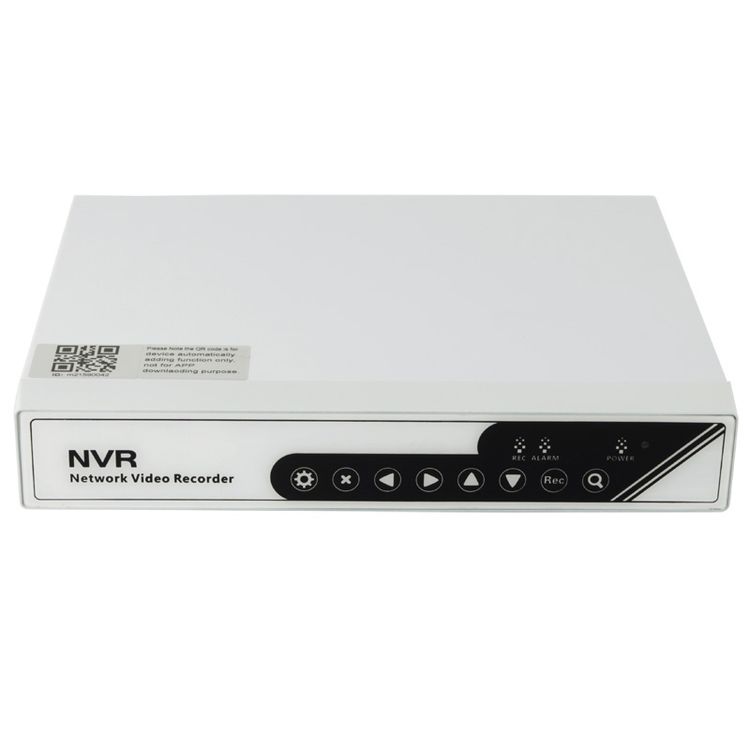

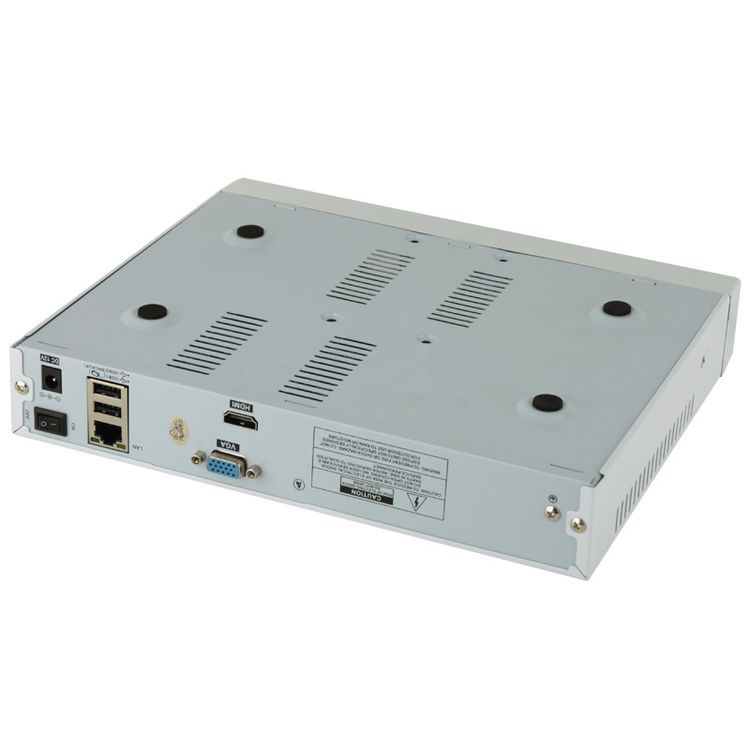

Szsinocam 4CH 960P RJ45 NVR HDD Digital Video Recorder with 4 x 1 / 3 inch 1.3 Megapixel CMOS Sensor IR Cameras, Supports VGA & HDMI Output / 3G / WiFi (White)


R4875

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1) Feature:
– It can connect with IP camera and network video server, support ONVIF
– Live view, record, search file, backup, playback (4ch playback Syn)
– Digital zoom (both in live view and playback)
2) Parameter:
– OS: embed LINUX
– Date rate: Adjustable
– Dual stream: Support
– Resolution: 1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps Motion Detection: Multiple zone detection, 1~6 sensitivity adjustable (IPC match)
– Playback: 4ch 1080P/720P
– Privacy Zone: 4 zone for each IPC (IPC match)
– Record mode: Manual, Auto, MD, Alarm (IPC match)
– Backup: Local HDD, U-disk, removable HDD, DVR-RW, network storage
– Operate mode: Mouse
– Login: User name and password
– Storage: Local and network interface
– Video input:
— ① 2×(1920*1080) +2×(1280*720) IP camera
— ② 4×(1280*960) IP camera
– Audio input: 4 IP Audio input

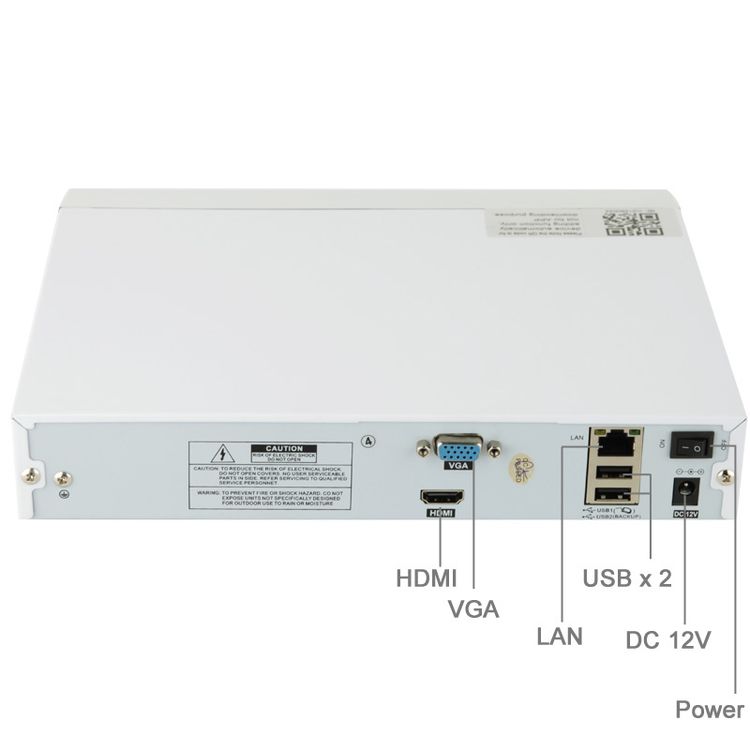

– Video output: 1VGA+1HDMI
– Audio output: 1 RCA
– Network interface: 1 RJ45,10M/100Madaptive Ethernet Interface
– RS485 port: Standard 485 port
– USB port: 3 USB 2.0 port
– Wireless: 3G, WIFI
– HDD: Interface type: 1 SATA interface
– Capacity: Up to 4TB capacity for each disk
– Mobile phone monitoring: Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android)
– Power Supply: 12V/2.6A
– Consumption: ≤25(without HDD)
– Working Temperature: -10℃~+55℃
– Working Humidity: 10%-90%
– Dimension NVR: 260mm×220mm×43mm
– Packing: 355mm×255mm×88.5mm
– Weight (without HDD) Net: 1.5Kg

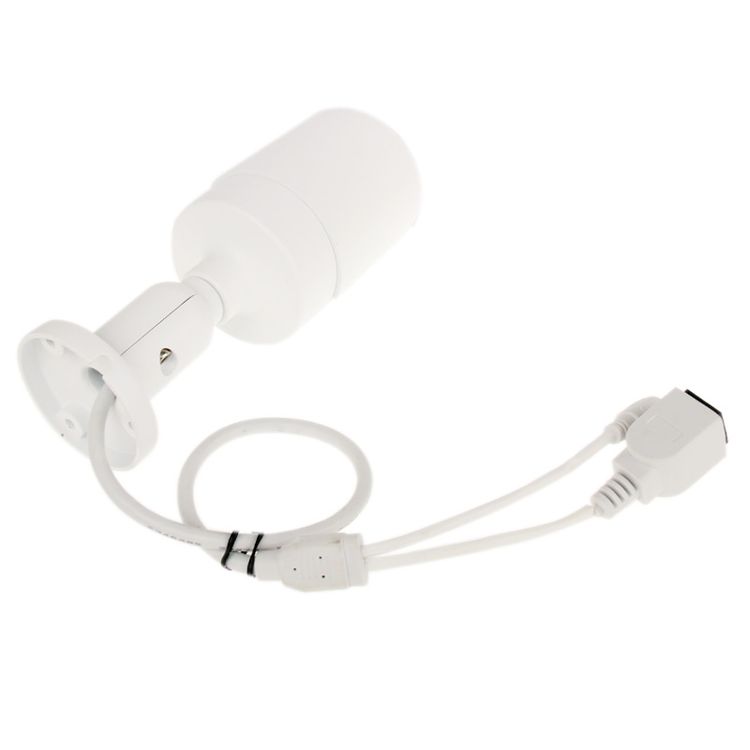

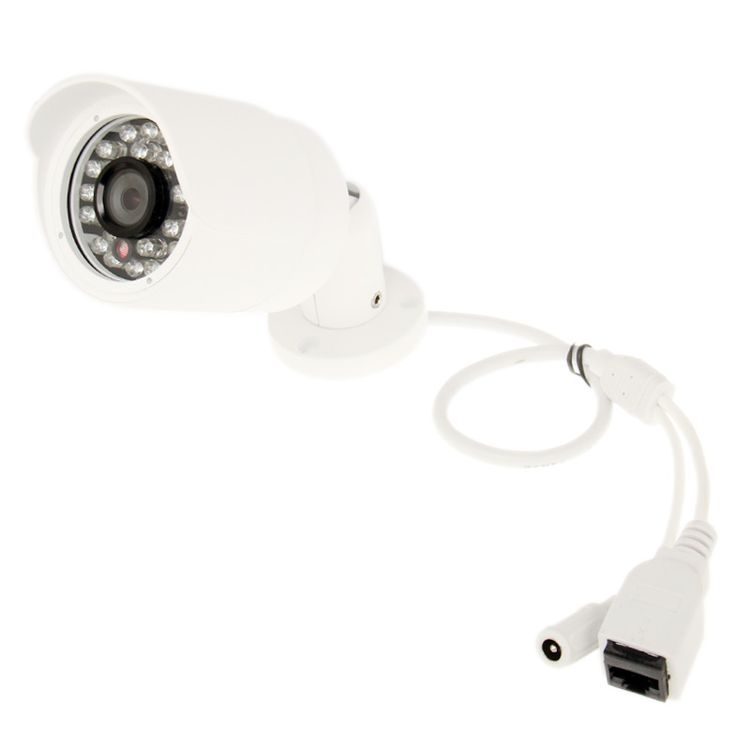

3) Camera
– Sensor: 1.3 Megapixel CMOS Sensor
– Size: 1/3 inch
– Effective Pixels: 960P:1280*960
– Minimum illumination: 0.15 LUX
– B/W: Yes
– Infrared sensitivity: Yes
– Filter: Yes
– Camera lens: 24pcs Lens, 4/6 mm
– Visual angle: 85°/55° (Horizontal)
– Infrared distance: 20-30 M
– Motion detection: Yes
– Electronic shutter: 1/5-1/15,000 sec
– Backlight compensation: Yes
– Aperture: Auto
– White balance: Auto
– S/N Ratio: >50 dB
– Video compression Format: H.264
– Picture sharpness 960P:1280*960
– Bit rate: 80 K~ 2.0 M bps
– Image frequency: 30FPS
– Audio Compression: ON
– Two-way audio: ON
– Alarm I/O: ON
– Mount types: Wall Bracket

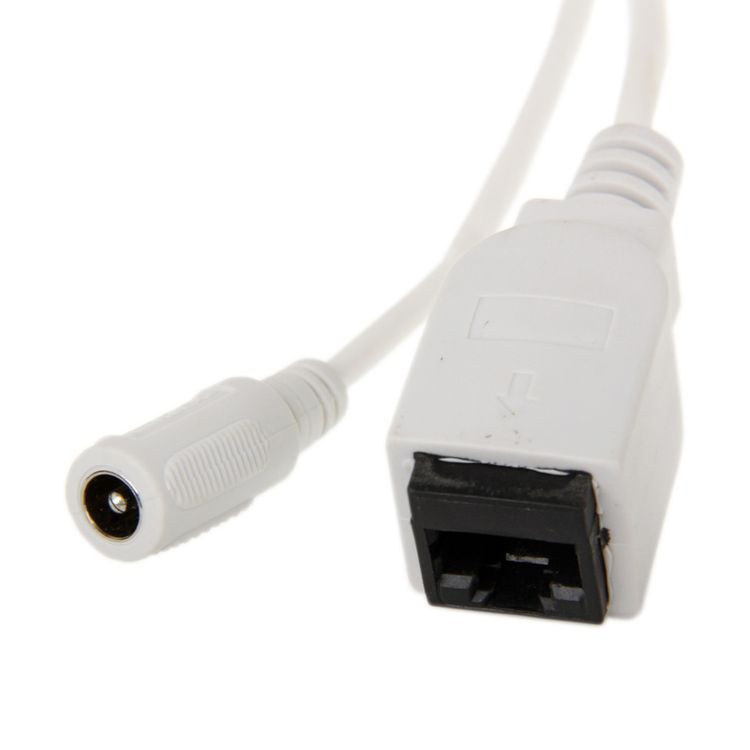

– Ethernet: Ethernet (10/100 Base-T),RJ-45 connector
– Protocol: TCP/UDP/IP/HTTP/FTP/SMTP/DHCP/DNS/ARP/ICMP/POP3/NTP/RTP / RTCP
– Web Browser: Microsoft Internet Explorer 6.0 above
– SDK: SDK-H
– Safety: Administrator password protection
– Temperature: -30°~60°C
– Humidity: -10~85%
– POE (IEEE802.3af)
– Specification of power supply: 10-12W (DC 12V,1A)

Additional Information

Weight & Size

Weight: 3.815kg
Size: 40cm x 28cm x 20cm

SKU: C0100011862 Category: Condition: New
