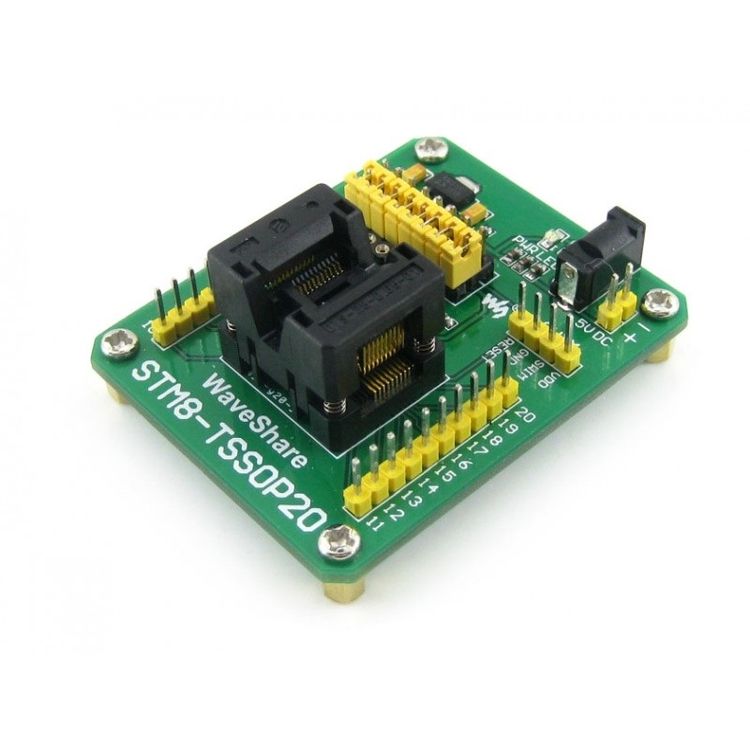

STM8-TSSOP20, Programmer Adapter


R524

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features
1. 4-pin SWIM Port for programming or testing
2. External crystal can be connected via on board socket for system clock
3. All the MCU pins are accessible on expansion connectors
– Pin header pitch: 2.54mm(100mil)
Supported Devices
STM8 microcontroller in TSSOP20(0.65mm pitch) package with compatible pinouts:
– STM8L051FxPx / STM8L101FxPx / STM8L151FxPx / STM8S003FxPx
– STM8S103FxPx / STM8S903FxPx / STM8SPLNB1

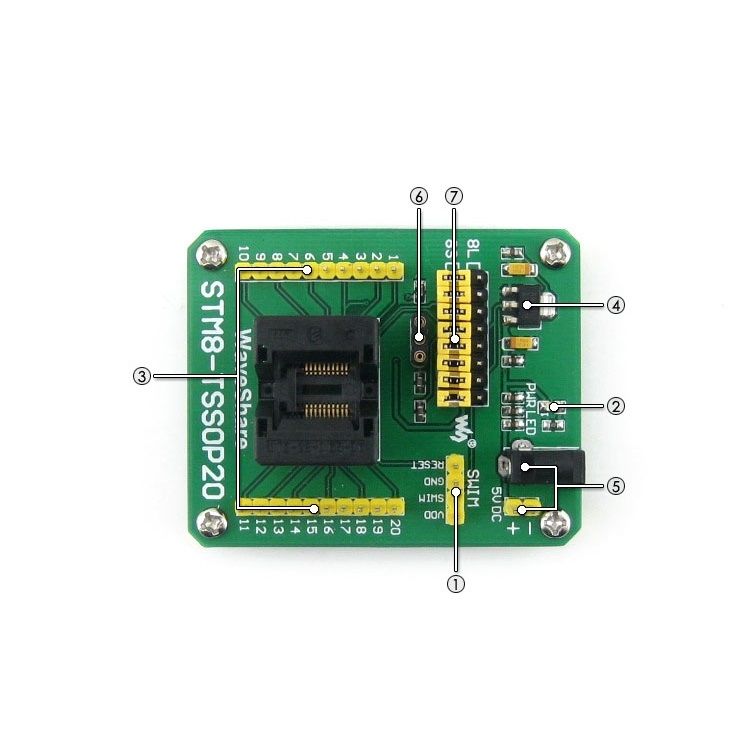

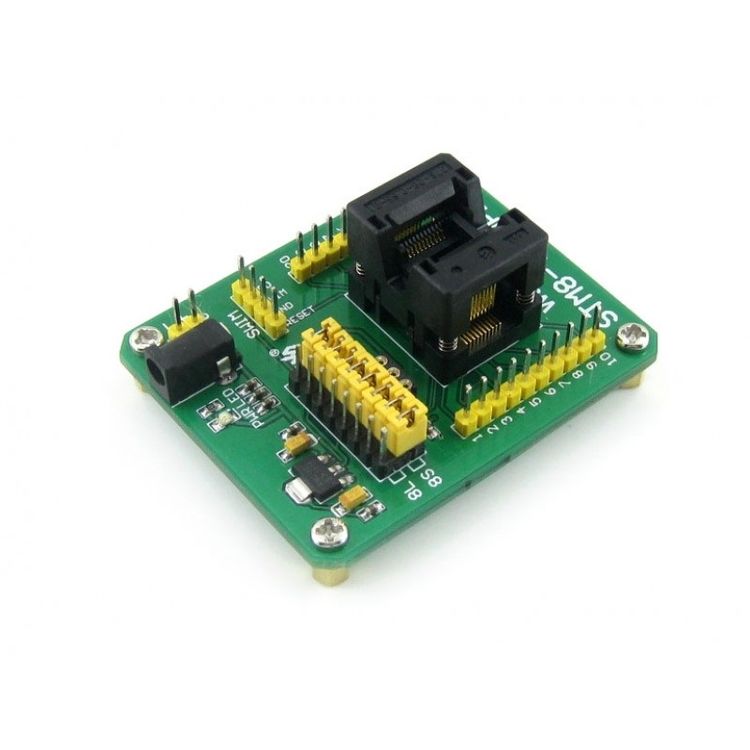

1. SWIM port
– For programming/debugging/testing

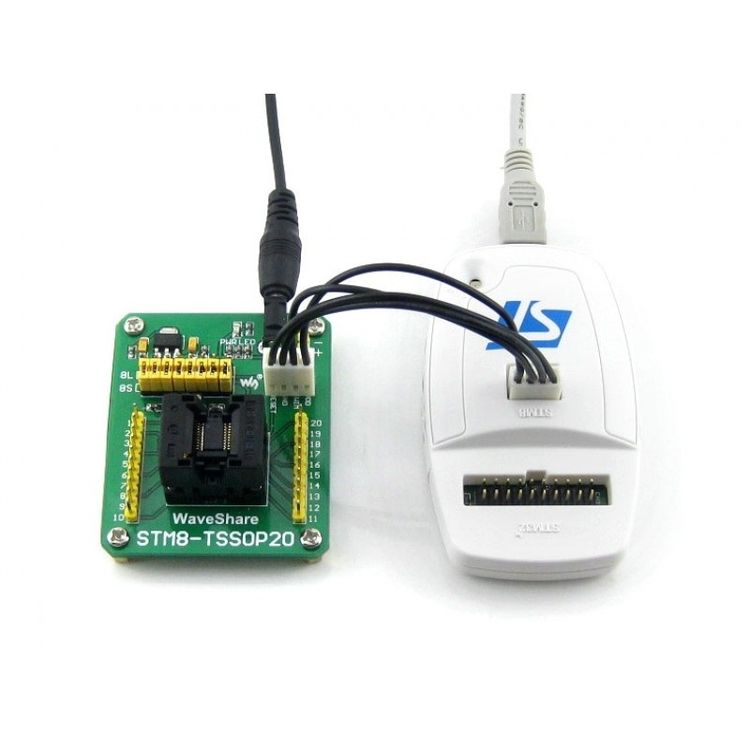

– Compatible with ST-LINK
2. Power indicator
3. Pin headers connected to MCU pins
– Clearly labeled with onboard marks
-Easy for testing and further expansion
4. 3.3V onboard regulator
-AMS1117-3.3
5. 5V power input
-DC jack or 2-pin header
6. External crystal socket
– Insert crystal to the holes on two sides, regardless of the middle hole
7. MCU selection jumpers
– 8S for STM8S1xx
– 8L for STM8L1xx
Package Contents
1. STM8-TSSOP20 × 1
2. USB power cable × 1

Additional Information

Weight & Size

Weight: 0.080kg
Size: 10cm x 6cm x 2cm

SKU: A0100070312 Category: Condition: New
