Overview

Features

1. 4-pin SWIM Port for programming or testing
2. External crystal can be connected via on board socket
3. All the MCU pins are accessible on expansion connectors
4. Supported Devices
5. STM8 microcontroller in QFP44(0.8mm pitch) package with compatible pinouts
STM8S105SxTxC / STM8S207SxTxC / STM8S208SxTxC

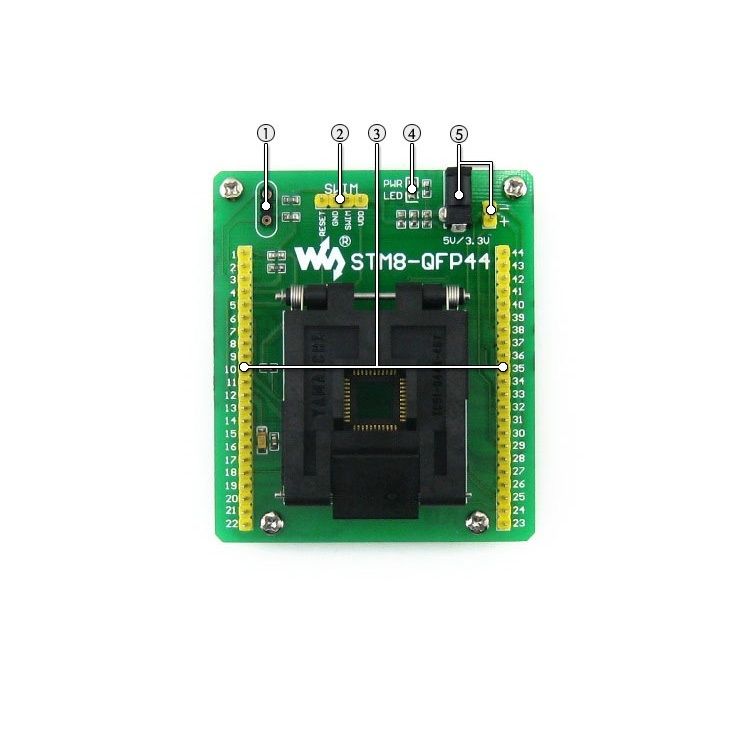

Photos

1. External crystal socket
– Insert crystal to the holes on two sides, regardless of the middle hole
2.SWIM port
– Ior programming/debugging/testing

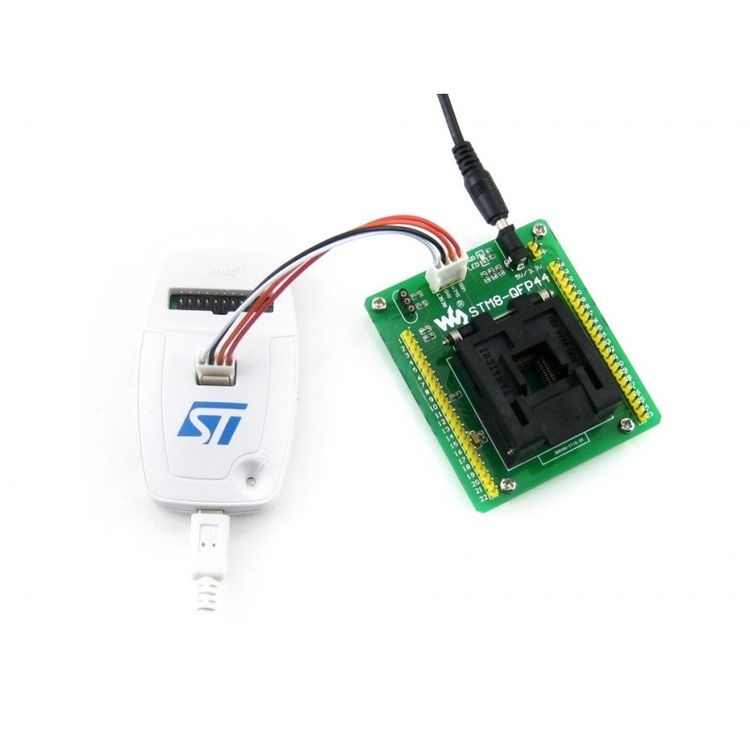

– Compatible with ST-LINK, ST-LINK/V2, etc.
3. Pin headers connected to MCU pins
– Clearly labeled with onboard marks
– Easy for testing and further expansion
4. Power indicator
5. Power input
– DC5V/3.3V

Package Contents

1. STM8-QFP44 × 1
2. USB power cable × 1

Additional Information

Weight & Size

Weight: 0.104kg
Size: 10cm x 6cm x 3cm

SKU: A0100050954 Category: Tag: Condition: New
