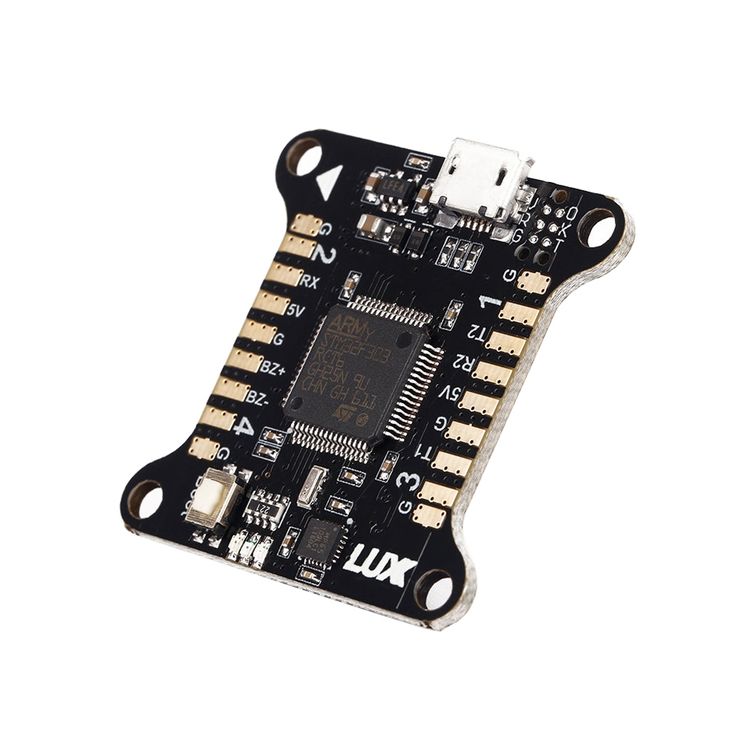

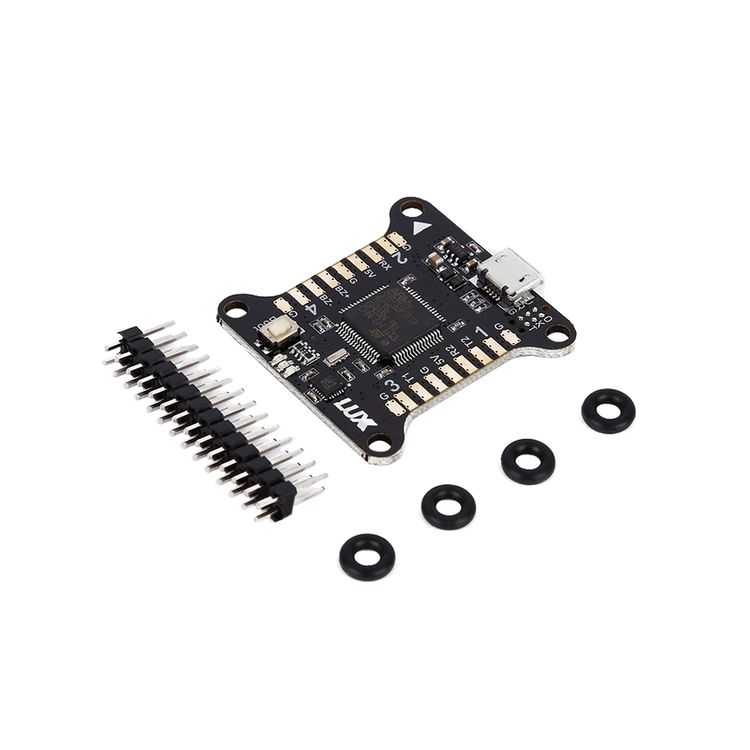

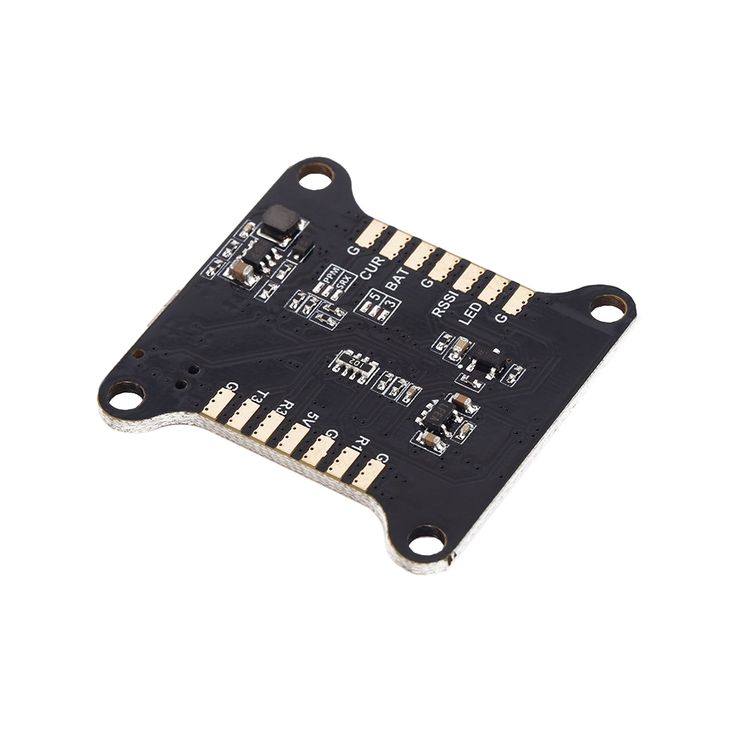

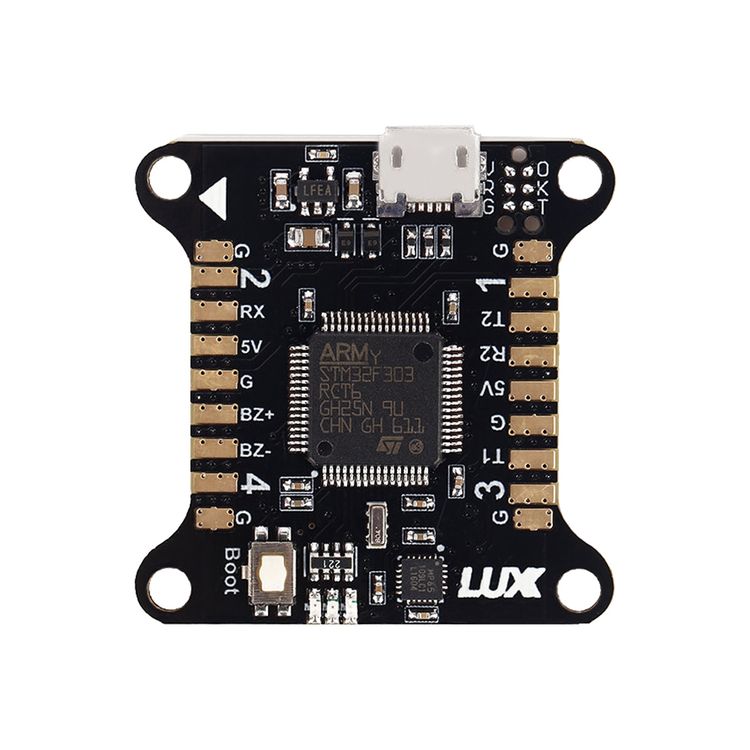

STM32F303 32-bit F3 Flight Controller for Lumenier LUX Racing Quad


R566

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. Brand new and high quality.
2. STM32F303RCT6 (256kB flash) 32-bit processor.
3. MPU6500 Gyro/Accelerometer.
4. High quality, gold plated PCB.
5. Highest quality components, individually sourced to meet Lumenier standards.
6. MPU interrupt connected to F3, allowing the F3 to know immediately when fresh data is available.
7. Dedicated Boot button for easy firmware flashing.
8. Reinforced solder pads for trouble-free direct soldering.
9. Integrated FRSky RSSI Filter (RC filter).
10. Input voltage 6v to 24v. Power the board directly from flight pack up to 6S (on ‘BAT’ pad only!).
11. VIN + VBAT merged – A single wire to power the board will provide voltage input and Telemetry/OSD voltage data.
12. Filtered voltage output – output 5v 1A (and 3.3v where applicable) to power peripherals such as GPS, RX, BLACKBOX, OSD. 5v/3.3v RX selectable.
13. BLHeli flashing supported by hardware.
14. Raceflight and Betaflight ready.

Additional Information

General

Material: PCB

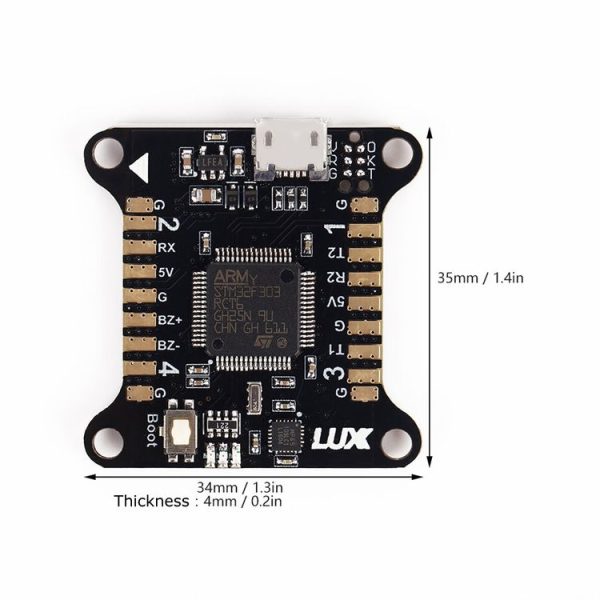

Product Size: 35 x 34 x 4mm
Weight: 6.5g

Weight & Size

Weight: 0.037kg
Size: 8cm x 6cm x 3cm

SKU: A0100132248 Category: Condition: New
