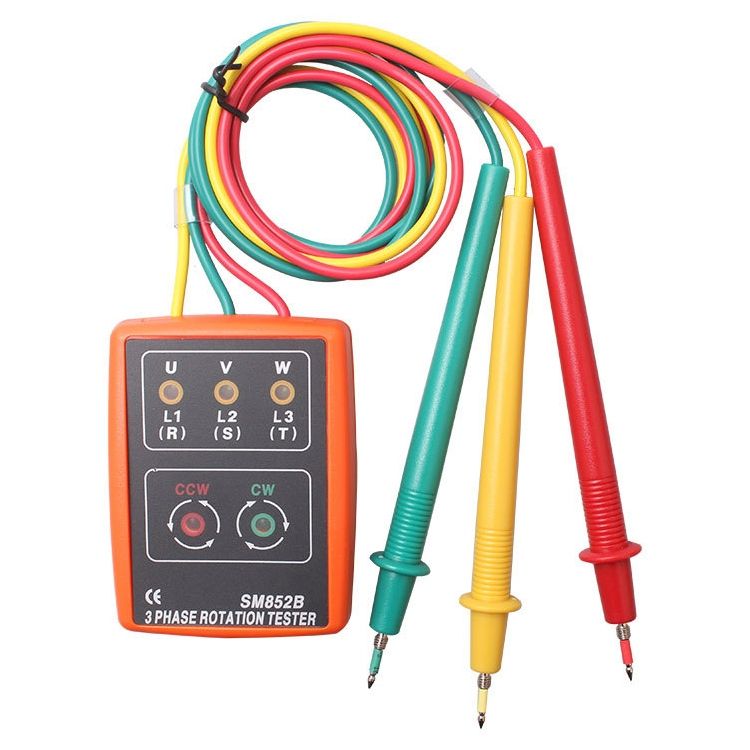

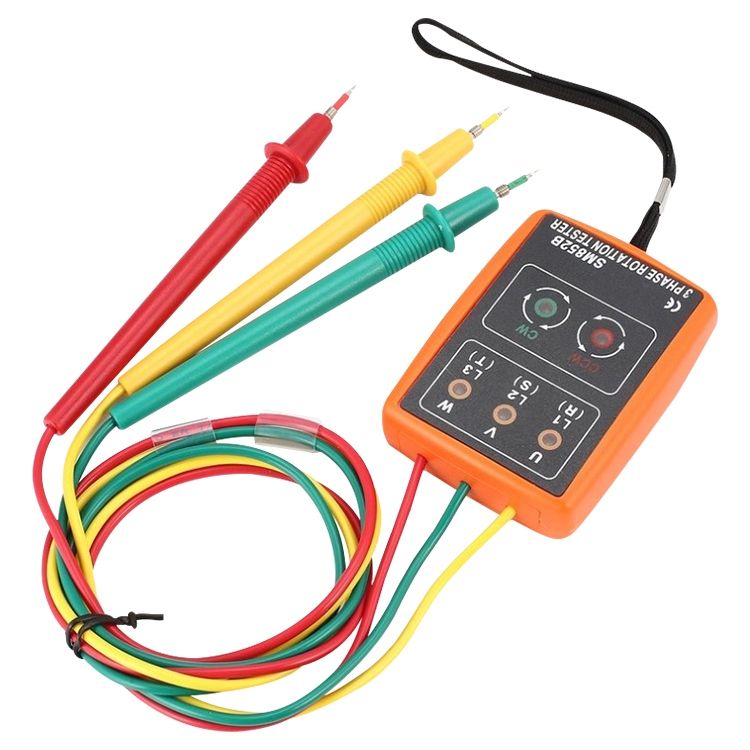

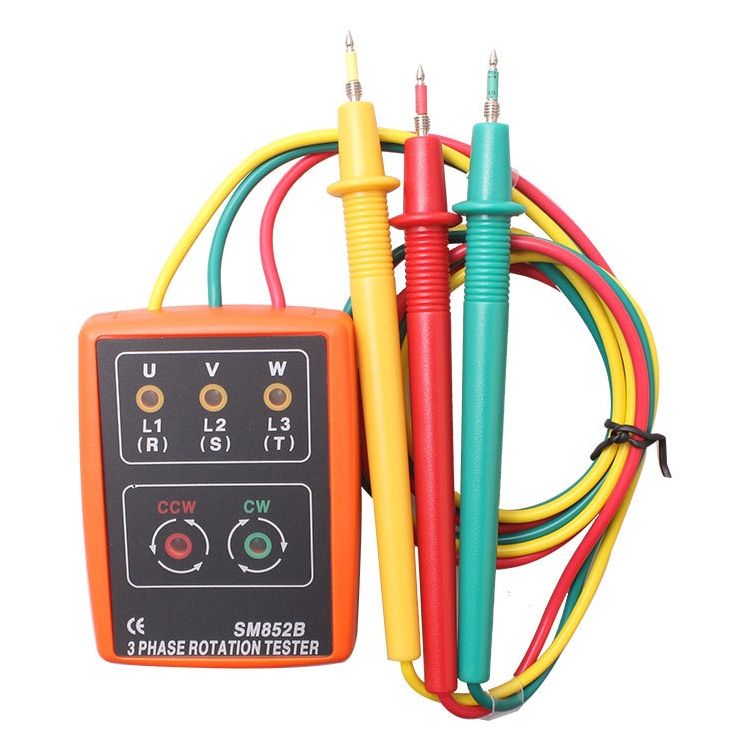

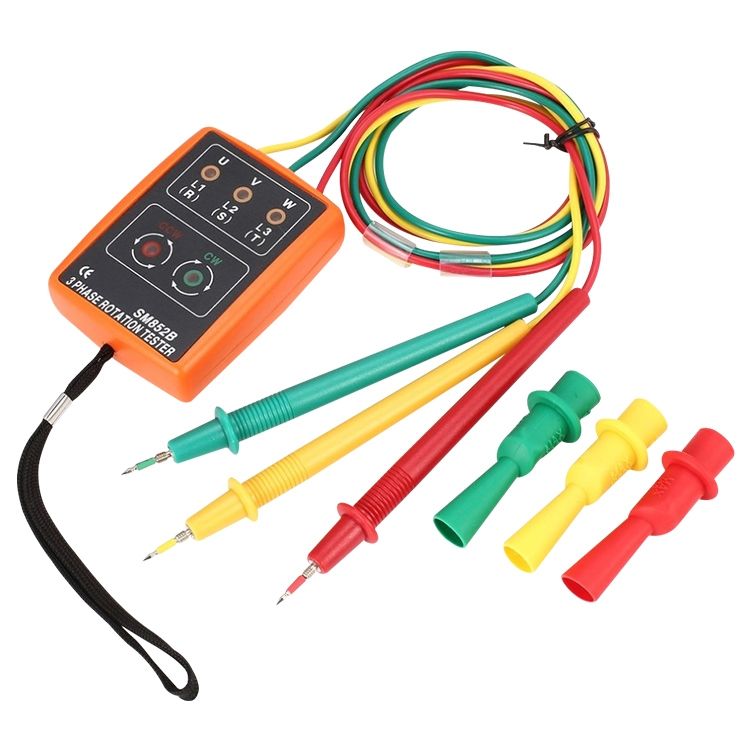

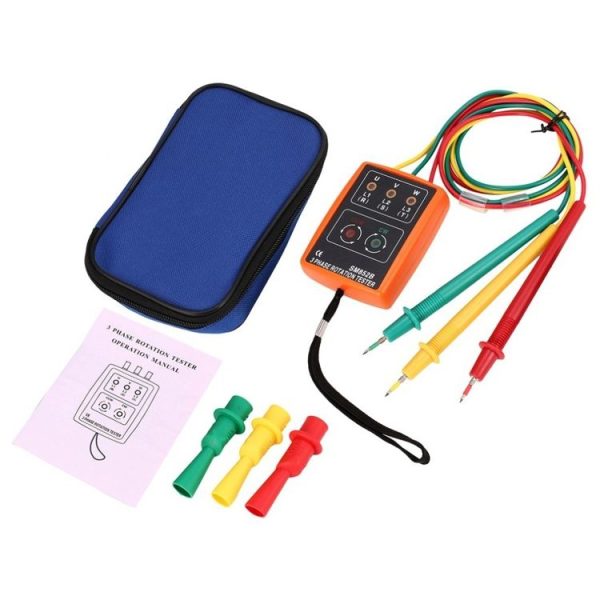

SM852B 3 Phase Rotation Tester Indicator Detector Meter (Orange)


R413

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. Description: It is used to measure the opening phase condition and order through LED and Buzzer.
2. Measuring frequency range:20Hz~400Hz
3. Operational Voltage:60V-600V (3 Phase AC)
4. Limit Support Voltage: 2000V/minute (impulse voltage 4000V)
5. Limit Time for continuous use:
– 60 minutes maximum at 200V AC
– 4 minutes maximum at 600V AC
6. Test Leads: Double insulation, with 67cm length (Approx.)

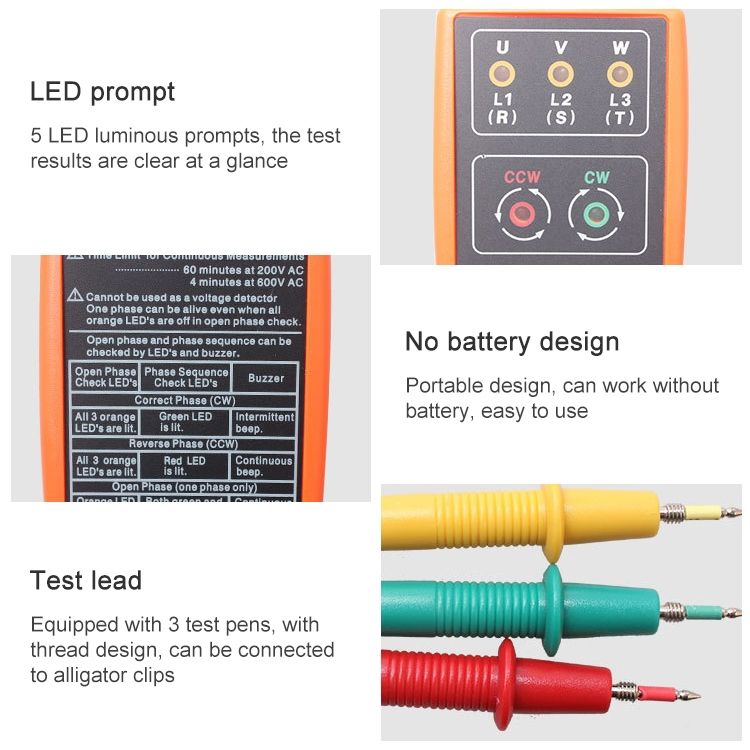

7. One unit with 2 functions: The instrument was designed to check the phase sequence, and at the same time it has LEDs to show you if the phase is open or not.
8. Alligator Clips: They can easily involve the terminals of the control panel to be tested, guaranteeing reliability and safety.
9. Highly reliable: It can check a large range of 60V to 600V AC three-phase. The instrument guarantee high reliance and performance.
10. Functional Design: Small, light and portable. It was designed to facilitate the operation to the maximum.
11. Dimensions: 85x64x23mm(Approx.)

Additional Information

Weight & Size

Weight: 0.253kg

SKU: A0100002062 Category: Condition: New
