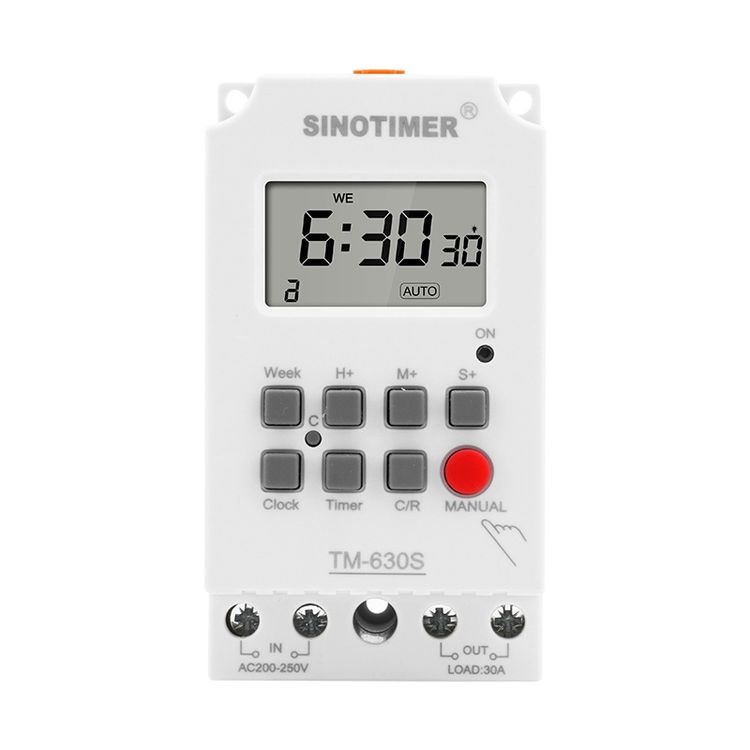

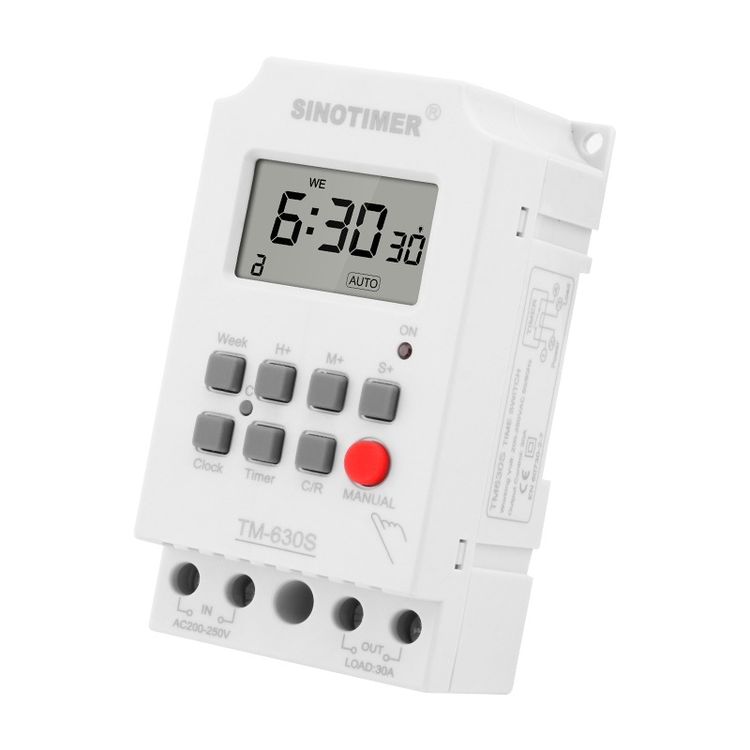

SINOTIMER TM630S-2 220V 30A Timer Switch 1 Second Interval Weekly Programmable Time Relay


R374

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. TM630S can automatically turn on and off various electrical equipment at preset times. It is widely used in 7-day programmable control of street lamps, neon lights (signs), lamps, water heaters, air conditioners, billboards, rice cookers, boosters, sprayers, bottlers, preheaters, agricultural facilities and broadcasting equipment, etc.
2. The digital timer switch has a built-in battery to save the program when the power is off. It has the characteristics of low power consumption, high precision of CMOS chip, strong anti-interference ability, simple and easy to set up, etc.
3. 5000 Watts / 30 Amps, 1NO
4. 24 hours / 7 days per week programmable

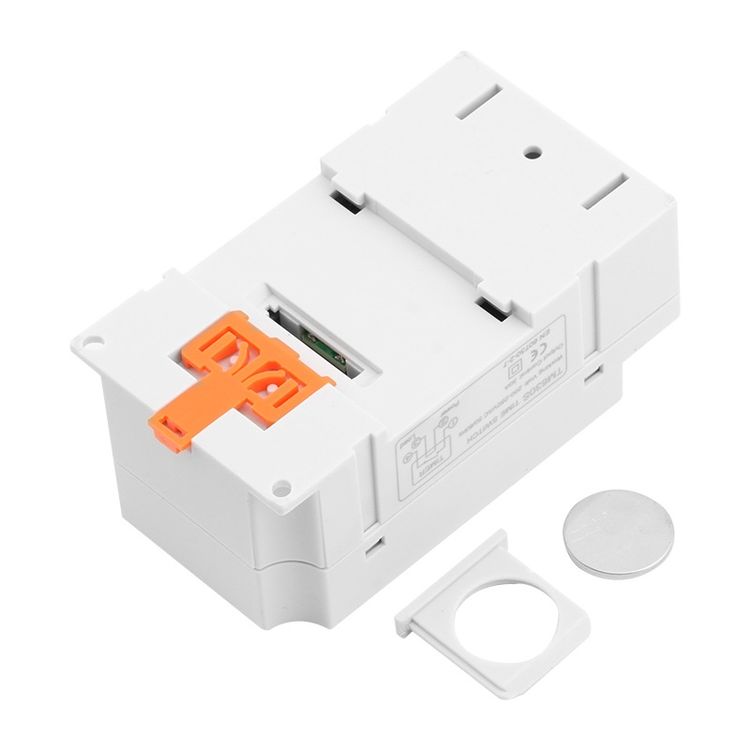

5. Internal battery to save memory in case of power failure
6. Automatic time error correction +/- 30 seconds per week
7. Repeating program with 28 on/off settings and manual on/off setting
Technical data:
1. Temperature range: -20 to 50 degrees Celsius
2. Power supply: 220V
3. Power consumption: 4.5 VA (max)
4. Display: LCD
5. Switch contacts: 1 changeover switch
6. Program: 28 on/off per day or per week
7. Hysteresis: 2 seconds / day (25 degrees Celsius)
8. Minimum interval: 1 second
9. Capacity: 30A 250V AC
10. Power failure: 60 days
11. Timing range: 1 second ~ 168 hours
12. Rechargeable battery: 3V
13. Average error: 1 second/24 hours, 25 degrees Celsius

Additional Information

Weight & Size

Weight: 0.159kg
Size: 12cm x 7cm x 7cm

SKU: A0100002593 Category: Tag: Condition: New
